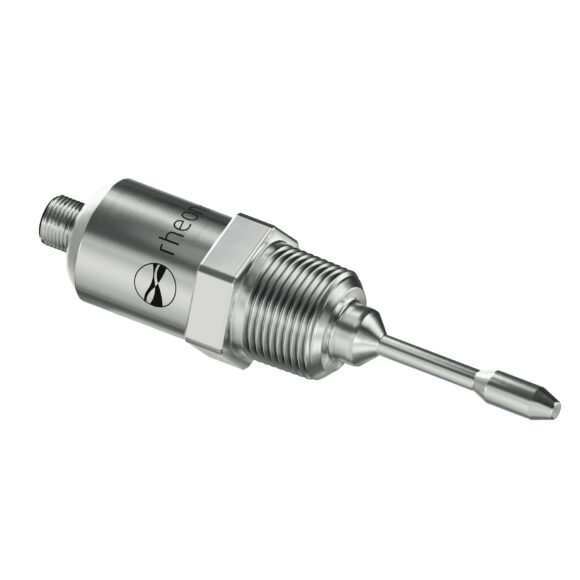

SRV
Wide-range inline process Viscometer
in-line, online, real-time fluid viscosity
- Compact form-factor for simple installation
- Real-time, stable, repeatable and reproducible measurements in Newtonian & non-Newtonian fluids
- Track viscosity change over wide range with one sensor
- All metal (316L Stainless Steel) construction
- Completely insensitive to mounting conditions
- Built in fluid temperature measurement
- Operational to 500 bar and 300°C (7500 psi, 575°F)
- Threaded, flanged and sanitary process fittings
- Easy to clean, no maintenance or re-configurations needed for scaling across the factory

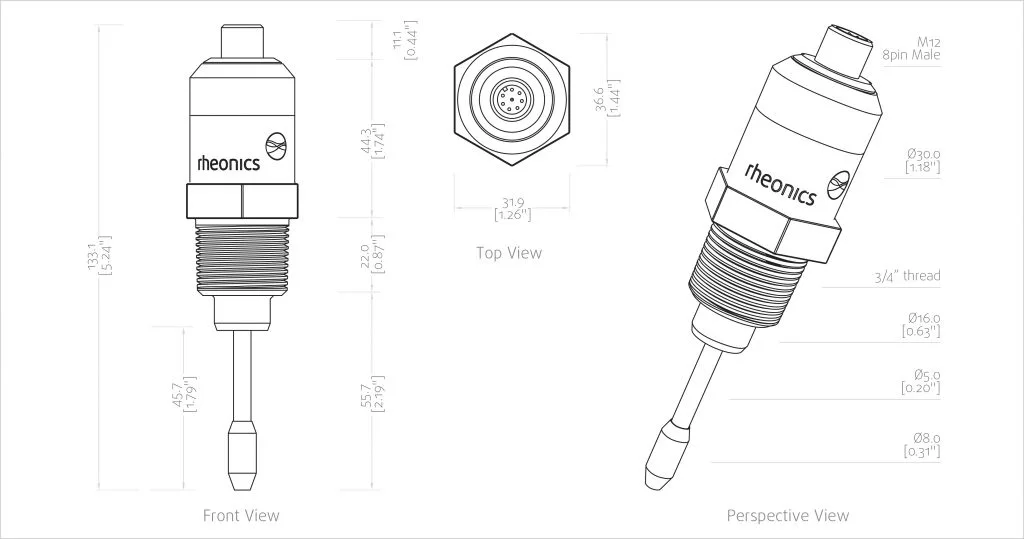

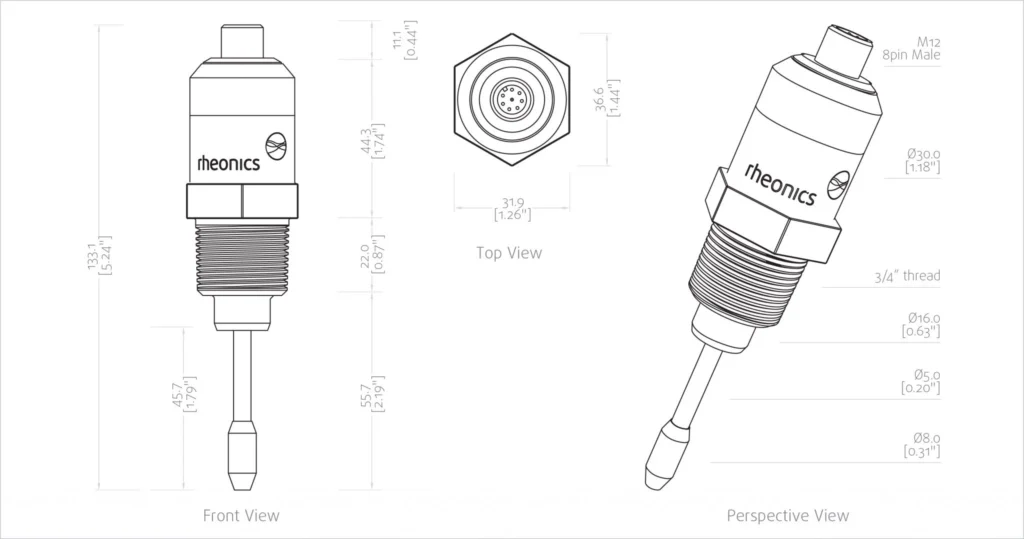

| Viscosity Range | 0.4 to 250,000+ cP |
| Viscosity Accuracy | 5% of reading (standard) 1% & higher accuracy available |
| Reproducibility | Better than 1% of reading |
| Temperature | Pt1000 (DIN EN 60751) |
| Process Fluid Temperature | -40 up to 300 °C (575°F) |
| Ambient Temperature | -40 up to 150 °C |
| Pressure Range | up to 7,500 psi (500 bar) |
- The rheonics SRV fluid viscometer measures viscosity by means of a torsional resonator, one end of which is immersed in the fluid under test.

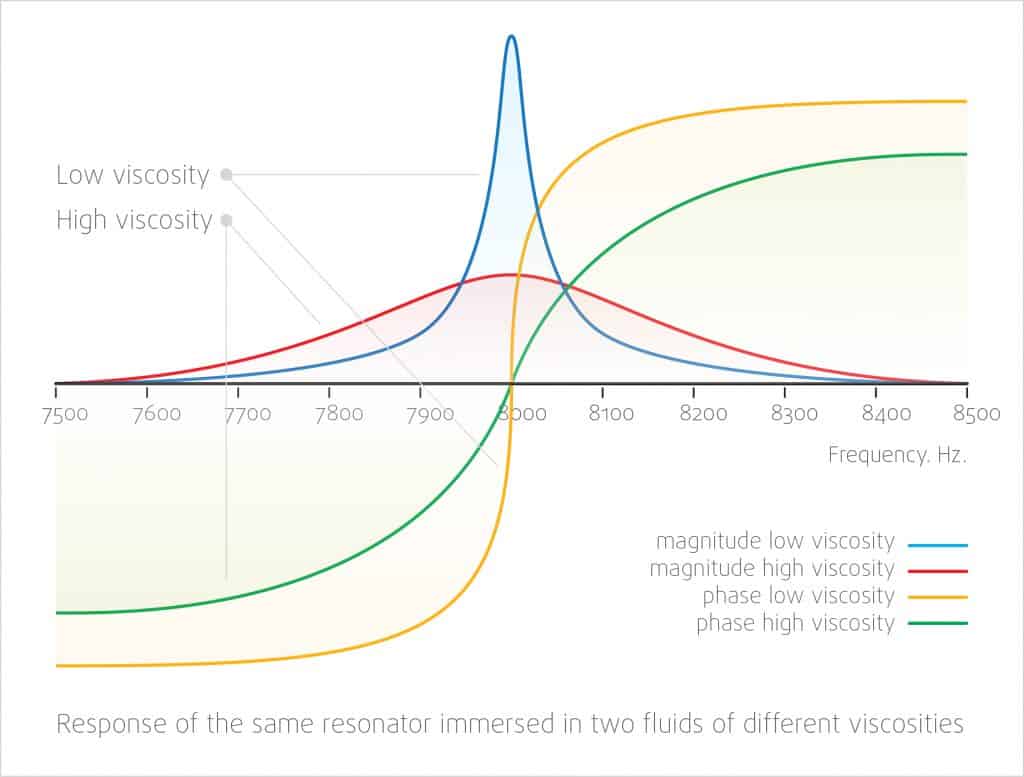

- The more viscous the fluid, the higher the mechanical damping of the resonator. By measuring the damping, the product of viscosity and density may be calculated by rheonics’ proprietary algorithms.
- The resonator is both excited and sensed by means of an electromagnetic transducer mounted in the sensor’s body.
- Damping is measured by the rheonics patented sensing and evaluation electronics and stable, high accuracy and repeatable readings are obtained based on rheonics’ proven gated phase-locked loop technology.
Sophisticated, patented 3rd generation electronics drive these sensors and evaluate their response. Ultra-fast and robust electronics, combined with comprehensive computational models, make SRVs one of the fastest and most accurate in the industry. SRV gives real time, accurate viscosity measurements every second and is not affected by flow variations! Embedded temperature sensor gives instantaneous inline fluid temperature.

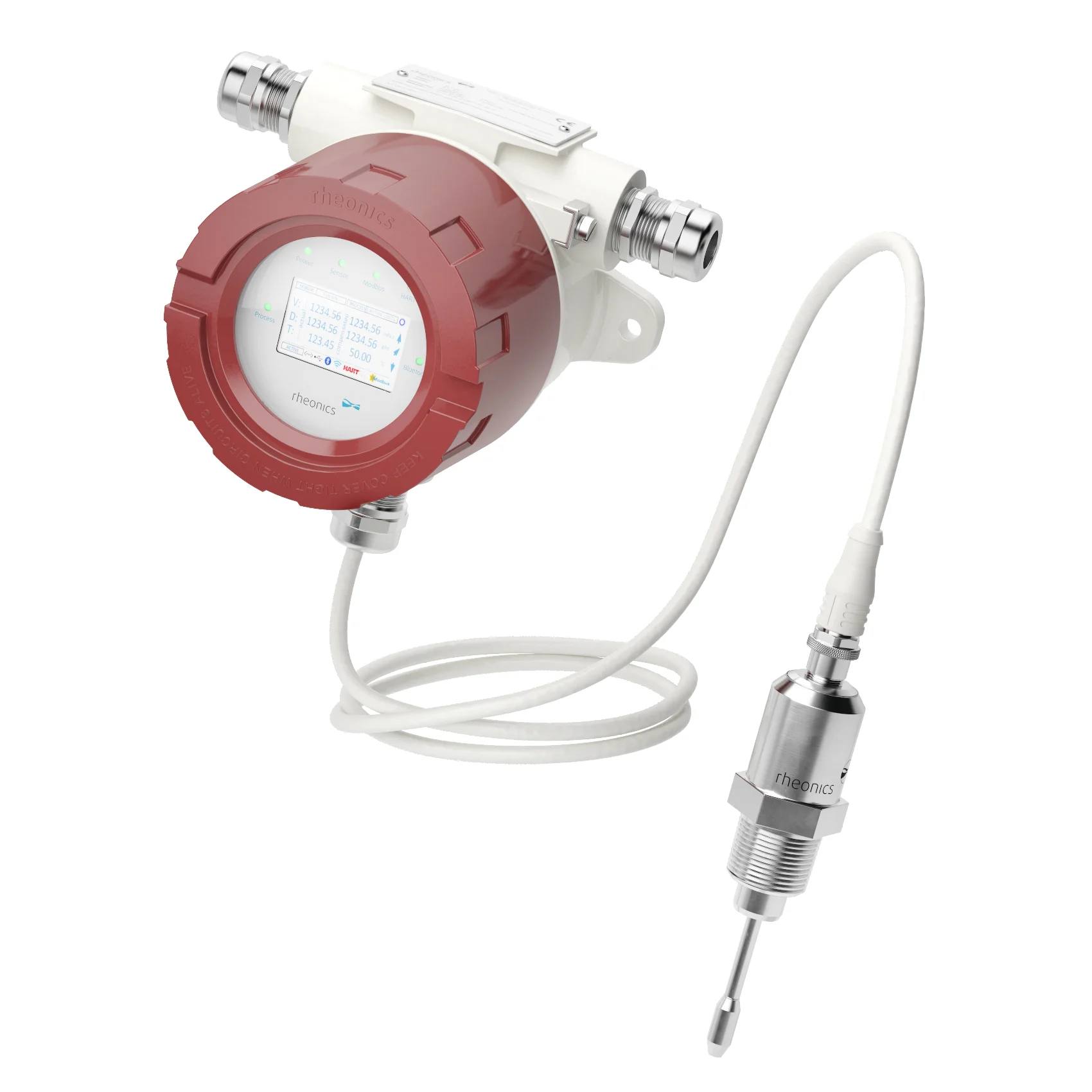

Communication
Acquire data in real-time. Transfer it to your computer or upload to the cloud
Standalone IP65 rated boxes to integrate into your system.
Standard PCB to integrate in your equipment panel box.
Next generation electronics in sensor head.
Ethernet, 4-20 mA, RS232 over USB.
CAN, Profinet, HART available for custom applications.
