Using real-time viscosity measurements in refinery operations for greater efficiency, agility and profitability

Processes in refineries where viscosity & density measurements and management play central role in refinery operations are the following:

  • Accurate blending operations
  • Refinery Oil Movement: Ensuring the right quality and quantity during transfers
  • Improving refinery operations: Process unit mass balances and loss control
  • Understanding the chemistry of crude oil blending for optimizations

An Overview of the Refining Process | Reference: American Petroleum Institute (


Crude oil availability and pricing is constantly changing. Under these circumstances, refinery producers’ task of maintaining or increasing capacity while reducing costs becomes ever more complex. As operators navigate the road to greater efficiency and profitability, they depend on receiving consistently accurate process measurement data in all applications.

Petroleum remains one of the most important hydrocarbons in global marketplace. It remains the primary source for liquid and transportation fuels, and a crucial entity for the polymerization industry. Viscosity is an important fluid characteristic for many reasons. It can be a functional property, or it can be correlated to an exclusive attribute. It can be related to utilization efficiency. More importantly, viscosity is an indication of how a fluid is handled—pumped, filtered and stirred.

Refinery - Viscosity and Density

Refining Processes and Products | Source: Valero Energy (

Refined Petroleum Products and Their Uses

Each refined petroleum product obtained from crude oil has a specific use:

  • Liquefied petroleum gas (LPG), also known as butane and propane, is used as an automotive fuel or packaged in bottles and used for household purposes.
  • Gasoline and diesel are used as fuels for motor vehicles.
  • Kerosene is used as jet fuel.
  • Naphtha is a major petrochemical feedstock.
  • Heating oil is used to heat
  • Base oils are used to make lubricants.
  • Asphalt, sometimes called bitumen, is used to pave roads.


Crude oil is classified as light or heavy oil based on different physical properties, such as molecular weight, viscosity, density, and API gravity. Viscosity and density play very important roles in oil production, transportation through pipelines, and oil recovery processes.

Viscosity is one of the most critical measurement performed in a refinery. All customers buy refinery products distinguished by their viscosity grades, based on internationally accepted norms such as ASTM. Viscosity is central to determination of product quality. Also, it is critical to protection of process machinery such as pumps and compressors.

Refined products have been defined by their viscosity. Methods and technologies have been developed over time to give operators more control over their operations. Today, improvements in the measurement and control of viscosity are leading to massive increases in profitability for refiners. The difficulty and high costs of viscosity and density measurements at reservoir conditions are the main reasons for the lack of such data at other temperatures. Additionally, viscosity and density are important guidelines for numerical simulations to determine the economics and success of the Enhanced oil recovery (EOR) project.

Refinery Processes

Stages of processing in refinery

Petroleum refineries change crude oil into petroleum products for use as fuels for transportation, heating, paving roads, and generating electricity and as feedstocks for making chemicals.

Refining breaks crude oil down into its various components, which are then selectively reconfigured into new products. Petroleum refineries are complex and expensive industrial facilities. All refineries have three basic steps:

  • Separation
  • Conversion
  • Treatment


The lightest fractions, including gasoline and liquefied refinery gases, vaporize and rise to the top of the distillation tower, where they condense back to liquids.

Medium weight liquids, including kerosene and distillates, stay in the middle of the distillation tower.

Heavier liquids, called gas oils, separate lower down in the distillation tower, while the heaviest fractions with the highest boiling points settle at the bottom of the tower.


After distillation, heavy, lower-value distillation fractions can be processed further into lighter, higher-value products such as gasoline. The fractions from the distillation units are converted into intermediate components that ultimately become finished products.


To make gasoline, refinery technicians carefully combine a variety of streams from the processing units. Octane level, vapor pressure ratings, and other special considerations determine the gasoline blend.

Storage: Both incoming crude oil and the outgoing final products are stored temporarily in large tanks on a tank farm near the refinery. Pipelines, trains, and trucks carry the final products from the storage tanks to other locations across the country.

Where do viscosity measurements add value in the chain?

Broadly the processes in refineries where viscosity measurements and management play central role in refinery operations are the following:

  • Blending
  • Transfers/Transportation
  • Detection
  • Metering
  • R&D, Blending Chemistry

Accurate blending operations

Blending is the mixing of crude oils, condensates, or bitumen – all with varying properties and values – into one stream to make a new type of crude oil better suited for transport and refinery processing. The blending operation in refinery has many considerations. It is driven by –

  • wellhead production volumes & quantities;
  • logistics i.e. moving volumes to market using pipe, rail, barge;
  • refinery feed slate requirements and process unit configurations.

The primary concern is the accurate proportions of each product blended into any given recipe. This blend accuracy depends on many variables within the system. The primary measuring device determines the overall system accuracy; thus, meter selection is of great importance.

Blending two or more crude oils to achieve the right balance of feed qualities can introduce unknown issues with crude incompatibilities. This in turn can introduce accelerated fouling, and thus additional energy costs with the crude unit fired heater and potential earlier shutdown for exchanger cleaning.


More often than not, it can be very difficult to differentiate between a leak and acceptable deviations from the model due to changing conditions in the pipeline, measurement errors and changes with temperatures and pressures. Reliable instrumentation is required to detect any change in the process stream and to enable operator to react effectively to any such change. There are several benefits with using instrumentation to monitor properties of blend in real-time and suitably choosing corrective interventions when necessary:

  • Improvement in refinery specific product yields when processing shale oils and bitumen
  • Suitable end-point detection of the mixing/blending operations to conserve energy and ensure quality
  • Consistent feed stream quality to refineries processing unconventional heavy crude oils and domestic shale oils.
  • More agility in dealing with variants: Using the crude oil and bitumen pricing variations in the market to advantage.
  • Reduction in associated fouling and corrosion with improved emulsion level detection.
  • Blending quality control with real time process automation instruments can reduce refinery upgradation needs.

Refineries utilize in-line viscosity measurements to enhance production consistency. The viscometer is located in a bypass line of a mainline, and is used to maintain the diluent addition to achieve the ideal customer specification the first time. Refineries using analyser driven blending system have capabilities to determine important properties of each crude oil. This enables blending adjustments to be made that can impact desired product quality and quantities. Scheduling is also improved by having visibility into incoming crude characteristics and additional onsite analysis before being charged to the crude unit.

Refinery Oil Movement: Ensuring the right quality and quantity during transfers

Custody transfer refers to the transactions involving transporting physical substance from one operator to another. Quality control during such operations is useful for assurance of the parties involved in the transaction.

Crude oil production must meet specific density, viscosity, and water cut specifications for custody transfer defined by pipeline companies. Not meeting these conditions prior to shipping can lead to significant reprocessing fees and operation downtime. Engineers are looking for complete solution that enables accurate compliance measurement. They need to ensure crude oil quality meets or exceeds all required process conditions before shipment leaves the facility or custody transfer point.

Onshore metering is one of the terminal activities where quality compliance with viscosity and density measurements are useful. When the crude oil comes ashore, it is metered. This impacts taxation or custody transfer payments. Comparable systems are used between buyer and seller and data is compared. Transfers between platform, pipeline and onshore storage & distribution are measurement opportunities, since each buyer wants to be sure of what has been supplied. Density measurements are useful for these estimations and calculations.

The major consideration for metering systems is the meter type for the application, with the primary factor for selecting a meter being viscosity and air vulnerability. Other influences need to be considered such as piping, vibrations, electrical installation, flow conditioning, chemical compatibility, system hydraulics, and past experience. A complete list of equipment choices includes the meter, strainer, control valve, and an air elimination system, which requires significant consideration as it must prevent any air from entering the metering system.

Improving refinery operations: Process unit mass balances and loss control

Process unit mass balances can be a challenge due to measurement errors. Without accurate measurement, real losses cannot be identified and optimization models become unreliable. Many refiners rely on volumetric and lab density measurements for their balances even though both measurements are impacted by changing process conditions. Inline density meter significantly improve balances by measuring online density, which can replace lab density measurements to give a more accurate calculation.

Understanding the chemistry of crude oil blending for optimizations

 In addition to the proper infrastructure for blending at the terminal, understanding the chemistry of crude oil blending is critical. There are approximately 150+ crude oils traded internationally and these crude oils vary in characteristics, quality and properties. Crude oils, bitumen, and condensate blending operations depend on their physical and chemical properties to meet the refiner’s specifications.

Viscosity and density are important physical properties of crude oil. However, there is dearth of practical models for the calculation of these properties for heavy oil at elevated temperatures. Viscosity and density meters can enable engineers to obtain exact models that can successfully predict these two important fluid properties and optimize blending processes for different fluids across a wide range of temperatures.

On-line characterization of crude oil qualities provides an effective tool to utilize crude oils to receive the highest refining margin at lowest cost. This obliges refineries and blending stations frequently to change the crude oil quality, according to the refinery equipment and the global market prices of different crude oils.

Leak Detection and Power Consumption Optimization with continuous online viscosity measurements

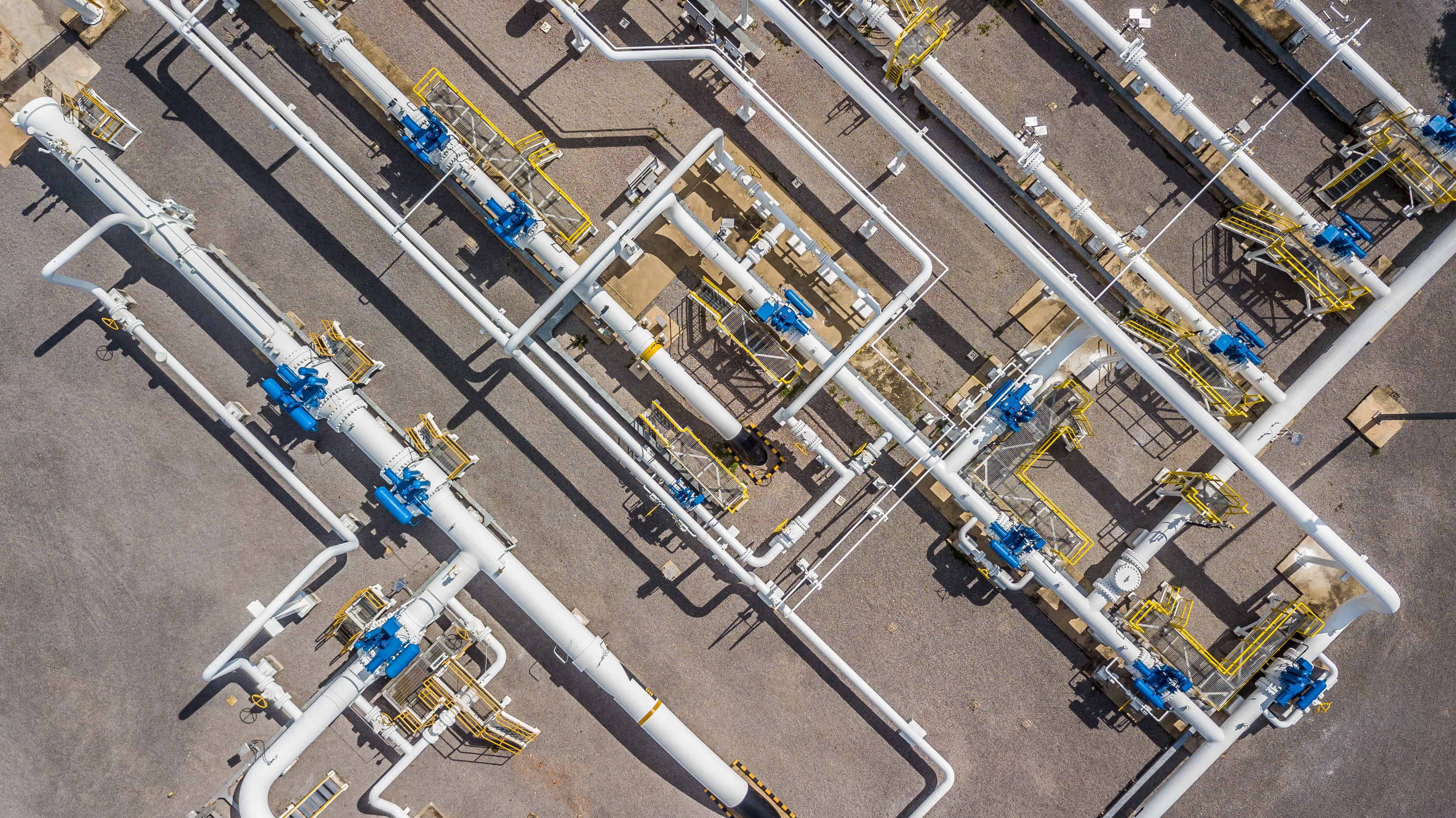

Using viscosity measurements for power optimization and leak detection in crude oil pipelines

Rapid detection of pipeline leaks is crucial in preventing environmental disasters and protecting operators & investors from the financial and regulatory fallout which would follow. It is a tremendous responsibility and managing leaks in large crude oil pipelines is no easy task. It requires highly trained engineers, reliable instrumentation and most essentially the ability of both to quickly respond. Complicating the job of leak detection are a variety of factors from the length of the pipeline systems, which can be hundreds or thousands of miles, to the variety of products being transported with varying viscosities and inside piping with different diameters. Identifying what is a leak from what is a normal change in process conditions is difficult, but essential. The success depends on speed and accuracy.

 Pipeline operators and leak detection groups use a material balance system (MBS), where many conditions and parameters are monitored to make sure conditions entering the system are the same as those leaving the system. This MBS is compared against a known model of the pipeline. More often than not, it can be very difficult to differentiate between a leak and acceptable deviations from the model due to changing conditions in the pipeline, measurement errors and changes with temperatures and pressures. This means collecting and analysing real-time data and using reliable models to design corrective action sequence is absolutely necessary.

Leak Detection System (Real Time Transient Model based methods) significantly benefit from online viscosity monitoring devices to deliver leak alerts, leak rates and leak positions. Viscosity data enables a more accurate calculation of pressure profiles and fluid property tracking. This is particularly true for crude oils, where the fluid properties can significantly differ from one field to another. Continuous viscosity data tracking can also aid in the improvement of pump selection for optimized performance and management of power consumption.

Optimized-Refinery (1)

Value of Inline viscometers in refining petroleum products – Case of Asphalt, Lube Oils and Combustion Products


Customer specifications vary with region, since roads are subject to radically different environments. The raw material for making asphalt is basically the leftover items in the crude oil barrel after high value products have been extracted or refined. That material can be very non-homogenous, and can vary radically in make-up from barrel to barrel depending on the source of the crude. Customer specs are based on international standard test methods that are done periodically throughout production, and the process is adjusted based on the test results. The material is then tested in the storage tank, and re-blended to meet the exact customer specifications.

Unfortunately, the asphalt characteristics can vary significantly between lab tests and the lab measurements only provide information about the process fluid in a snapshot of time. This can require significant post-process blending to meet customer specifications. Alternatively, refineries utilize in-line measurements to enhance production consistency.

Lubrication Oil Refineries

All lubrication oils are graded and sold based on their viscosity characteristics. Viscosity is the measure of a fluid’s resistance to flow, so the ideal lubricant is frequently one that keeps moving parts separated at the lowest viscosity possible. The industry typically uses VI, or viscosity index to characterize lubricants. Highly precise viscosity measurements are required for lubricant production. Obvious cost advantages exist from producing lubricants with the specified characteristics the first time rather than trying to blend them in later. Meeting laboratory results in-line typically requires process instruments to be installed in a by-pass line that is conditioned for constant temperature, flow, and with particulate filtering. In-process viscometers provide great accuracy and matches the lab results for most of these lube oils.

For higher accuracy, temperature compensated density information can be even more critical and suitable alternative to using ‘dual-viscometers’. Achieving these results requires viscometers that are extremely accurate and extraordinarily reliable in the wide variety of environmental conditions to which refineries are subject.

The profitability of in-line control for lubricant production is significant. At some refineries, it takes 4-12 hours to realize and correct off-spec production. This can cost a refiner $150,000 per off-spec occurrence for a low value material (e.g., asphalt) and up to up to $500,000 for a high value material (e.g., lube oils). Installation of an in-line viscometer, on the other hand, is a one time and much lower cost. In addition to this savings, maintaining tighter control on their lube oil viscosity results in production improvement and increased revenues per line per year.

Combustion products

Precise control of the fuel viscosity is important as well. Viscosity controls the droplet size in fuel atomization, which is essential for efficient combustion. This includes fuels ranging from heavy fuel oil to diesel and gasoline plus jet fuels. Real time monitoring enables the meeting of tight regulatory standards and provides audit trail confirmation of the product quality.

Issues with traditional approach

For viscosity measurements in refineries, off-line measurement using the ASTM-D445 method is the traditional approach. Apart from the manual tasks and intensive maintenance involved, there is some major drawback to using the capillary tubes in the lab. They only give a snapshot of a very specific instant in time; the moment the sample was drawn. Real-time production fluid behaviors are not accurately characterized by lab measurements. When measurements are done in ever 8-12 hours, there is always a chance of missing something. Returning to on-spec performance in refinery processes can take at least 10 hours, once control over the process is lost. Refiners can burn through $100,000+ to $500,000 per occurrence.

Drawbacks with separate instruments for density and viscosity

Operators typically use 2 different instruments to measure density and viscosity. There are major issues in using two separate instruments:

  • Most traditional instruments used for density and viscosity measurement need separate fluid samples for analysis, using up large quantities of an extremely valuable fluid sample that cannot be reused
  • Same temperature and pressure conditions are harder to achieve in two separate instruments leading to measurement errors
  • Difficult to co-locate large, bulky density meters and viscometer due to space and mounting constraints
  • Needs significant integration work in hardware and software to synchronize measurement data and ensure compliance

In refinery applications where producing off-spec material can cost hundreds of thousands of dollars per day, refiners are increasingly relying on real time continuous in-line measurements to extend traditional off-line lab tests to assure product quality. Technologies are commonly used for in-line viscosity measurements: capillary, vibrational and oscillating piston. All require conditioning of the fluid being tested so that it is as consistent as the lab samples are in terms of temperature, flow, and particles. The ROI for in-line viscosity control is measured in days for asphalts and lubrications oils. Rheonics’ torsional resonator principle is the preferred technology of in-line viscometers due to its inherent accuracy and reliability advantages over competing approaches. For refinery operations hard pressed to keep up with demand, this difference is critical.

Rheonics’ Solutions for Quality control and assurance of refinery processes

Automated in-line viscosity measurement and control is crucial to control the viscosity during blending and ensure critical characteristics are in full compliance with requirements across multiple batches, without having to rely on offline measurement methods and sample taking techniques. Rheonics offers the following solutions for process control and optimization in the formulation, processing, scale-up and testing.

Viscosity & Density Meters

  1. In-line Viscosity measurements: Rheonics’ SRV is a is a wide range, in-line viscosity measurement device capable of detecting viscosity changes within any process stream in real time.
  2. In-line Viscosity and Density measurements: Rheonics’ SRD is an in-line simultaneous density and viscosity measurement instrument. If density measurement is important for your operations, SRD is the best sensor to cater to your needs, with operational capabilities similar to the SRV along with accurate density measurements.

Integrated, turnkey quality management for refinery operations

Rheonics offers an integrated turn-key solution for quality management made of:

  1. In-line Viscosity measurements: Rheonics’ SRV – a wide range, in-line viscosity measurement device with in-built fluid temperature measurement
  2. Rheonics Process Monitor: an advanced predictive tracking controller to monitor and control in real-time variations of process conditions
  3. Rheonics RheoPulse with automatic dosing: A Level 4 autonomous system that ensures no compromise with set limits of viscosity and automatically activates by-pass valves or pumps to adaptively dose mixture components

The SRV sensor is located in-line so it continuously measures the viscosity (and density in case of SRD). Alerts can be configured to notify operator of necessary action or the entire management process can be fully automated with RPTC (Rheonics Predictive Tracking Controller). Using an SRV in the blending process line, results in improved productivity, profit margins and achieves regulatory conformance. Rheonics sensors have a compact form factor for simple OEM and retrofit installation. They require zero maintenance or re-configurations. The sensors offer accurate, repeatable results no matter how or where they are mounted, without any need for special chambers, rubber seals or mechanical protection. Using no consumables and not requiring re-calibration, SRV and SRD are extremely easy to operate resulting in extremely low lifetime running costs.

Once the process environment is established, there is usually little effort required to maintain the integrity consistency of the systems – operators can rely on the tight control with Rheonics refinery quality management solution.

Refineries can make the best use of advances in automation technology by Rheonics

Rheonics automation systems include features beyond the legacy systems such as embedded advanced process control algorithms, statistical monitoring, smart device monitoring and asset health monitoring. They bring the process and asset condition data to both operations and maintenance, enabling new and efficient ways to integrate work processes and improve timeliness and accuracy of decisions.

Rheonics' Advantage

Compact form factor, no moving parts and require no maintenance

Rheonics’ SRV and SRD have a very small form factor for simple OEM and retrofit installation. They enable easy integration in any process stream. They are easy to clean and require no maintenance or re-configurations. They have a small footprint enabling Inline installation in any process line, avoiding any additional space or adapter requirement.

High stability and insensitive to mounting conditions: Any configuration possible

Rheonics SRV and SRD use unique patented co-axial resonator, in which two ends of the sensors twist in opposite directions, cancelling out reaction torques on their mounting and hence making them completely insensitive to mounting conditions and flow rates. Sensor element sits directly in the fluid, with no special housing or protective cage requirements.

Sensor_Pipe_mounting Mounting - Pipes
Sensor_Tank_mounting Mounting - Tanks

Instant accurate readouts on production quality – Complete system overview and predictive control

Rheonics’ RheoPulse software is powerful, intuitive and convenient to use. Real-time process fluid can be monitored on the integrated IPC or an external computer. Multiple sensors spread across the plant are managed from a single dashboard. No effect of pressure pulsation from pumping on sensor operation or measurement accuracy. No effect of vibration.

Inline measurements, no bypass line is needed

Directly install the sensor in your process stream to do real time viscosity (and density) measurements. No bypass line is required: the sensor can be immersed in-line; flow rate and vibrations do not affect the measurement stability and accuracy.


Easy installation and no reconfigurations/recalibrations needed – zero maintenance/down-times

In the unlikely event of a damaged sensor, replace sensors without replacing or re-programming electronics. Drop-in replacements for both sensor and electronics without any firmware updates or calibration changes. Easy mounting. Available with standard and custom process connections like NPT, Tri-Clamp, DIN 11851, Flange, Varinline and other sanitary and hygienic connections. No special chambers. Easily removed for cleaning or inspection. SRV is also available with DIN11851 and tri-clamp connection for easy mounting and dis-mounting. SRV probes are hermetically sealed for Clean-in-place (CIP) and supports high pressure wash with IP69K M12 connectors.

Rheonics instruments have stainless steel probes, and optionally provide protective coatings for special situations.

Low power consumption

24V DC power supply with less than 0.1 A current draw during normal operation.

Fast response time and temperature compensated viscosity

Ultra-fast and robust electronics, combined with comprehensive computational models, make Rheonics devices one of the fastest, versatile and most accurate in the industry. SRV and SRD give real-time, accurate viscosity (and density for SRD) measurements every second and are not affected by flow rate variations!

Wide operational capabilities

Rheonics’ instruments are built to make measurements in the most challenging conditions.

SRV is available with the widest operational range in the market for inline process viscometer:

  • Pressure range up to 5000 psi
  • Temperature range from -40 up to 200°C
  • Viscosity range: 0.5 cP up to 50,000 cP (and higher)

SRD: Single instrument, triple function – Viscosity, Temperature and Density

Rheonics’ SRD is a unique product that replaces three different instruments for viscosity, density and temperature measurements. It eliminates the difficulty of co-locating three different instruments and delivers extremely accurate and repeatable measurements in harshest of conditions.

Manage blending more efficiently, cut down costs and enhance productivity

Integrate an SRV in the process line and ensure consistency over the years. SRV constantly monitors and controls viscosity (and density in case of SRD) and activates valves adaptively for dosing the mixture constituents. Optimise the process with an SRV and experience fewer shutdowns, lower energy consumption, lesser non-compliances and material cost savings. And at the end of it all, it contributes to a better bottom line and a better environment!

Superior sensor design and technology

Sophisticated, patented electronics is the brain of these sensors. SRV and SRD are available with industry standard process connections like ¾” NPT, DIN 11851, Flange and Tri-clamp allowing operators to replace an existing temperature sensor in their process line with SRV/SRD giving highly valuable and actionable process fluid information like viscosity besides an accurate measurement of temperature using an in-build Pt1000 (DIN EN 60751 Class AA, A, B available).

Electronics built to fit your needs

Available in both a transmitter housing and a small-form factor DIN rail mount, the sensor electronics enables easy integration into process lines and inside equipment cabinets of machines.

Explore electronics and communication options

Easy to integrate

Multiple Analog and digital communication methods implemented in the sensor electronics makes connecting to industrial PLC and control systems straightforward and simple.

Analog and Digital Communication Options

Analog and digital communication options

Optional Digital Communication Options

Optional digital communication options

ATEX & IECEx Compliance

Rheonics offers intrinsically safe sensors certified by ATEX and IECEx for use in hazardous environments. These sensors comply with the essential health and safety requirements relating to the design and construction of equipment and protective systems intended for use in potentially explosive atmospheres.

The intrinsically safe and explosion proof certifications held by Rheonics also allows for customization of an existing sensor, allowing our customers to avoid the time and costs associated with identifying and testing an alternative. Custom sensors can be provided for applications that require one unit up to thousands of units; with lead-times of weeks versus months.

Rheonics SRV & SRD are both ATEX and IECEx certified.

SRV EX Assembly 01
SRV EX Assembly 01
SRD EX Assembly 01
SRV EX Assembly 01SRD EX Assembly 01

ATEX (2014/34/EU) Certified

Rheonics’ ATEX certified Intrinsically Safe sensors comply with ATEX Directive 2014/34/EU and are certified for Intrinsic Safety to Ex ia. The ATEX directive specifies minimum and essential requirements related to health and safety to protect workers employed in hazardous atmospheres.

Rheonics’ ATEX certified sensors are recognized for use within Europe and internationally. All ATEX certified parts are marked with “CE” to indicate compliance.

IECEx Certified

Rheonics’ intrinsically safe sensors are certified by IECEx, the International Electrotechnical Commission for certification to standards related to equipment for use in explosive atmospheres.

This is an international certification that ensures safety compliance for use in hazardous areas. Rheonics sensors are certified for Intrinsic Safety to Ex i.


Directly install the sensor in your process stream to do real-time viscosity and density measurements. No bypass line is required: the sensor can be immersed in-line; flow rate and vibrations do not affect the measurement stability and accuracy. Optimize mixing performance by providing repeated, consecutive, and consistent tests on the fluid.

In-line Quality control locations

  • In tanks
  • In the connecting pipes between various processing containers


SRV Viscometer OR an SRD for additional density

Rheonics Instrument Selection

Rheonics designs, manufactures and markets innovative fluid sensing and monitoring systems. Precision built in Switzerland, Rheonics’ in-line viscometers and density meters have the sensitivity demanded by the application and the reliability needed to survive in a harsh operating environment. Stable results – even under adverse flow conditions. No effect of pressure drop or flow rate. It is equally well suited to quality control measurements in the laboratory. No need to change any component or parameter to measure across full range.

Suggested product(s) for the Application

  • Wide viscosity range – monitor the complete process
  • Repeatable measurements in both Newtonian and non-Newtonian fluids, single phase and multi-phase fluids
  • Hermetically sealed, all stainless steel 316L wetted parts
  • Built in fluid temperature measurement
  • Compact form-factor for simple installation in existing process lines
  • Easy to clean, no maintenance or re-configurations needed
  • Single instrument for process density, viscosity and  temperature measurement
  • Repeatable measurements in both newtonian and non-newtonian fluids, single phase and multi-phase fluids
  • All metal (316L Stainless Steel) construction
  • Built in fluid temperature measurement
  • Compact form-factor for simple installation in existing pipes
  • Easy to clean, no maintenance or re-configurations needed
