in-line, online, real-time viscosity & density meter for viscous, abrasive, sticky slurry
- Sensor probe with self-cleaning harmonics
- Eliminates need for removal and cleaning
- Continuous monitoring without concern for deposits
- Measures reliably in the most deposition prone slurries
- Major step towards Industry 4.0 compliance
- Eliminates manual plate-weight or efflux cup measurements
| Density Range (SRD only) | 0.0 - 4.0 g/cc 0.0 - 4000 kg/m3 0.0 - 33.38 lb/gal |
| Density Accuracy (SRD only) | 0.01 g/cc (0.001 g/cc & higher accuracy available) |
| Viscosity Range | 1 to 3,000 cP (SRD) 1 to 200,000cP (SRV) Wider range available |
| Viscosity Accuracy | 5% of reading (standard) 1% & higher accuracy available |
| Reproducibility | Better than 1% of reading |
| Temperature | -20 to 65 °C (-5 to 150 °F) |
| Material | Stainless Steel 316L |
| Sealing Material | Cleanwave - Sensor FKM (Fluoroelastomer, FPM, and Viton) |
| Total Length | Customizable |
| Installation Accessories | Mounting Base Installation Connection Adapters |
| Air Line Size | 6 mm |
| Air Line Pressure | 2-6 bar (30-90 psi) |
CleanWaveTM technology is integrated with Rheonics inline viscometer or Rheonics inline density meter and viscometer to create SlurrySense, a measurement probe that prevents deposits from forming using an inbuilt vibrator. The CleanWaveTM vibrations can be used continuously or intermittently to, respectively, prevent or slough off deposits. With the sensor probe cleanness maintained, the Rheonics inline viscometer or Rheonics inline density meter and viscometer can continuously provide reliable consistency readings without the need for operator cleaning interventions.
English Video Explanation:
Japanese Video Explanation:
Chinese Video Explanation:
| Title | Summary | Link | File Category | Products | Tags | Type | document_categories_hfilter | tags_hfilter |
|---|---|---|---|---|---|---|---|---|
| Manual – SlurrySense | SlurrySense Operator Manual | Manuals | SlurrySense, Augmented Instruments | manuals | ||||
| Self-cleaning viscometer and density meter | Slurrysense with Cleanwave | Videos | Augmented Instruments, SlurrySense | videos | ||||
| Article – Automated Slurry Monitoring for Investment Casting – INCAST April 2026 | Technical article published in the INCAST April 2026 issue covering automated inline slurry viscosity and density monitoring, shell quality improvement, and labor efficiency in investment casting operations. | Publications | Augmented Instruments, SlurrySense | publications | ||||
| SlurrySense – Banner | Self-cleaning density and viscosity sensor for slurry | Banners | SlurrySense, Augmented Instruments | banners | ||||
| Article – Rheonics SlurrySense – INCAST 2025 | SlurrySense product article, presented in INCAST 2025 | Publications | Augmented Instruments, SlurrySense | publications | ||||
| Presentation Deck – Rheonics SlurrySense – EICF 2025 | SlurrySense product deck describing operation and data examples, presented in EICF 2025 | Information and Training Decks | Augmented Instruments, SlurrySense | training-deck | ||||
| Flyer – Rheonics SlurrySense Product Launch | Rheonics SlurrySense Product Launch Flyer | Datasheets & Brochures | Augmented Instruments, SlurrySense | datasheets | ||||
| Flyer – Rheonics SlurrySense Technical Information | Rheonics SlurrySense Product Technical Flyer |
| Datasheets & Brochures | Augmented Instruments, SlurrySense | datasheets | |||
| Drawing – Rheonics SlurrySense SRD | 2D drawing of Rheonics SlurrySense SRD and mounting adapter | Drawings | SRD, Standard Products, Augmented Instruments, SlurrySense | drawings |
- All
- Printing and Coating
- Industrial Mixing and Grinding
- Food, Dairy and Beverages
- Energy and Hydrocarbons
- Petrochemicals
- Chemical
- Automotive
- Paper and Packaging
- Life Sciences and Medical
- Marine
- Mining, minerals and metals
Real-time quality control of paint, ink, coating manufacturing using process viscometer and density meter
Paint, ink and coating manufacturing processes follow similar steps, from initial mixing, until final packaging or storage, requiring a grinding…
Inline viscometers boost efficiencies of spray drying processes in milk powder manufacturing
The process of converting liquid milk into dry powder involves removing most of the water. The amount of water removed…
Glaze slurry viscosity monitoring and control for preventing defects in coating
Defects in glaze coating are driven by variation in glazing causing color differences, coating thickness variation, cracks. Monitoring and controlling…
Polyelectrolyte preparation and dosing equipment deploy inline viscosity automation systems
Treatment plants are faced with the challenge of stricter regulations and higher standards for finished water quality. New developments in…

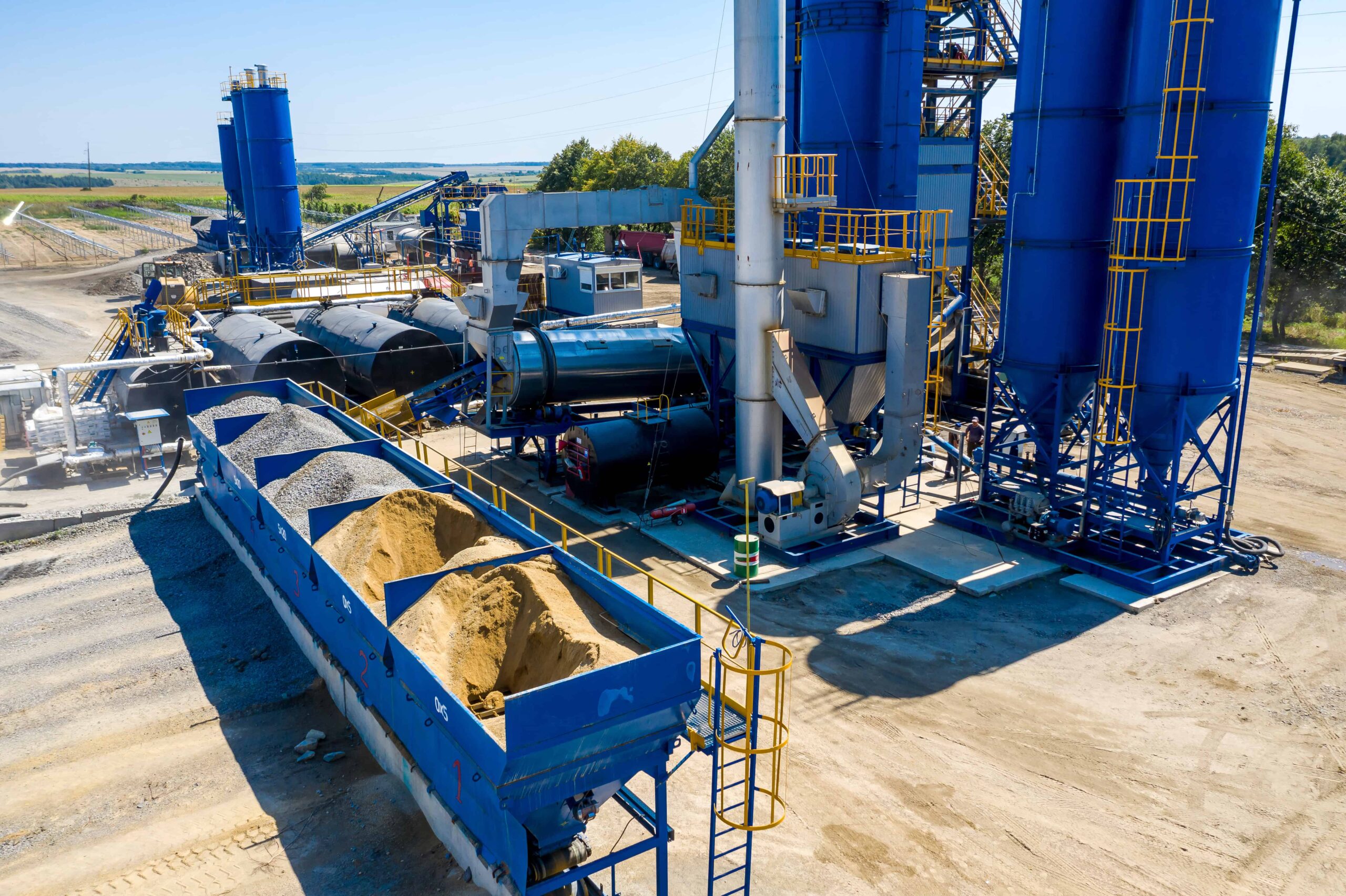

Meeting rigorous quality control of asphalt for every load at the terminal with real-time viscosity measurements
Asphalt has proven itself to be one of the most versatile and effective materials for paving – be it road…

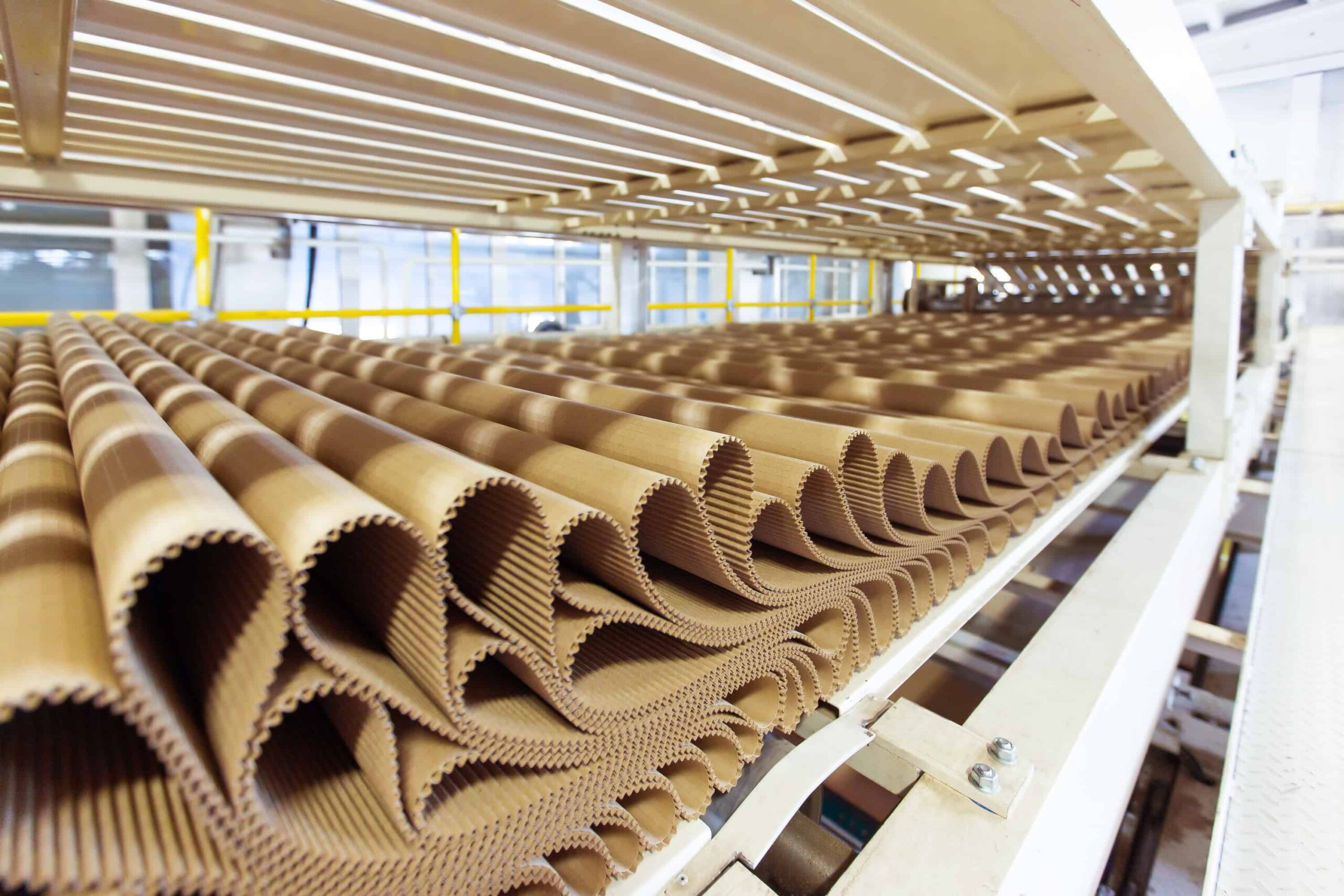

Inline viscosity measurement of starch glue for the production of corrugated cardboard
Real-time inline viscosity measurement in cardboard production is essential for continuous quality control, avoid waste and optimize energy consumption. Starch…
Cheese coagulation monitoring and cutting automation with inline viscosity measurements
Texture and product consistency are of utmost importance to customer - in manufacturing, viscosity is the correlated parameter to ensure…

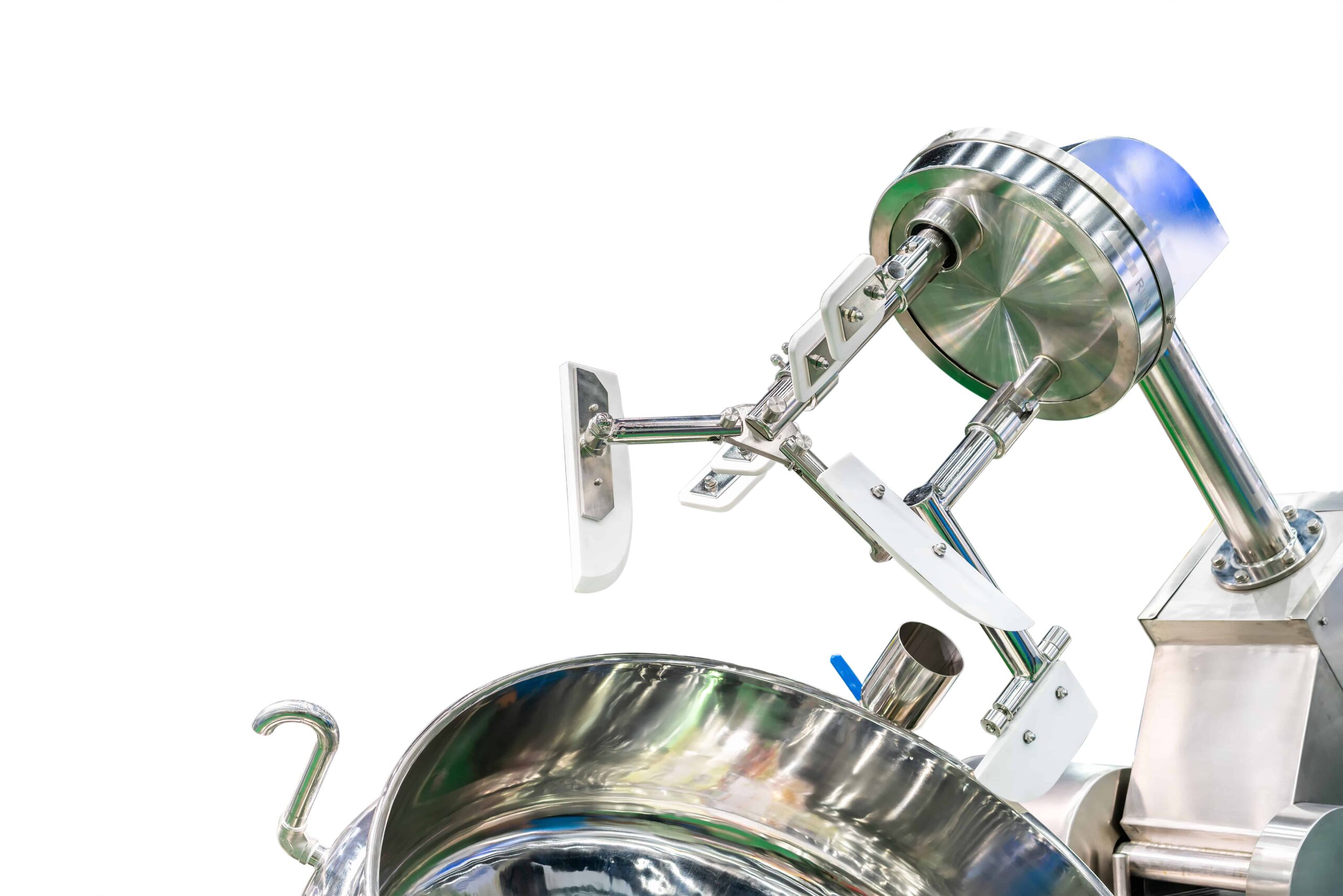

Optimizing non-Newtonian mixing applications with viscosity management
Key advantages of viscosity management in mixing applications: Accurate and efficient mixing operations – significant savings in material costs and…
Semiconductor CMP (chemical mechanical polishing) slurry quality control through density and viscosity monitoring
Optimum process performance can be ensured by monitoring slurry health continuously. It helps to accommodate tighter purity and blend accuracy…

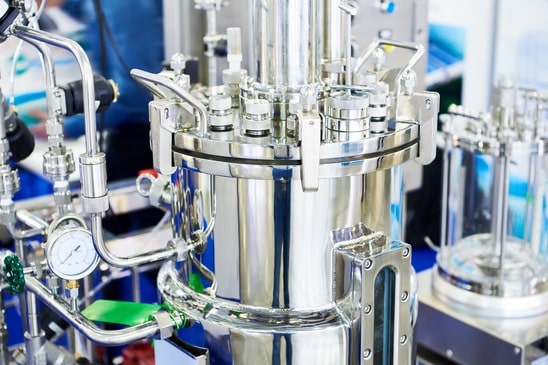

Vaccine production quality control with inline viscosity monitoring
