Sensor Code Configuration How our order codes are built

A single source of truth for reading, validating and building any Rheonics order code – segment by segment.

Request a Quote
SME trd with typesr names
ProbesElectronicsSensor CableRequest
ℹ

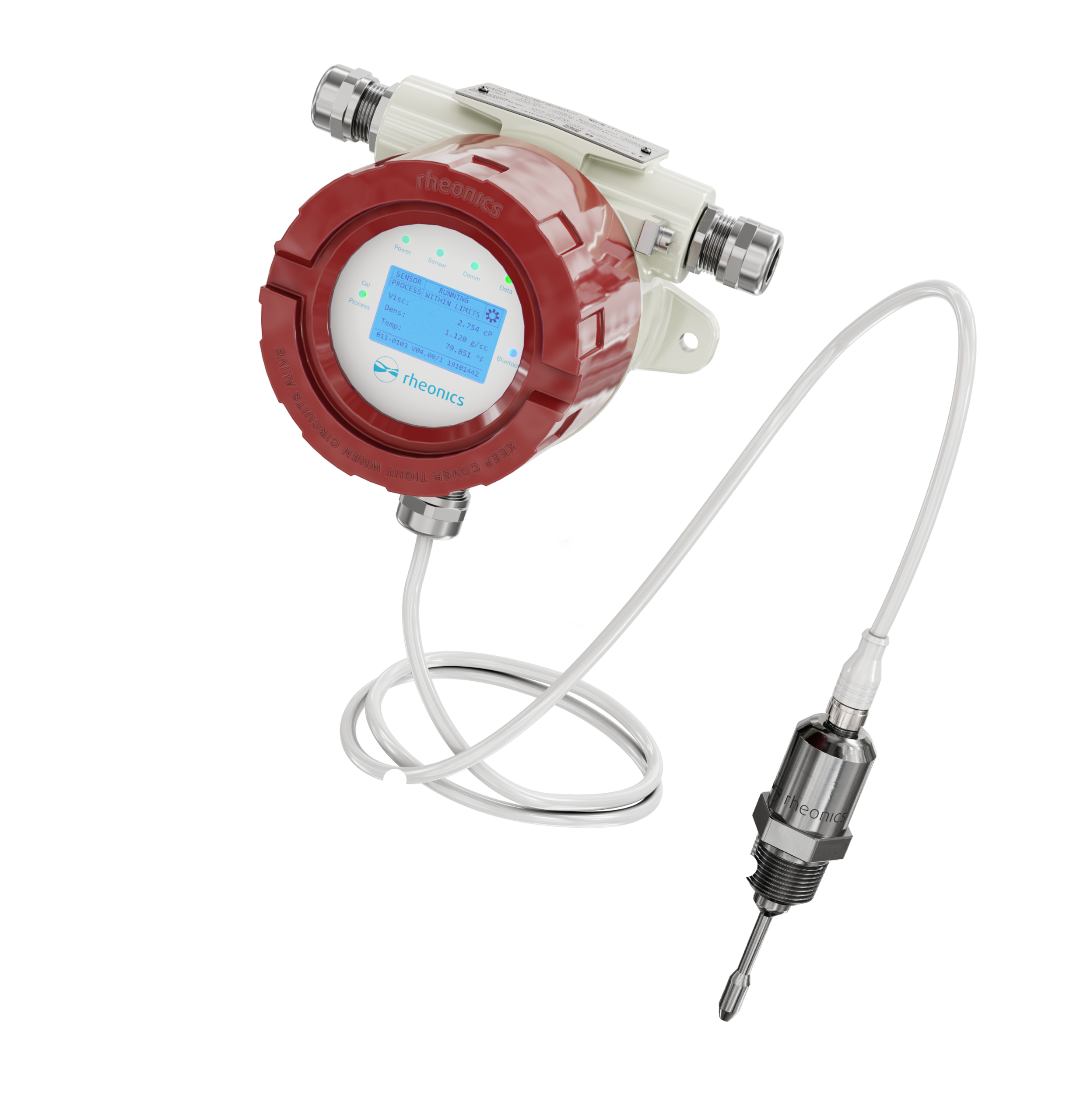

The complete sensor order code is composed by the configuration of the Probe + Electronics + Cable

PROBES

Every code is a sequence of segments separated by hyphens. Each encodes one property. Read left to right.

SRV

SRV [TY]
–
MA Material
–
COA Coating
–
CERT Cert.
–
VIS RAN Visc range
–
VIS CAL Visc cal
–
T Temp
–
P Press
–
X Variant
–
OPT Options

[SRV]-[MA]-[COA]-[CERT]-[VIS RAN]-[VIS CAL]-[T]-[P]-[X]-[OPT]

Material [MA]

CODEDESCRIPTION
SSStainless Steel 316L
C22Hastelloy C22

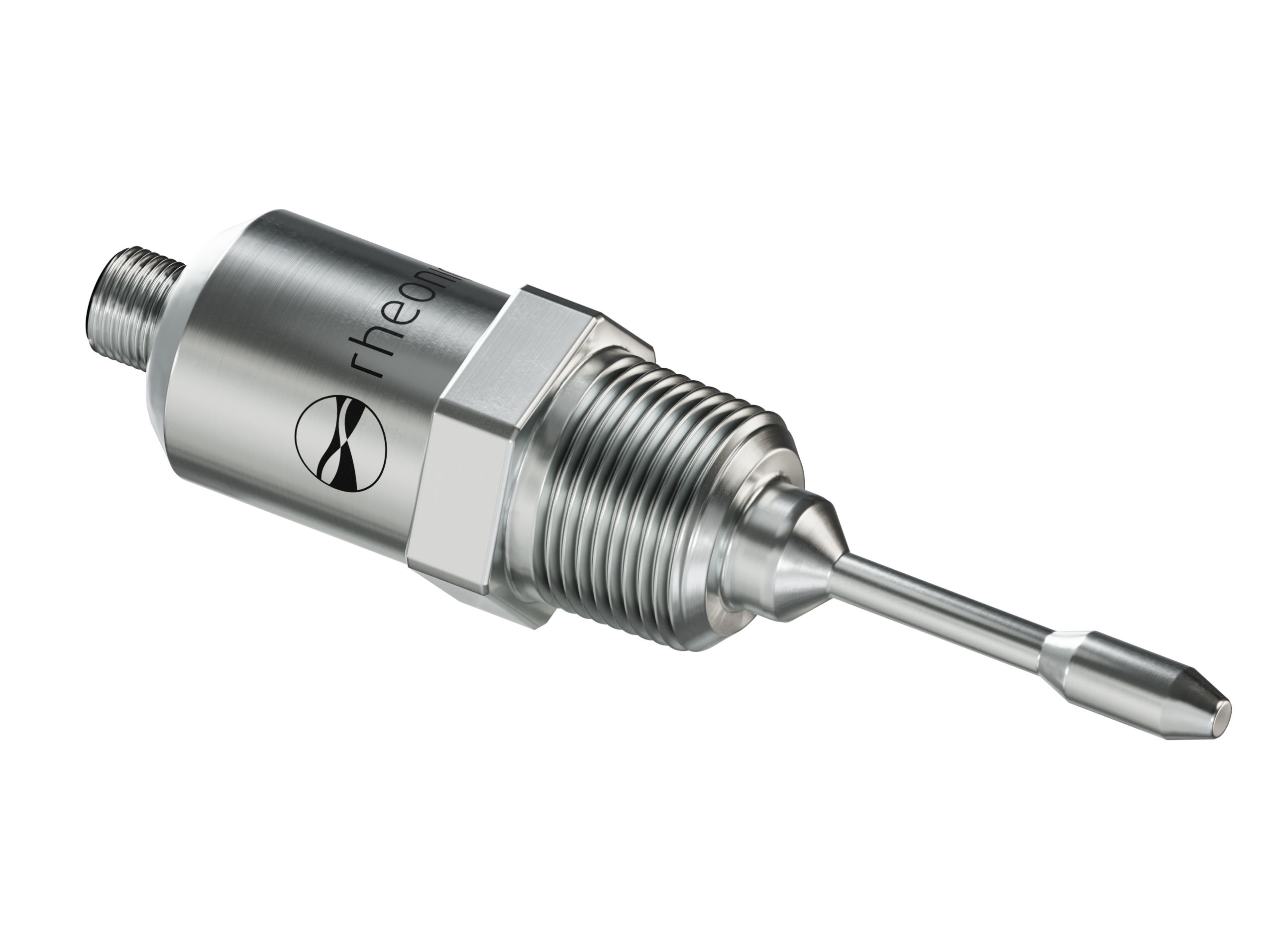

Rheonics-Viscometer-SRV-X1-34N

Coating [COA]

CODEDESCRIPTION
TFPTFE Coating (only available for X1, X2, X3)

Certification [CERT]

CODEDESCRIPTION
-CE
RCULUL OrdLoc certification marking
EXIAATEX/IECEx intrinsically safe
EXJPJapanese Intrinsically Safe JPEX
EXKCKorean Intrinsically Safe KCs
EXCDHAZloc Hazardous Location Certificate
HSEGEHEDG Certificate
HS3A3-A Certificate
HSNCFood-grade surface roughness & design requirement without hygienic certification

Viscosity range [VIS RAN]

CODEDESCRIPTION
V13 to 3,000 mPa·s
V23 to 50,000 cP
V30.5 to 3,000 cP
V4>50,000 cP

Viscosity Calibration [VIS CAL]

CODEDESCRIPTION
VCAL1Standard: ±5% of reading or ±0.1 mPa·s, whichever is greater
VCAL2Extended calibration: up to ±1% of reading or ±0.1 mPa·s, whichever is greater

Temperature Rating [T]

CODEDESCRIPTION
ULTUltra-low temperature (up to -200°C)
LT7-70°C (-94°F)
LT4-40°C (-40°F)
T0Standard -20°C (-40°F) to 75°C (165°F)
T1Standard -20°C (-40°F) to 125°C (250°F)
T2Standard -20°C (-40°F) to 150°C (300°F)
T3Standard -20°C (-40°F) to 175°C (350°F)
T4Standard -20°C (-40°F) to 250°C (480°F)
T5Standard -20°C (-40°F) to 285°C (545°F)

Pressure Rating [P]

CODEDESCRIPTION
P115 bar (200 psi)
P270 bar (1000 psi)
P3200 bar (3000 psi)
P4350 bar (5000 psi)
P5500 bar (7500 psi)
P6750 bar (10000 psi)
P71000 bar (15000 psi)
P81500 bar (20000 psi)

Variants [X]

CODEDESCRIPTION
X1Short probe, threaded connection (-34N and -12G)
X2Short probe, custom flange (standard insertion length)
X3Short probe, Tri-Clamp flange (standard insertion length)
X4Short probe, Tri-Clamp flange (flush or minimum insertion length)
X5Long probe, custom flange 'B' (custom insertion length 'A')
X6Slim probe, custom flange 'B' (custom insertion length 'A')
X7Slim probe selected by total length 'L', pressure fitting
X8Rear-mounted thread probe, custom flange 'B', adaptable for teletube extension
X9Specialized probe variants

Options [OPT]

CODEDESCRIPTION
TTG3/4" rear thread

Type-SR Probe Variant X Examples

VARIANT CODECONNECTION
-34N¾" NPT
-12GG ½"
-BVNVarinline N
-BVNMVarinline N additional bevel machined
-B05TTri-Clamp D34 ASME-BPE
-B15TTri-Clamp D50 ASME-BPE
-B20TTri-Clamp D64 ASME-BPE
-B30TTri-Clamp D91 ASME-BPE
-BXXTTri-Clamp Custom Size
-AXXXCustom insertion length in mm
-BXXXCustom flange
-LXXXCustom total length in mm

SRD

SRD [TY]
–
MA Material
–
COA Coating
–
CERT Cert.
–
DEN RAN Density range
–
DEN CAL Density cal.
–
VIS RAN Visc. range
–
VIS CAL Visc. cal.
–
T Temp.
–
P Press.
–
X Variant
–
OPT Options

[TY]-[MA]-[COA]-[CERT]-[DEN RAN]-[DEN CAL]-[VIS RAN]-[VIS CAL]-[T]-[P]-[X]-[OPT]

Material [MA]

CODEDESCRIPTION
SSStainless Steel 316L
C22Hastelloy C22

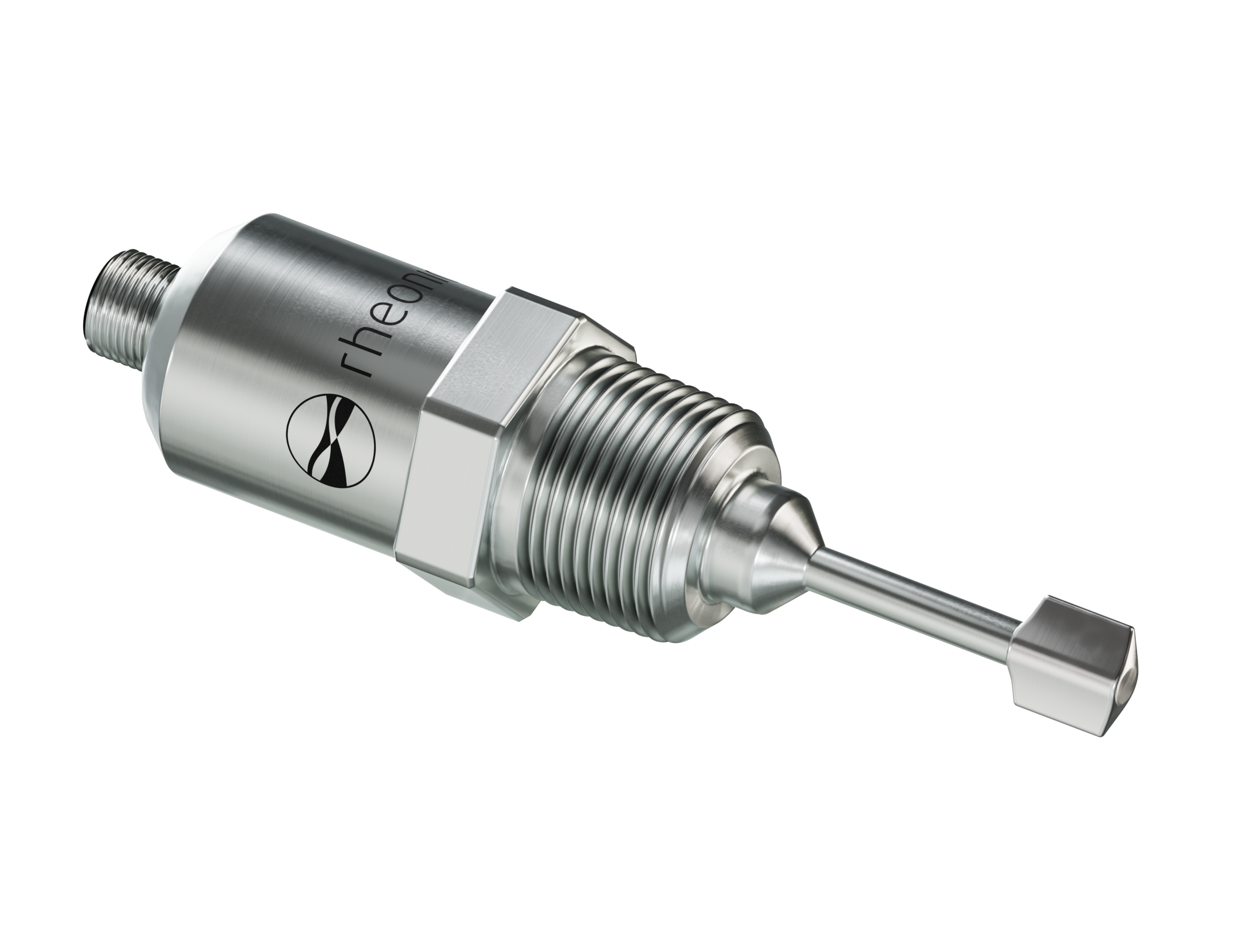

Rheonics-Viscometer-SRD-X1-34N

Coating [COA]

CODEDESCRIPTION
TFPTFE Coating (only available for X1, X2, X3)

Certification [CERT]

CODEDESCRIPTION
-CE
RCULUL OrdLoc certification marking
EXIAATEX/IECEx intrinsically safe
EXJPJapanese Intrinsically Safe JPEX
EXKCKorean Intrinsically Safe KCs
EXCDHAZloc Hazardous Location Certificate
HSEGEHEDG Certificate
HS3A3-A Certificate
HSNCFood-grade surface roughness & design requirement without hygienic certification

Density range [DEN RAN]

CODEDESCRIPTION
D10 to 1.5 g/cc
D2Specified in order, up to 4 g/cc

Density Calibration [DEN CAL]

CODEDESCRIPTION
DCAL1Standard density accuracy: ±0.01 g/cc (10 kg/m³ | 0.083 lb/gal)
DCAL2Extended calibration: up to ±0.001 g/cc (1 kg/m³ | 0.0083 lb/gal)

Viscosity range [VIS RAN]

CODEDESCRIPTION
V11 to 3,000 mPa·s
V21 to 10,000 mPa·s

Viscosity Calibration [VIS CAL]

CODEDESCRIPTION
VCAL1Standard: ±5% of reading or ±0.1 mPa·s, whichever is greater
VCAL2Extended calibration: up to ±1% of reading or ±0.1 mPa·s, whichever is greater

Temperature Rating [T]

CODEDESCRIPTION
ULTUltra-low temperature (up to -200°C)
LT7-70°C (-94°F)
LT4-40°C (-40°F)
T0Standard -20°C (-40°F) to 75°C (165°F)
T1Standard -20°C (-40°F) to 125°C (250°F)
T2Standard -20°C (-40°F) to 150°C (300°F)
T3Standard -20°C (-40°F) to 175°C (350°F)
T4Standard -20°C (-40°F) to 250°C (480°F)
T5Standard -20°C (-40°F) to 285°C (545°F)

Pressure Rating [P]

CODEDESCRIPTION
P115 bar (200 psi)
P270 bar (1000 psi)
P3200 bar (3000 psi)
P4350 bar (5000 psi)
P5500 bar (7500 psi)
P6750 bar (10000 psi)
P71000 bar (15000 psi)
P81500 bar (20000 psi)

Variants [X]

CODEDESCRIPTION
X1Short probe, threaded connection (-34N and -12G)
X2Short probe, custom flange (standard insertion length)
X3Short probe, Tri-Clamp flange (standard insertion length)
X4Short probe, Tri-Clamp flange (flush or minimum insertion length)
X5Long probe, custom flange 'B' (custom insertion length 'A')
X6Slim probe, custom flange 'B' (custom insertion length 'A')
X7Slim probe selected by total length 'L', pressure fitting
X8Rear-mounted thread probe, custom flange 'B', adaptable for teletube extension
X9Specialized probe variants

Options [OPT]

CODEDESCRIPTION
TTG3/4" rear thread

Type-SR Probe Variant X Examples

VARIANT CODECONNECTION
-34N¾" NPT
-12GG ½"
-BVNVarinline N
-BVNMVarinline N additional bevel machined
-B05TTri-Clamp D34 ASME-BPE
-B15TTri-Clamp D50 ASME-BPE
-B20TTri-Clamp D64 ASME-BPE
-B30TTri-Clamp D91 ASME-BPE
-BXXTTri-Clamp Custom Size
-AXXXCustom insertion length in mm
-BXXXCustom flange
-LXXXCustom total length in mm

DVP

DVP [TY]
–
MA Material
–
DEN RAN Density range
–
DEN CAL Density cal.
–
VIS RAN Visc. range
–
VIS CAL Visc. cal.
–
T Temp.
–
P Press.
–
X Variant

[TY]-[MA]-[DEN RAN]-[DEN CAL]-[VIS RAN]-[VIS CAL]-[T]-[P]-[X]

Material [MA]

CODEDESCRIPTION
TG5Titanium Grade 5

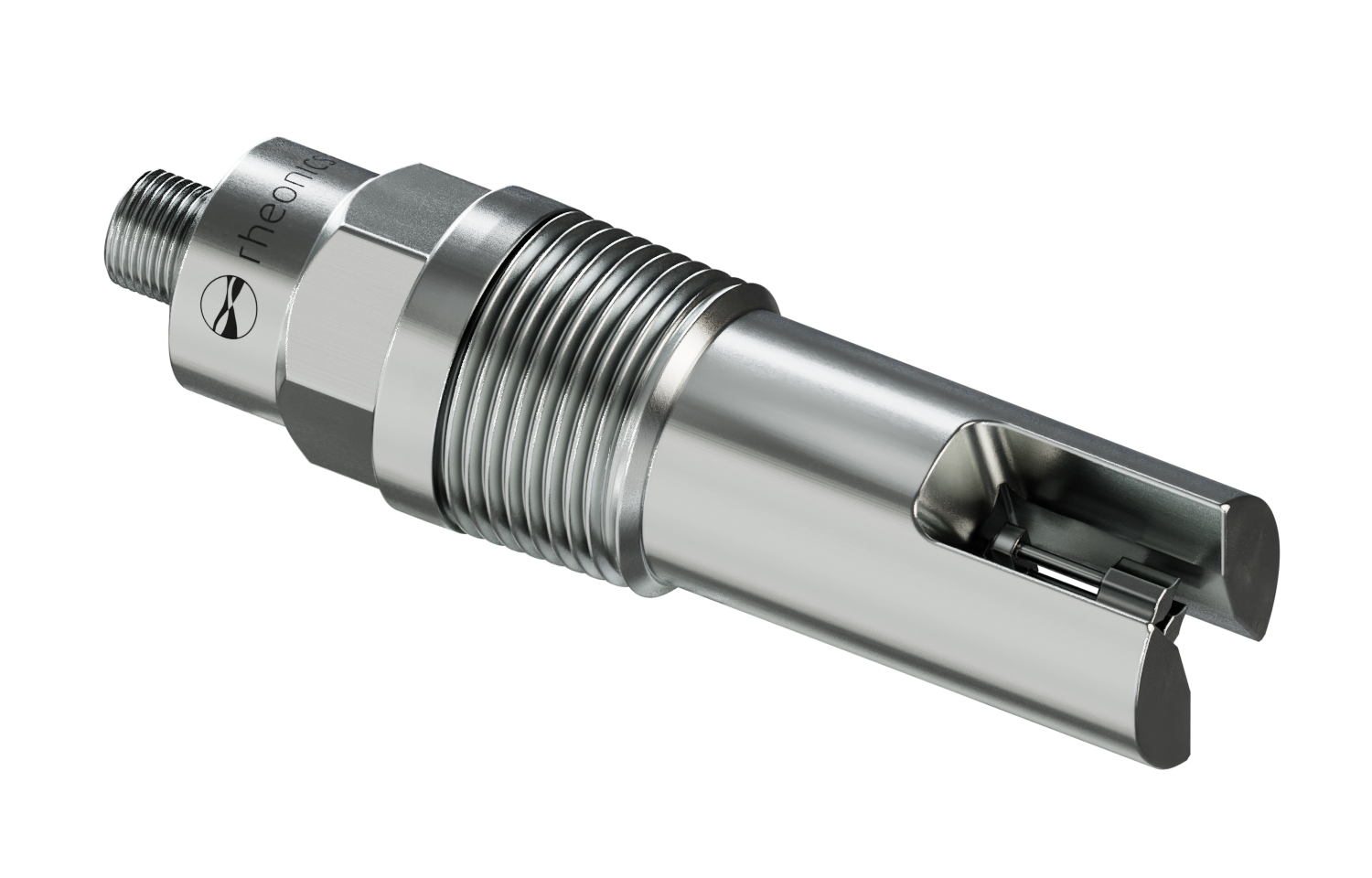

Rheonics-DVP-Render

Certification [CERT]

CODEDESCRIPTION
-CE

Density range [DEN RAN]

CODEDESCRIPTION
D10 to 1.5 g/cc

Density Calibration [DEN CAL]

CODEDESCRIPTION
DCAL1Standard density accuracy: ±0.001 g/cc (1 kg/m³ | 0.0083 lb/gal)
DCALGGas calibration

Viscosity range [VIS RAN]

CODEDESCRIPTION
V10–30 mPa·s
V20–100 mPa·s

Viscosity Calibration [VIS CAL]

CODEDESCRIPTION
VCAL1Standard: ±5% of reading or ±0.1 mPa·s, whichever is greater

Temperature Rating [T]

CODEDESCRIPTION
ULTUltra-low temperature (up to -200°C)
LT7-70°C (-94°F)
LT4-40°C (-40°F)
T1Standard -20°C (-40°F) to 125°C (250°F)
T2Standard -20°C (-40°F) to 150°C (300°F)
T3Standard -20°C (-40°F) to 175°C (350°F)

Pressure Rating [P]

CODEDESCRIPTION
P270 bar (1000 psi)
P4350 bar (5000 psi)
P6750 bar (10000 psi)
P71000 bar (15000 psi)

Variant [X]

CODEDESCRIPTION
X1Threaded connection

Options

VARIANT CODECONNECTION
-X1-1N01" NPT

DVM

DVM [TY]
–
MA Material
–
DEN RAN Density range
–
DEN CAL Density cal.
–
VIS RAN Visc. range
–
VIS CAL Visc. cal.
–
T Temp.
–
P Press.
–
X Variant

[TY]-[MA]-[DEN RAN]-[DEN CAL]-[VIS RAN]-[VIS CAL]-[T]-[P]-[X]

Material [MA]

CODEDESCRIPTION
TG5Titanium Grade 5

Certification [CERT]

CODEDESCRIPTION
-CE

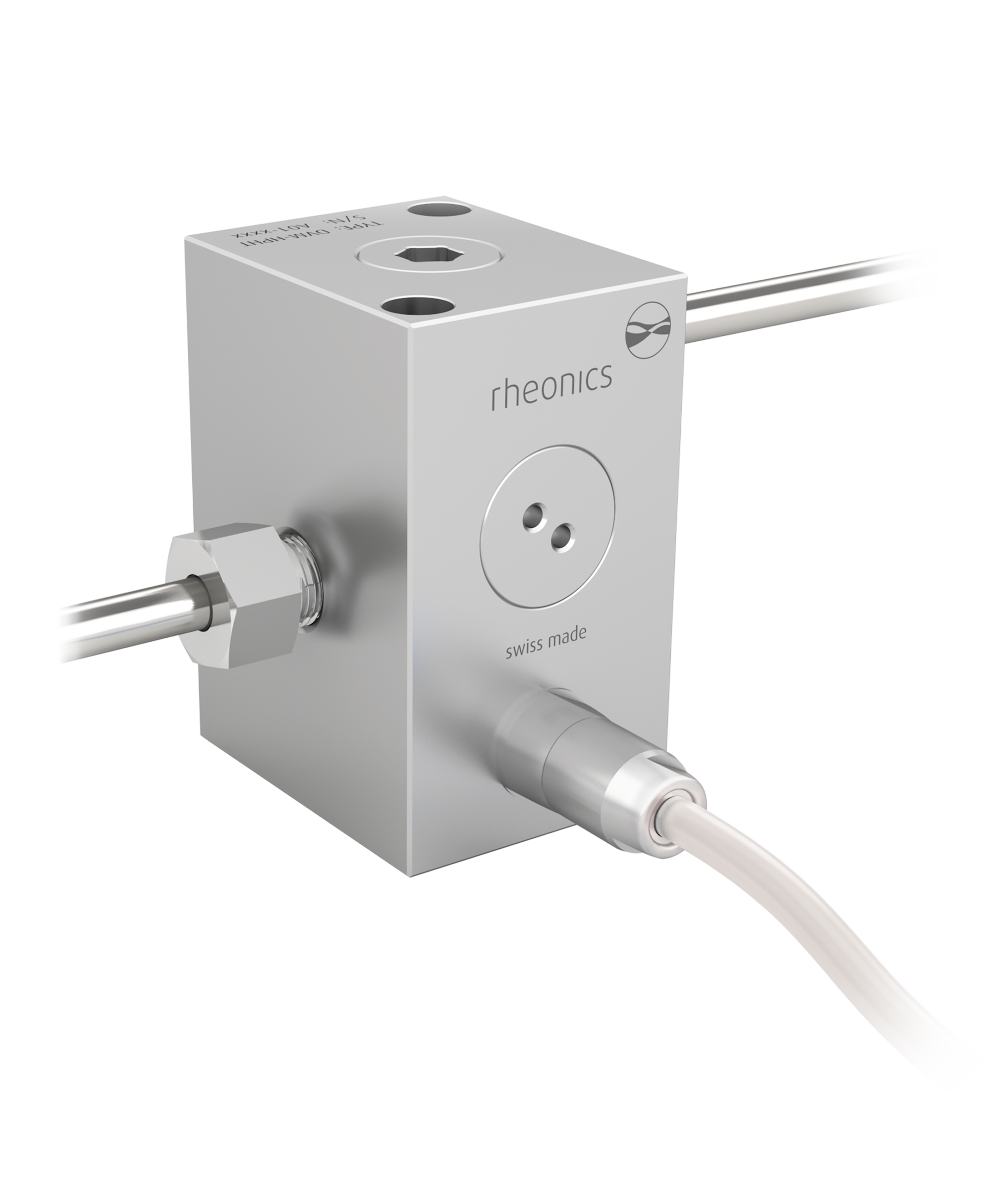

Rheonics-DVM

Density range [DEN RAN]

CODEDESCRIPTION
D10 to 1.5 g/cc

Density Calibration [DEN CAL]

CODEDESCRIPTION
DCAL1Standard density accuracy: ±0.001 g/cc (1 kg/m³ | 0.0083 lb/gal)
DCALGGas calibration

Viscosity Range [VIS RAN]

CODEDESCRIPTION
V10–30 mPa·s
V20–100 mPa·s

Viscosity Calibration [VIS CAL]

CODEDESCRIPTION
VCAL1Standard: ±5% of reading or ±0.1 mPa·s, whichever is greater

Temperature Rating [T]

CODEDESCRIPTION
ULTUltra-low temperature (up to -200°C)
LT7-70°C (-94°F)
LT4-40°C (-40°F)
T1Standard -20°C (-40°F) to 125°C (250°F)
T2Standard -20°C (-40°F) to 150°C (300°F)
T3Standard -20°C (-40°F) to 175°C (350°F)

Pressure Rating [P]

CODEDESCRIPTION
P6750 bar (10000 psi)
P71000 bar (15000 psi)
P81500 bar (20000 psi)
P92100 bar (30000 psi)

Variant [X]

CODEDESCRIPTION
X1Threaded connection

Options

VARIANT CODECONNECTION
-X1-14N¼” HP (9/16-18 UNF)

Electronics - SME

EVAR Variant
–
EMAT Material
–
COM Comms
–
ADD Add-ons
+
Acc Accessory

[EVAR]-[EMAT]-[COM]-[ADD] + Acc Code

VARIANT

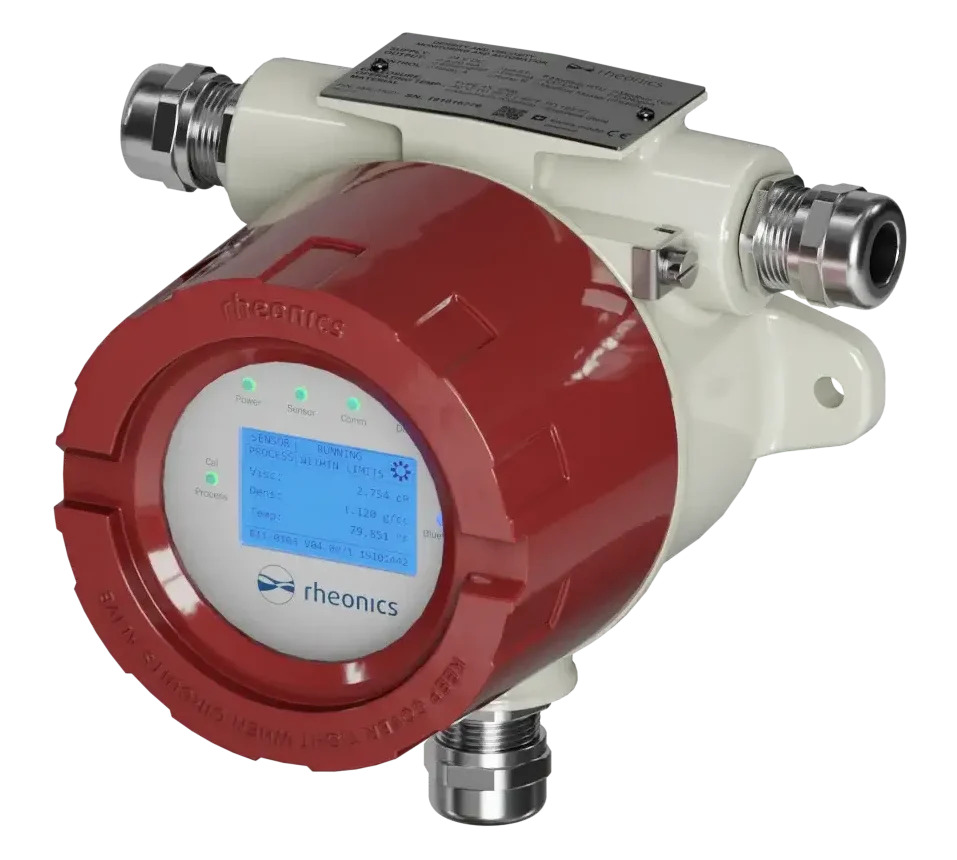

Rheonics SME-TRD
E1
SME-TRD
VARIANT

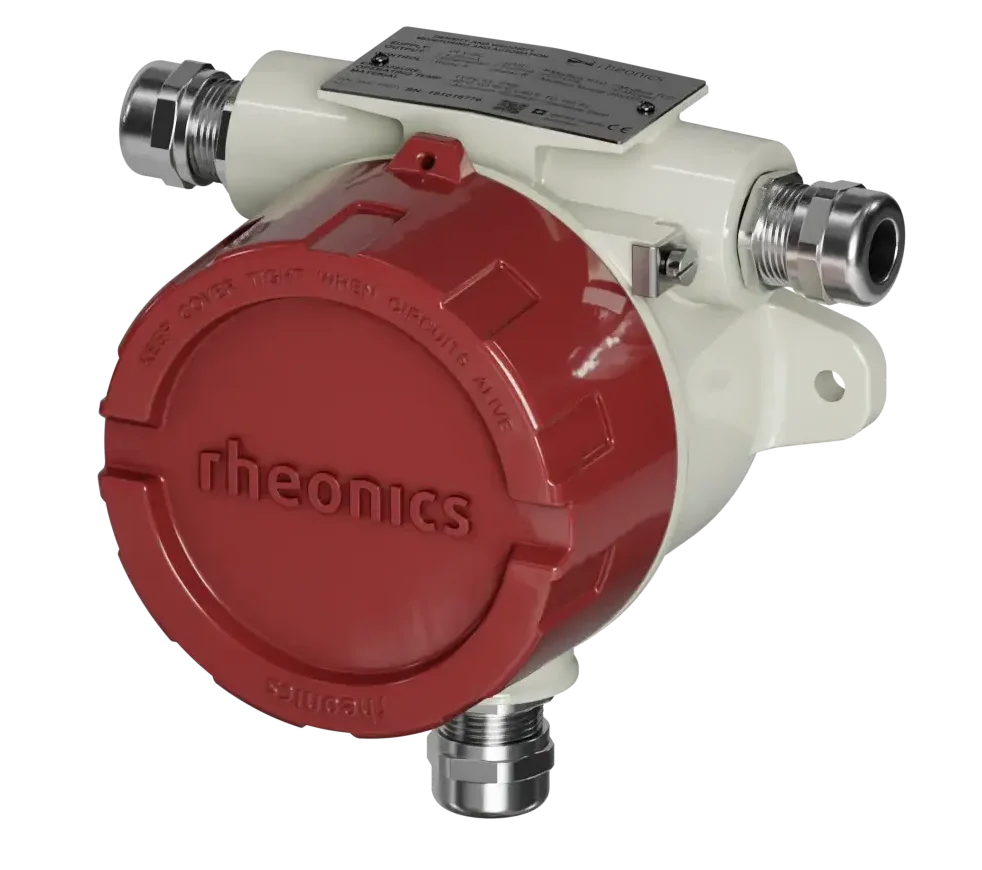

Rheonics SME-TR
E2
SME-TR
VARIANT

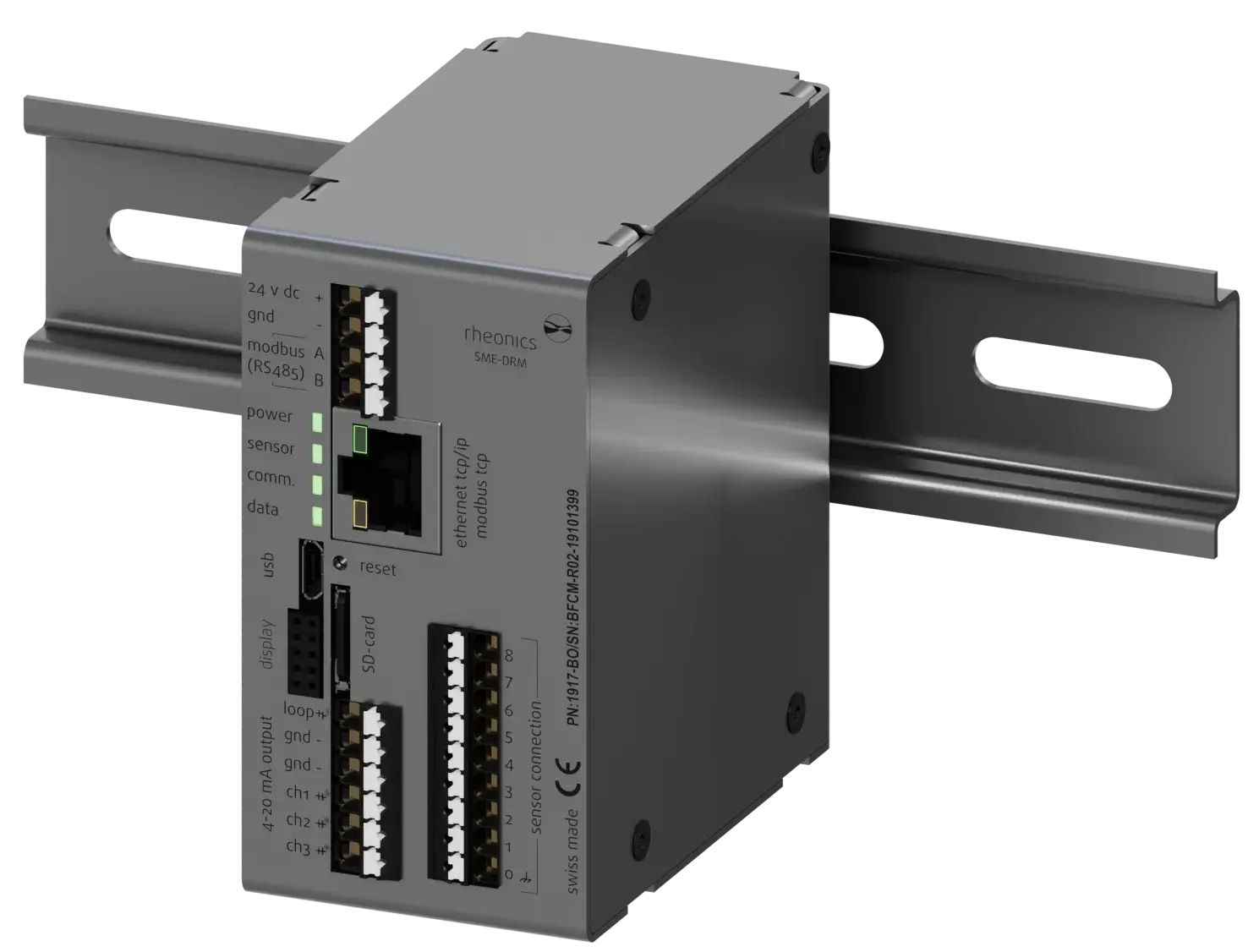

Rheonics SME-DRM
E3
SME-DRM
VARIANT

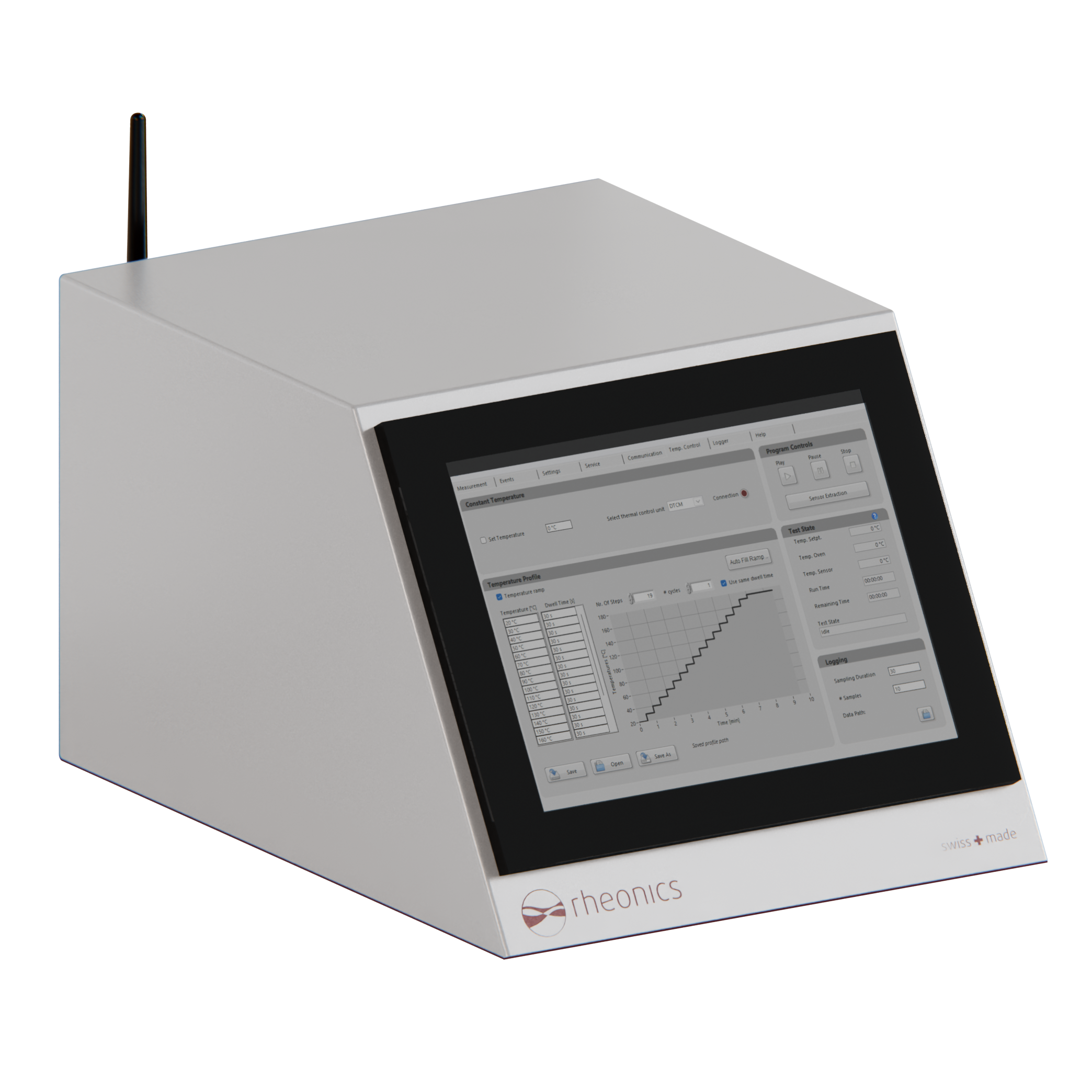

Rheonics SME-BOX
E4
SME-BOX

Material [EMAT]

CODEDESCRIPTION
-Standard material, Aluminium (for E1 and E2), Stainless Steel (E3)
SSStainless Steel housing (for E1 and E2 only)

Communication [COM]

CODEPROTOCOL
C14-20 mA
C2Modbus RTU
C3USB
C4Ethernet TCP
C5Bluetooth LE 4.0
C6Modbus TCP
C7Ethernet/IP
C8HART
C9PROFINET
C10WirelessHART
C11CAN
C12IO-Link

Add-ons [ADD]

CODEDESCRIPTION
AP-SD0Sand detector configuration for Rheonics SDP sensor

Accessory Acc Code

CODEDESCRIPTION
EZB03XZener barriers (3 pcs set)

Sensor Cable

CAB Sensor Cable
–
CVAR Variant
–
LXX Length

CAB-[CVAR]-[LXX]

VARIANT
Standard straight cable
STD
Standard straight cable
VARIANT
Standard 90° Cable
90
Standard 90° Cable
VARIANT
Ex cable
EX
Ex cable
VARIANT
HT Cable
HT
HT Cable
VARIANT
IP69K cable
IP69K
IP69K cable

Length [LXX]

CODEDESCRIPTIONAPPLY TO
055 meters cableSTD, 90, EX, HT, IP69K
1010 meters cableSTD, EX
3030 meters cableSTD, EX
XXCustom meters cableSTD, EX
