Flow Through Cell for 1.5” Tri Clamp SRD - IFC-15T-34N-SRD

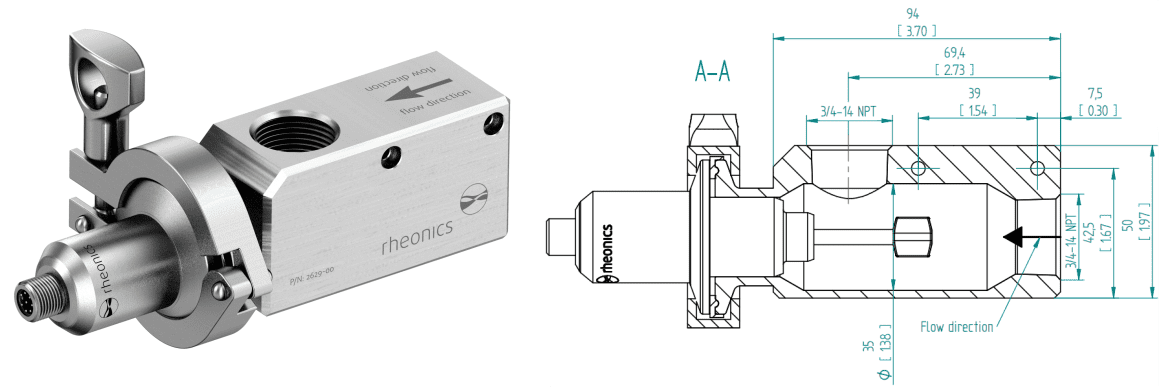

SRD mounted in the IFC-15T-34N-SRD
Description
Rheonics IFC-15T-34N-SRD accessory is a flow cell used especially on DN5 to DN25 (1”) pipes for inline installation of the SRD with a 1.5” Tri-Clamp process connection. It can also be used in a bypass, connected via hoses or pipes, for lines bigger than DN25.
This flow cell is integrated into the process with 3/4” – 14 NPT inlet and outlet ports and ensures an optimal flow condition for the SRD sensor. The sensor can also be easily mounted and removed with the Tri-Clamp connection, which also makes inspection and cleaning easy to perform on the probe.
Specifications | |
---|---|
Sensor connection | 1.5” Tri-Clamp - DN25/32/40 DIN 11850 |
Inlet/Outlet connection | 3/4” - 14 NPT |
Material | 316L |
Maximum Pressure | 200 bar (2900 psi) |
Fluid Volume | 60 mL |
Why use this part?
Great solution for installation in DN5 to DN25 pipes.
For bigger pipes where a by-pass is needed.
Easy integration into the process with 3/4” NPT connections.
Designed to ensure optimum contact of the fluid with SRD sensing element.
Tri-Clamp connections favor an easier installation and cleaning of the SRD.

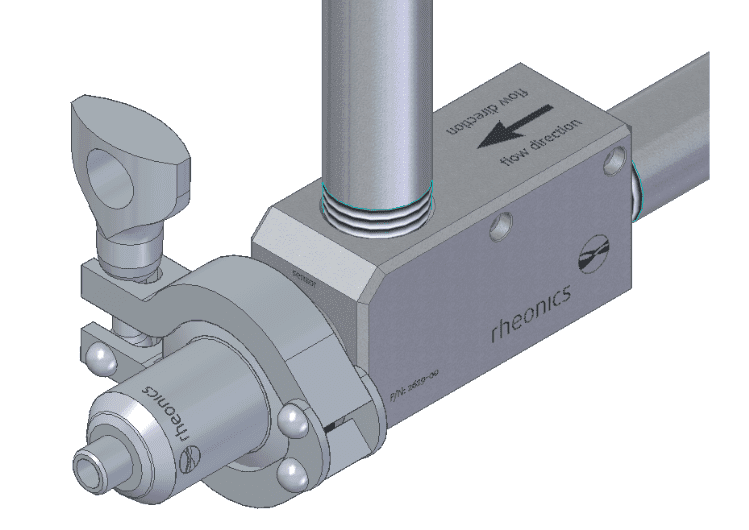

Installation instructions
Consider a tilted installation for drainage and cleanability.
Recommended install according to the flow direction (labeled on surface) but can be reversed.
Suitable for SRD with a 1.5” Tri-Clamp connection (an alternative variant is available for SRV).
Support articles
SRD Tri-Clamp: Overview of the SRD with Tri-Clamp connection (SRD-X3), installation guidelines, instructions, special considerations and available accessories.
Seal Rings for Tri-Clamp: Select the correct seal for your application.
SRD Flow Cells: Overview of flow through cell and spool piece accessories for SRD sensor probe variants.
Download files
CAD model (stp.) and drawing (pdf.) of the IFC-15T-34N-SRD.

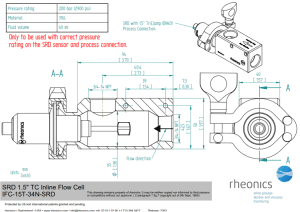

Drawing (pdf.) of the IFC-15T-34N-SRD
Drawing (dwg. and pdf.) of the IFC-15T-34N-SRD, and CAD model (stp.) of SRD NPT mounted in the accessory.
Compatible with product
Sensor | Name | Variant |
---|---|---|
SRD - Inline Viscosity Meter | 1.5" Tri-Clamp |
