IFC-15T-34N-SRV

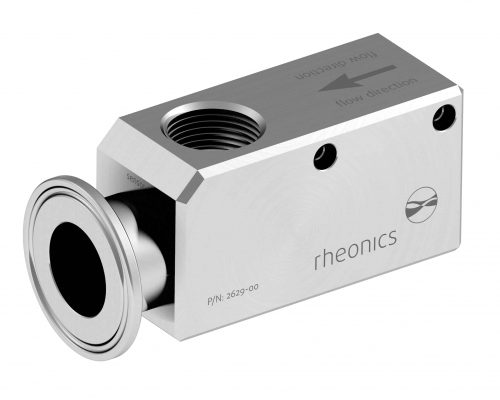

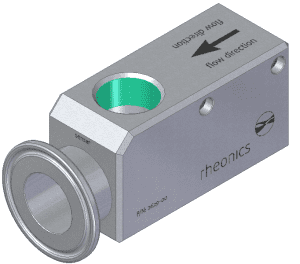

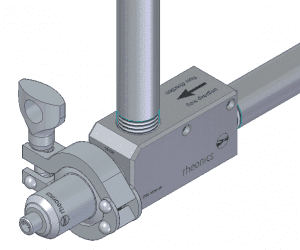

Rheonics IFC-15T-34N-SRV accessory is a flow cell used especially on DN5 to DN25 (1”) pipes for inline installation of the SRV with a 1.5” Tri-Clamp process connection. It can also be used in a bypass, connected via hoses or pipes, for lines bigger than DN25.

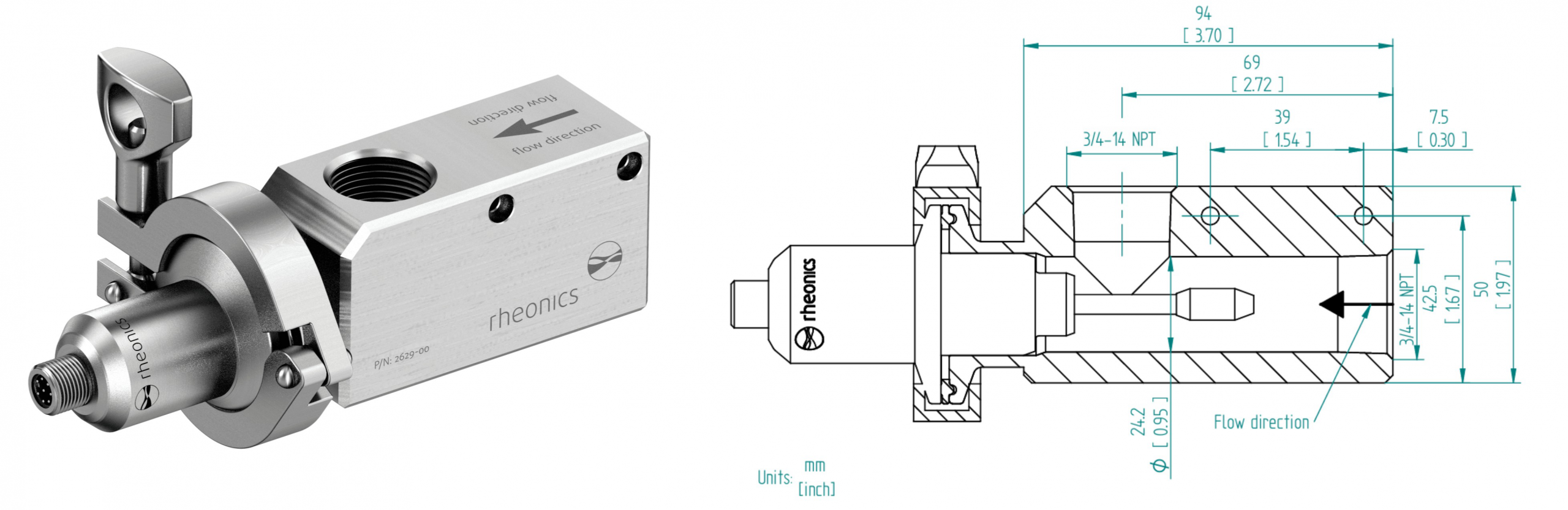

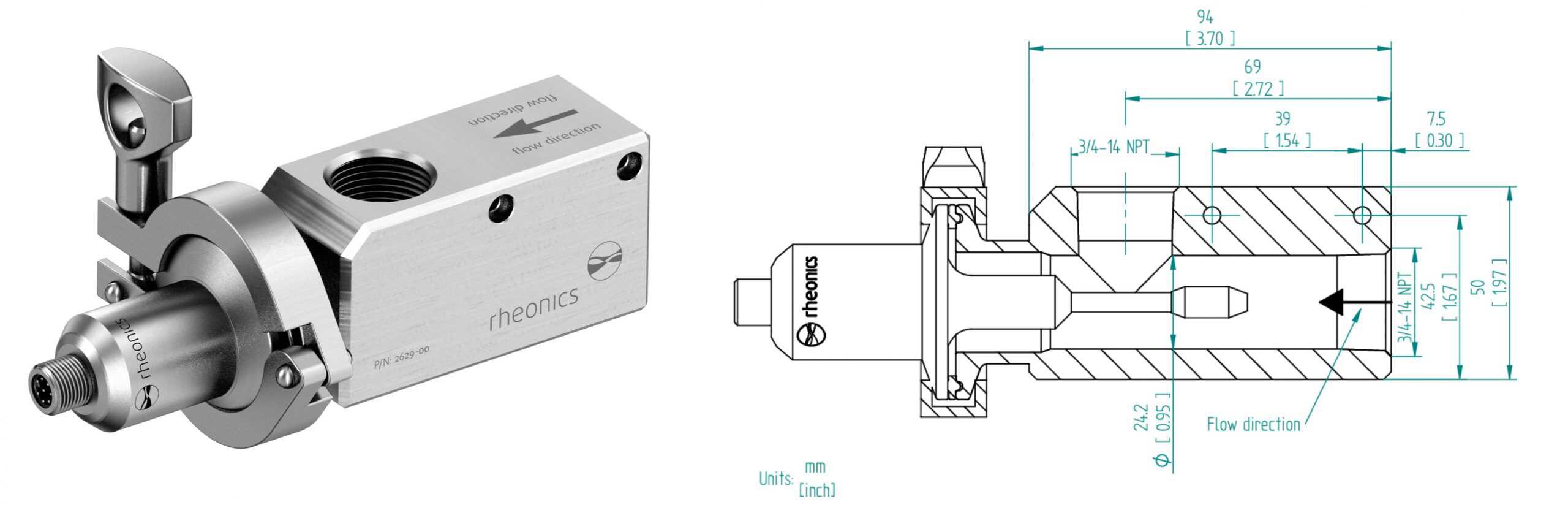

This flow cell is integrated into the process with 3/4” – 14 NPT inlet and outlet ports and ensures an optimal flow condition for the SRV sensor. The sensor can also be easily mounted and removed with the Tri-Clamp connection, which also makes inspection and cleaning easy to perform on the probe.

• Great solution for installation in DN5 to DN25 pipes.

• For bigger pipes where a by-pass is needed.

• Easy integration into the process with 3/4” NPT connections.

• Designed to ensure optimum contact of the fluid with SRV sensing element.

• Tri-Clamp connection favors an easier installation and cleaning of the SRV.

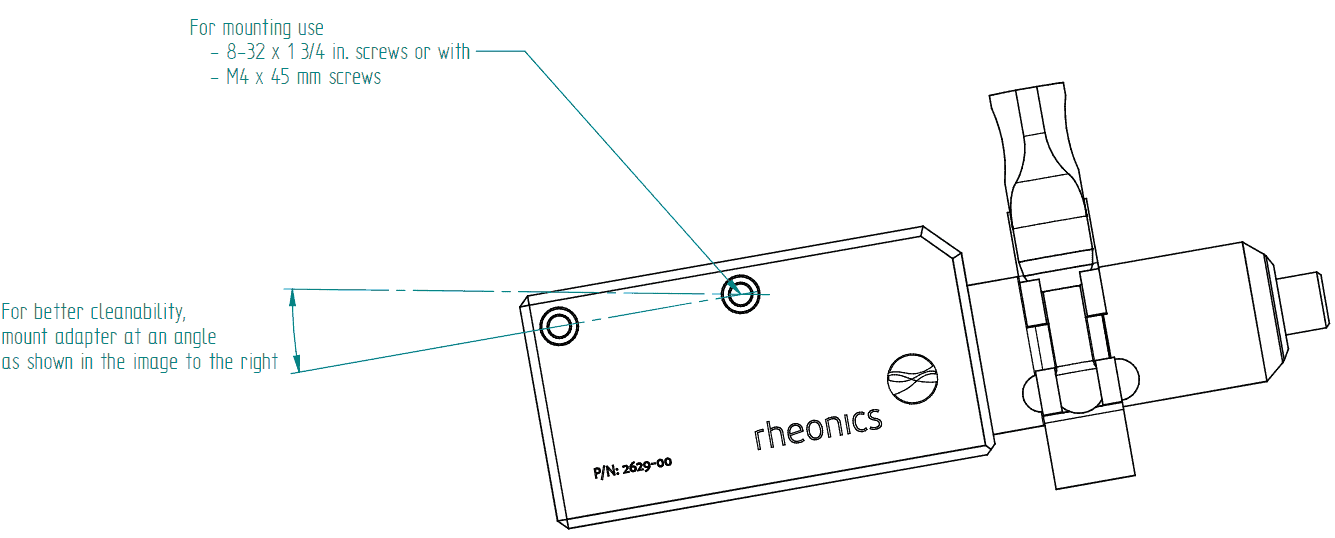

• Consider a tilted installation for drainage and cleanability.

• Recommended install according to the flow direction (labeled on surface) but can be reversed.

• Suitable for SRV with a 1.5” Tri-Clamp connection (an alternative variant is available for SRD).

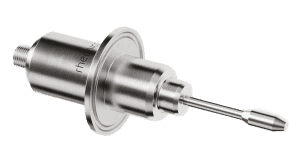

SRV Tri-Clamp: Overview of the SRV with Tri-Clamp connection (SRV-X3), installation guidelines, instructions, special considerations and available accessories.

Seal Rings for Tri-Clamp: Select the correct seal for your application.

SRV Flow Cells: Overview of flow through cell and spool piece accessories for SRV sensor probe variants.
