High pressure flow cell - HPT-SRV
![HPT-SRV.191 Rheonics HPT-SRV flow-through cell](https://cdn.rheonics.com/wp-content/uploads/2023/06/HPT-SRV.191-500x400.jpg)

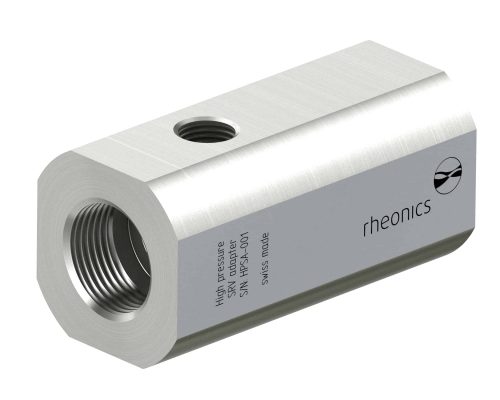

SRV mounted in the HPT-SRV

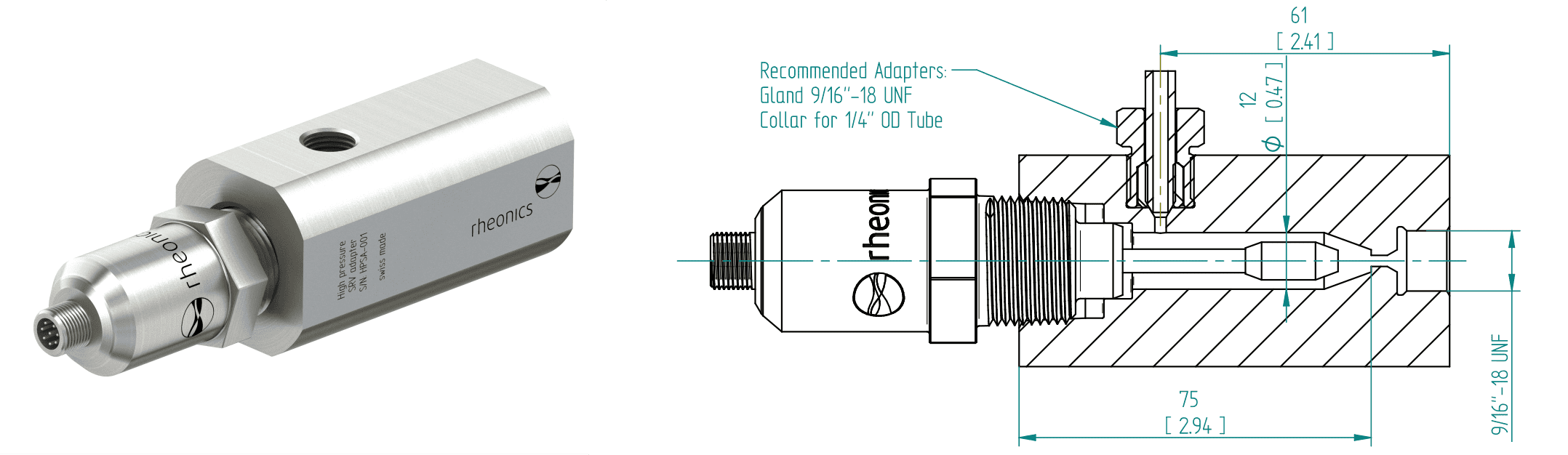

![Rheonics HPT-SRV Drawing](https://cdn.rheonics.com/wp-content/uploads/2023/06/HPT-SRV_Render_Drawing-1.png)
Description
Rheonics HPT-SRV is a high-pressure and temperature flow cell for the SRV inline viscometer with 3/4” NPT connection. Pressure is rated for up to 10,000 psi (690 bar). Inlet and outlet ports have a 9/16”-18 UNF thread connection.
Specifications | |
---|---|
Sensor connection | 3/4" NPT |
Inlet/Outlet connection | 9/16"-18 UNF |
Material | 316L |
Maximum pressure | 690 bar (10 000 psi) |
Fluid volume | 4.3 mL |
Why use this part?
For high-pressure and temperature applications.
Great solution for installation in DN5 to DN25 pipes.
For bigger pipes where a by-pass is needed.
Designed to ensure optimum contact of the fluid with SRV sensing element.
Installation instructions
- Suitable only for SRV with 3/4” NPT threaded connection. Probe and flow cell are rated for specified pressure only.
Use proper PTFE tape sealing for NPT sensor connection.
Consider a tilted installation for drainage and cleanability.
Recommended install according to the flow direction (labeled on surface) but can be reversed.
Recommended inlet/outlet adapters: 60-2HM4 Gland 1/4” HP – 316SS
Support articles
SRV NPT: Overview of the SRV NPT 3/4”-14 variant, installation guidelines, instructions, special considerations and available accessories.
Download files

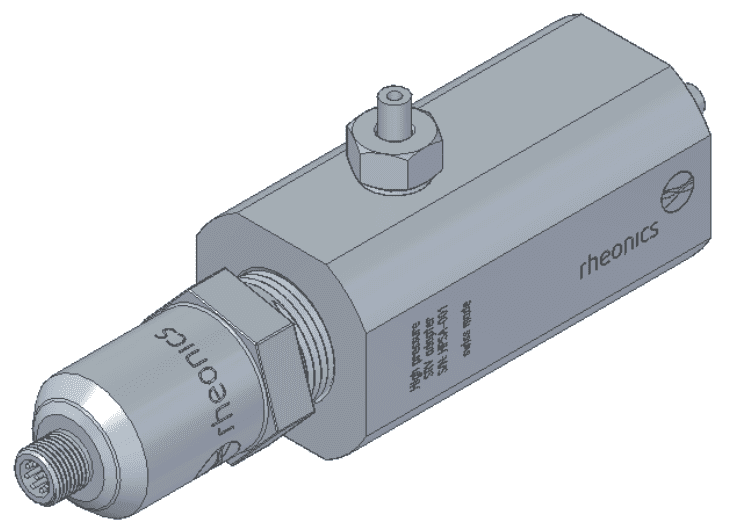

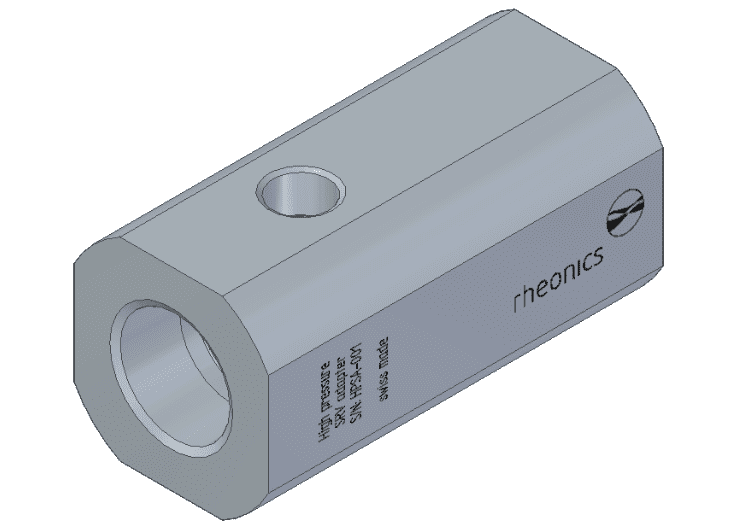

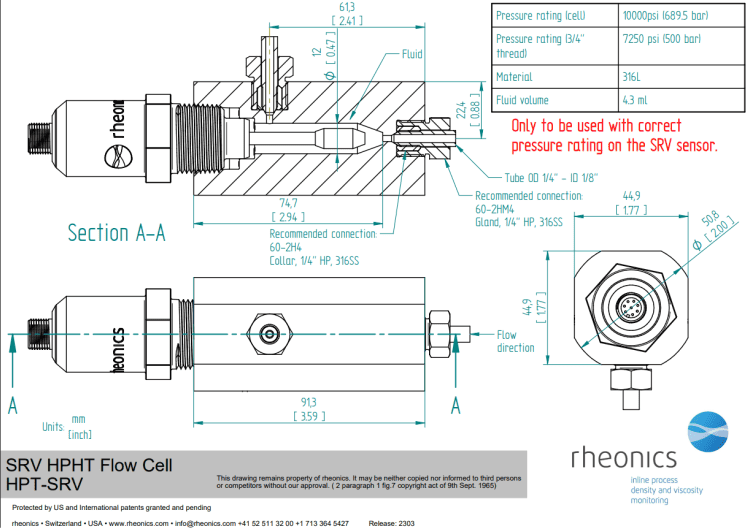

Drawing (dwg. and pdf.) of the HPT-SRV, and CAD model (stp.) of SRV mounted in the accessory.
Compatible with products
Sensor | Name | Variant |
---|---|---|
SRV - Inline Viscosity Meter | NPT 3/4” - 14 |
