HAW-12G-MTK

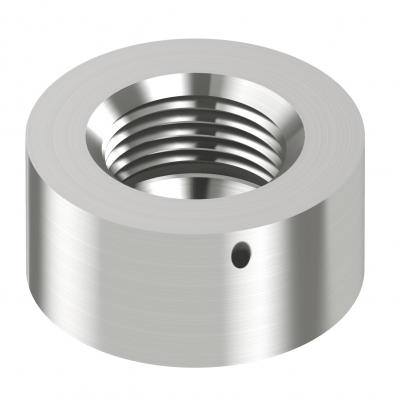

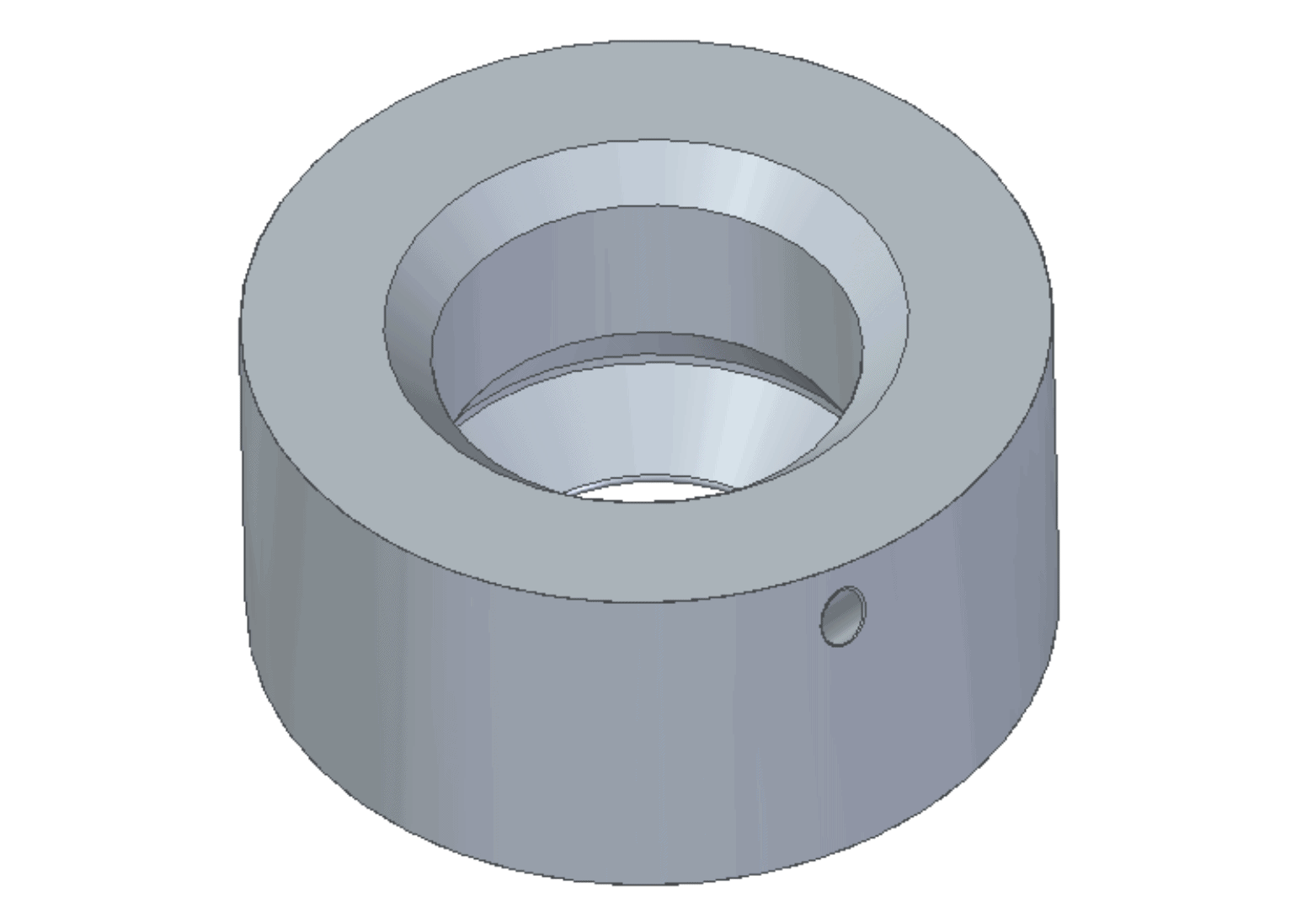

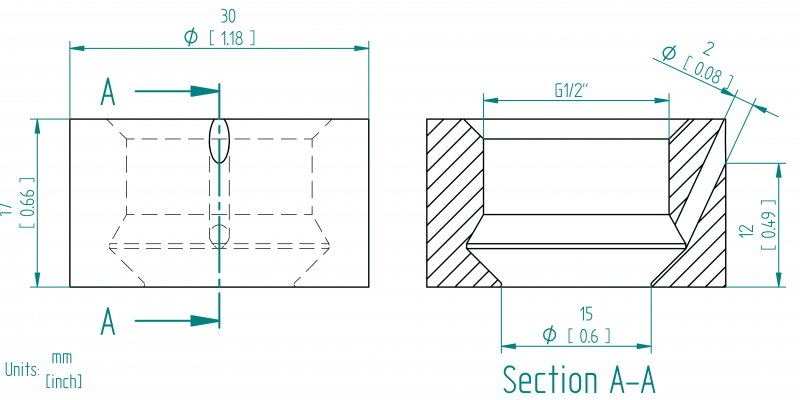

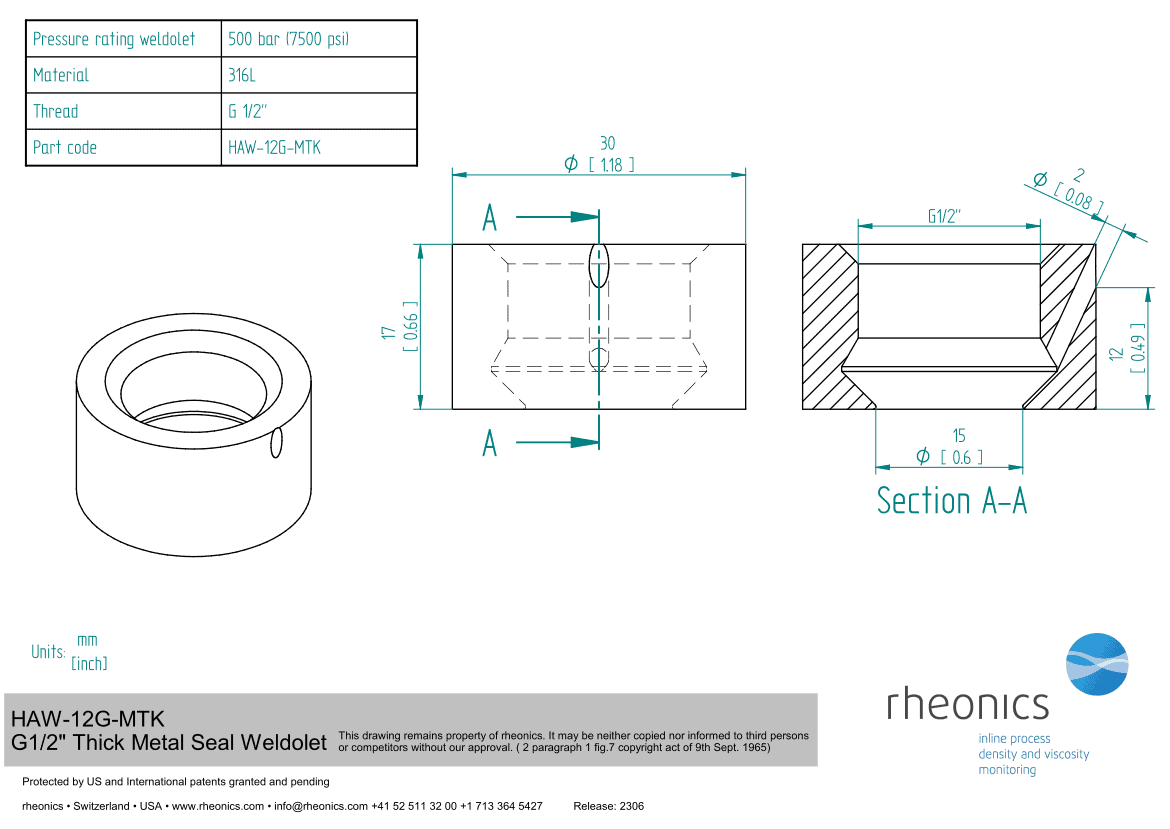

Rheonics HAW-12G-MTK accessory is a weldolet adapter for the SRV and SRD sensor probes with 1/2” G thread (-X1-12G). These weldolets are designed for a flush installation in pipe or tank walls while ensuring the sensing element is fully immersed in the flow. This adapter has a metal-to-metal seal.

• Use this part for flush installation in line or tank, this means no dead zones are created.

• Avoid stagnation zones around the sensing element.

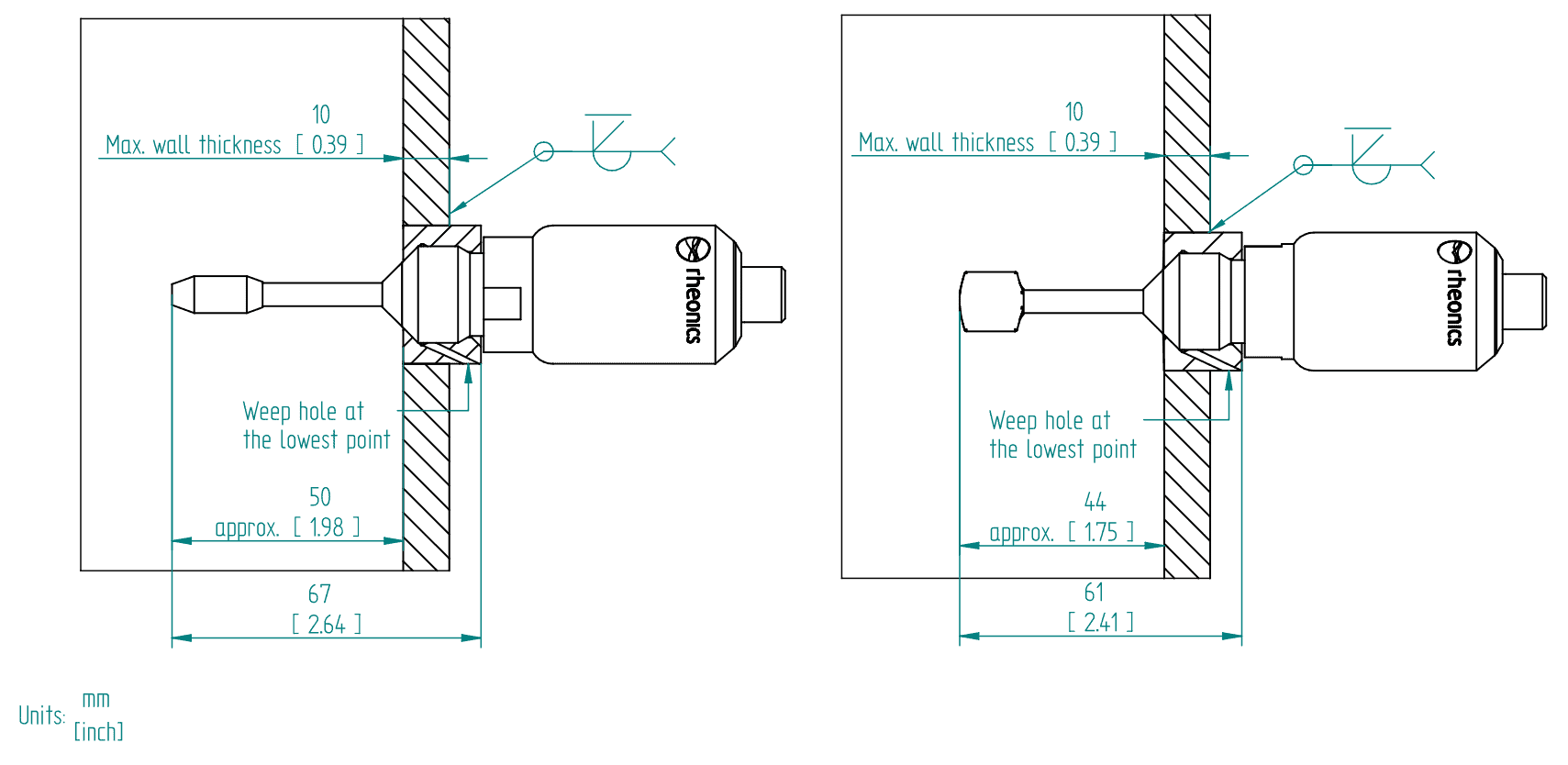

• Use for installation in walls with a max. thickness of 10mm. For thicker walls a cut in the wall is required to mantain the limit thickness.

• Weld according to ANSI/AWS D10.4 recommendation standard for Austenitic Stainless Steel pipes.

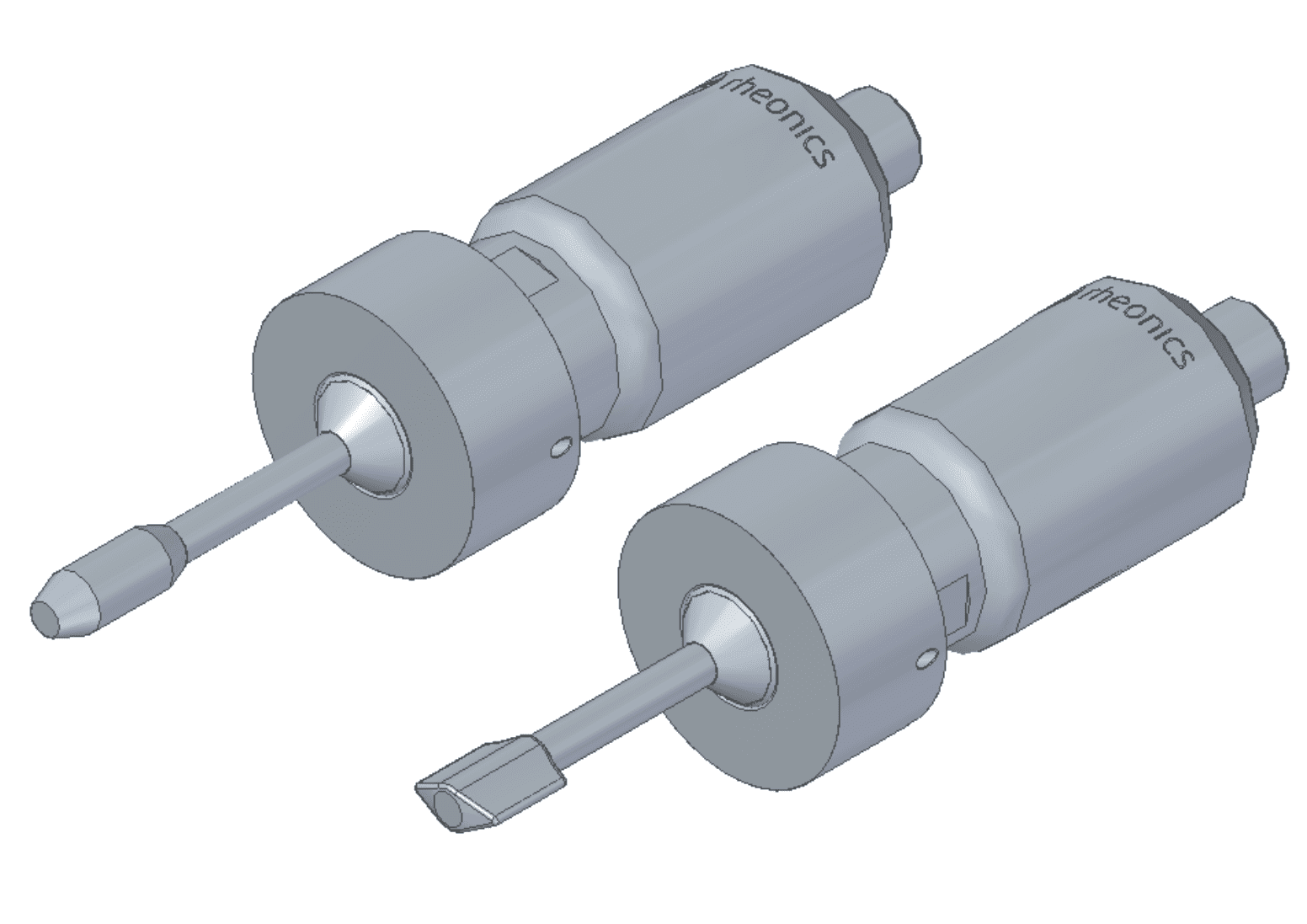

• Suitable for SRV and SRD sensors.

• Weld for wall thinner than 10mm.

• Recommended position of the weep hole at the lowest point or drainable orientation.

• For SRD, G1/2” installation is only recommended for applications where fluid is at the same or near the ambient temperature. Read more here.

• Recommended torque for Type-SR probe installation in weldolet is 18 Nm.
• Pressure rating is limited by sensor probe specifications and welding.

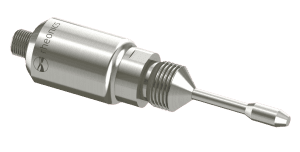

SRV-X1-12G: Guidance on the installation of the G1/2” SRV sensor (SRV-X1-12G).

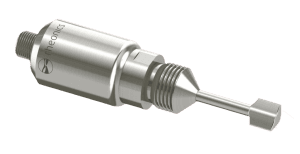

SRD-X1-12G: Guidance on the installation of the G1/2” SRD sensor (SRD-X1-12G).
