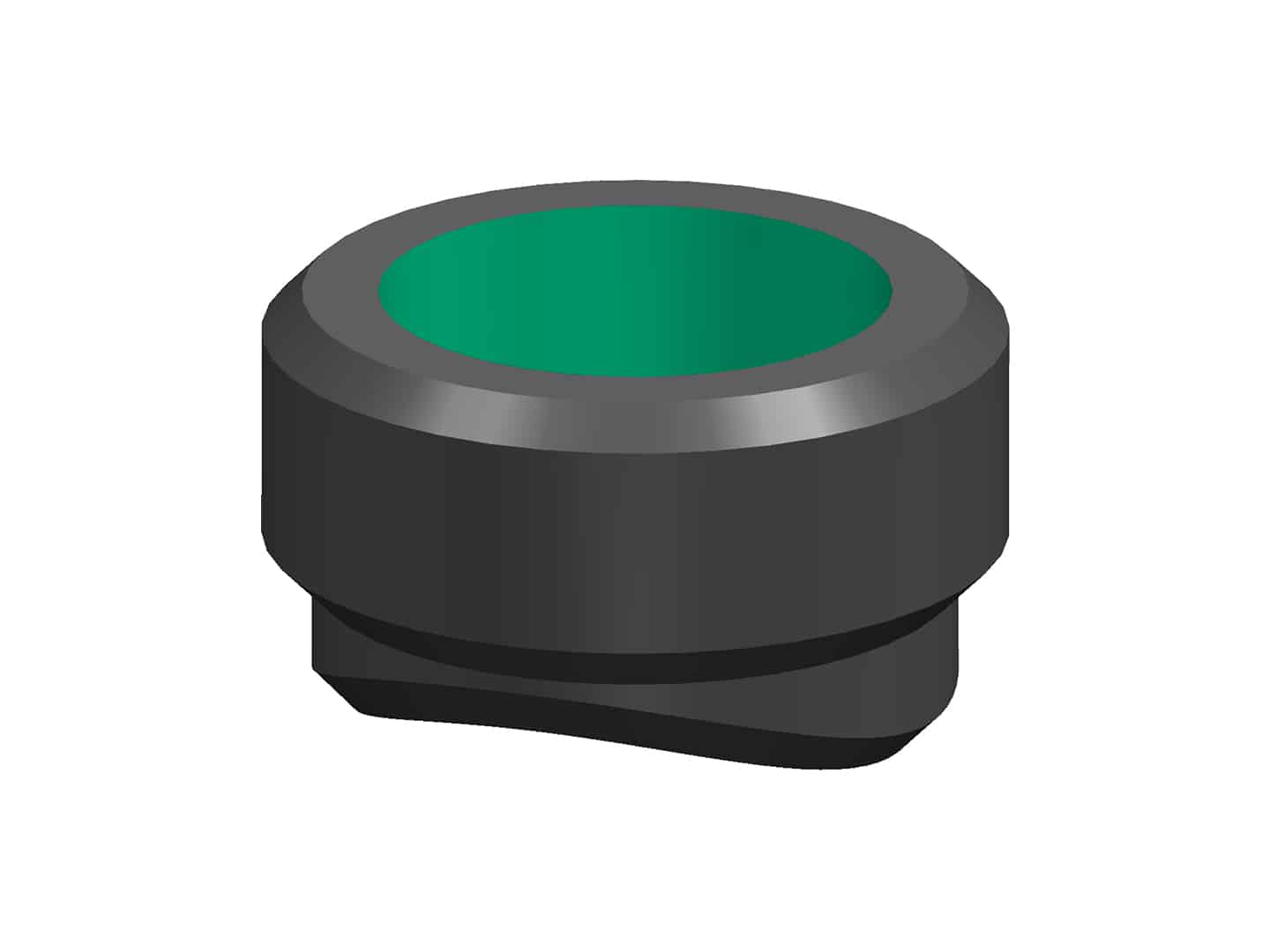

NPT 3/4”-14 weldolet for 2” pipes - WOL-34NS

WOL-34NS - Rheonics

Description

Rheonics WOL-34NS accessory is a NPT weldolet used for installation of SR sensors in 2” pipes. This weldolet is designed to ensure that the Rheonics SR-sensors sensing element is fully immersed in the flow, thus providing the correct measurement conditions using this type of installation.

Specifications
Sensor connectionNPT 3/4”-14
Installation requirementWelding
Material316L
Maximum Pressure500 bar (7500 psi)

Why use this part?

  • This part is often used for sensors installation on a line or tank.

  • Commercially available weldolets are not well suited for the standard 3/4“ NPT version of SRV or SRD as they tend to create large dead zone around the sensing element, thus giving unreliable measurements.

  • WOL-34NS has a specifically designed with shortened thread and height, ideal for 3/4“ NPT version of SRV and SRD.

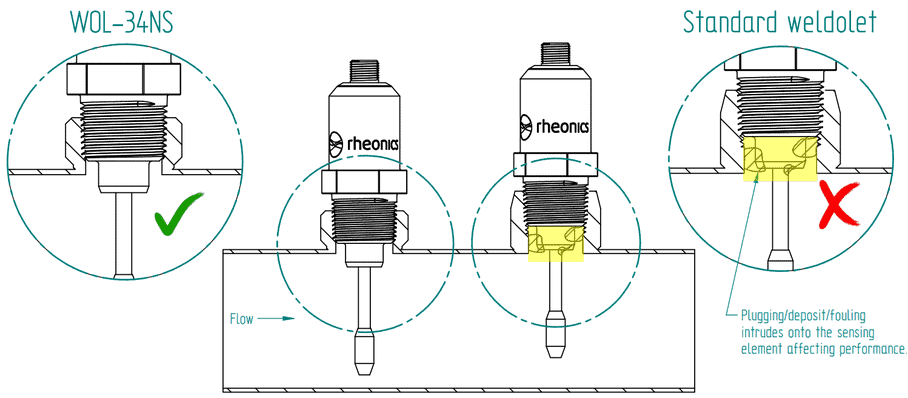

  • Plugging of the gaps (yellow highlighted in figure below) affects the sensing element. This affects the measurement accuracy and stability.

WOL - 34N - Rheonics - installation.

Installation Instructions

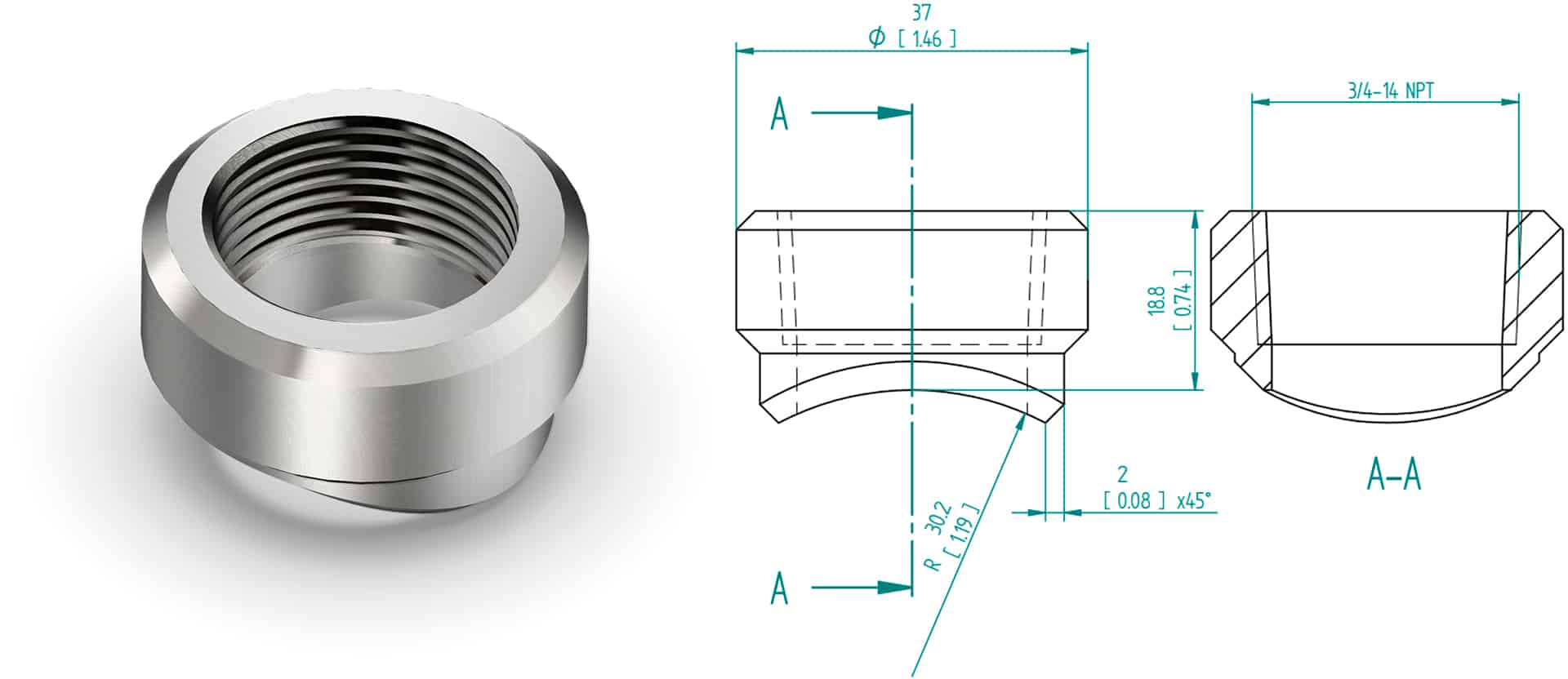

WOL - 34N - Drawing - Rheonics
  • Weld according to ANSI/AWS D10.4 recommendation standard for Austenitic Stainless Steel pipes.
  • Suitable for SRV and SRD sensors.
  • Weld only on 2”pipes ANSI standards (60.3 OD).

Support articles

SRV NPT: Overview of the SRV NPT 3/4”-14 variant, installation guidelines, instructions, special considerations and available accessories.

SRD NPT: Overview of the SRD NPT 3/4”-14 variant, installation guidelines, instructions, special considerations and available accessories.

Download files

WOL-34NS – Rheonics

CAD model (stp.) and drawing (dwg. and pdf.) of the WOL-34NS.

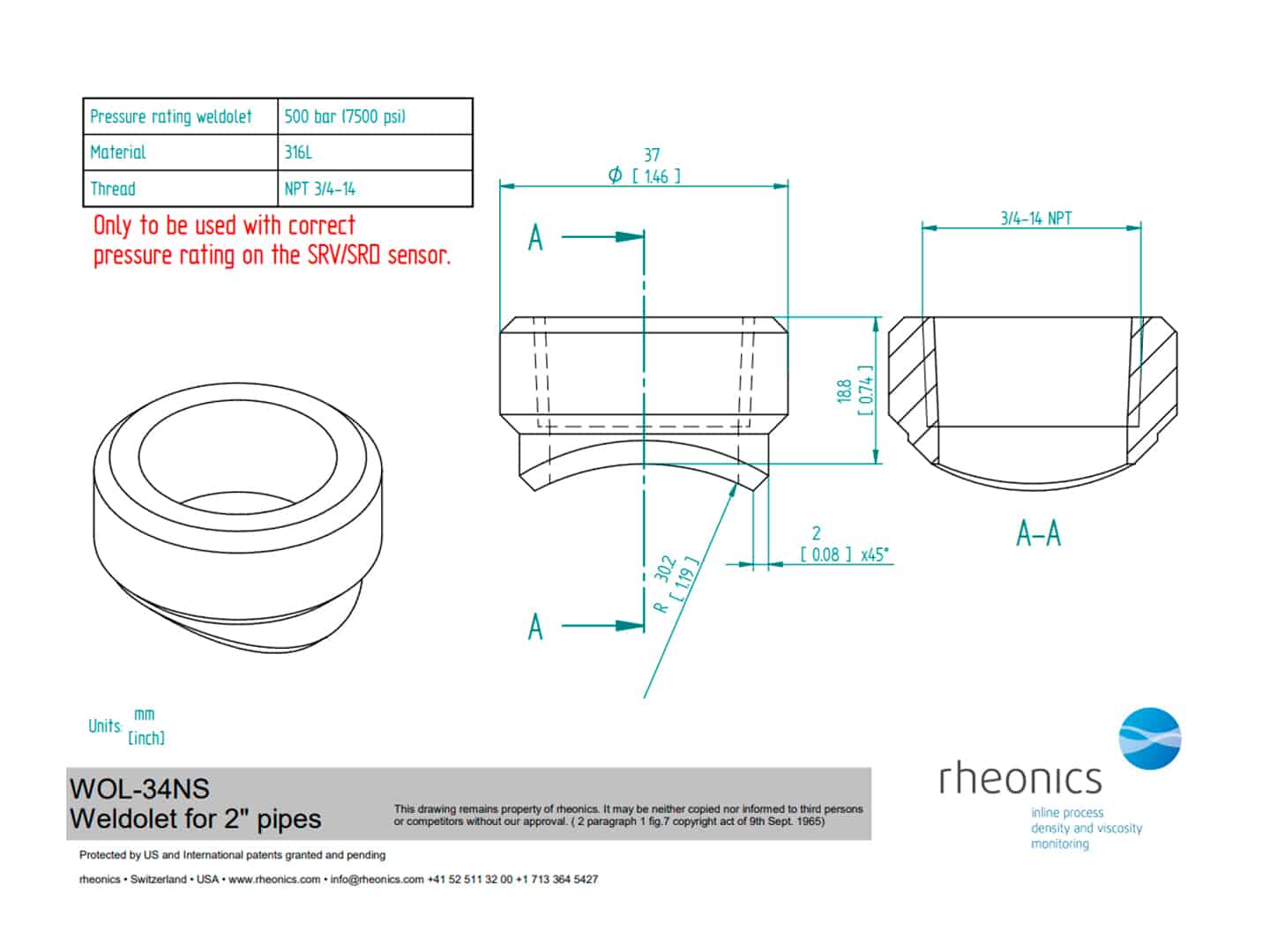

WOL-34NS Weldolet for 2

Drawing (pdf.) of the WOL-34NS.

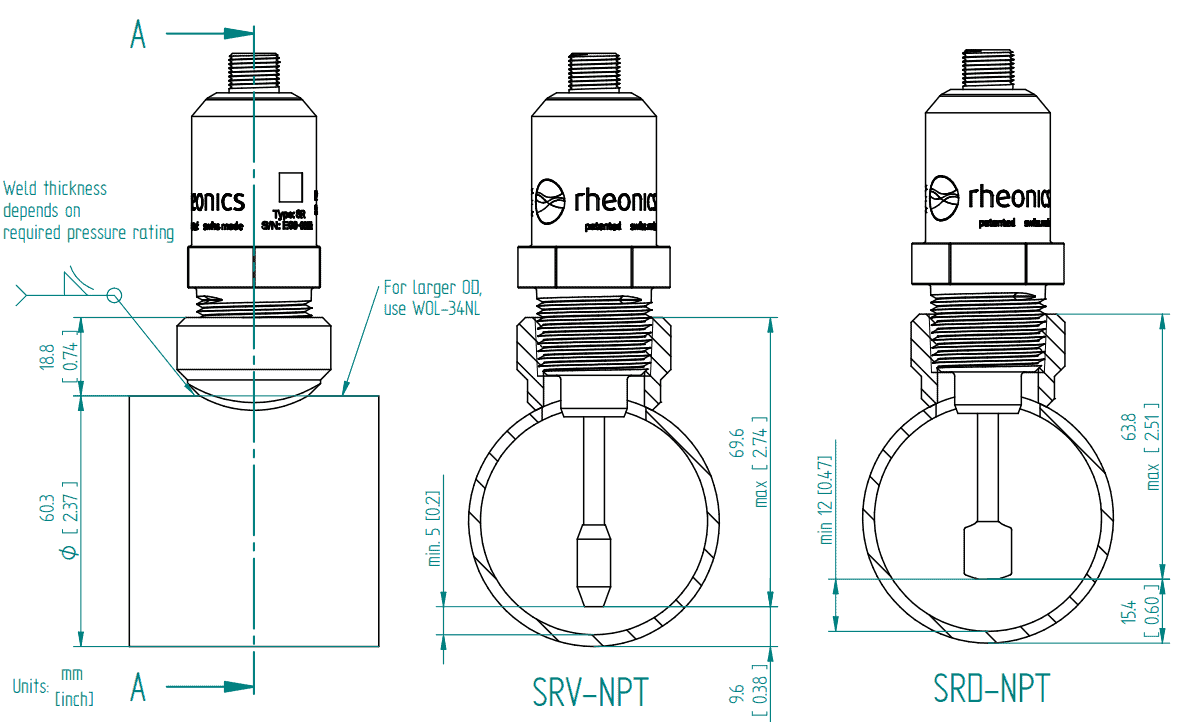

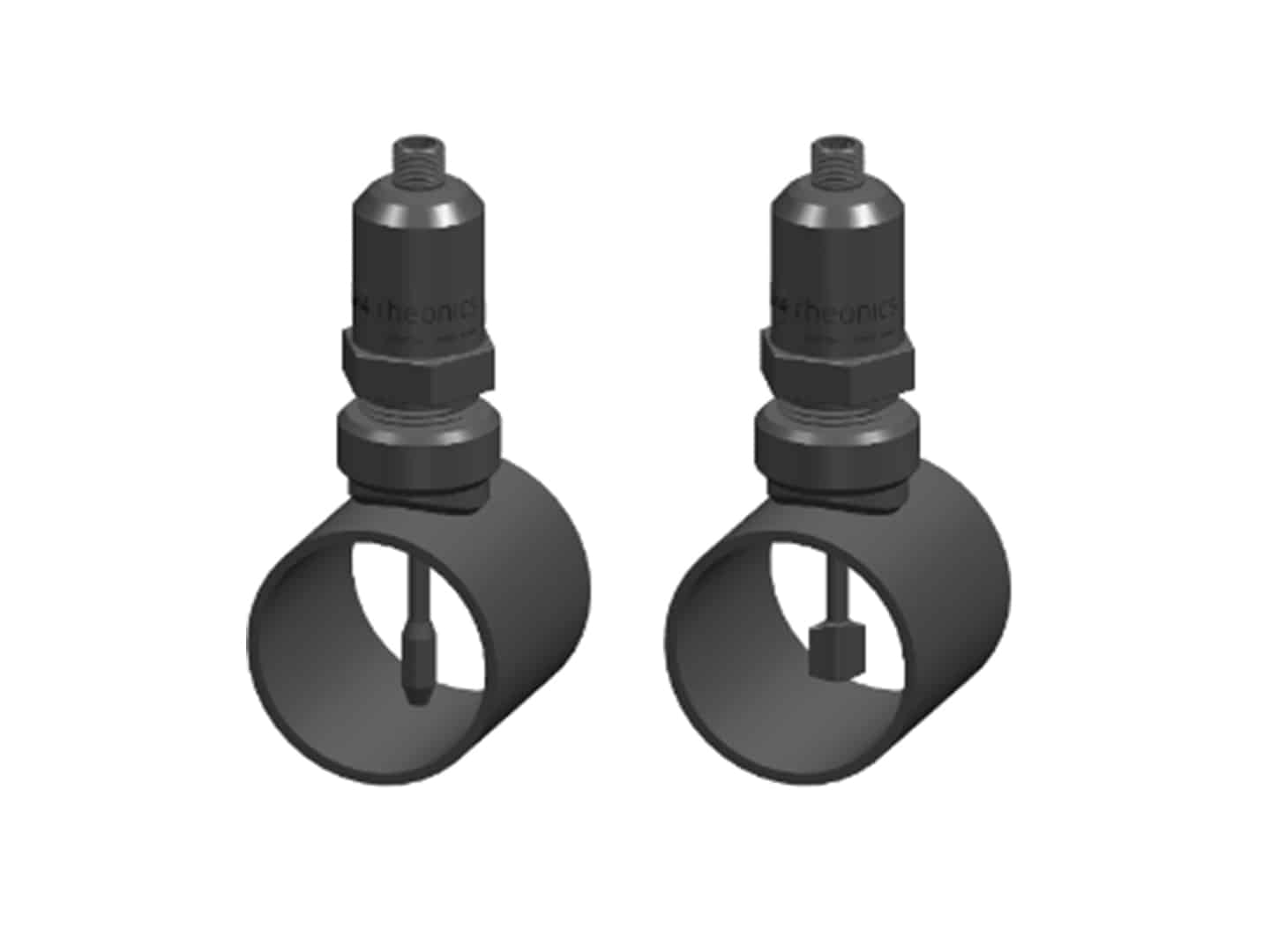

SR-Sensors with WOL-34NS CAD files

Drawing (dwg. and pdf.) of the WOL-34NS, and CAD models (stp.) of SRV and SRD NPT mounted on the accessory.

Compatible with products

SensorNameVariant
SRV Inline viscometer - RheonicsSRV - Inline Viscosity MeterNPT 3/4” - 14
SRD - NPT - inline process density viscosity monitoring control management for printing coating mixing grinding automotive pharmaceuticalsSRD - Inline Density and Viscosity MeterNPT 3/4” - 14
