WOL-34NL

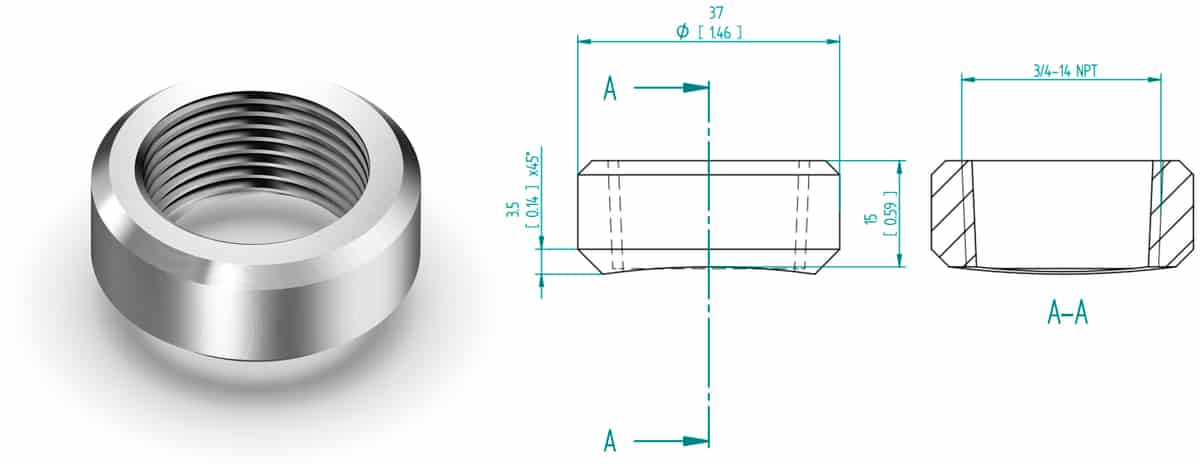

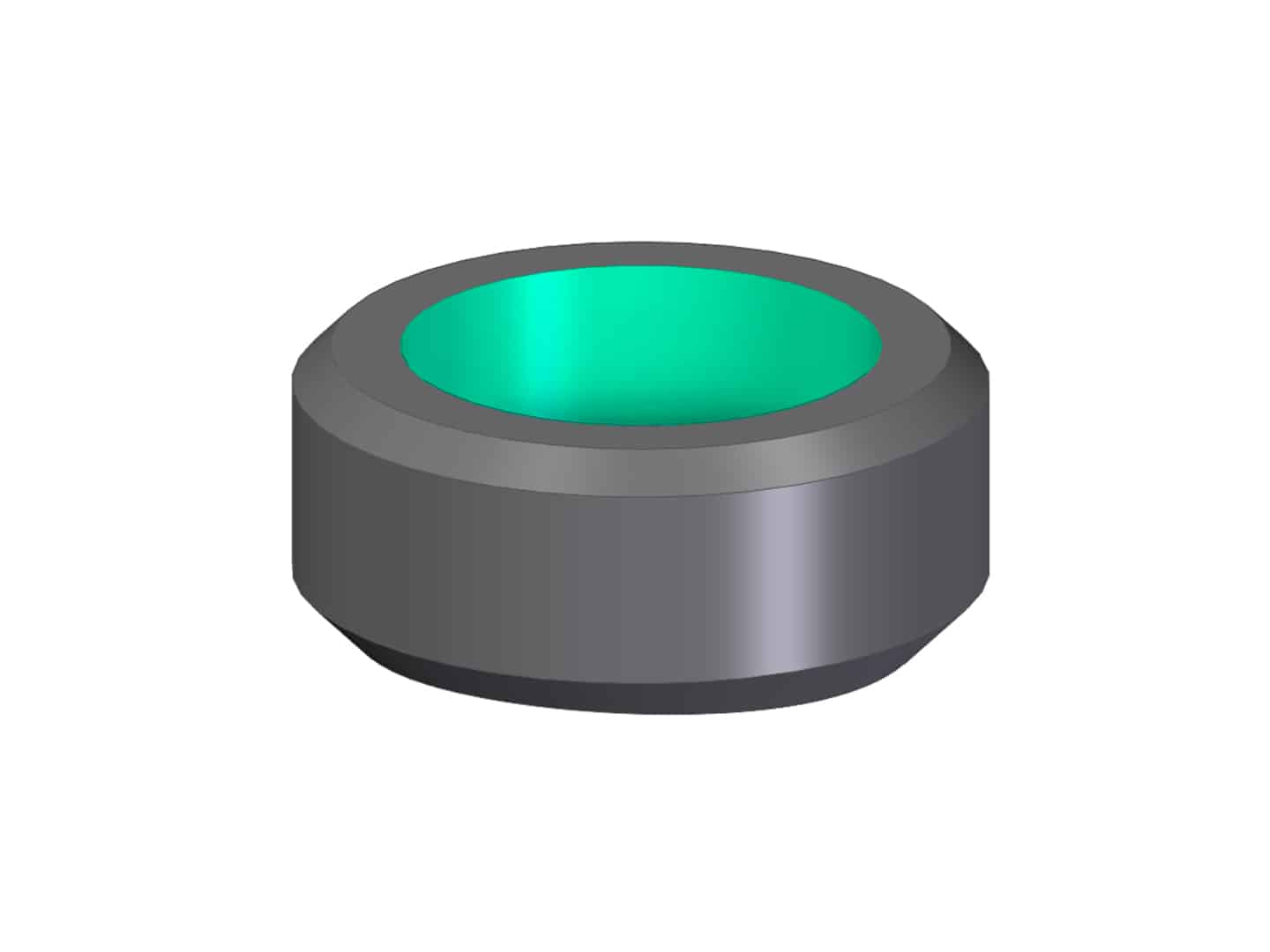

Rheonics WOL-34NL accessory is an NPT weldolet used on 2.5” or larger pipes and tank installations. This weldolet is designed to ensure that the Rheonics SR-sensors sensing element is fully immersed in the flow, thus providing the correct measurement conditions using this type of installation.

• This part is often used for sensor probe installation on a line or tank.

• Commercially available weldolets are not well suited for the standard 3/4“ NPT version of SRV or SRD as they tend to create large dead zone around the sensing element, thus giving unreliable measurements due to potential fouling/deposit intruding onto the sensing element.

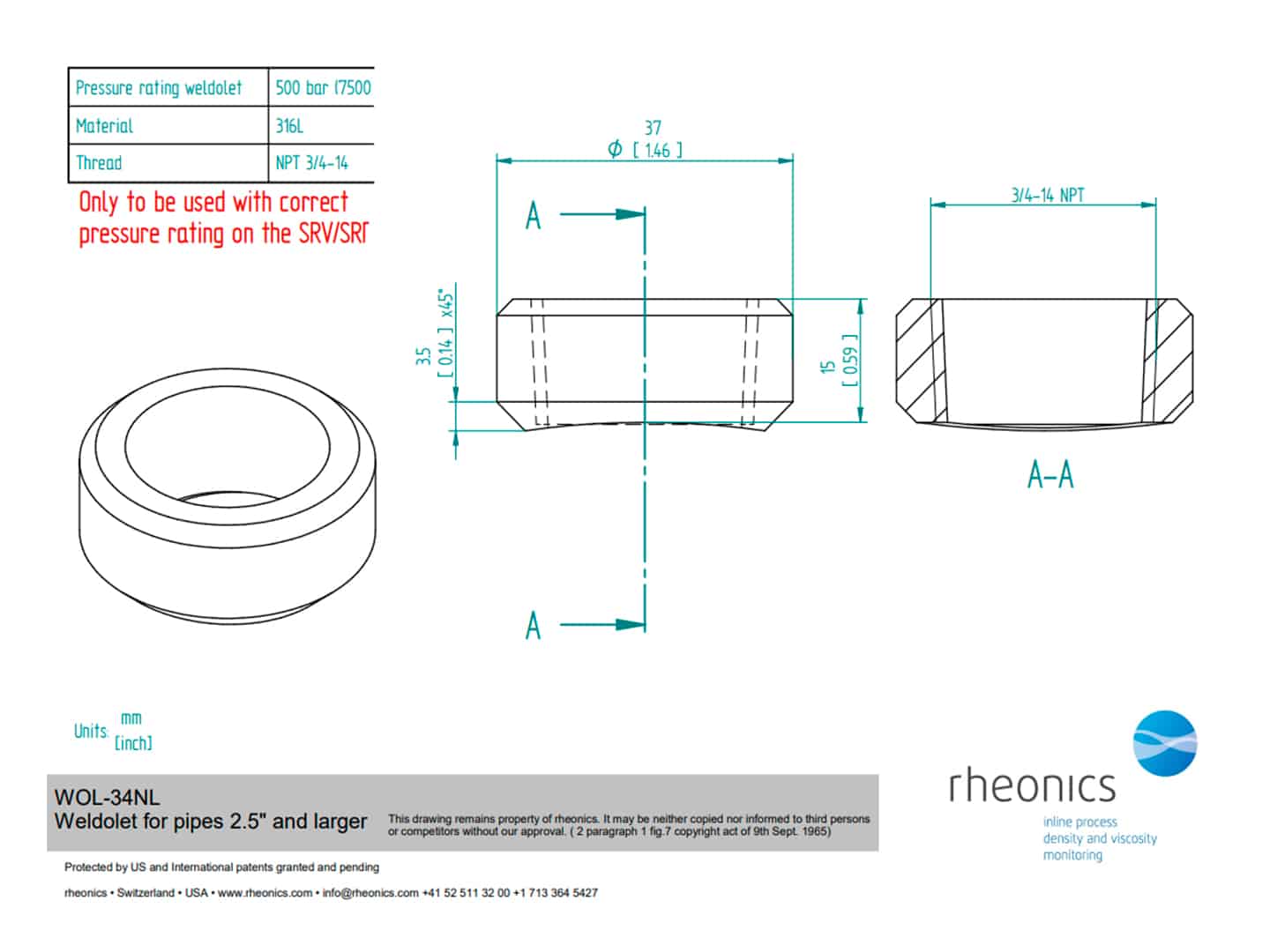

• WOL-34NL is designed with a shortened thread and height, ideal for 3/4“ NPT version of SRV and SRD.

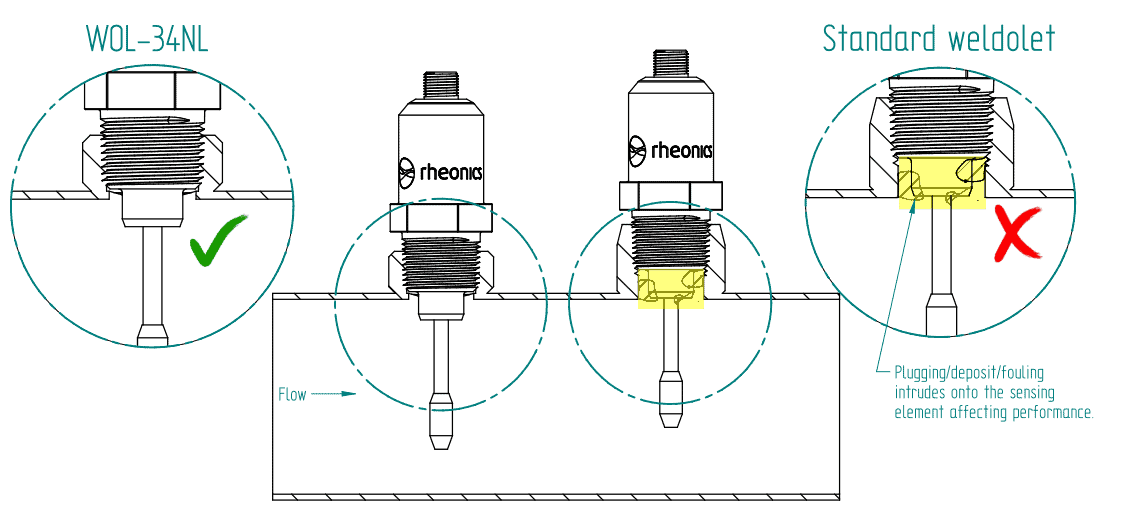

• Plugging of the gap in a standard off-the-shelf NPT weldolet (yellow highlighted in figure below) affects the sensing element. This affects the measurement accuracy and stability.

• Weld according to ANSI/AWS D10.4 recommendation standard for Austenitic Stainless Steel pipes.

• Suitable for SRV and SRD sensors.

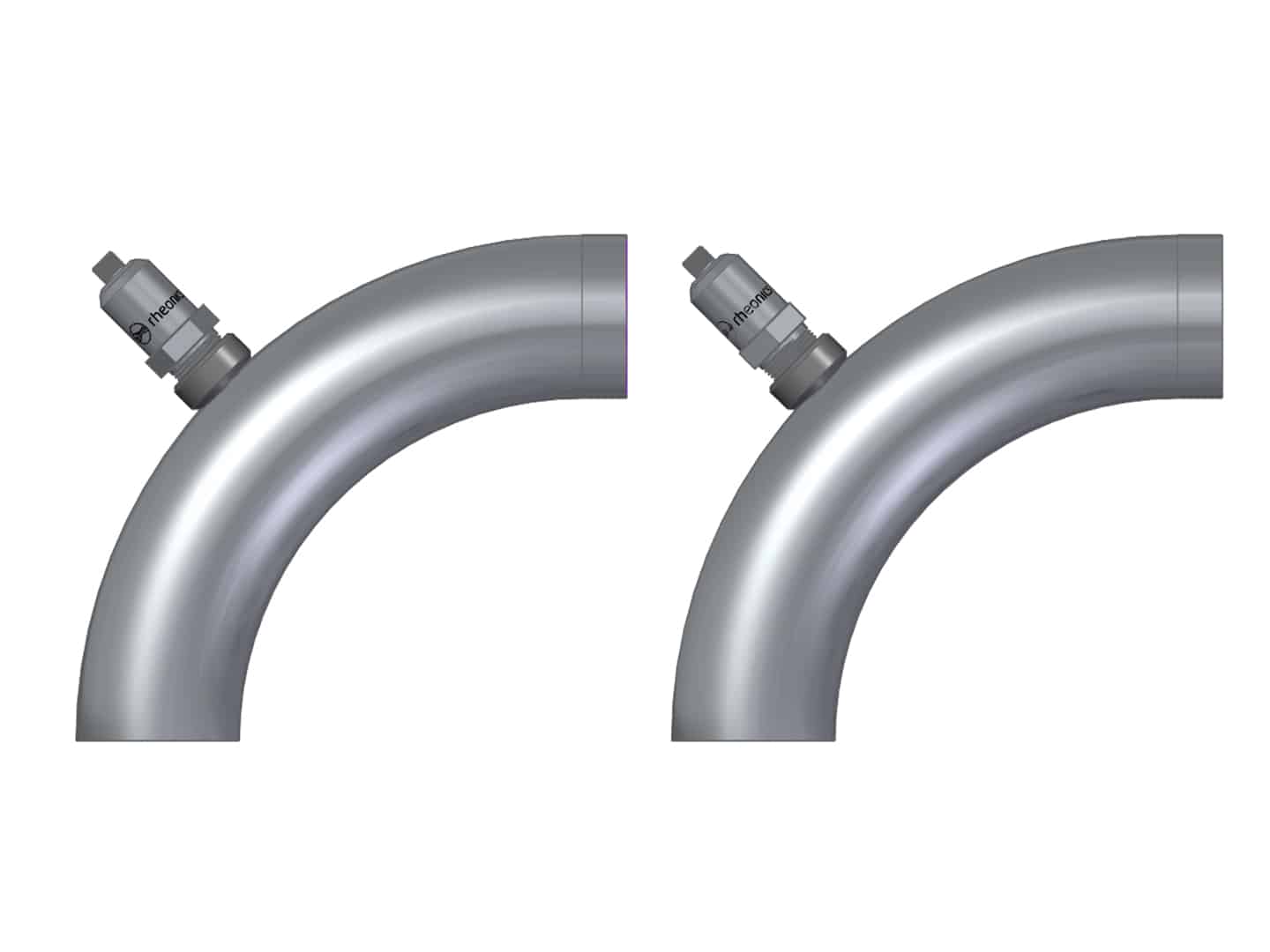

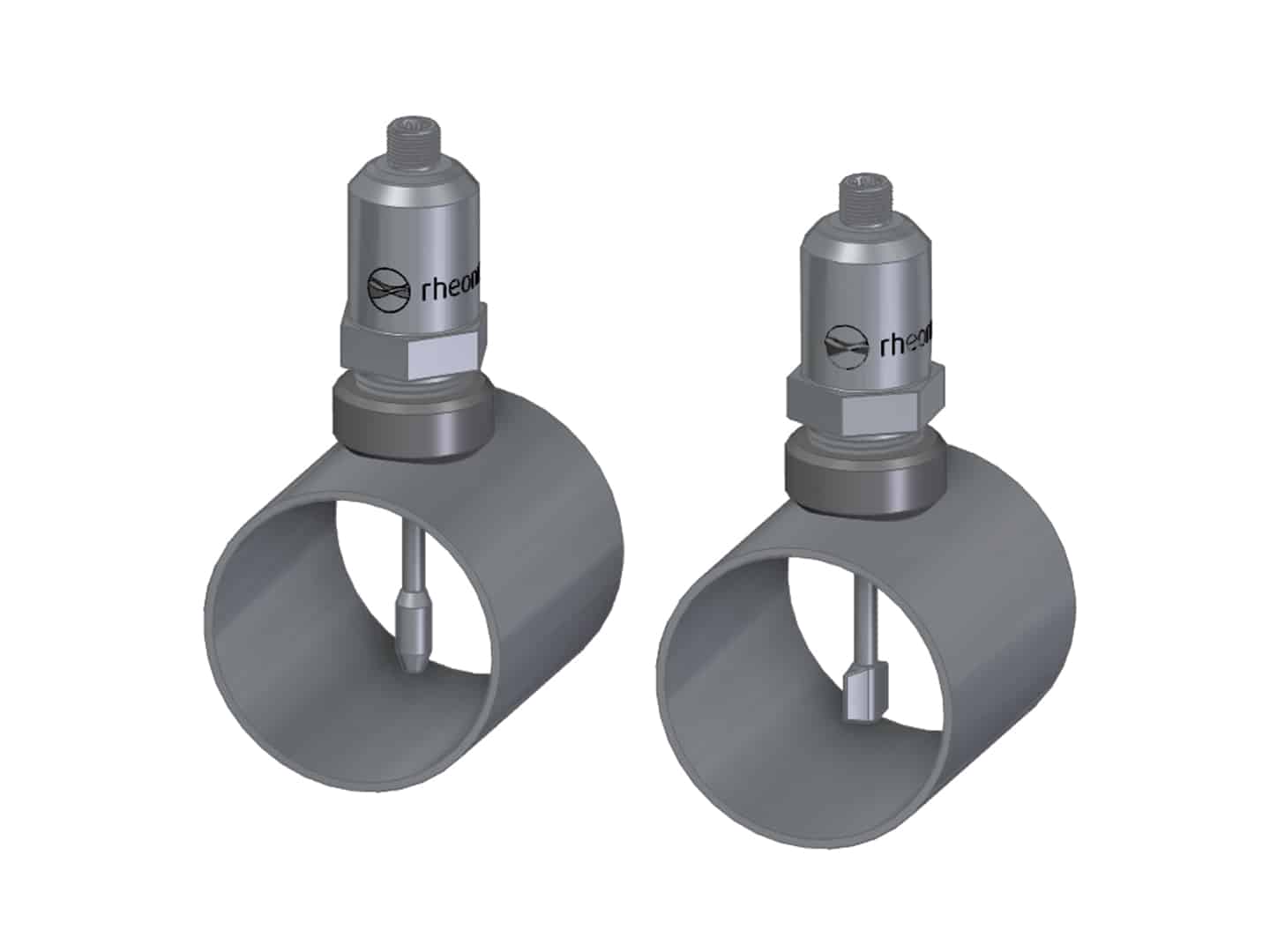

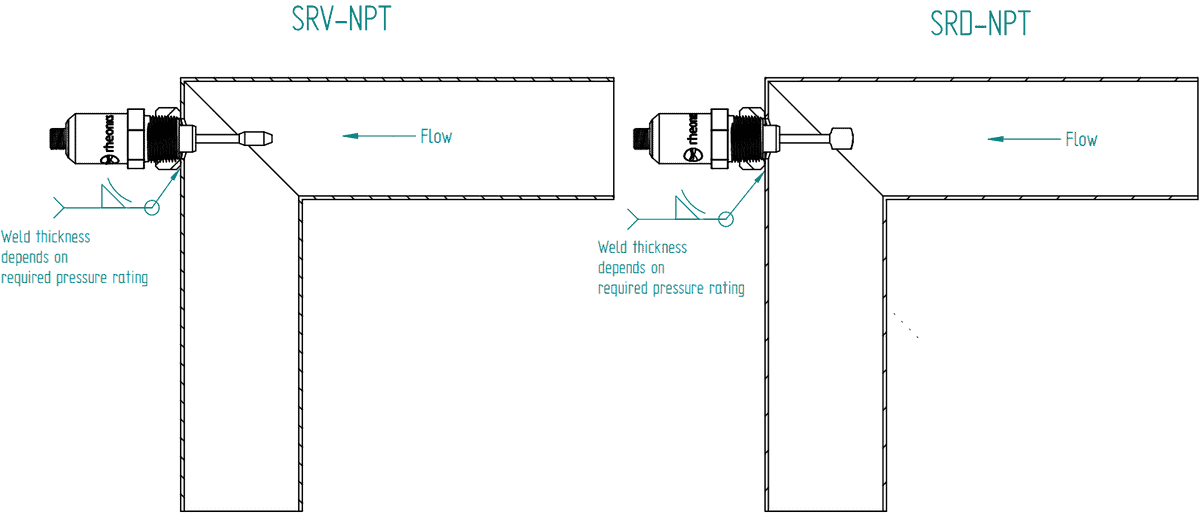

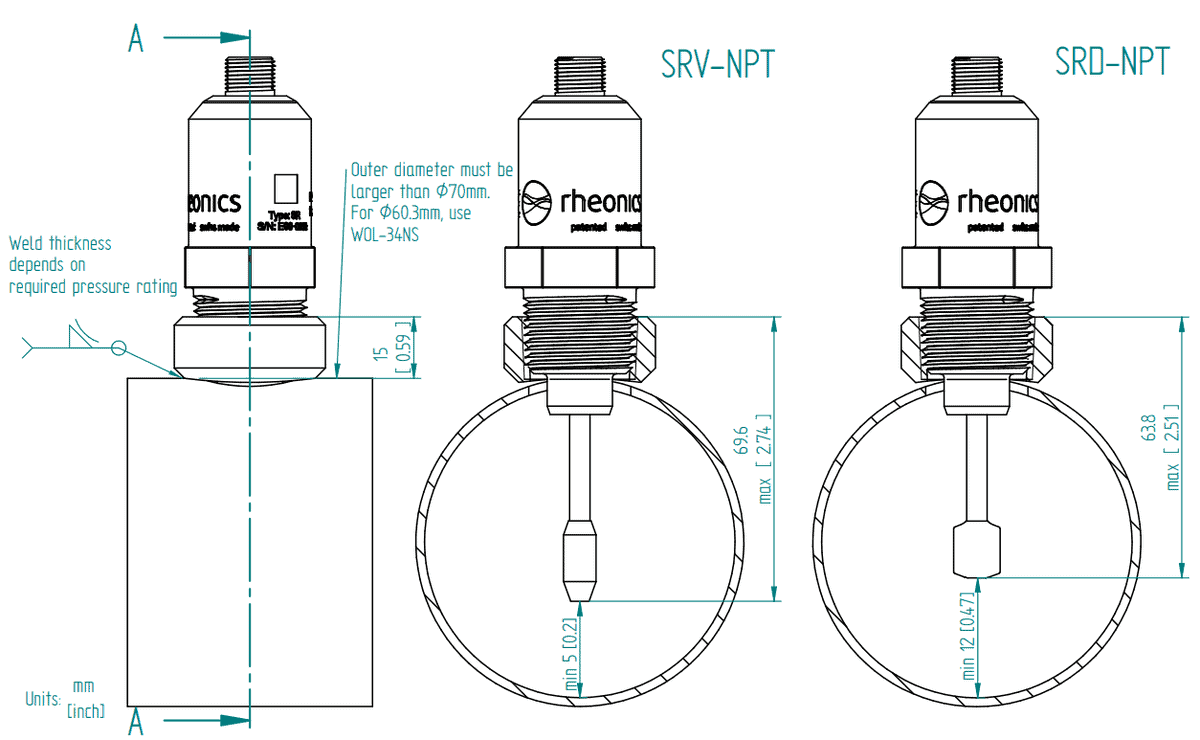

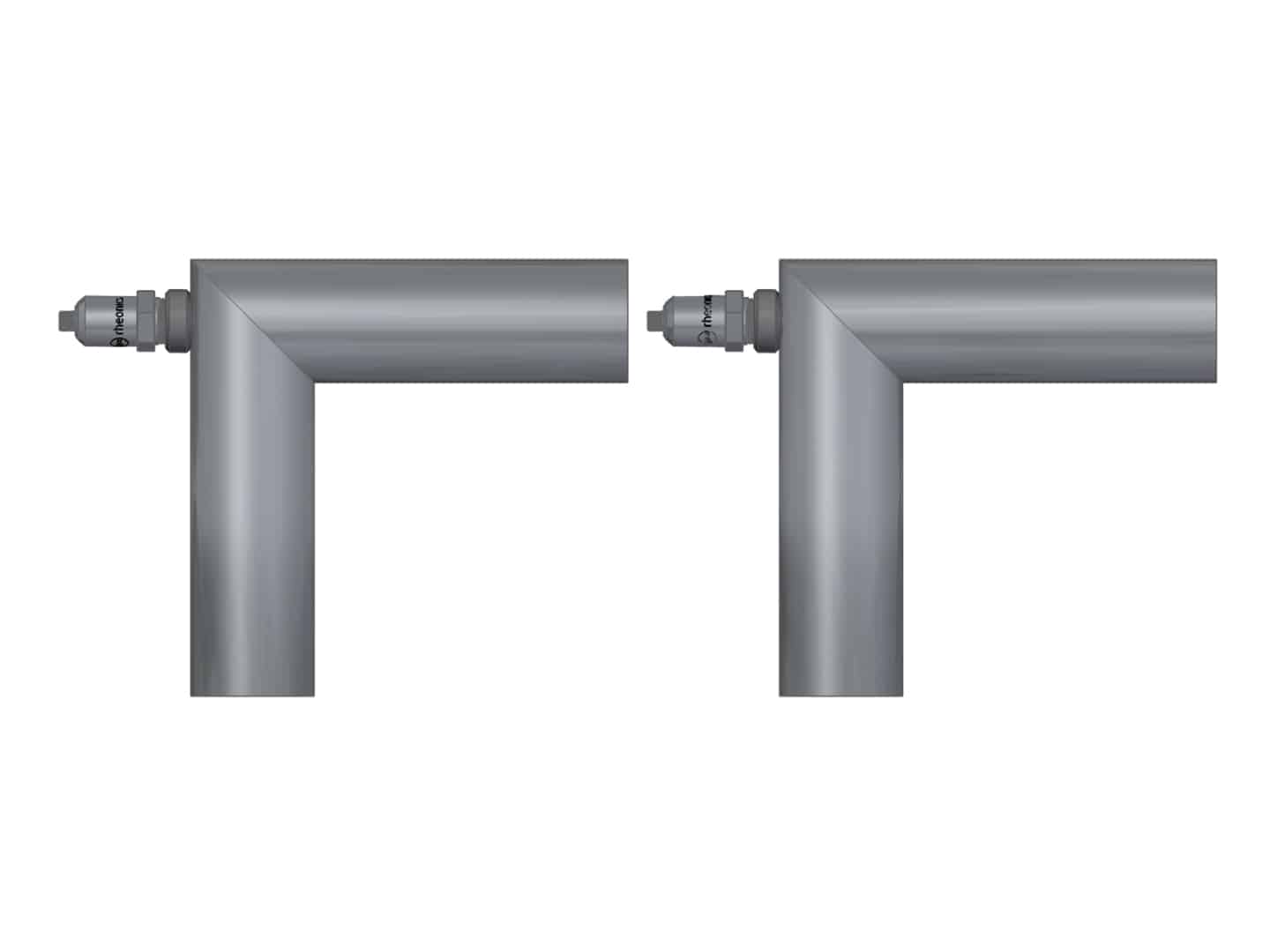

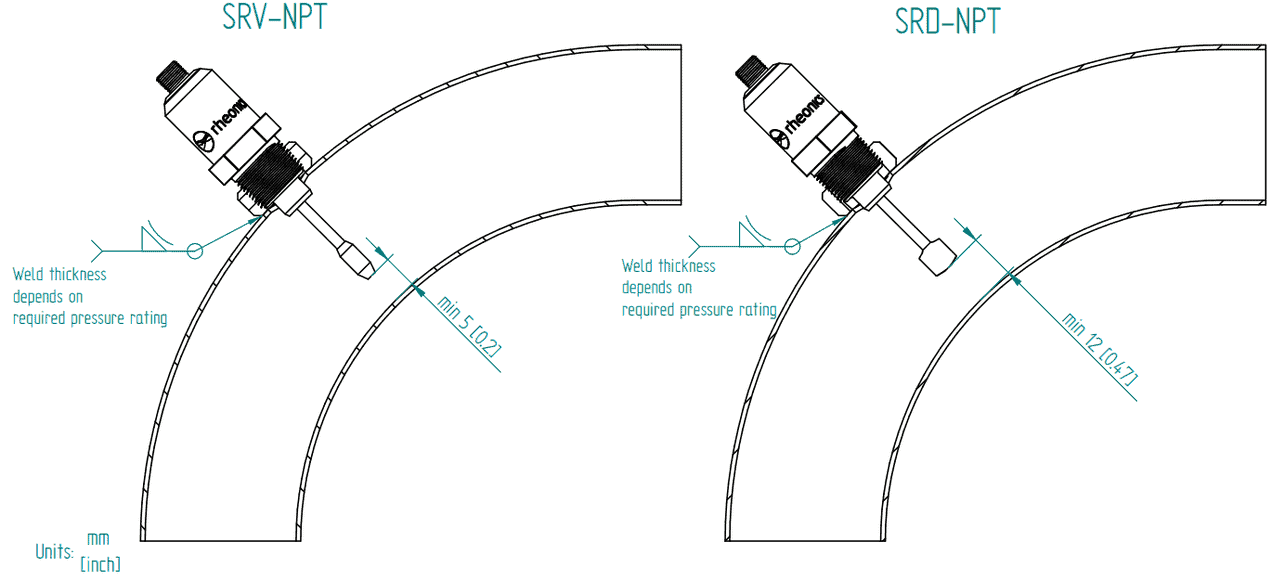

• Weld on 2.5” pipes/elbows or bigger.

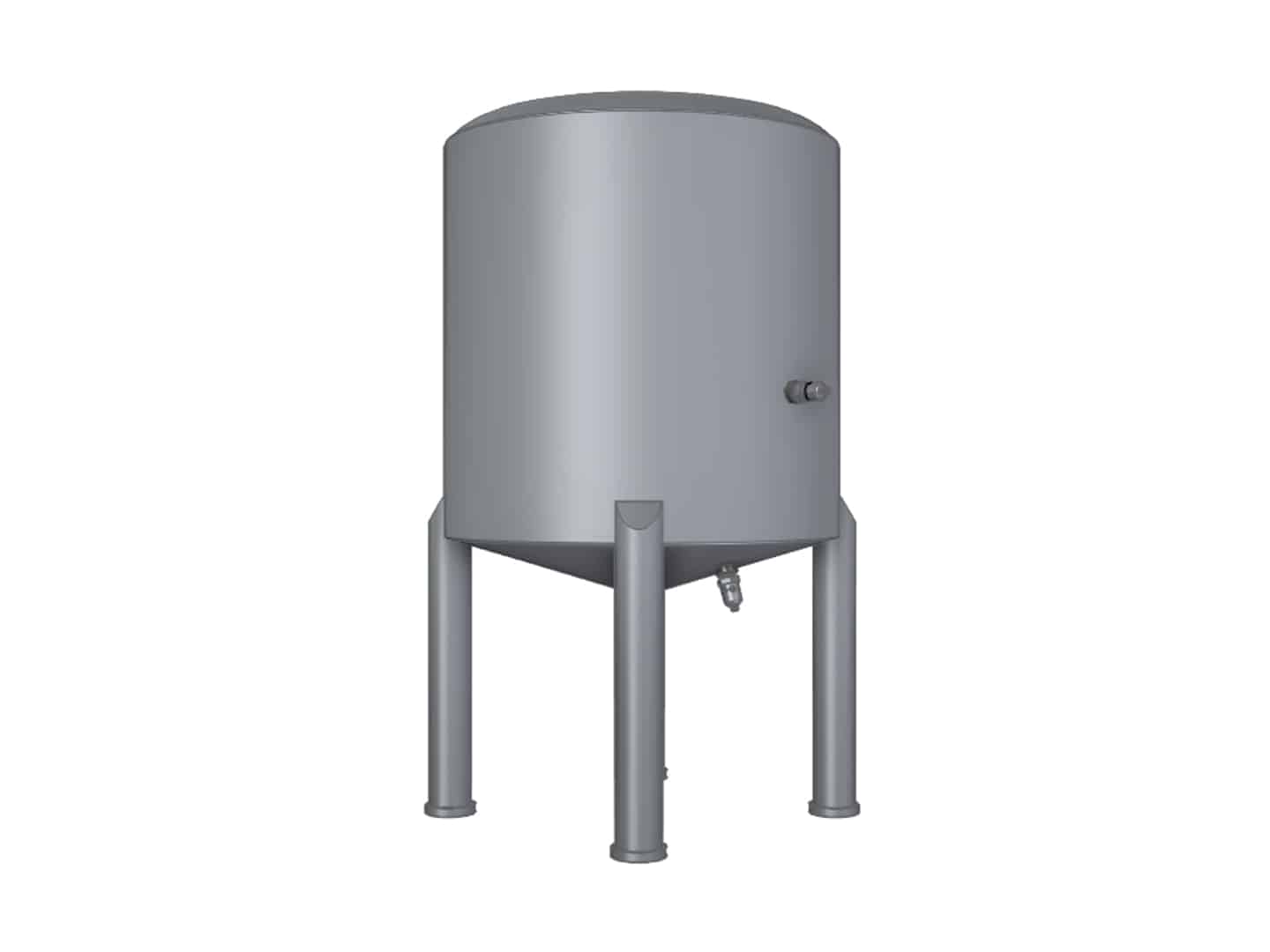

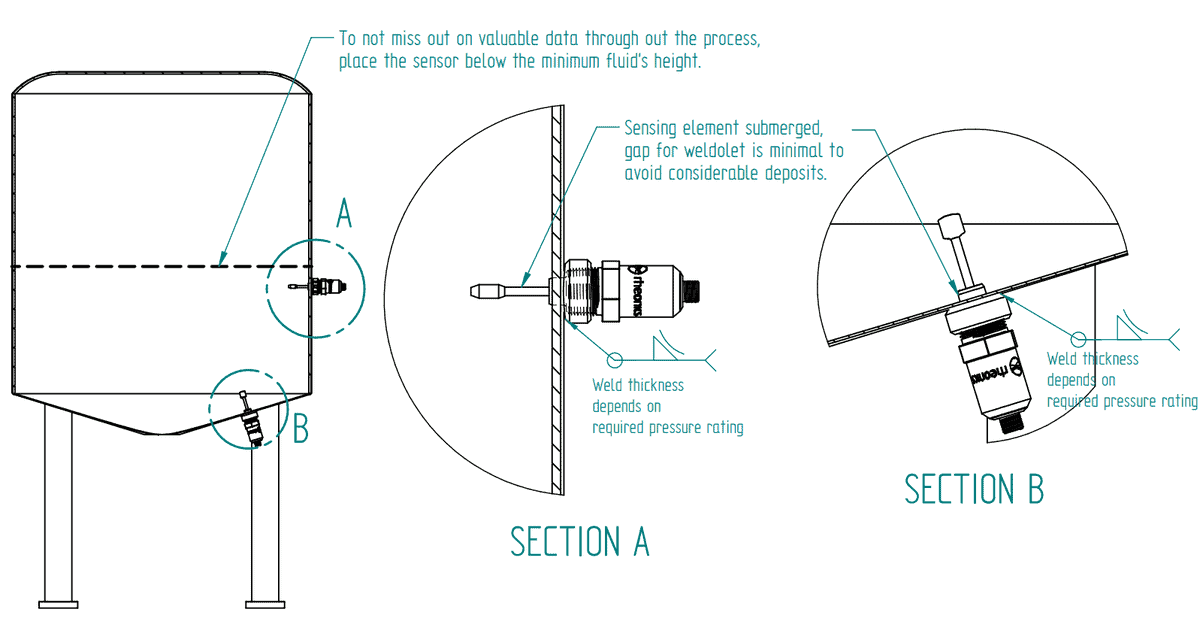

• Weld on tank/vessel/reactor walls.
