Impact Shield for SR-Sensors - IMS-SR

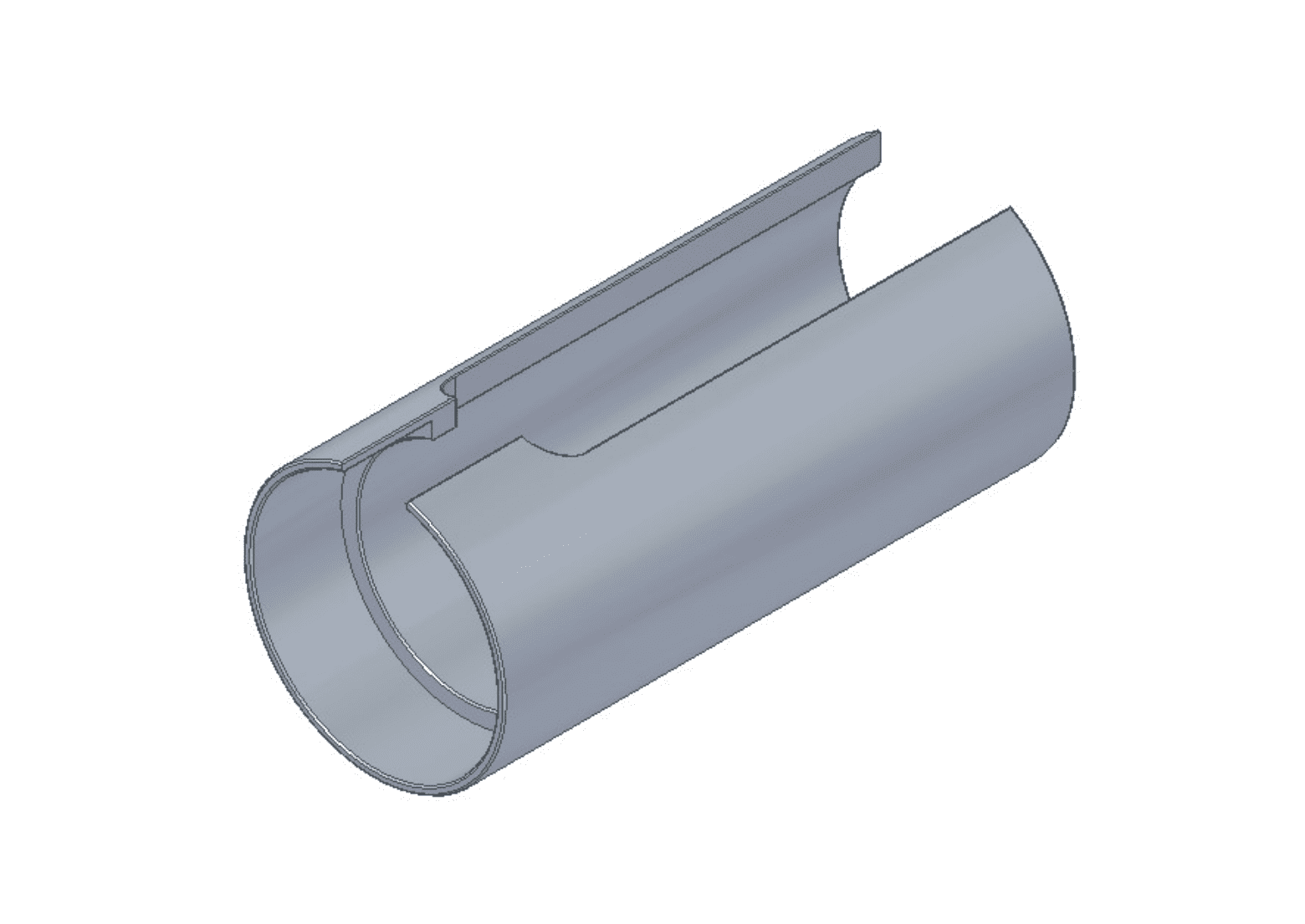

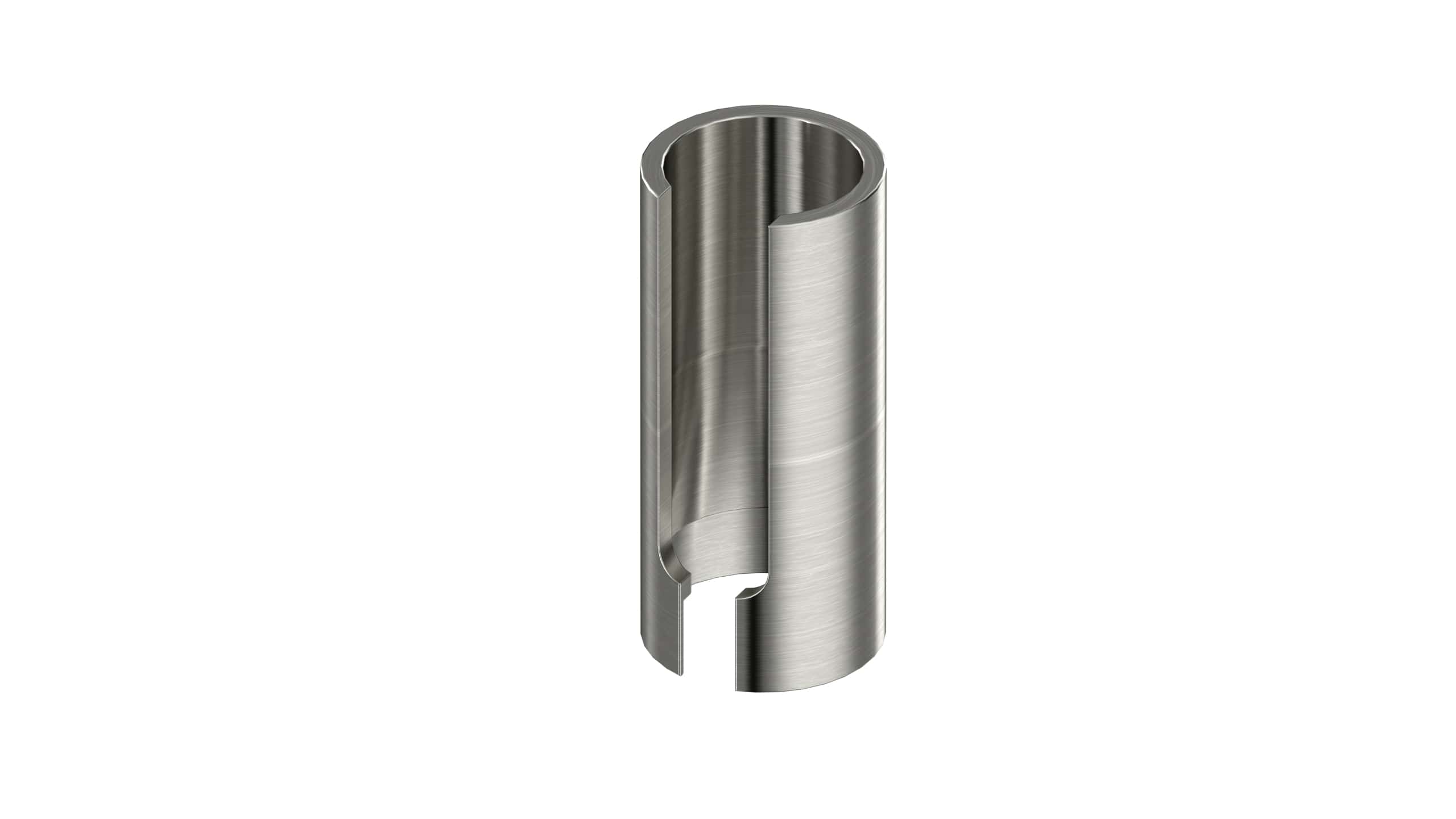

IMS-SR Accessory

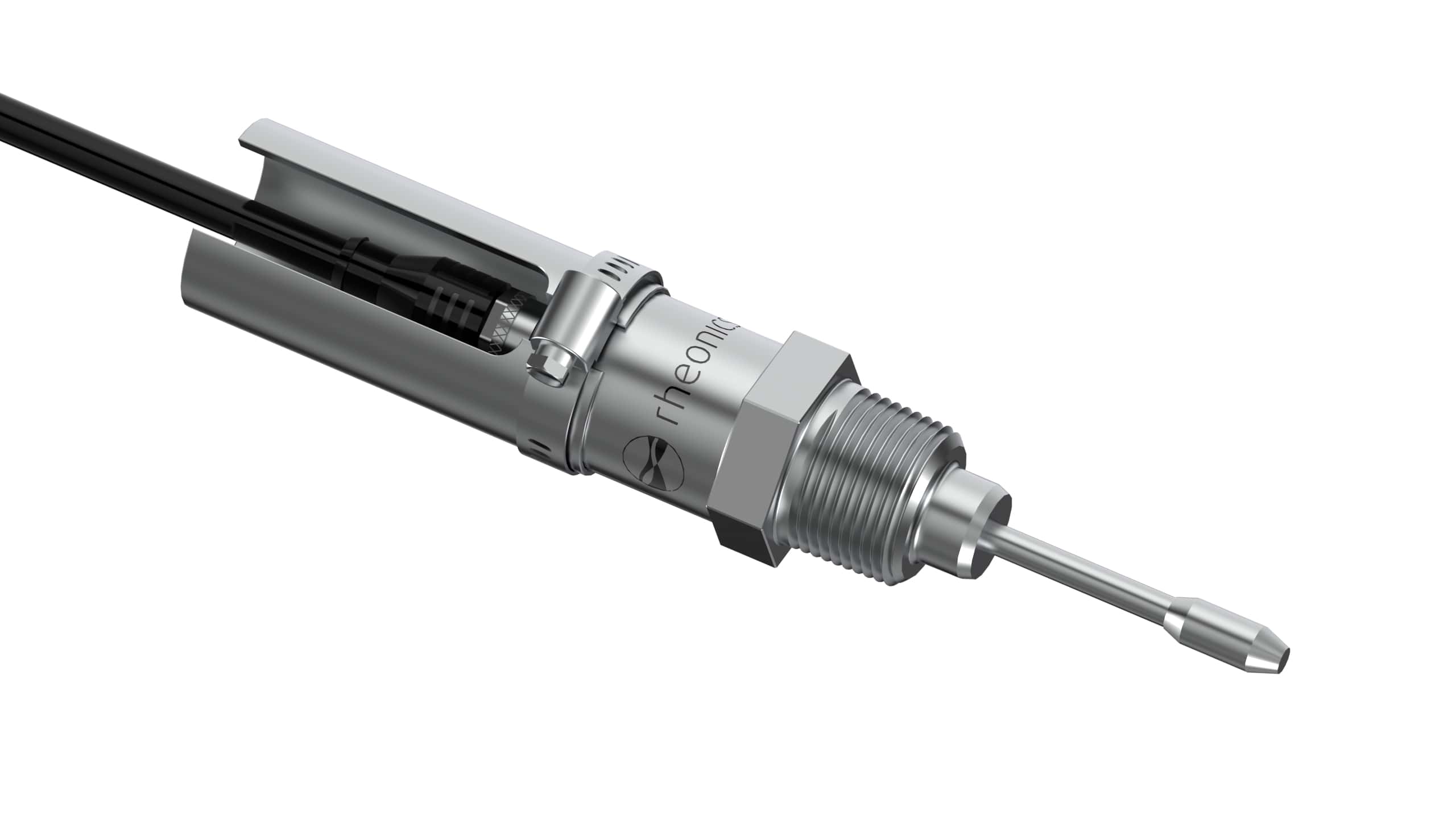

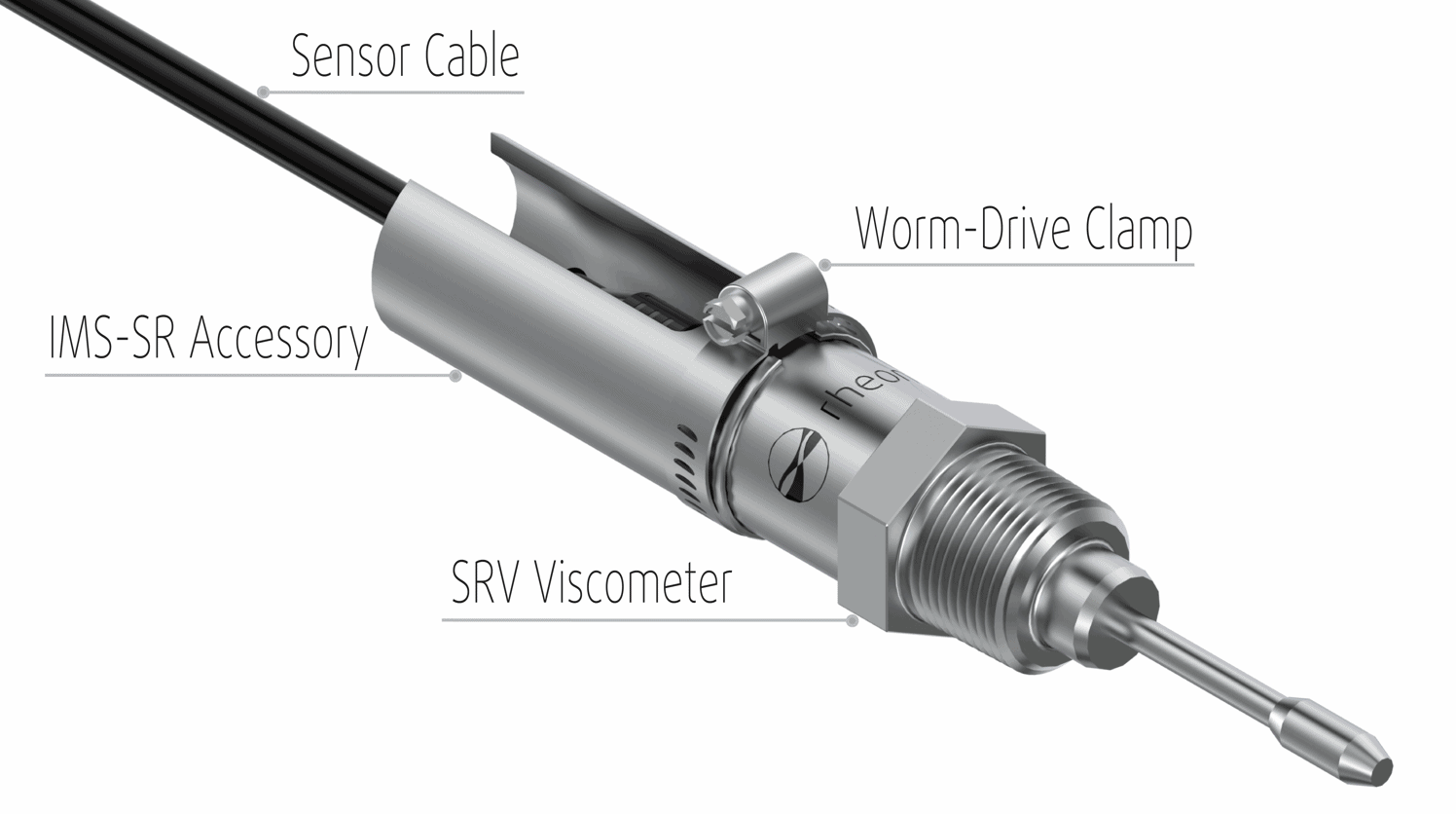

IMS-SR mounted on SRV-X1-34N

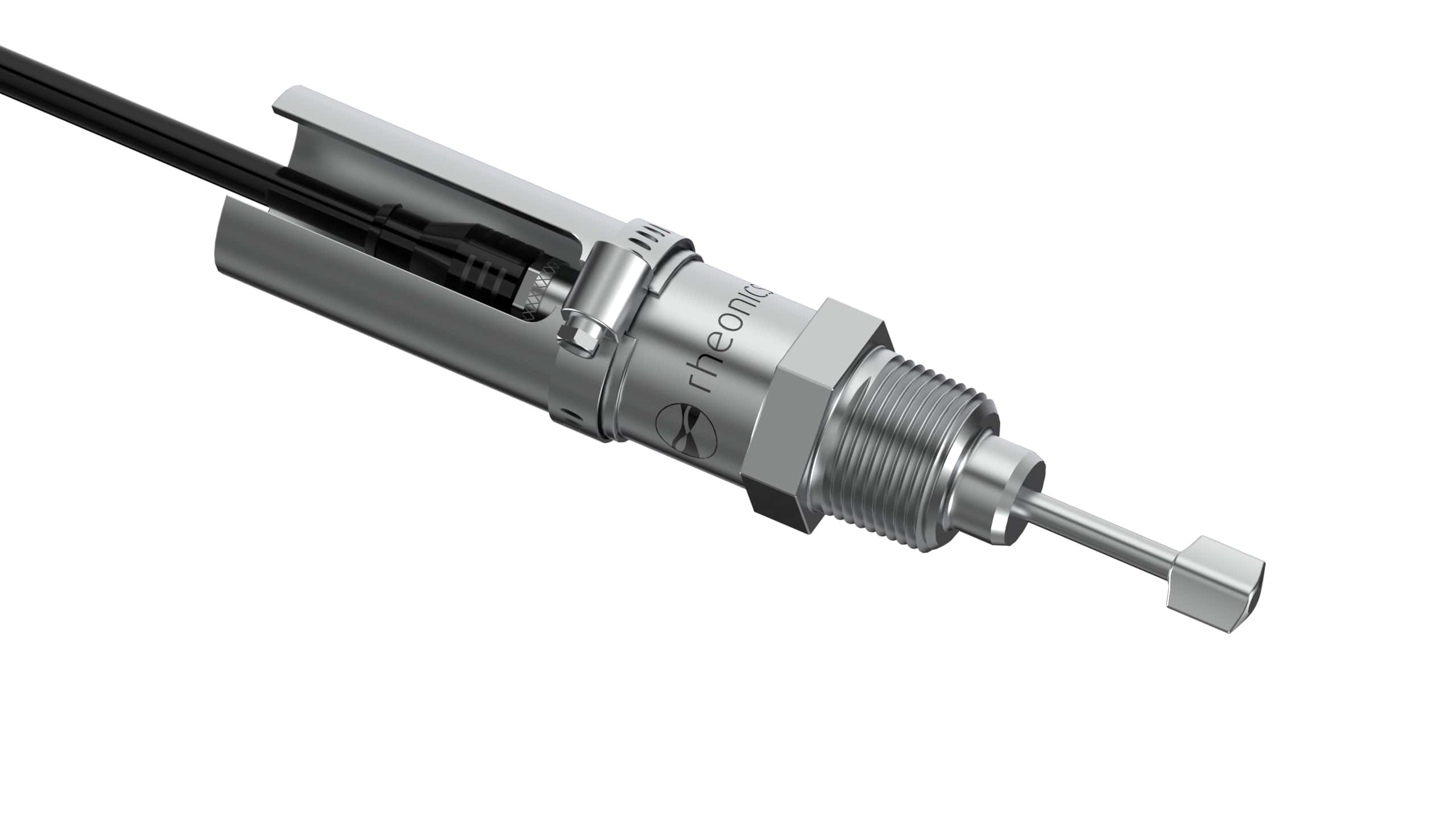

IMS-SR mounted on SRD-X1-34N

Description

Rheonics IMS-SR accessory is used to protect the SR-Sensor’s (SRV and SRD) probe, from any impact in installations where the connector is susceptible to damage. In EX installations, it is mandatory to protect the connector if exposed to potential damage. This accessory is suitable for SRV and SRD all variants except for Slimline Probes (X6) and Reactor Probes (X7) Version.

Specifications
InstallationAt 30 mm diameter of probe back-end
Included assembly partsWorm-drive clamp
Material316L

Why use this part?

  • Protect the M12 connectors of the SR- sensors (SRV and SRD) from any impact.
  • In EX installations, it is mandatory to protect the connector if exposed to potential damage.

Installation instructions

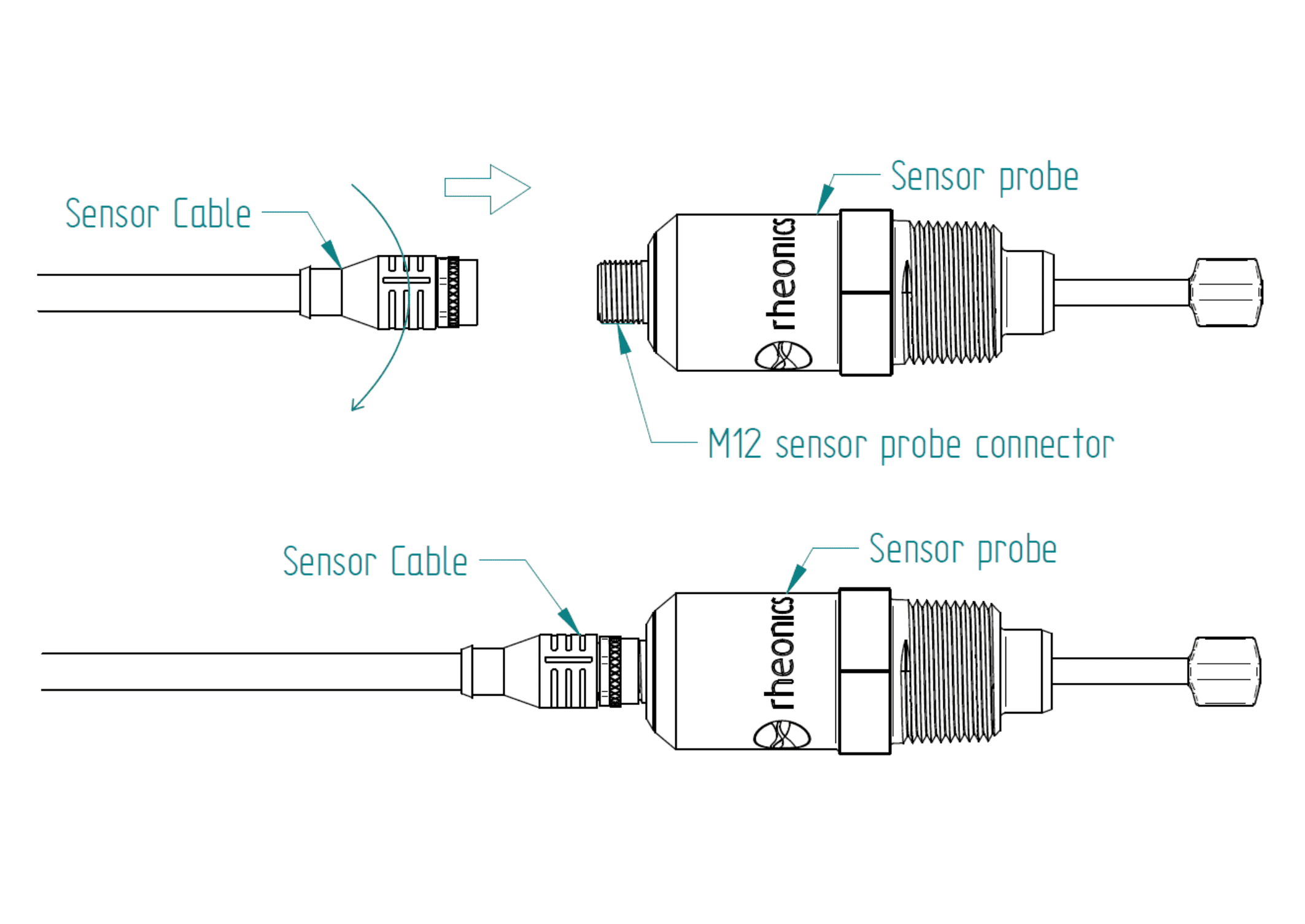

Step 1:

Thread the sensor cable to the M12 sensor probe connector.

Drawing example to the right uses an SRD-X1-34N probe, but steps are applicable for all other variants compatible with the IMS-SR.

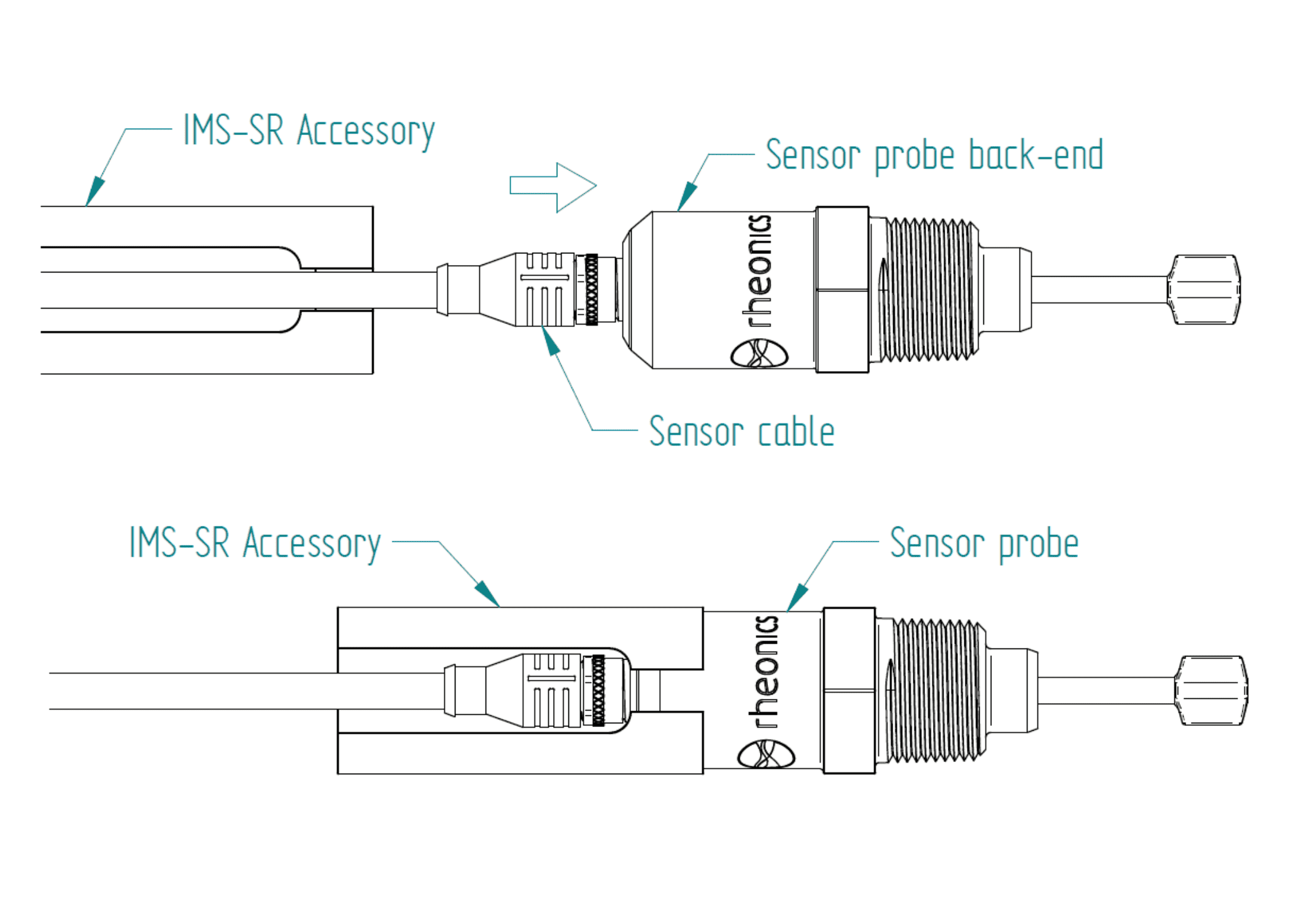

Step 2:

Insert the IMS-SR into the back end of the probe.

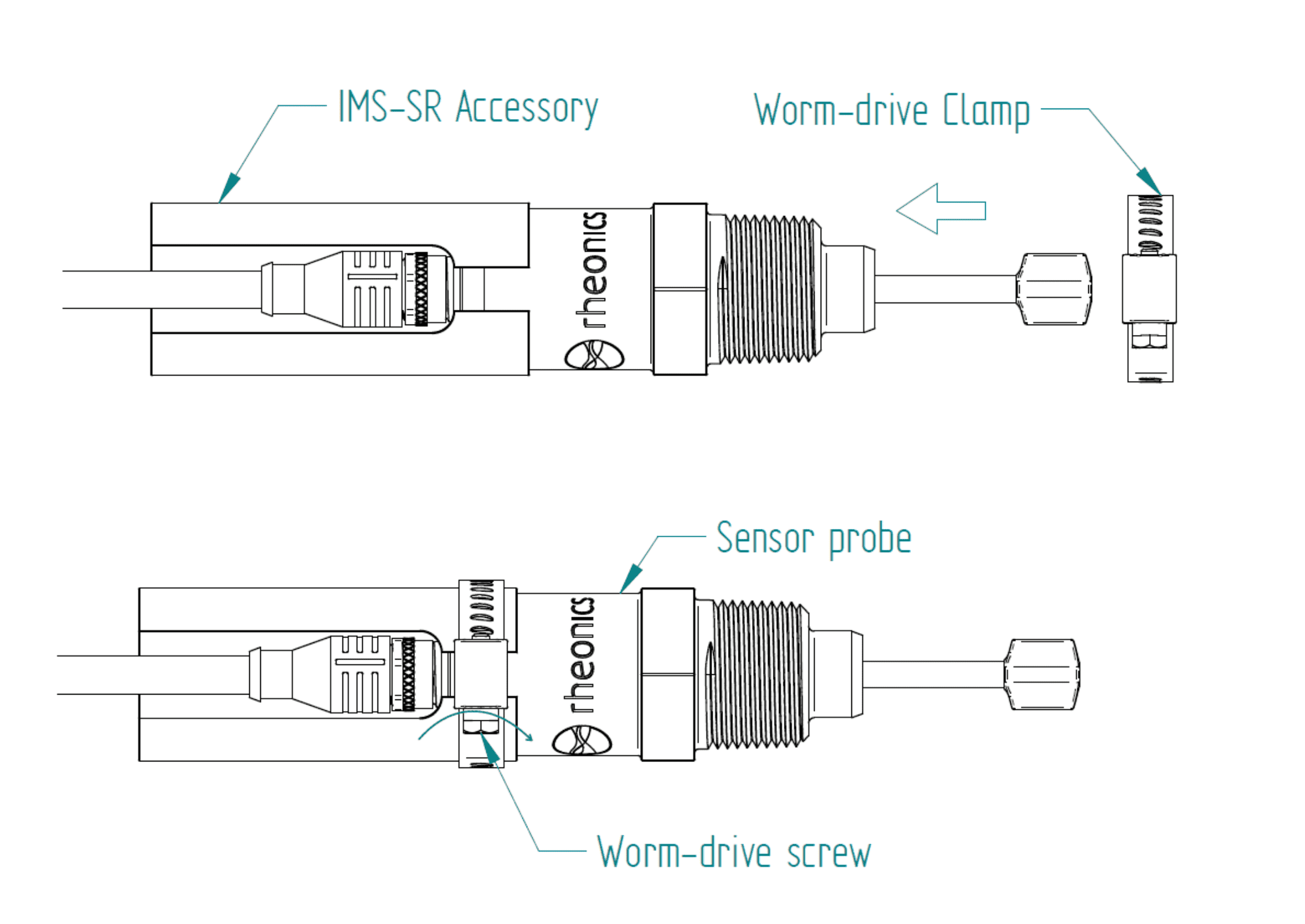

Step 3:

Place the worm-drive clamp, covering both the IMS-SR and sensor probe. Properly adjust it to ensure the correct fixation of the accessory.

Step 4:

Your sensor probe is ready to be installed inline.

Download files

CAD model (stp.) and drawing (dwg. and pdf.) of the IMS-SR.

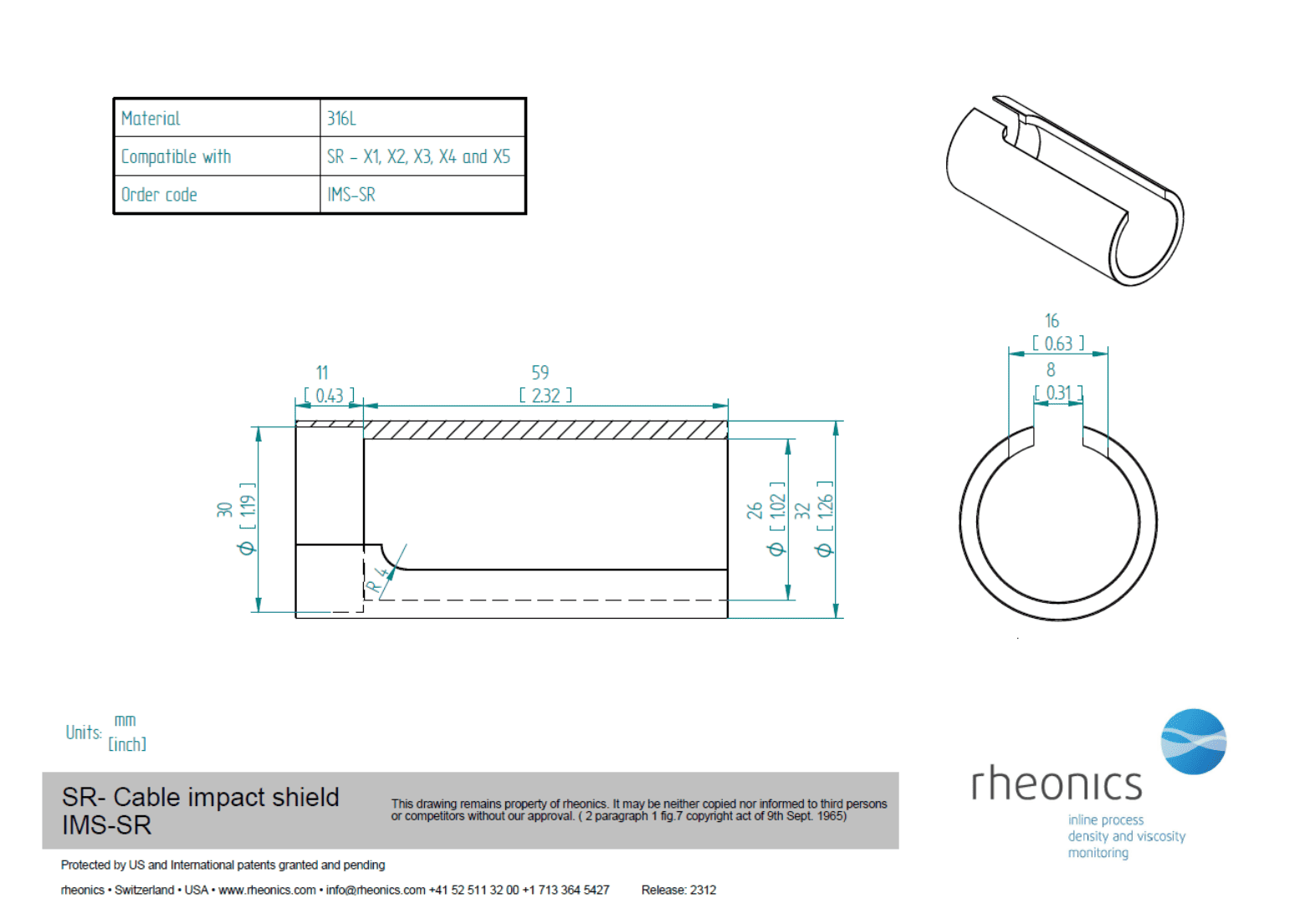

Drawing (pdf.) of the IMS-SR.

Drawing (dwg. and pdf.) of the IMS-SR, and CAD models (stp.) of SRV and SRD NPT assembled with the accessory.

Compatible with products

SensorNameVariant
SRV Inline viscometer - RheonicsSRV - Inline Viscosity MeterFrom X1 to X5
SRD - NPT - inline process density viscosity monitoring control management for printing coating mixing grinding automotive pharmaceuticals RheonicsSRD - Inline Density and Viscosity MeterFrom X1 to X5
