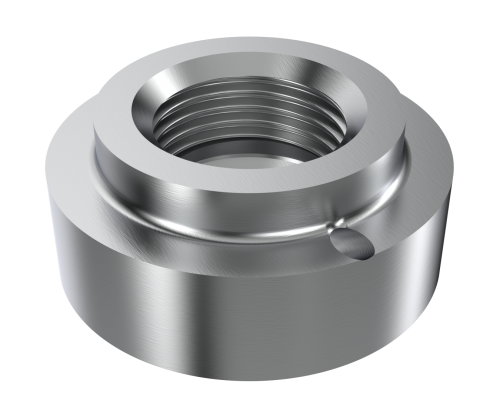

Rheonics HAW-12G-OTK accessory is a hygienic adapter weldolet for the SRV and SRD sensors with 1/2” G thread (-X1-12G). This weldolet is designed for a flush installation in pipe or tank walls, ensuring the sensing element is fully immersed in the flow. The sealing is achieved using a Ø15.1×1.6mm O-Ring seal.
This weldolet can be used in hygienic applications and a 3-A certification can be offered.
Specifications | |
---|---|
Sensor connection | G 1/2" Thread |
Installation requirement | Welding |
Material | 316L |
O-Ring | Ø15.1×1.6mm (FKM) |
Why use this part?
-
Use this part for hygienic flush installation in line or tank.
-
Avoid stagnation zones around the sensing element.
-
Use for installation in thick walls (max 10mm). For thicker walls a cut in the wall is required to mantain the recommended thickness.
Installation instructions
- Weld according to ANSI/AWS D10.4 recommendation standard for Austenitic Stainless Steel pipes.
- Suitable for SRV and SRD sensors.
-

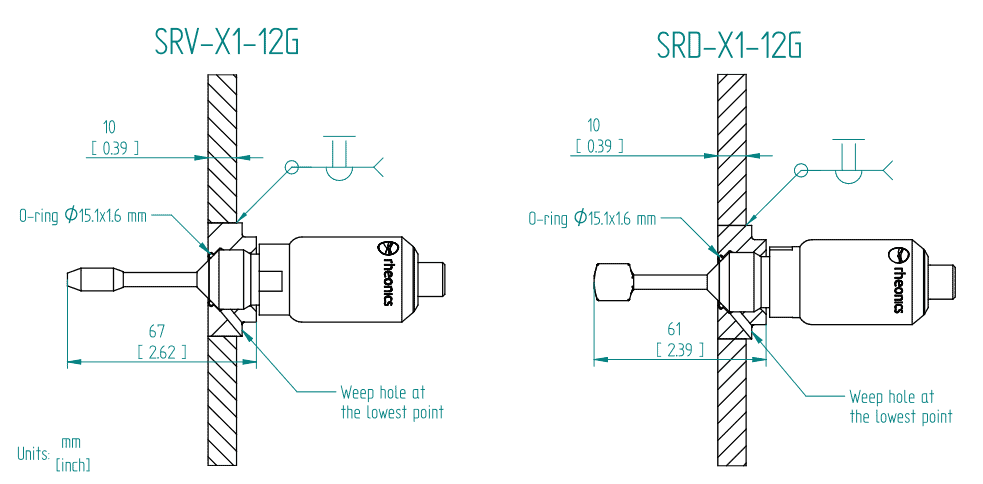

Weld for wall thinner than 10mm.
-
Recommended position of the weep hole at the lowest point.
-
Use proper O-Ring: Ø15.1×1.6mm (FKM O-Ring provided)
-
For SRD, G1/2” installation is only recommended for applications where fluid is at the same or near the ambient temperature. Read more here.
- Recommended torque for Type-SR probe installation in weldolet is 18 Nm.
Support articles
SRV-X1-12G: Guidance on the installation of the G1/2” SRV sensor (SRV-X1-12G).
SRD-X1-12G: Guidance on the installation of the G1/2” SRD sensor (SRD-X1-12G).
Download files
HAW-12G-OTK

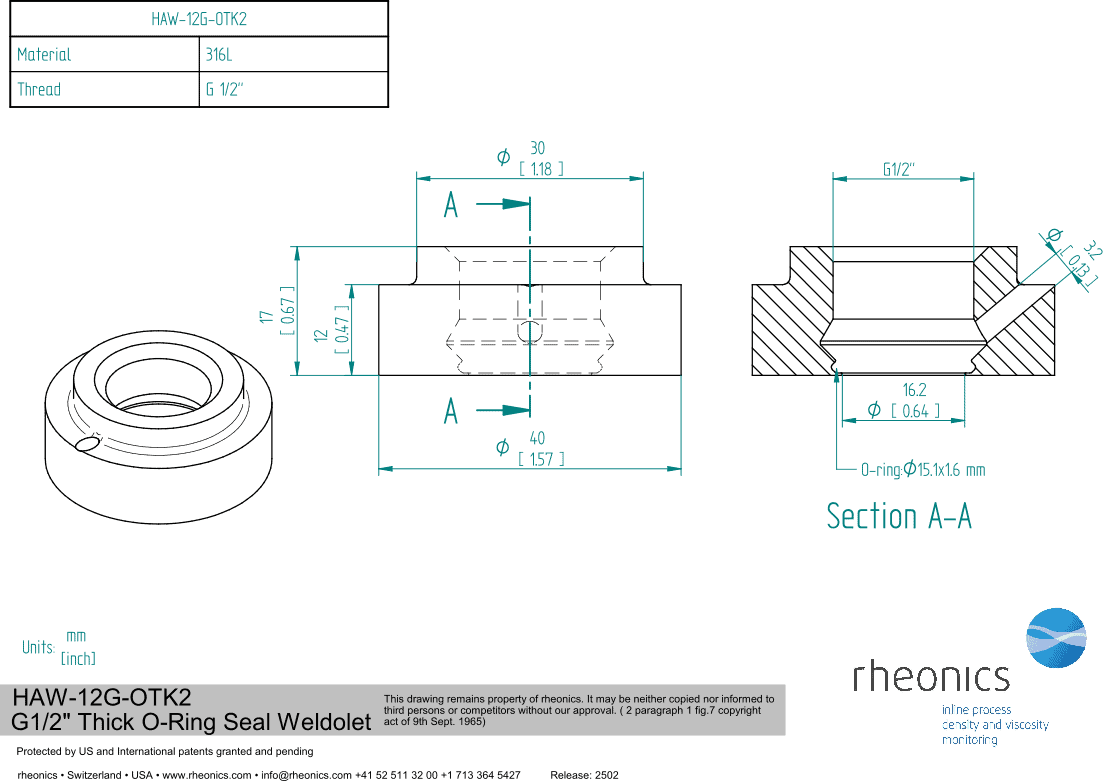

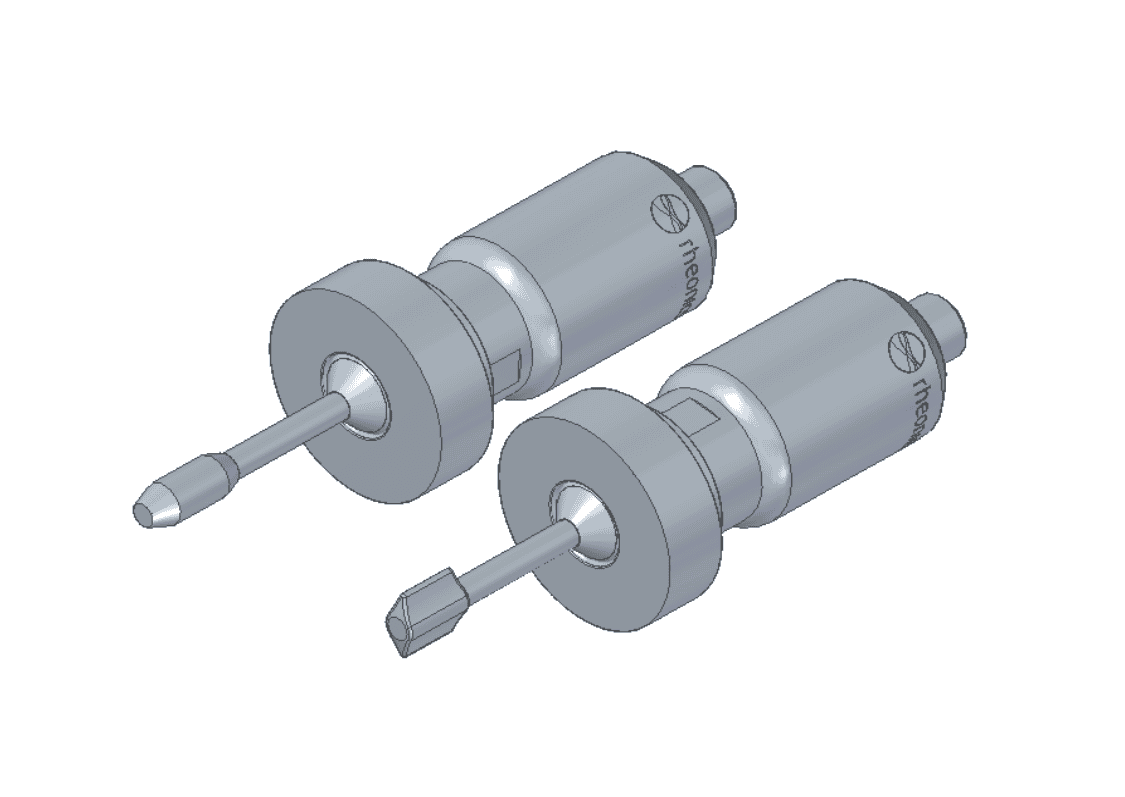

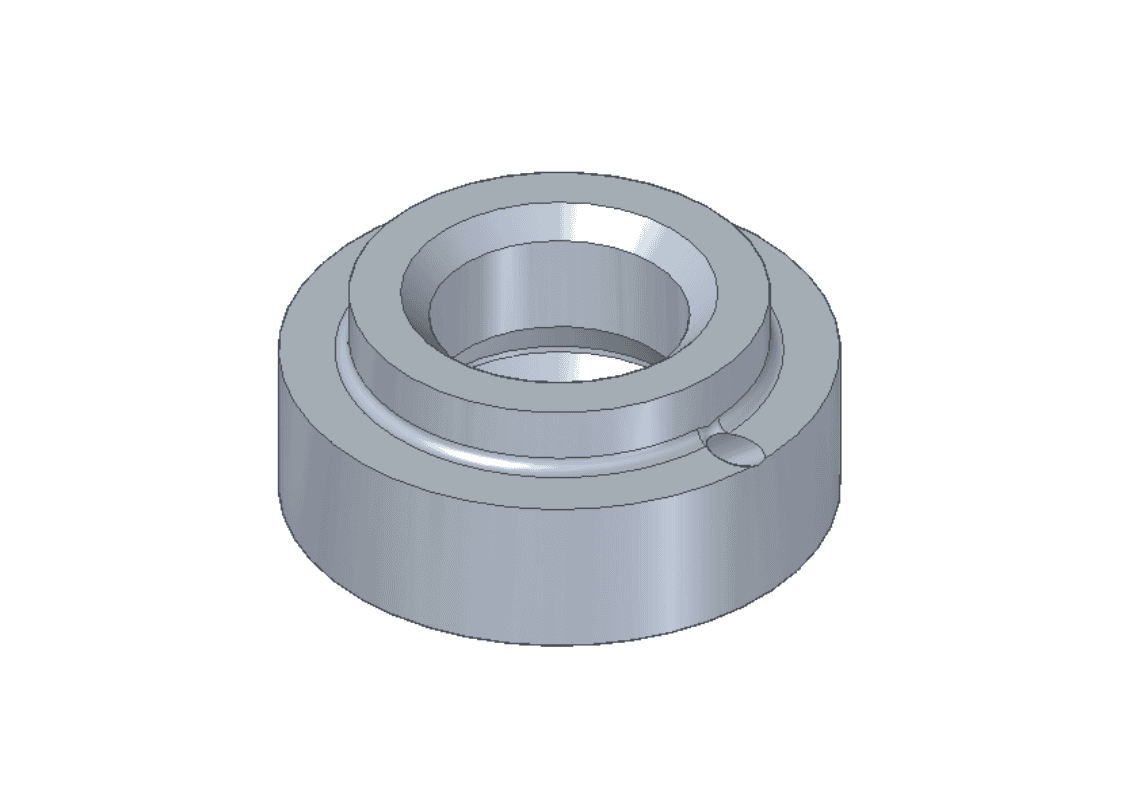

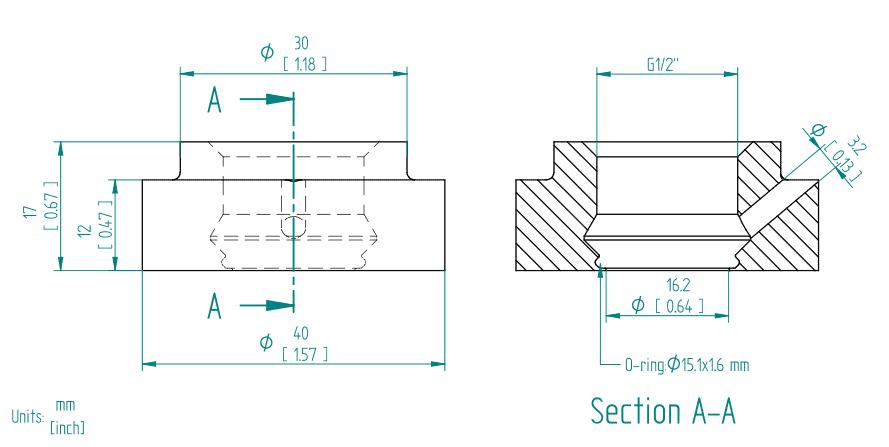

Drawing (dwg and pdf) of the HAW-12G-OTK, and CAD models (stp) of SRV and SRD mounted on the accessory.
Compatible with products
Sensor | Name | Variant |
---|---|---|
![]() | SRV - Inline Viscosity Meter | G1/2" |
![]() | SRD - Inline Density and Viscosity Meter | G1/2" |
