JPEx Web Cover

Japan Ex Certificate

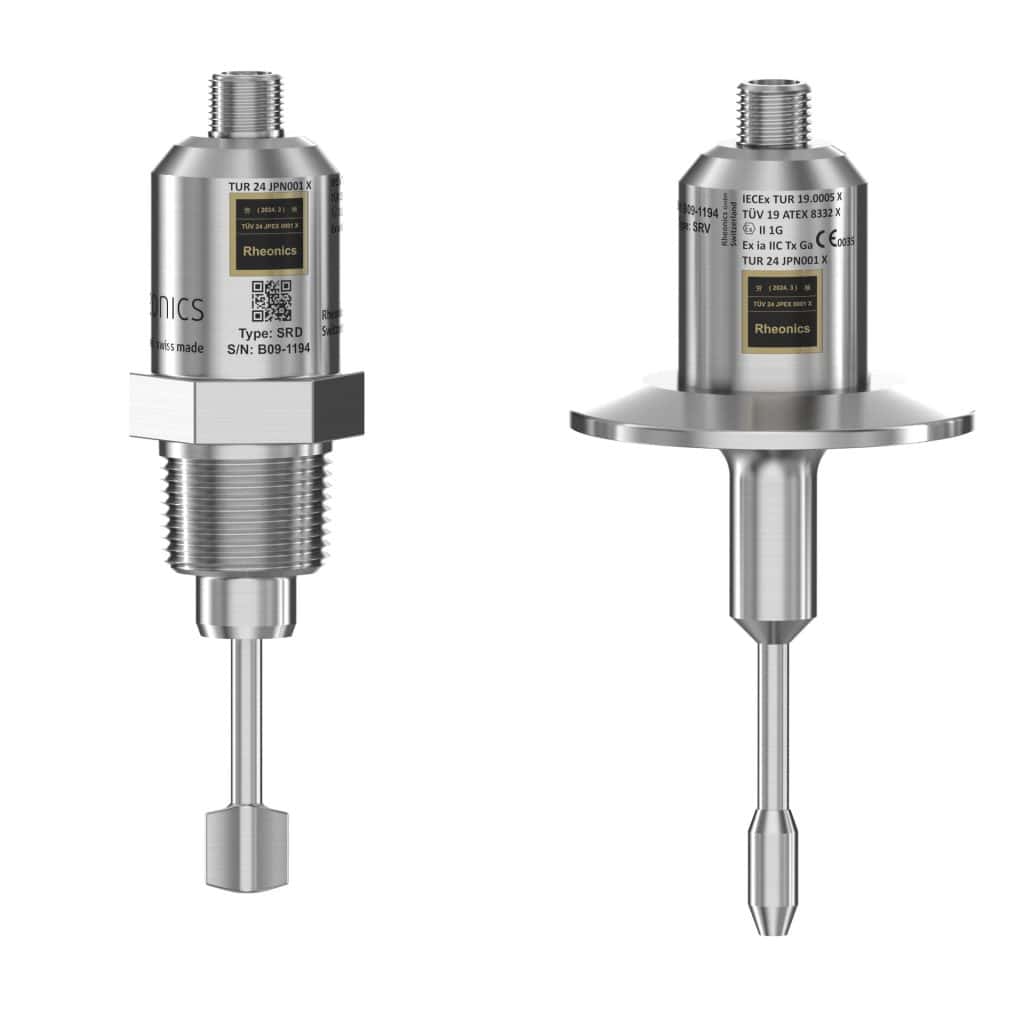

Rheonics SRV and SRD sensors are now available with Japanese Ex certification

Rheonics inline process viscometer, SRV, and density and viscosity meter, SRD, have been certified by TÜV Rheinland with Japan Ex Certification – a certification required for electrical equipment used or installed in hazardous areas in Japan.

Rheonics sensor probes SRV and SRD are intrinsically safe and are certified according to JNIOSH-TR-46-1:2020 and JNIOSH-TR-46-6:2015. The probes are suitable for installation in zone 0/1/2 of hazardous areas. Certification is granted for all temperature classes for gas group IIC/IIB, going until 435°C (T1 class).

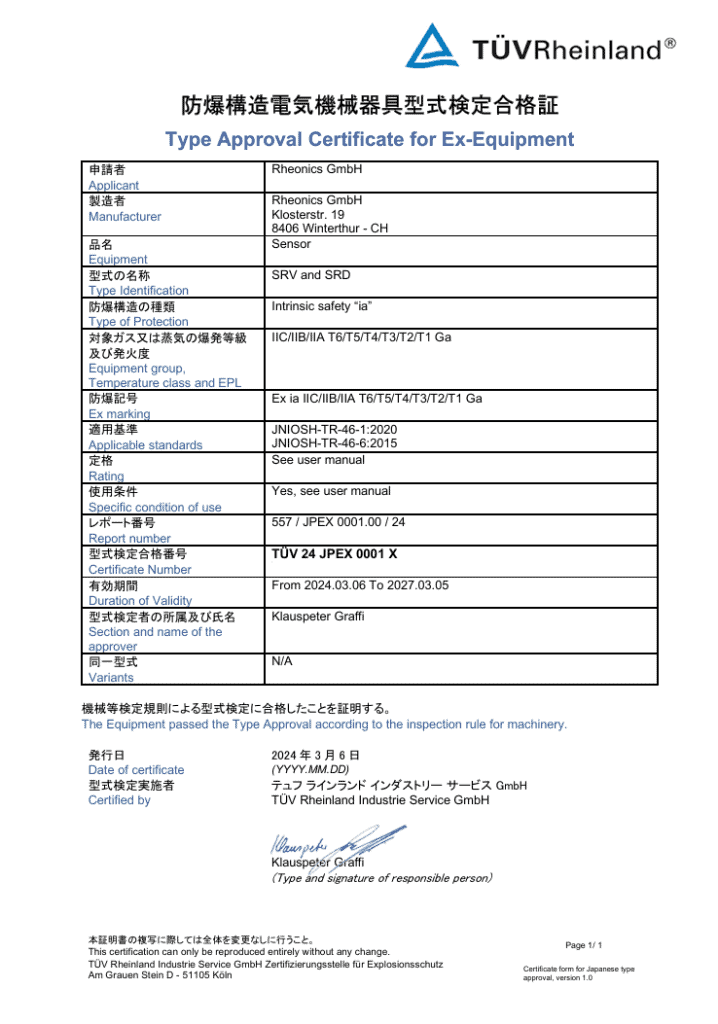

Type approval certificate for Rheonics Type-SR inline process density meter and viscometer

ItemDescription
EquipmentSensor
Type IdentificationSRV and SRD
Type of ProtectionIntrinsic safety “ia”
Equipment group, Temperature Class and EPLIIC/IIB/IIA T6/T5/T4/T3/T2/T1 Ga
EX MarkingEx IIC/IIB/IIA T6/T5/T4/T3/T2/T1 Ga
Applicable StandardsJNIOSH-TR-46-1:2020
JNIOSH-TR-46-6:2015
Report Number557 / JPEX 0001.00 / 24
Certificate NumberTÜV 24 JPEX 0001 X



Download Rheonics Japan Ex certificate for Type-SR sensors covering inline process viscometer SRV and inline process density meter SRD. For Ex installation, the user must review the corresponding Ex manual that the sensor is shipped with.

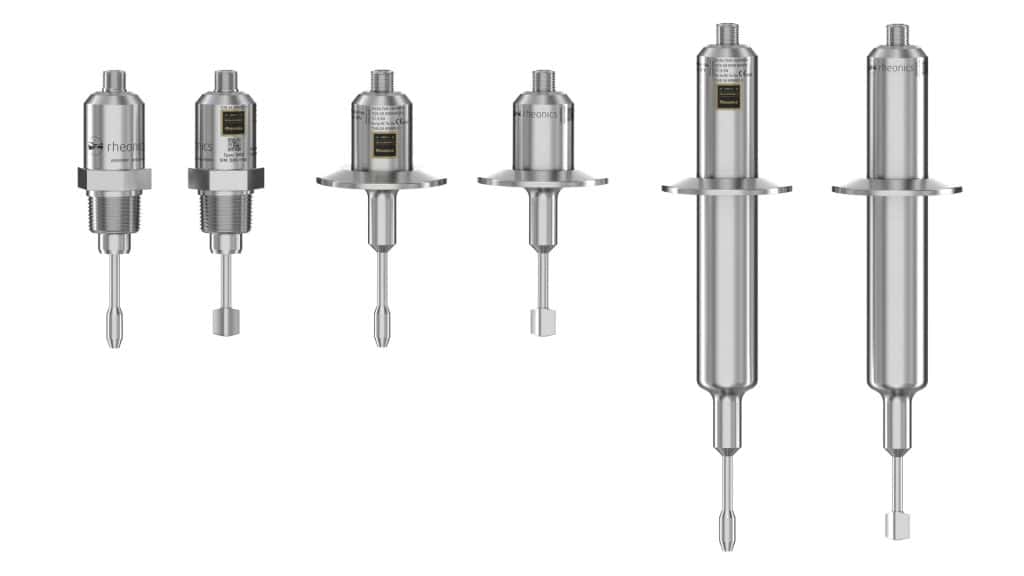

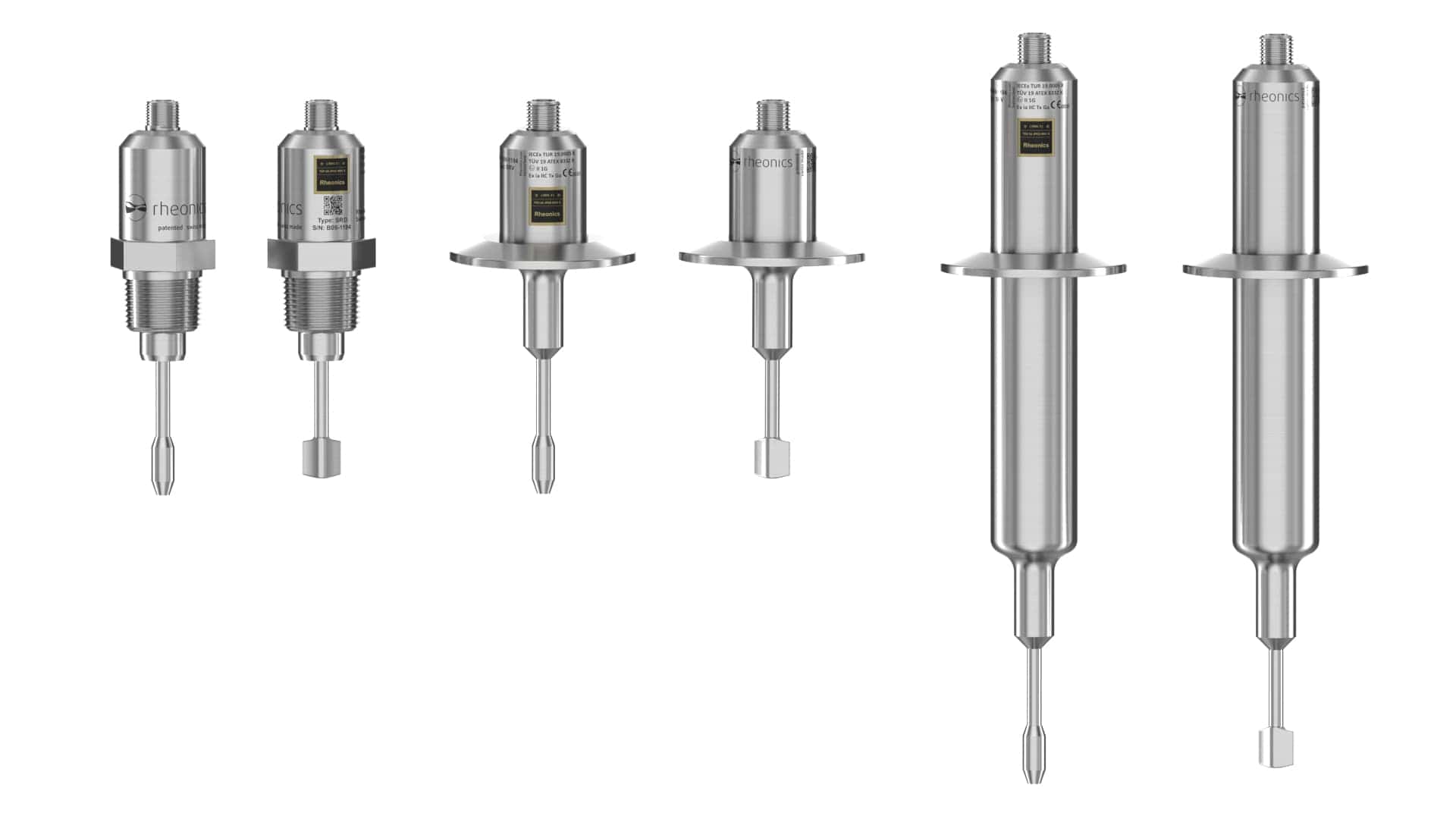

Japan Ex (JPEx) certification applies to the SRV and SRD sensors for their different intrinsically safe variants.

Rheonics sensors have undergone rigorous testing to ensure they can operate safely in explosive environments. Japanese Ex certification builds on the IEC Ex certification that Rheonics Ex certified products already hold.

The JPEx certification ensures that Rheonics sensors comply with specific safety standards and regulations set forth by Japanese authorities to mitigate the risk of explosions in environments where flammable gases, vapors, or dust are present. Some of the related industries are:

  • Oil and gas

  • Chemical manufacturing

  • Pharmaceuticals

  • Mining

Certificates

DescriptionLink
Rheonics JPEx certificate for Type-SR sensors covering inline process viscometer SRV and inline process density meter SRDDownload JPEx Certificate

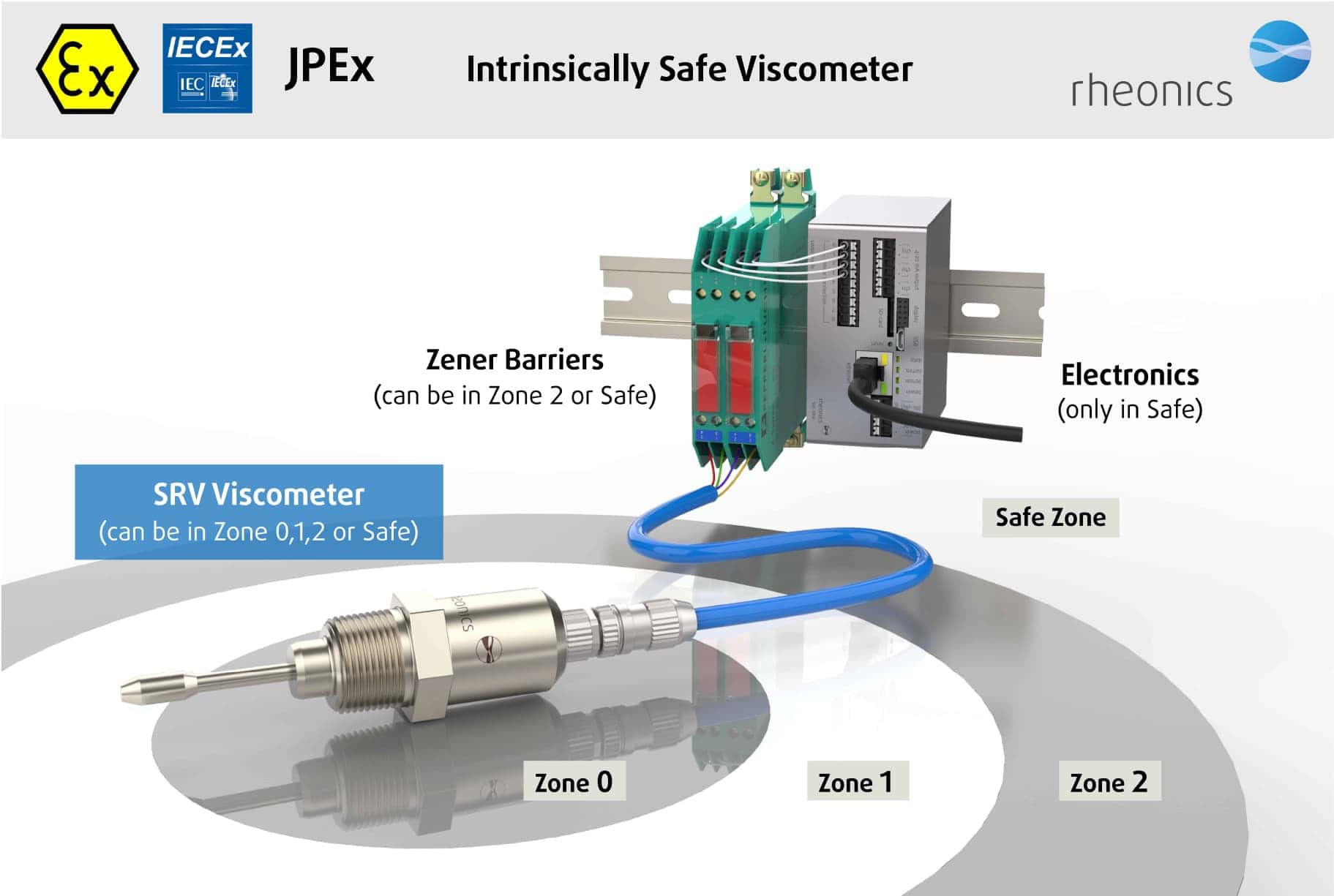

SRV JPEx Intrinsically Safe
SRV JPEx Intrinsically Safe

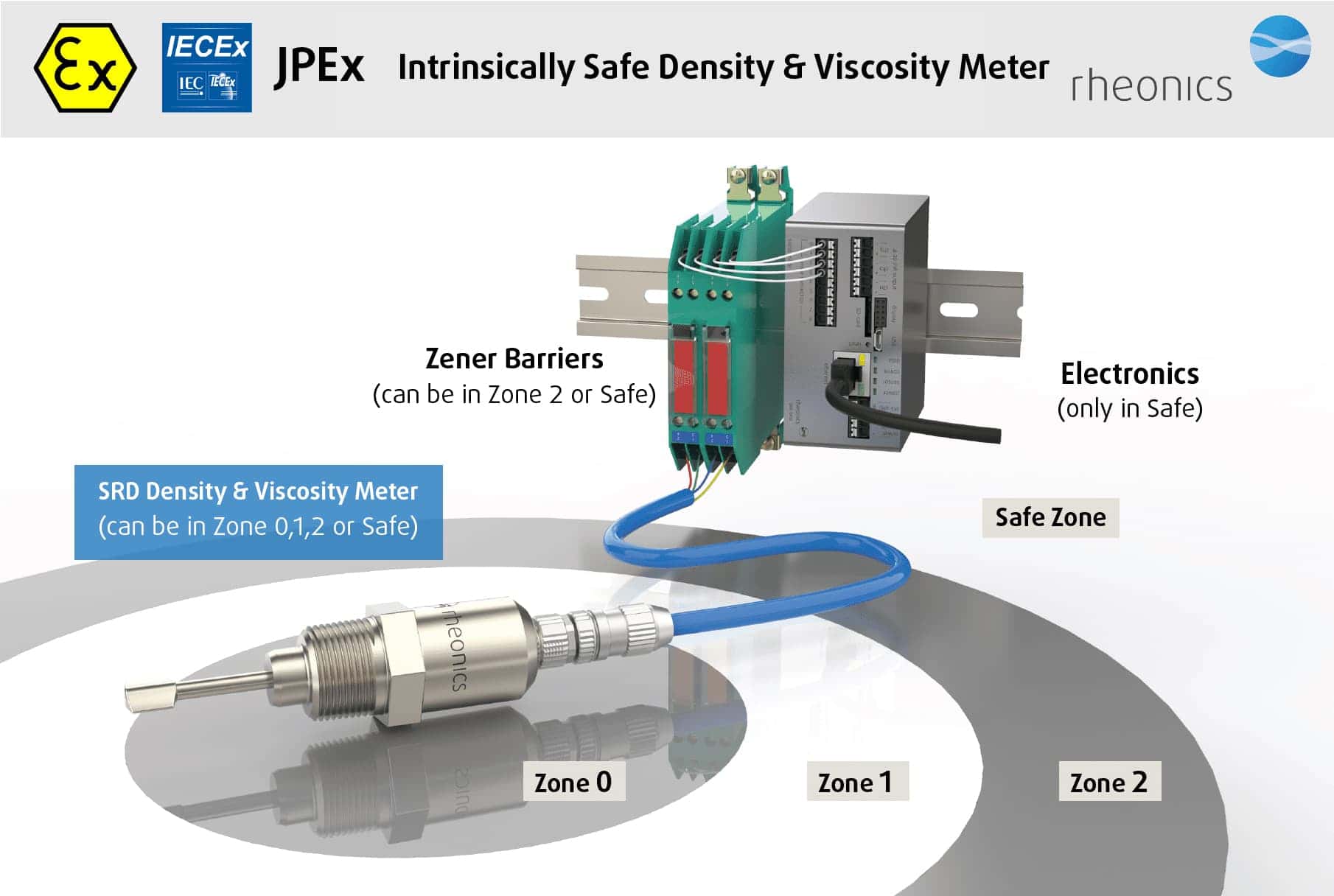

SRD JPEx Intrinsically Safe
