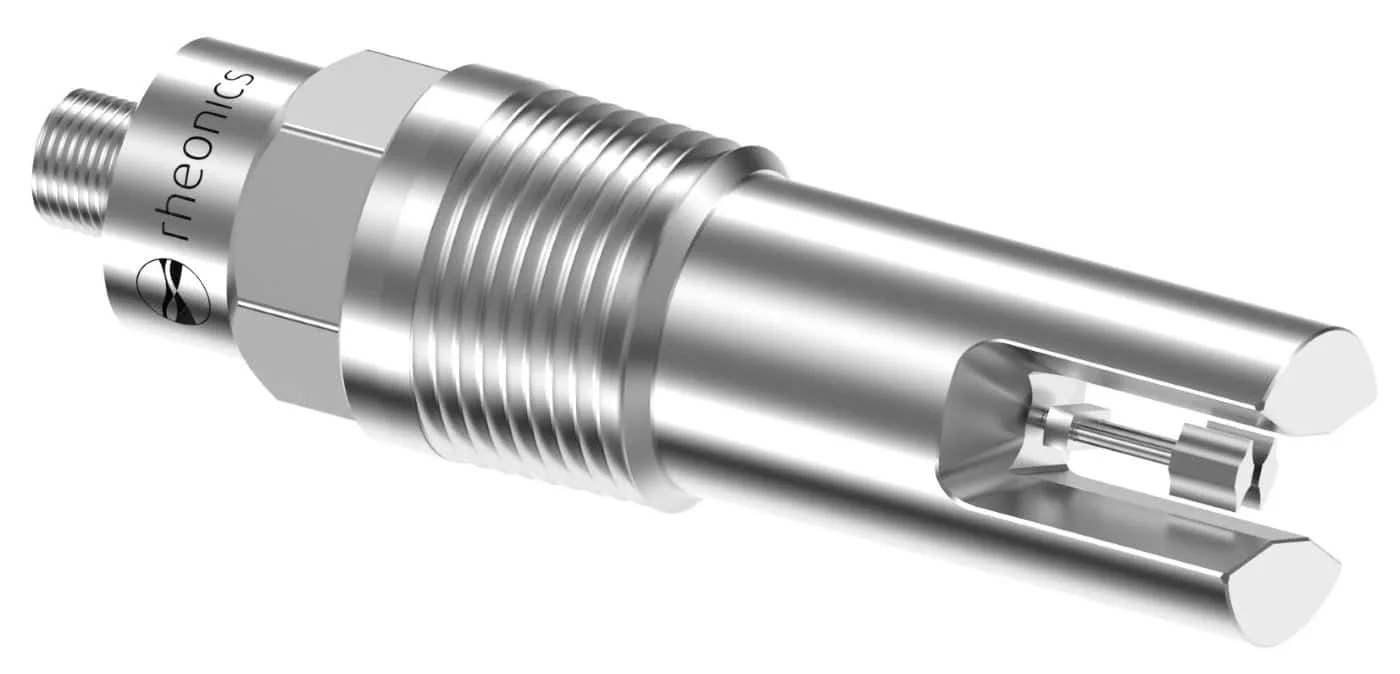

DVP
Ultra high accuracy simultaneous density and viscosity metering for gas, fluids
in-line, online, real-time viscosity & density metering
- Single instrument for simultaneous process density, viscosity and temperature
- Monitor even gas density and viscosity
- Accurate measurement in the harshest of conditions
- Operational to 1000 bar and 185°C (15000 psi, 365°F)
- Full Titanium construction
| Density Range | 0 – 1.5 g/cc |
| Density Accuracy | 0.001 g/cc |
| Viscosity Accuracy | 0.1 cP below 1 cP 5% of reading (standard) |
| Viscosity Range | 0.2 - 300 cP |
| Reproducibility | Better than 1% of reading |
| Temperature | Pt1000 (cIass AA) |
| Process Fluid Temperature | -40 up to 200 °C (400 °F) |
| Ambient Temperature | -40 up to 150 °C |
| Pressure Range | up to 15,000 psi (1000 bar) |

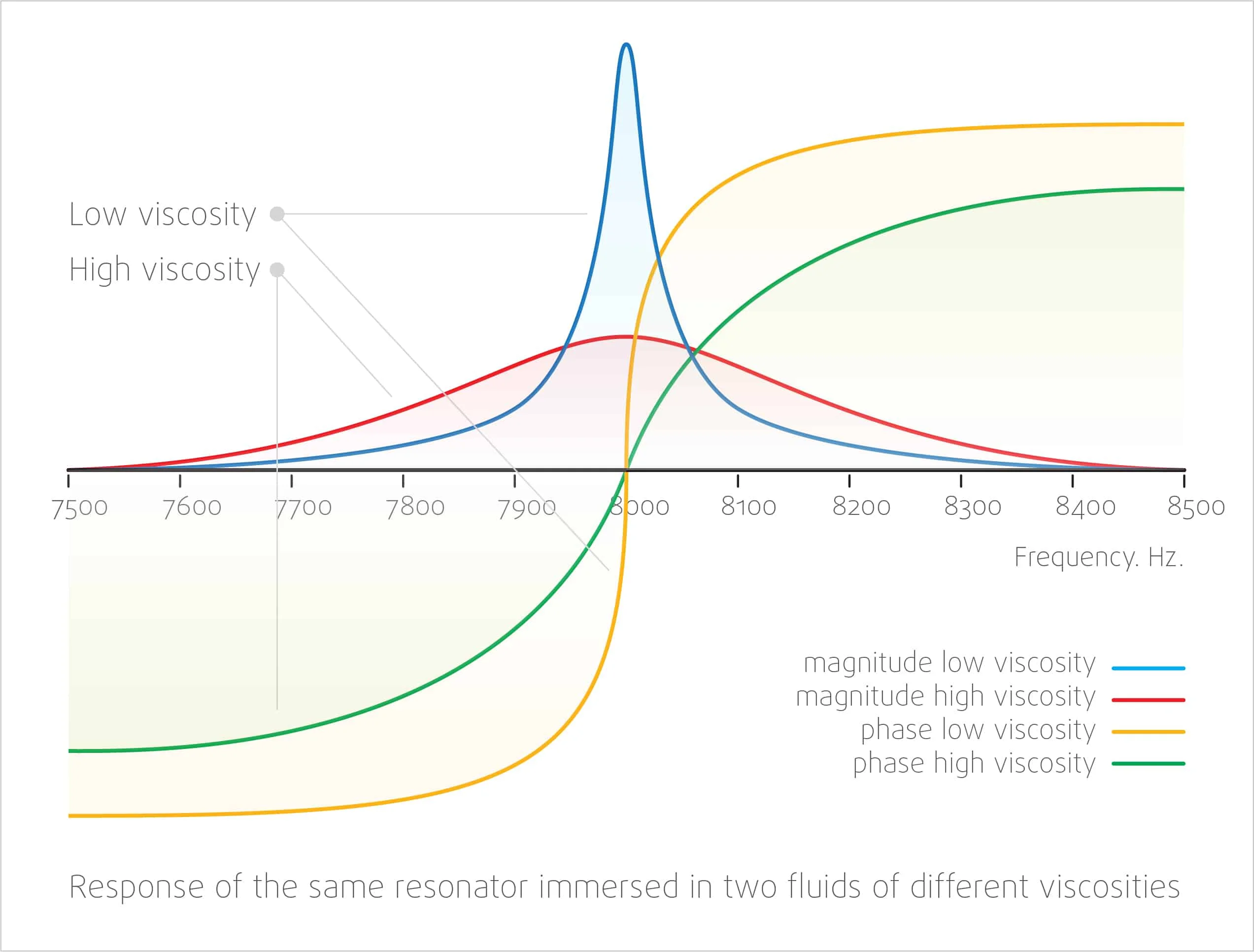

- The rheonics high accuracy density meter and viscometer DVP measures viscosity and density by means of a torsional resonator, which is fully immersed in the fluid under test.
- The more viscous the fluid, the higher the mechanical damping of the resonator. By measuring the damping, the product of viscosity and density may be calculated by rheonics’ proprietary algorithms.
- The denser the fluid, the lower the resonant frequency. A denser fluid increases the mass loading of the resonator.
- The resonator is both excited and sensed by means of an electromagnetic transducer mounted in the sensor’s body.
- Damping is measured by the rheonics patented sensing and evaluation electronics and stable, high accuracy and repeatable readings are obtained based on rheonics’ proven gated phase-locked loop technology.
Sophisticated, patented 3rd generation electronics drive these sensors and evaluate their response. Ultra-fast and robust electronics, combined with comprehensive computational models, make DVPs one of the fastest and most accurate in the industry. DVP gives real time, accurate density and viscosity measurements every second and is not affected by flow variations!
Communication

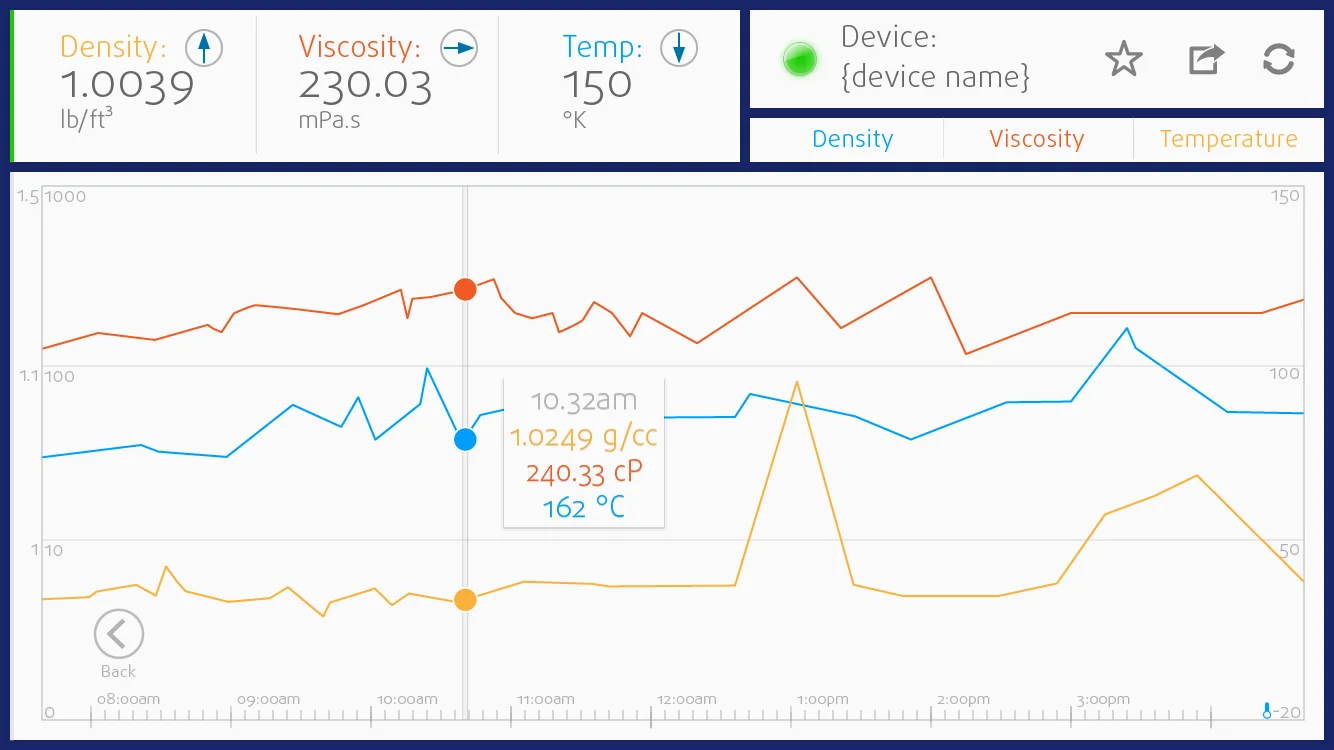

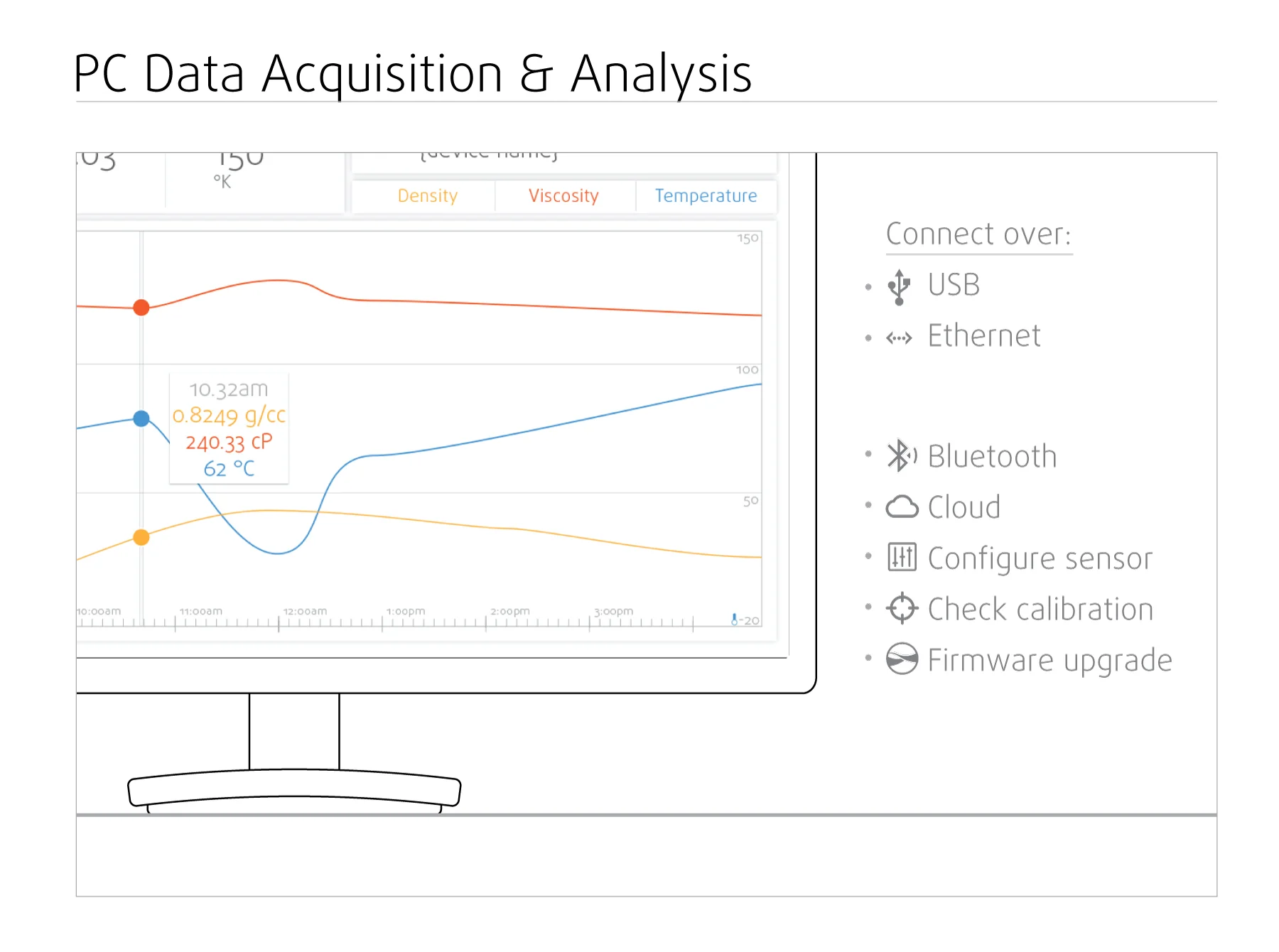

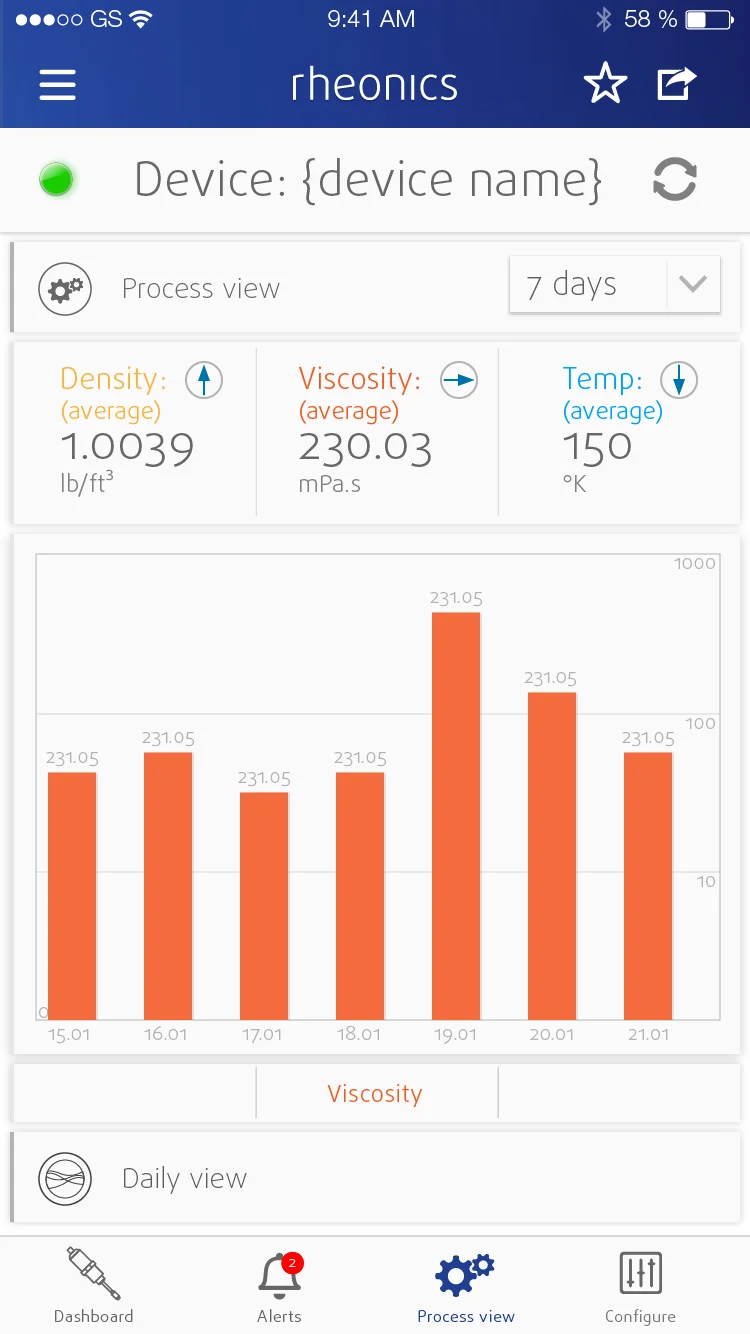

Acquire data in real-time. Transfer it to your computer or upload to the cloud

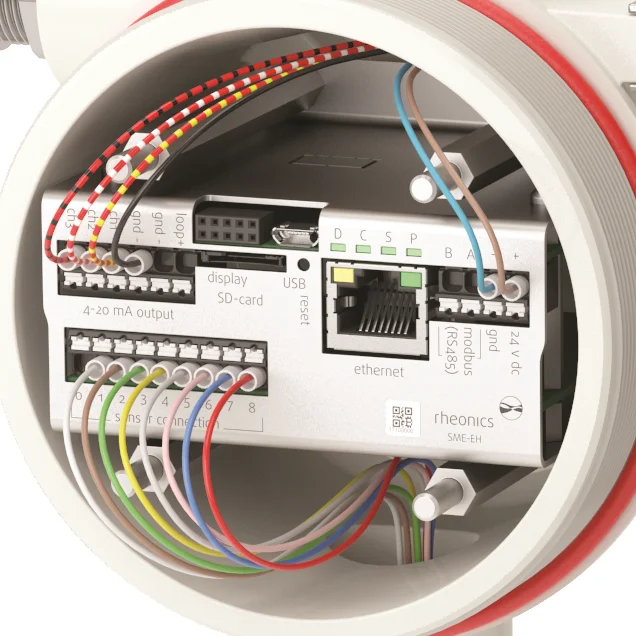

Standalone IP65 rated boxes to integrate into your system.
Standard PCB to integrate in your equipment panel box.
Next generation electronics in sensor head.
Ethernet, 4-20 mA, RS232 over USB.
CAN, Profinet, HART available for custom applications.
| Title | Description | Link | File Category | Products | Tags | document_categories_hfilter | tags_hfilter |
|---|---|---|---|---|---|---|---|
| Drawing – SME-TR Electronics option: E2 | Drawing for SME-TR: Sensor electronics in Transmitter Housing | Drawings | SRD, DVM, DVP, Electronics, SRV | Technical Information | drawings | technical-information | |
| CAD Model- SME-TRD Electronics option: E1 | CAD Model (pdf, dxf, 3D step) for SME-TRD: Sensor electronics in Transmitter Housing with Display | CAD Models | SRV, SRD, DVM, DVP, Electronics | Technical Information | cad-models | technical-information | |
| Drawing – SME-TRD Electronics option: E1 | Drawing for SME-TRD: Sensor electronics in Transmitter Housing with Display | Drawings | SRV, SRD, DVM, DVP, Electronics | Technical Information | drawings | technical-information | |
| CAD Model – SME-TR Electronics option: E2 | CAD Model (pdf, dxf, 3D step) for SME-TR: Sensor electronics in Transmitter Housing | CAD Models | SRV, SRD, DVM, DVP, Electronics | Technical Information | cad-models | technical-information | |
| CAD Model – SME-DRM Electronics option: E3 | CAD Model (pdf, dxf, 3D step) for SME-DRM: DIN rail mount Sensor electronics | CAD Models | SRV, SRD, DVM, DVP, Electronics | Technical Information | cad-models | technical-information | |
| Drawing – SME-DRM Electronics option: E3 | Drawing for SME-DRM: DIN rail mount Sensor electronics | Drawings | SRV, SRD, DVM, DVP, Electronics | Technical Information | drawings | technical-information | |
| CAD Model – DVP NPT | CAD model (Step File) of DVP – NPT variant | CAD Models | DVP | Technical Information | cad-models | technical-information | |

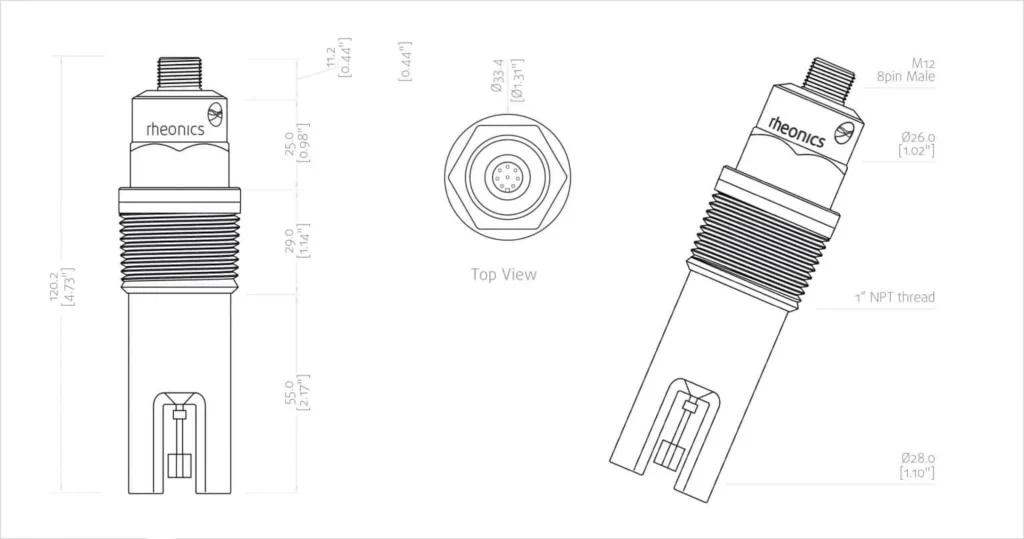

| Drawing – DVP | 2D Drawing of DVP | Drawings | DVP | Technical Information | drawings | technical-information | |
| Declaration of Conformity – CE Declaration of Conformity as per EN 61326-1:2013, EN 61326-2-3:2013 & EN 50581:2012 | Declaration of Conformity for SME-TRD, SME-TR & SME-DRM as per directives – Electromagnetic compatibility (EMC) Directive 2014/30/EU & Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS2) Directive 2011/65/EU | Certificates | DVM, DVP, Electronics, SRV, SRD | Technical Information | certificates | technical-information | |
| Article – Laboratory for Mechanics and Experimental Dynamics, ETH Zurich | ETH Zurich, Laboratory for Mechanics and Experimental Dynamics – Article on Dynamic viscosity and density sensing featuring Rheonics (previously Viscoteers) | Publications | DVM, DVP, SRV, SRD | Technical Information | publications | technical-information | |
| Manual – DVP | DVP Installation and Operating Instructions | Manuals | DVP | Training | manuals | training | |
| Product Portfolio – SRV, SRD, DVM, DVP | Overview of the Standard Products – Information on Specifications, Electronics, Communication, Mechanical, Dimensions, Software and installation. | Datasheets & Brochures | SRD, DVM, DVP, SRV | Marketing, Technical Information | datasheets | marketing technical-information | |
| Datasheet – DVP | Information on Specifications, Electronics, Communication, Mechanical, Dimensions, Software and installation. | Datasheets & Brochures | DVP | Technical Information | datasheets | technical-information |
