Tank Mount Adapter for SR-Sensors - TMA-34N

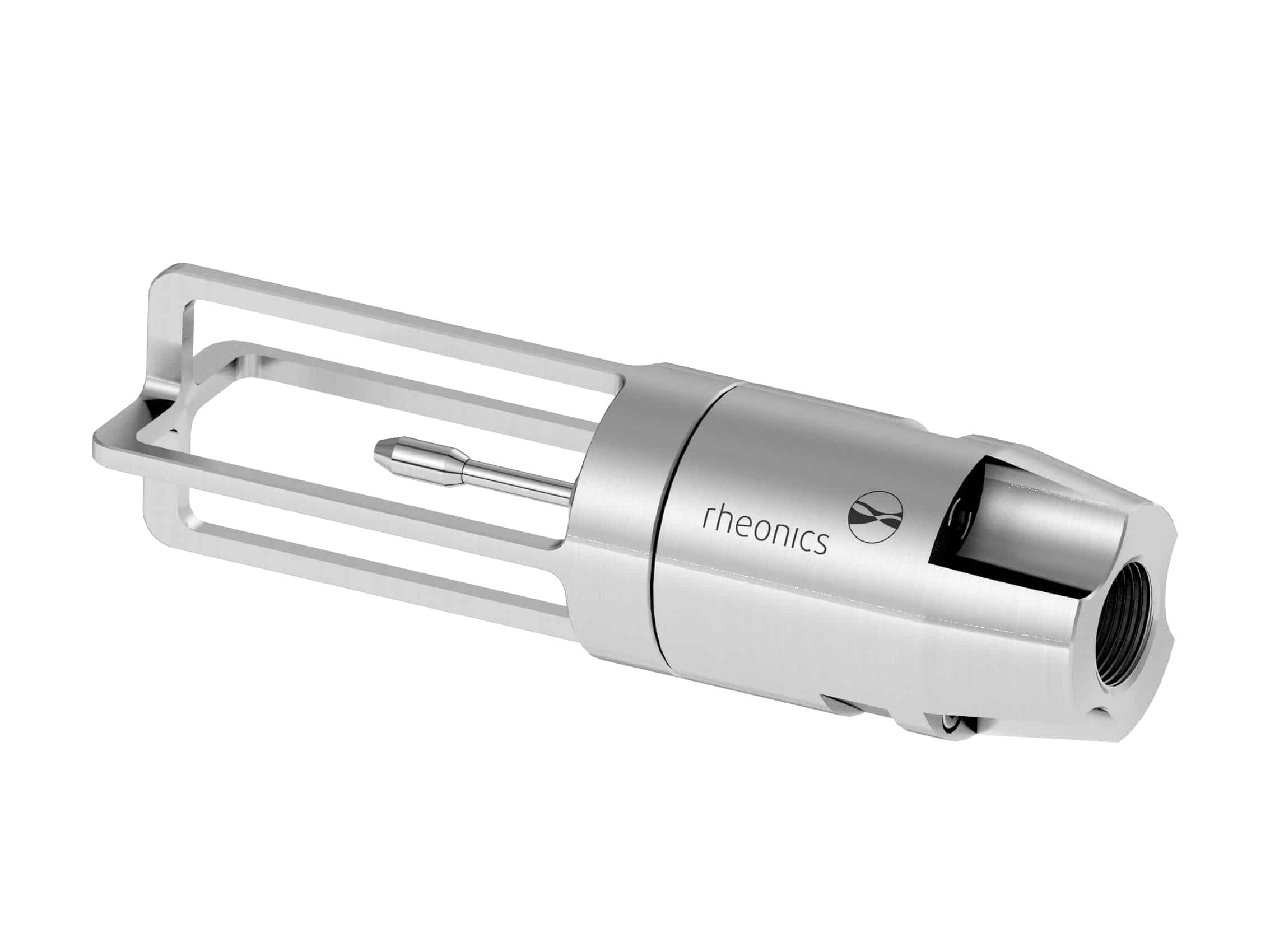

TMA-34N with SRV viscometer

Description

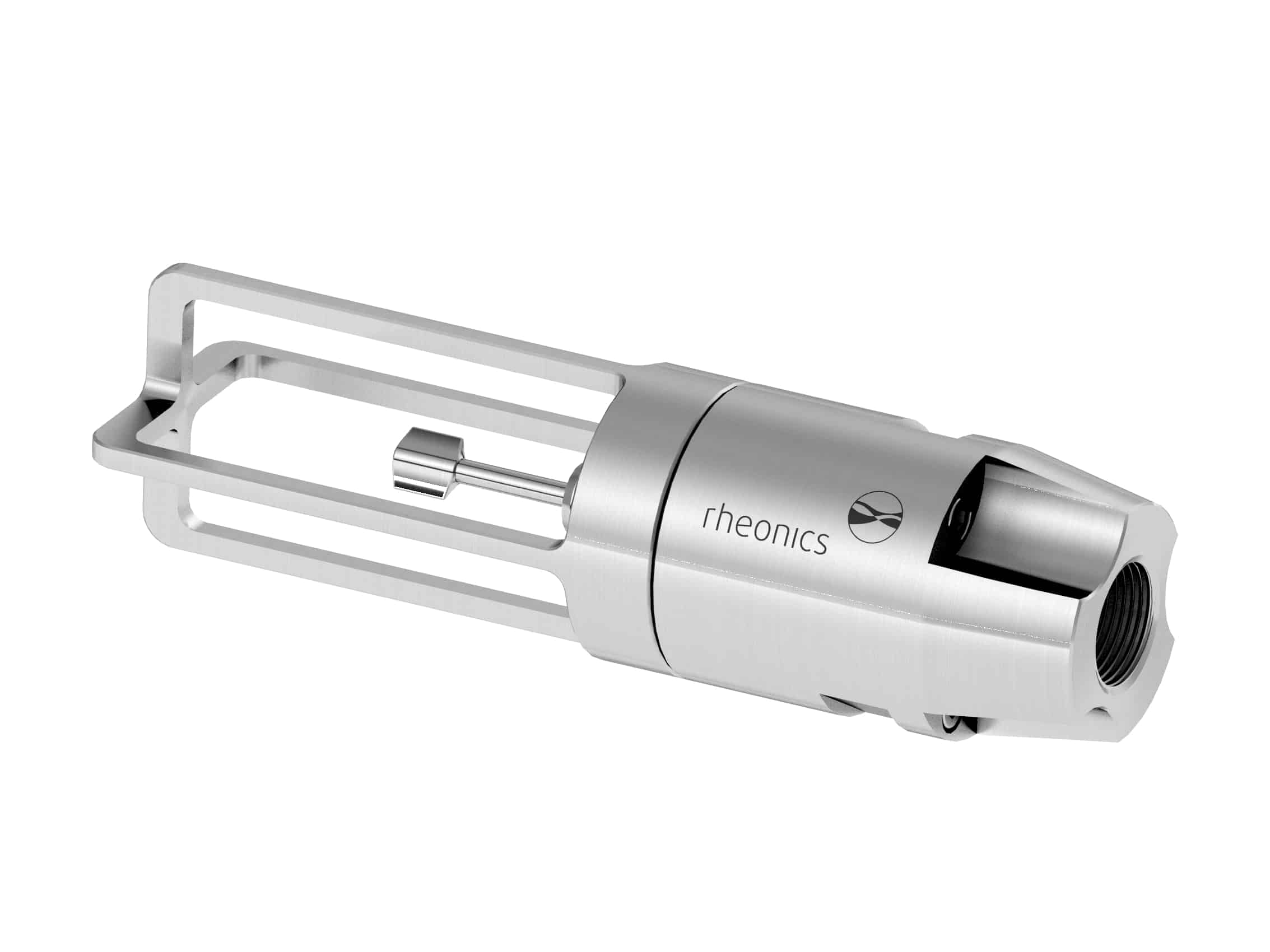

Rheonics TMA-34N enables the SRV viscometer or the SRD density and viscosity meter to be installed in open tanks using a convenient tank-mount adapter. A pipe with 3/4″ NPT threaded end is used to set the immersion depth.

Specifications
Sensor connection3/4" NPT
Installation requirement3/4" NPT male pipe
Material316L
O-Ring required∅29.82 x 2.62 mm

Why use this part?

  • Mount the sensor probe in an open tank

  • Tanks where wall or bottom installations are not possible.

  • Usual installation solution for rotating open vessels.

  • Adapter allows the sensor to be totally immersed in a fluid in tank and protects sensing element from large particles.

  • Sensor immersion length can vary with customer supplied pipe length.

  • Customer can adapt the pipe’s end for a SME-TRD/-TR or cable gland installation.

Installation instructions

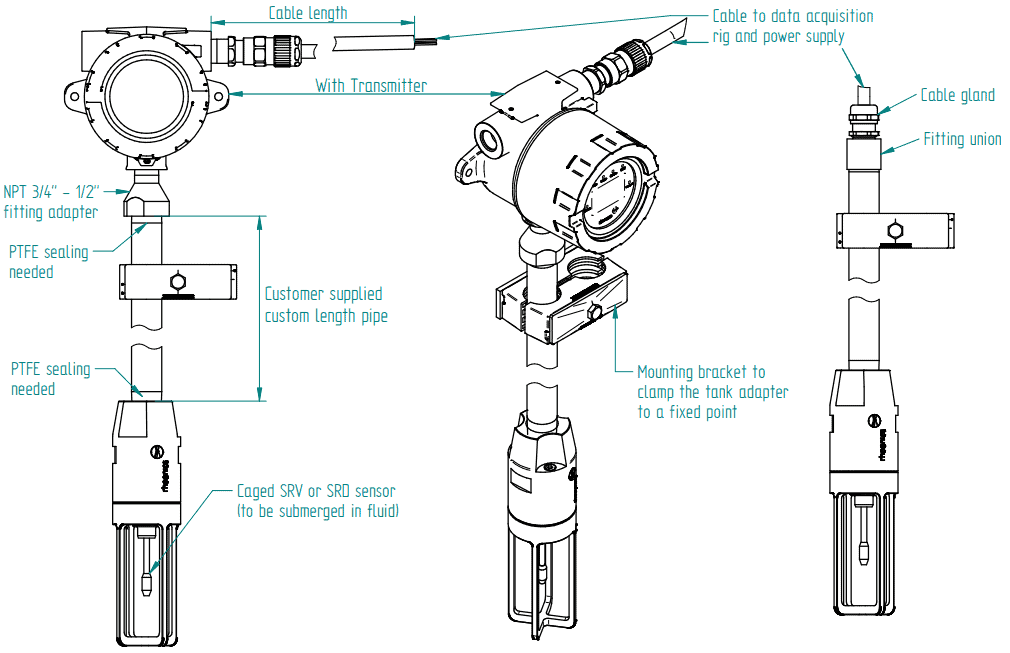

Tank Mount Adapter TMA-34N Installation
  • Use proper PTFE sealing for NPT connections.
  • Suitable for SRV and SRD 3/4” NPT sensors.

  • Clamp the pipe to a fixed point with a mounting bracket or connect the pipe to an available port in the tank’s roof.

  • Use only to depth in fluid where hydrostatic pressure is not greater than 8 bar.

  • Not recommended for pressurized applications above 8 bar pressure.

  • Use correct O-Ring seal ∅29.82 x 2.62 mm for leak proof assembly. O-Ring is delivered by Rheonics.
  • Follow assembly support article in Support Portal.

Support article

SRV NPT: Overview of the SRV NPT 3/4”-14 variant, installation guidelines, instructions, special considerations and available accessories.

SRD NPT: Overview of the SRD NPT 3/4”-14 variant, installation guidelines, instructions, special considerations and available accessories.

TMA-34N: Overview of the TMA-34N accessory, parts and assembly instructions.

TMA-34N Cleaning Procedures: Cleaning methods for the TMA-34N accessory.

Download files

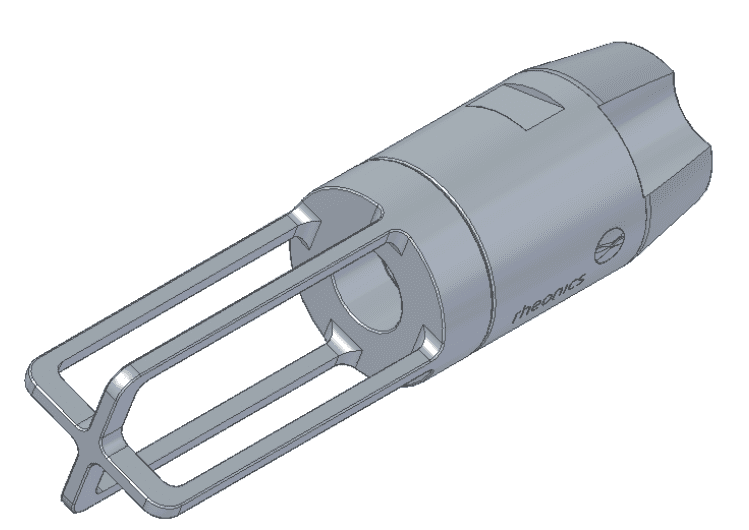

CAD model (stp.) and drawing (dwg. and pdf.) of the TMA-34N.

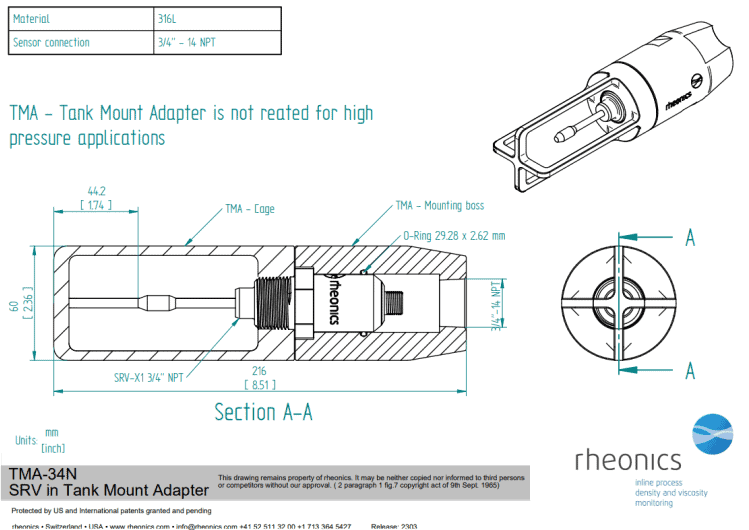

Drawing (pdf.) of the TMA-34N

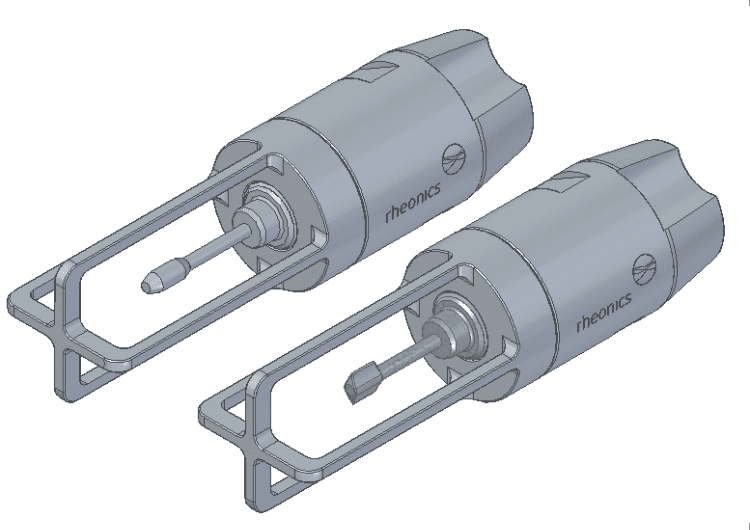

Drawing (dwg. and pdf.) of the TMA-34N, and CAD models (stp.) of SRV and SRD NPT mounted in the accessory.

Compatible with products

SensorNameVariant

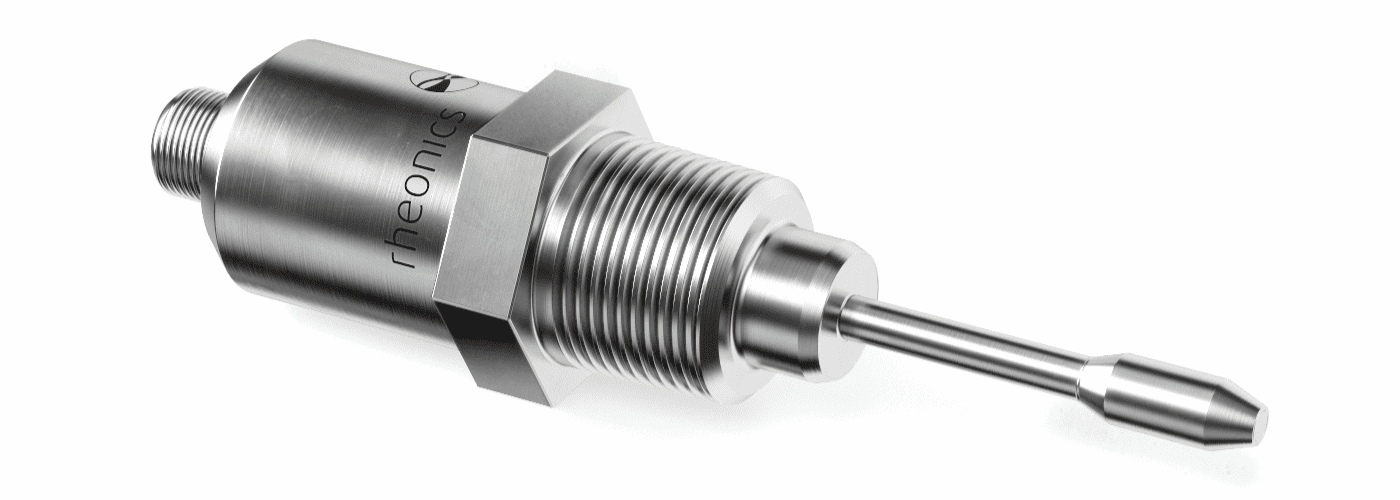

SRV Inline viscometer - RheonicsSRV - Inline Viscosity MeterNPT 3/4” - 14

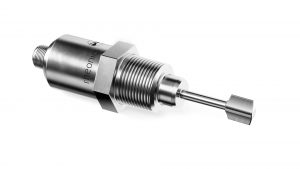

SRD - NPT - inline process density viscosity monitoring control management for printing coating mixing grinding automotive pharmaceuticals RheonicsSRD - Inline Density and Viscosity MeterNPT 3/4” - 14
