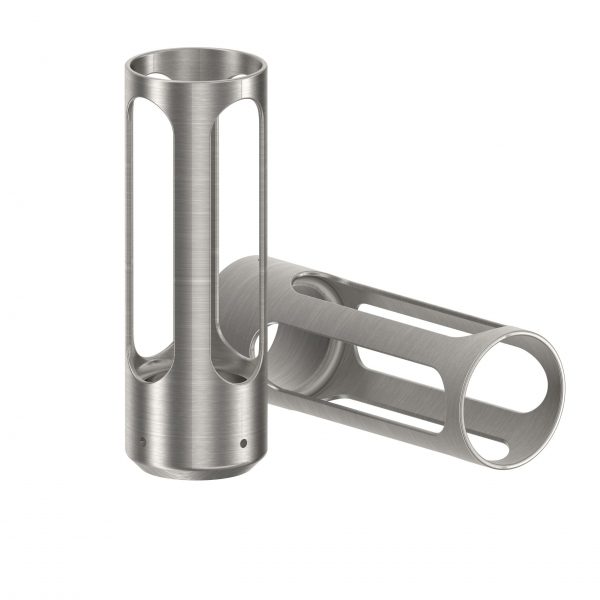

SPS-HD-SRX - Protection Sleeve for HD-X5 Sensor Probes
Description
Rheonics’ SPS-HD-SRX is a protective sleeve for HD-X5 probe variants of SRV inline viscometer and SRD inline density and viscosity meter. The protective sleeve uses 4 M3 set screws to attach the sleeve to the probe’s 30 mm diameter section. The purpose of the sleeve is to protect the sensing element from potential collisions with external elements during installation or manual cleaning.
This sleeve is ideal for applications where viscosity is low, or where fluid transfer is high, ensuring there is a low risk of plugging around the sensing element.
| Specifications | |
|---|---|
| Sensor connection | 4 x M3x3 Set screw on 30 mm section |
| Compatible with | SRV and SRD -HD-X5 probe variants (SRx-HD-X5) |
| Material | 316L |
Installation instructions

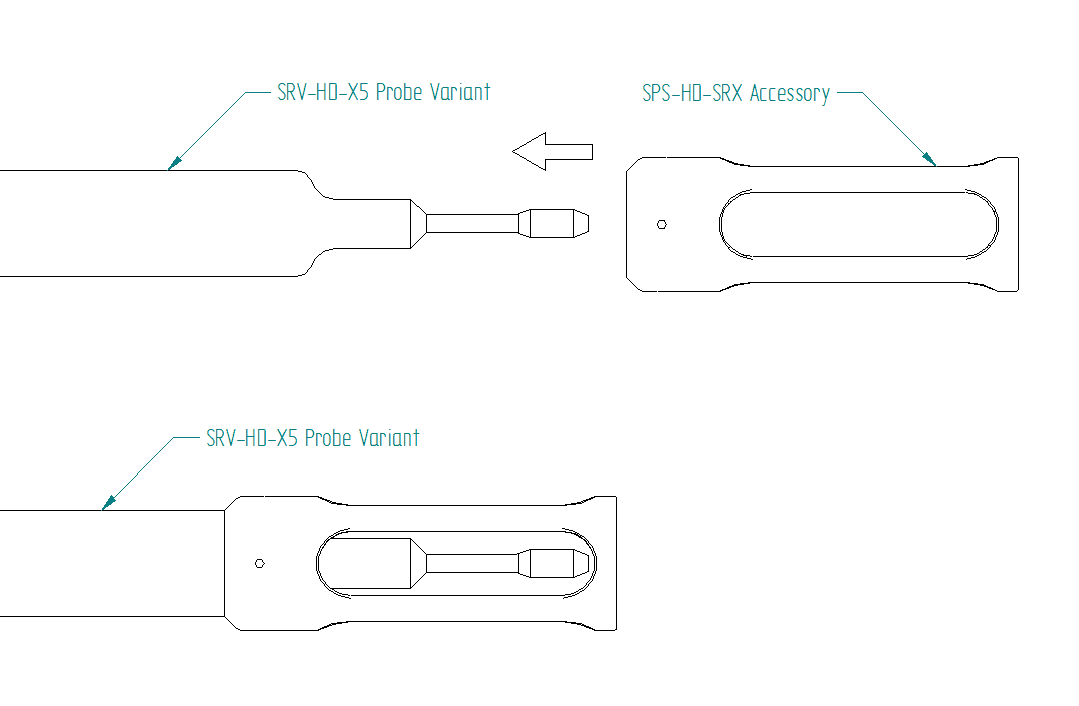

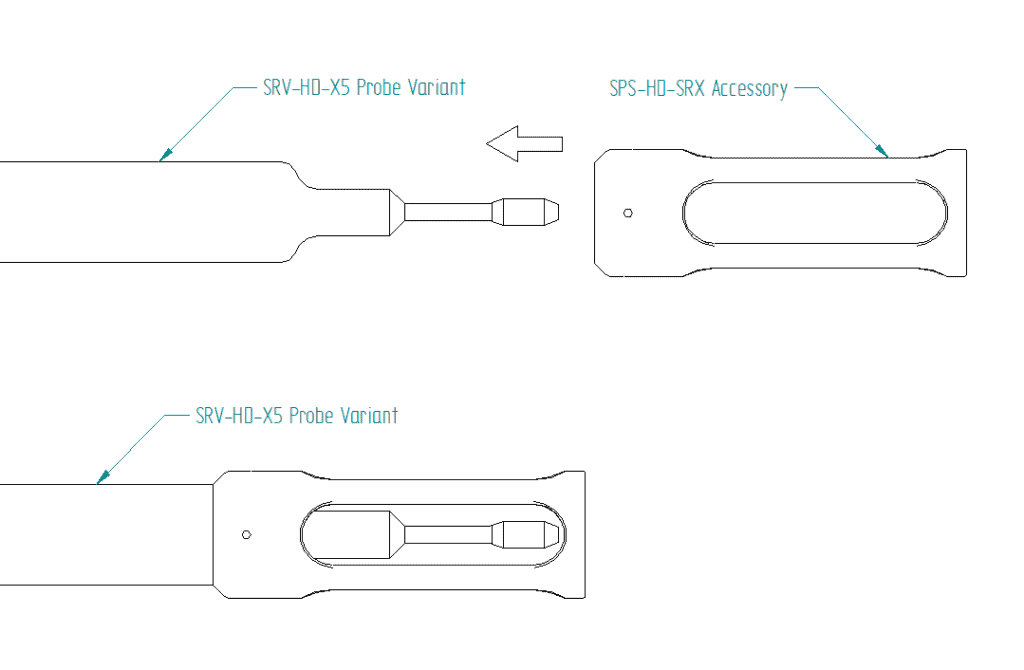

Step 1:
Slide the SPS-HD-SRX into the front end of the probe.

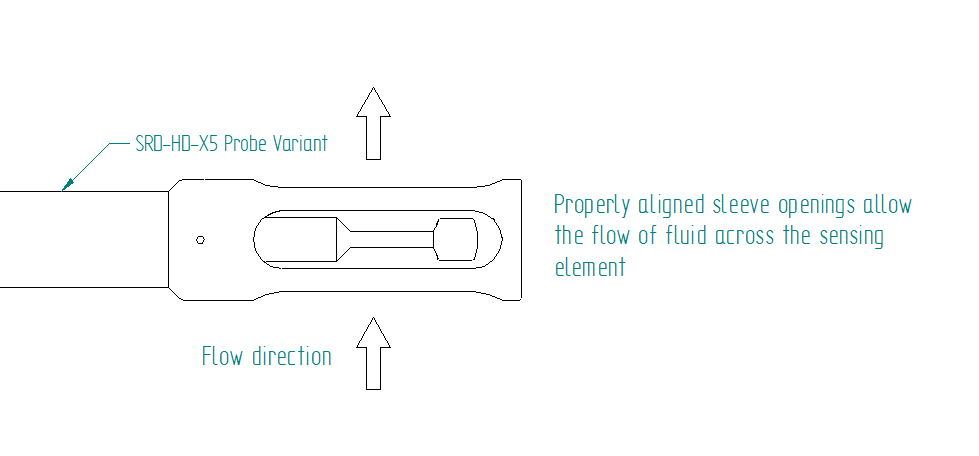

Step 2:
Align the SPS-HD-SRX with the fluid flow direction if known. (Relevant for SRD)

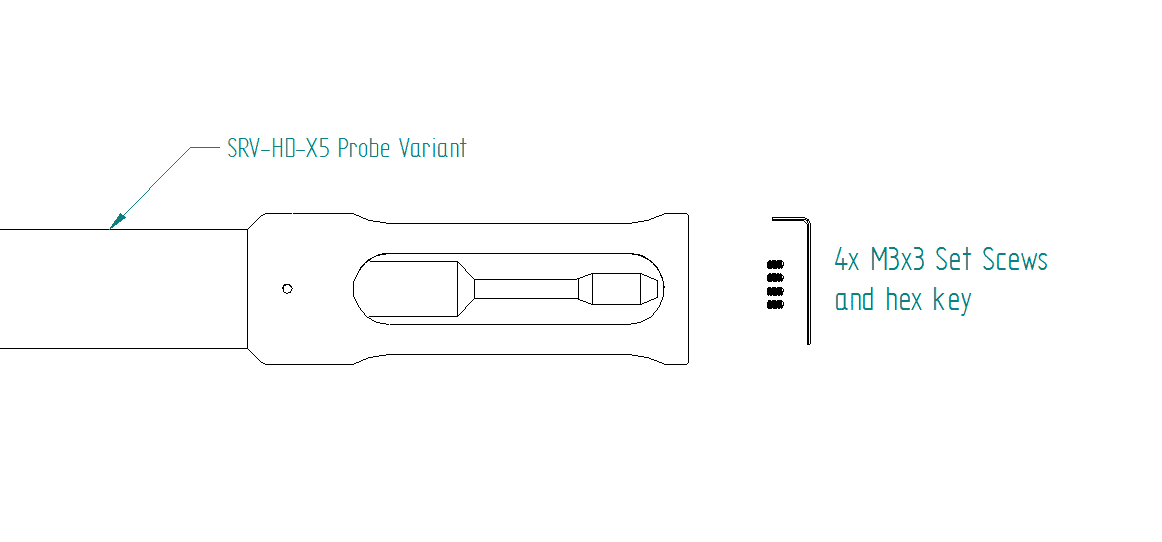

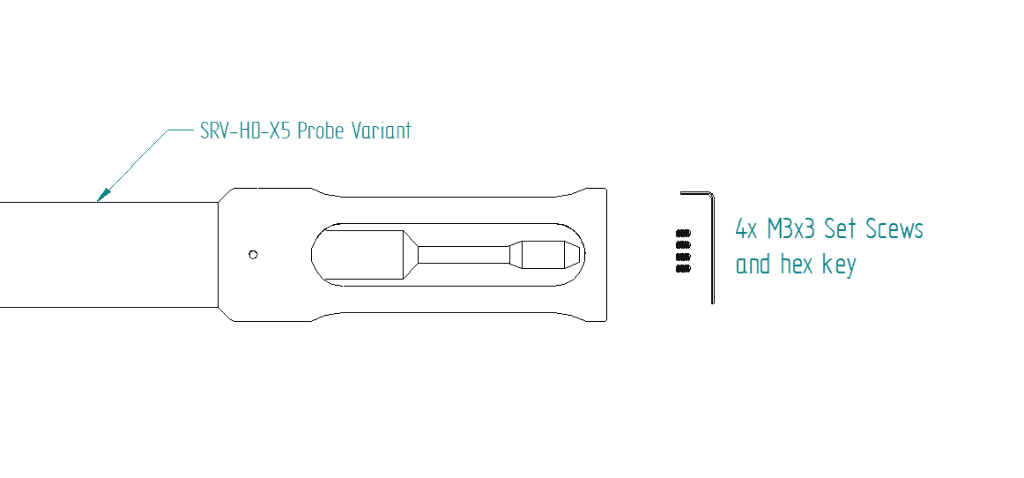

Step 3:
Tighten the M3 set screws. Make sure not to overtighten these.
Step 4:
Your sensor probe is ready to be installed in a tank or line.
Why use this part?
- Protect the sensing element of -HD-X5 probes from collisions during instillation
- Protect the sensing element of -HD-X5 probes in processes that require constant manual cleaning
- Installation in open tanks (slurry, paint)
- Installation in closed tanks

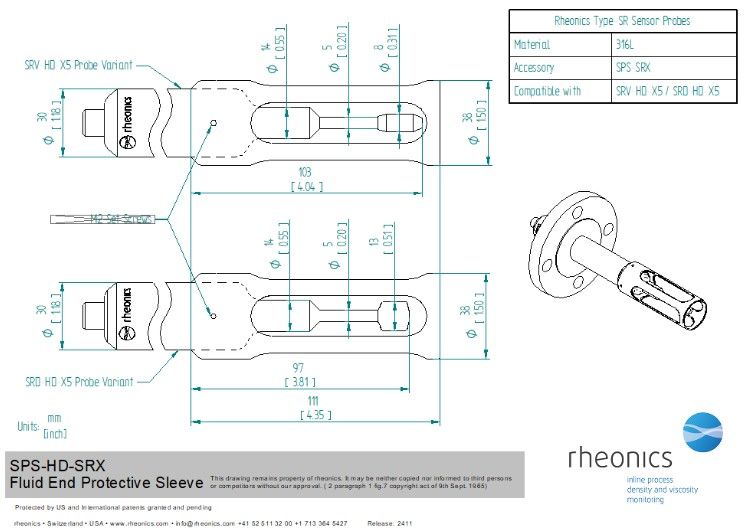

Download files

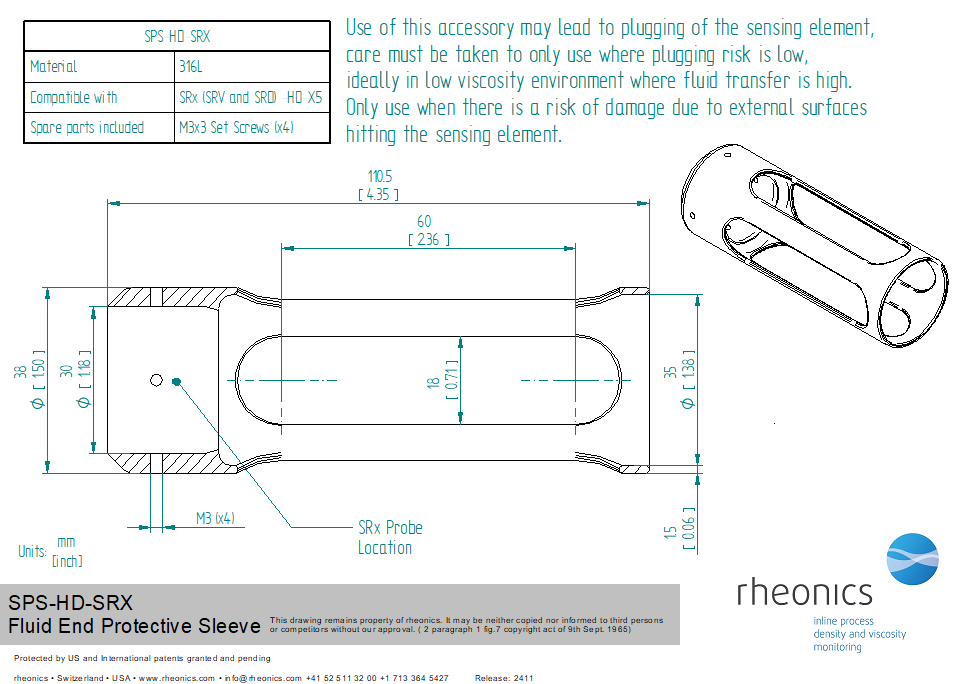

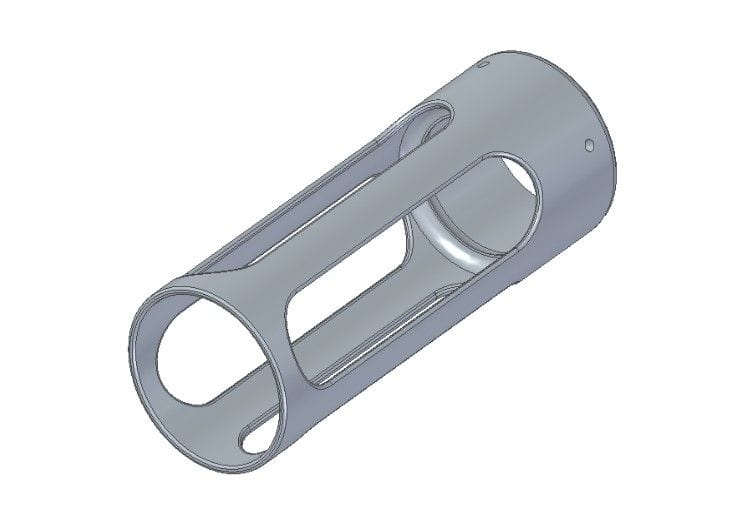

Drawing (dwg. and pdf.) of the SPS-HD-SRX, and CAD models (stp.) of SRV and SRD HD-X5 probes assembled with the accessory.
Compatible with products
| Sensor | Name | Variant |
|---|---|---|

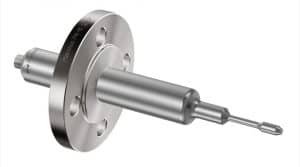

 | SRV - Inline Viscosity Meter | Long Insertion Probe (HD-X5) Versions |

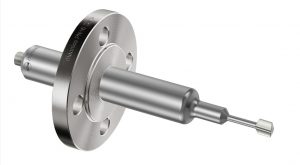

 | SRD - Inline Density and Viscosity Meter | Long Insertion Probe (HD-X5) Versions |
