AIMCAL CQ 2022 P2 Rheonics Viscosity Article

AIMCAL’s Converting Quarterly Magazine Q2 2022 features Rheonics Technology – “Ink viscosity optimization and automation – The key to quality, efficiency and sustainability in printing and coating”

Overview

Web processing & finishing focused magazine – Converting Quarterly (https://www.convertingquarterly.com/) publishes an in depth article about how SRV revolutionizes ink viscosity management in gravure printing and enables “getting it right the first time”. In this article, readers can understand how printers improve color quality, reduce setup time and scrap and achieve sustainability in their operations with complete automation of ink viscosity management.

Find the link to the publication.

Converting Quarterly Magazine – Q2 2022

To download the pdf copy of the article, please use the link below.

Download Publication

Part 1 of this technical paper covered the various challenges of on-line ink viscosity measurement and control.

Find the link to the publication.

Converting Quarterly Magazine – Q1 2022

Rheonics wins AIMCAL Technology of the Year Award 2022

The judges had a lengthy discussion about the merits of each Technology of the Year candidate. For the first time in memory, with two submissions with similar functions, they also consulted an expert in coating and material development processes. After considering that input, the judges decided the comprehensive nature of the Rheonics technology, as detailed in its technical writeup, deserved the Technology of the Year Award, but the InkSpec technology also warranted recognition. Noted one judge, “The Rheonics system offers control over a wide range of viscosities and has the potential to reduce waste due to off -spec color caused by changes in ink viscosity.”

“The Rheonics system offers control over a wide range of viscosities and has the potential to reduce waste due to off -spec color caused by changes in ink viscosity.”

Introduction to gravure challenges

Gravure printing poses special challenges to accurate viscosity measurement and control. Whereas in flexographic-printing systems, cleaning is performed inline with the printing process, many gravure machines use an off -line cleaning routine. When changing jobs, the ink system is removed from the machine and sent to a wash station where remnants of the previous job’s inks are removed in a device resembling a dishwasher. However, this kind of handling can be rough on viscosity sensors, changing their baseline and even damaging their mechanisms. For machines with removable ink systems, another kind of installation provides a compact, integrated sensor and control valve unit, which remains on the machine during job changes and is cleaned by an integrated, automated washdown system that removes all traces of the previous ink color from the sensor and associated piping. A special sensor operating mode can self-test the sensor’s condition, indicating when washdown is complete and also signaling the operator when the sensor becomes contaminated during a printing run. The adapter for mounting the sensors provides for convenient connection points directly in-line with the ink pan while providing autowash function at the end of the print run.

Viscosity automation in gravure printing
Real-time ink control is achieved through inline ink monitoring facilitated by placement of viscosity sensors at each print deck. They connect and transmit data to central, multi-station and single-station handheld consoles.

Topics Covered in the article

  • Gravure challenges
  • How viscosity affects the color precision and quality in printing? Benefits of tight viscosity control for print quality and ink economy
  • Challenges with traditional viscosity measurement units
  • Benefits of printing press automation (Industry 4.0) and predictive tracking control in terms of quality and efficiency improvements, VOC emissions and waste reductions

Some figures from the article (Part -2)

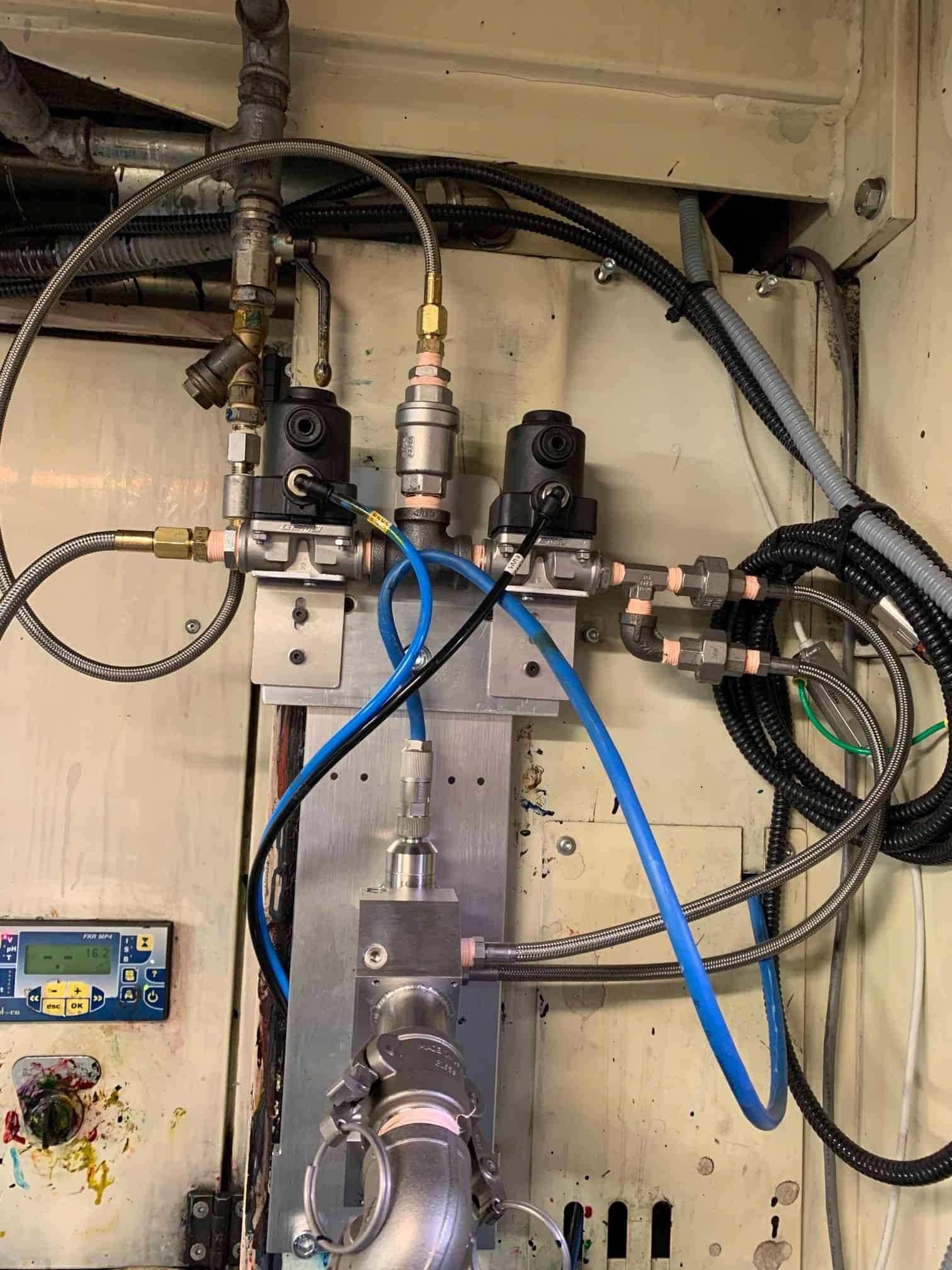

Fig 8
Fig 8

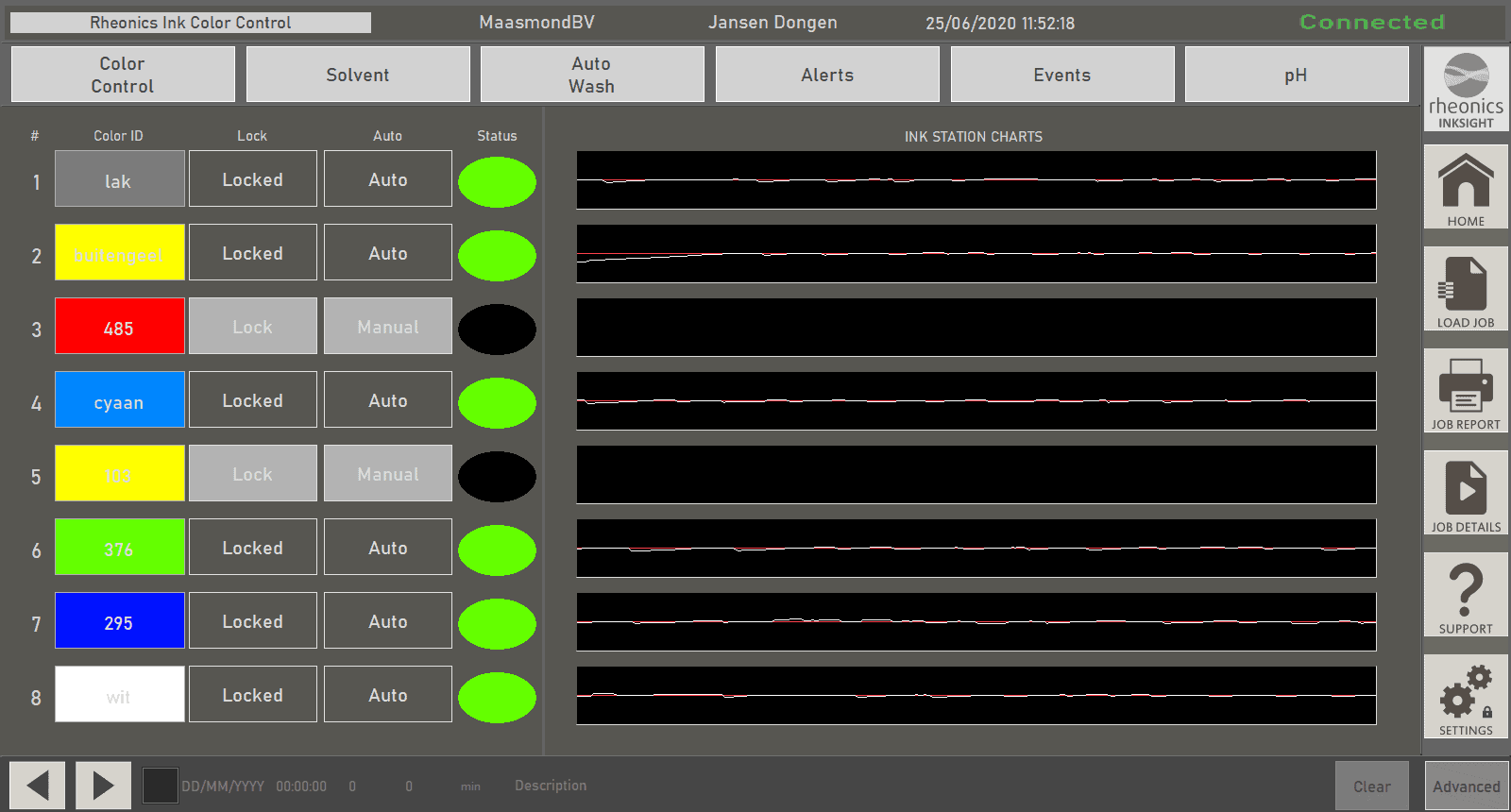

Fig 9 a
Fig 9 b

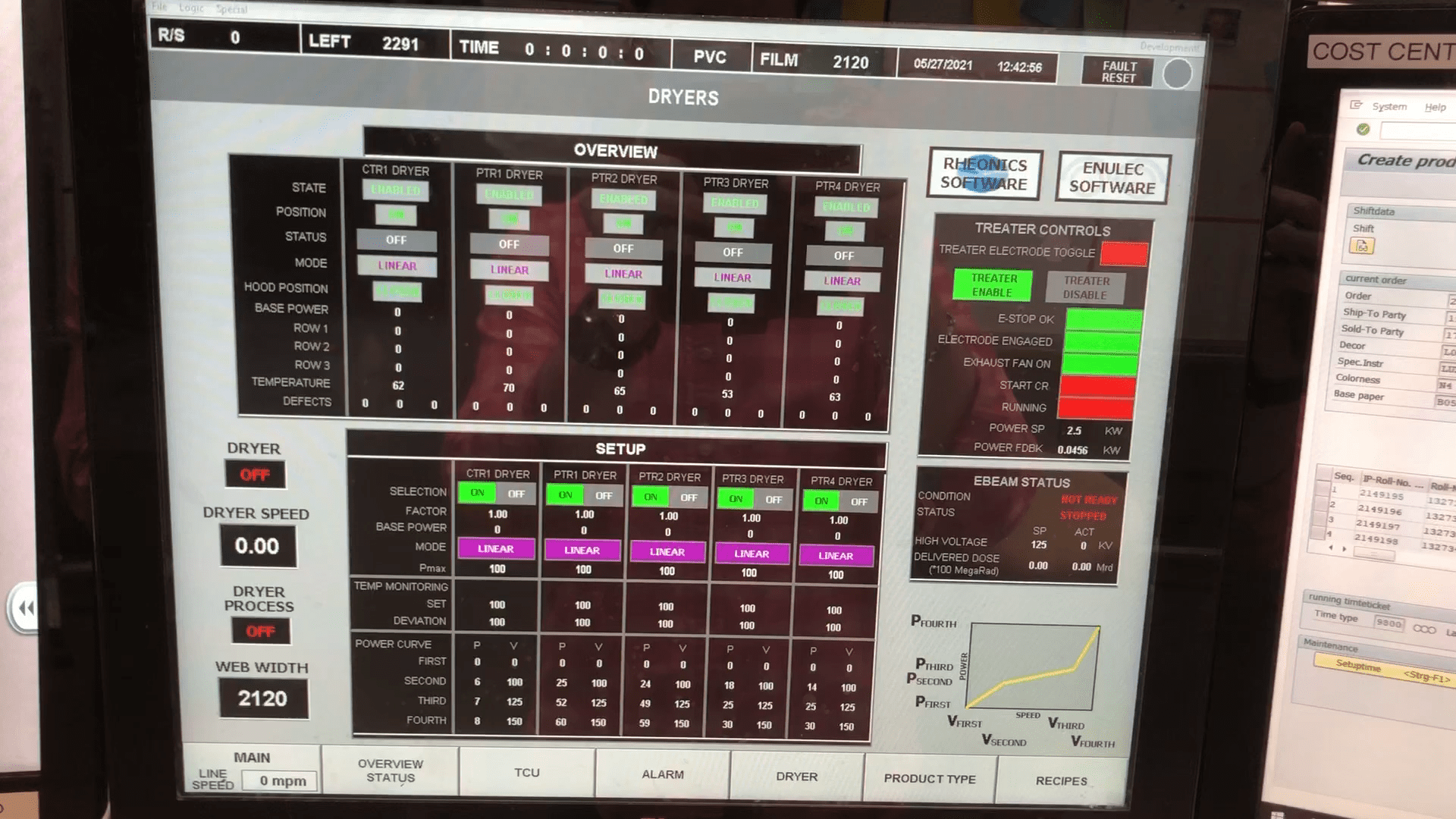

Fig 10.1

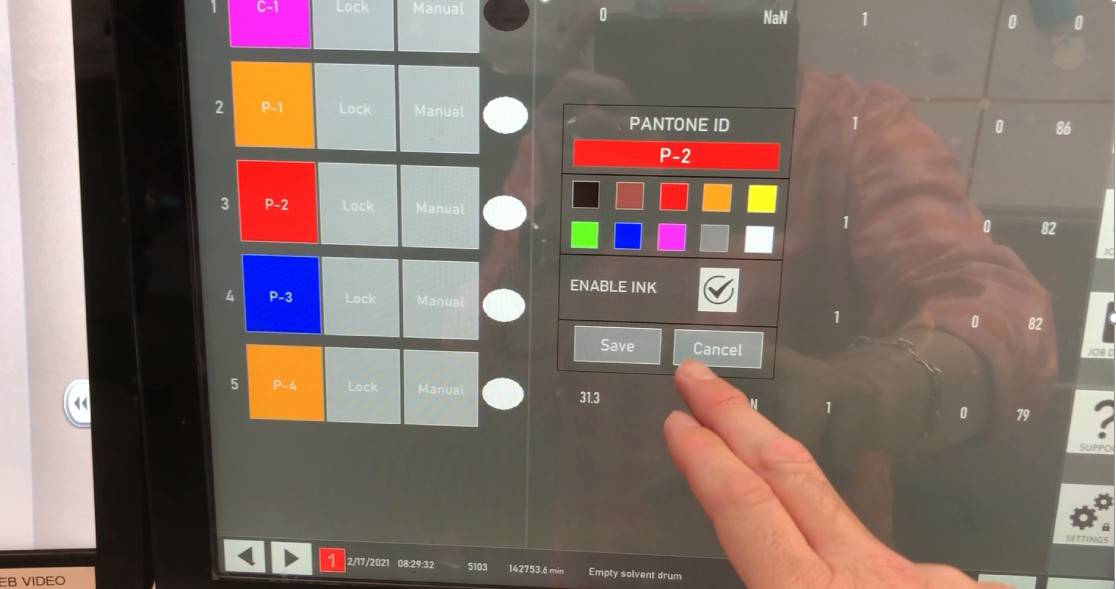

Fig 10.2

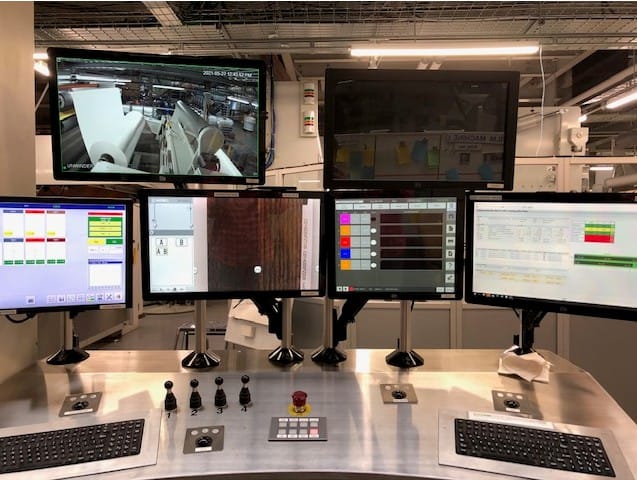

Fig 10.3

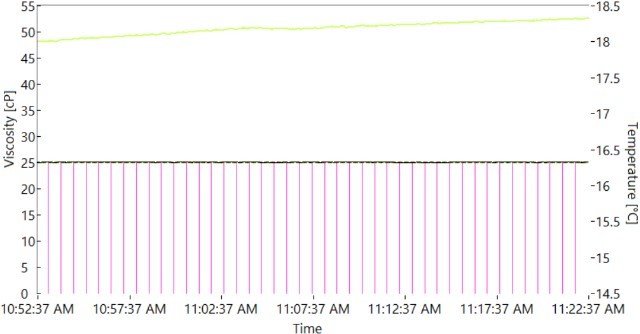

Fig 11 a

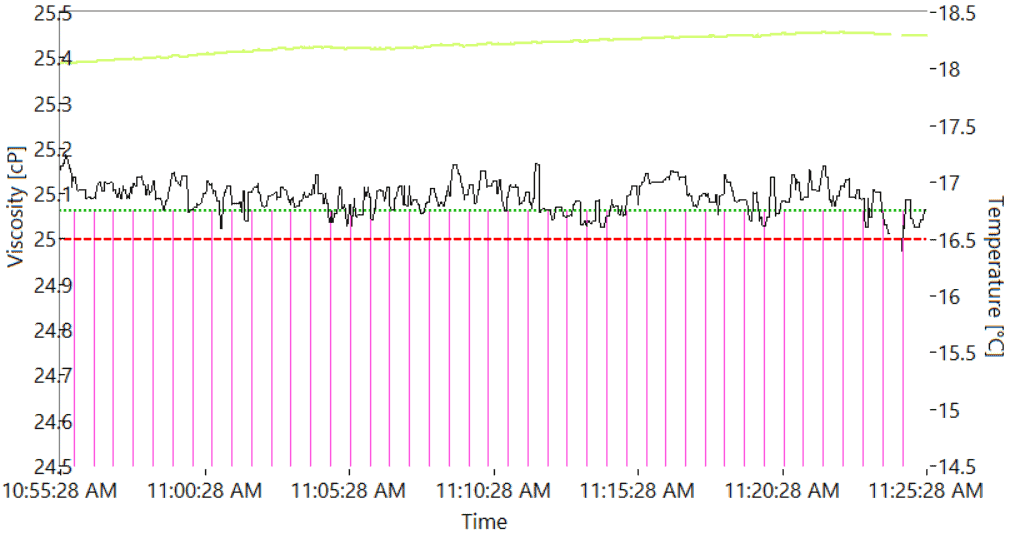

Fig 11 b

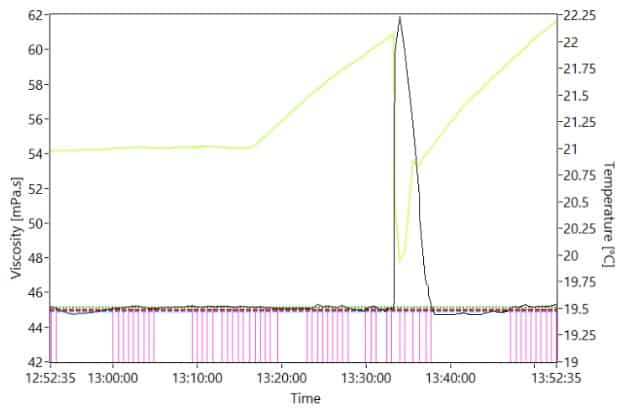

Fig 12

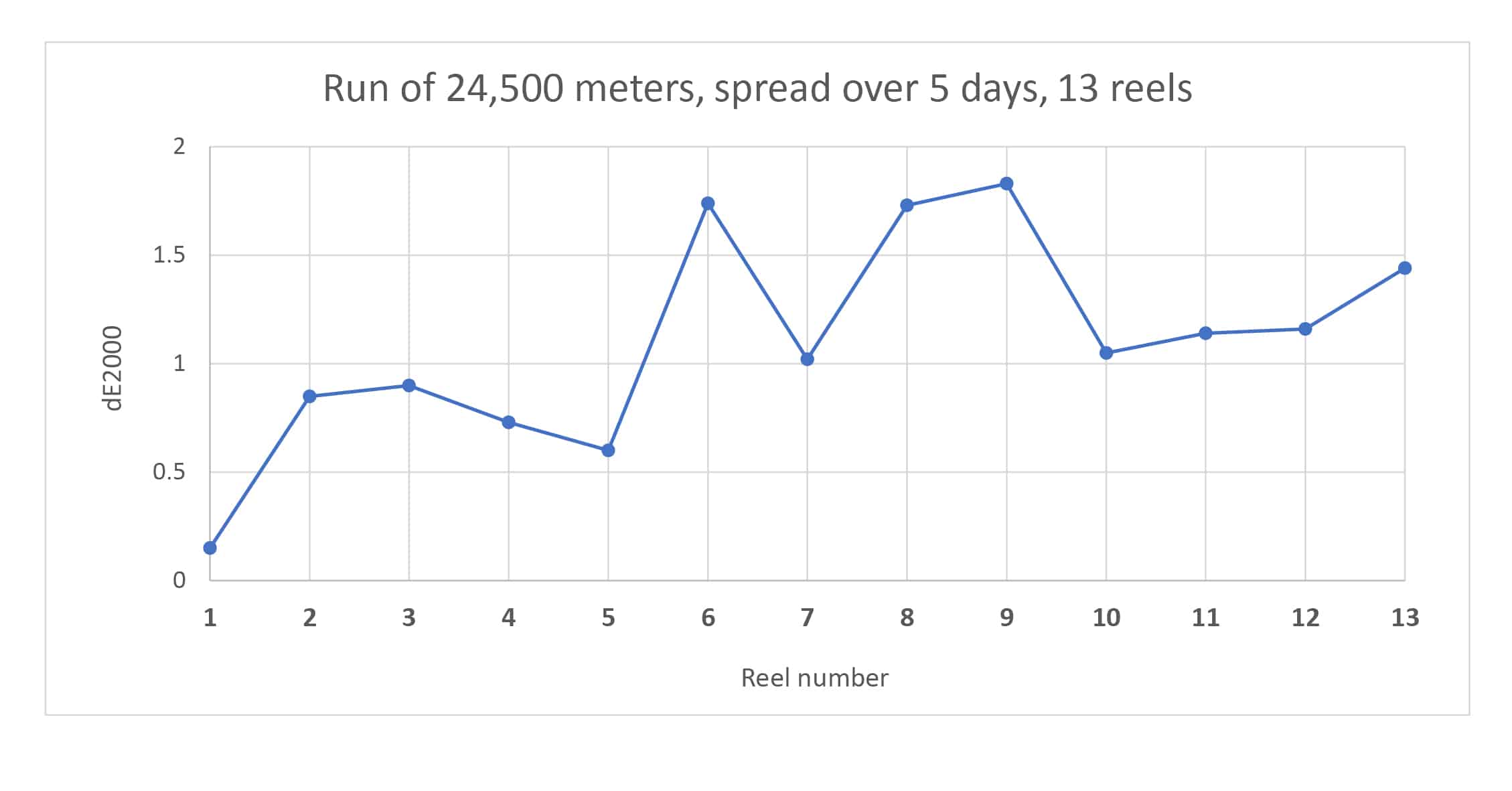

Fig 13 a
Fig 13 b
Fig 8Fig 9 aFig 9 bFig 10.1Fig 10.2Fig 10.3Fig 11 aFig 11 bFig 12Fig 13 aFig 13 b

Unique advantages with the Rheonics SRV sensors

Rheonics sensors have built-in temperature measurement, permitting the temperature of the ink to be monitored. This permits the viscosity readings to compensated for temperature, which is essential for ensuring consistent production through typical daily and seasonal temperature variations.

There are many benefits to using an inline viscosity sensor like the SRV for printing applications. and some include:

  • Works accurately in most coating systems with a broad range of ink compositions and viscosities – water-based, solvent-based, UV inks, metallic inks etc.
  • Maintains the set ink viscosity, extremely responsive to fresh ink additions
  • Rugged, hermetically sealed sensor head. The SRV can be cleaned inline with all standard CIP processes, or with a wetted rag, without the need for disassembly or recalibration
  • No moving parts to age or foul with sediment
  • Insensitive to particulate matter; no narrow gaps to foul with particulates
  • All wetted parts are 316L stainless steel—meets sanitary norms with no corrosion problems
  • Certified under ATEX and IECEx as intrinsically safe for use in hazardous environments
  • Wide operational range and simple integration—Sensor electronics and communication options make it extremely easy to integrate and run in industrial PLC and control systems.

Some images of the RPS InkSight system

  • Rheonics SmartView console integrated in printing machines
  • Some pictures showing the SRV viscometers inline installation inside the press
  • Standalone control cabinet
RPS InkSight – Central Console – Multi Station Ink Viscosity Control For Printing Press
RPS InkSight - Central Console - Multi Station Ink Viscosity Control For Printing Press
Photo 02 03 21, 20 48 50 (6)
Photo 12 01 21, 19 41 43
IMG 9748
Figure 2: Sensor Installed In Ink Line
Fig2. RPTC
RPS InkSight – Central Console – Multi Station Ink Viscosity Control For Printing PressPhoto 02 03 21, 20 48 50 (6)Photo 12 01 21, 19 41 43IMG 9748Figure 2: Sensor Installed In Ink LineFig2. RPTC

Related Articles

Optimizing Flexographic, Gravure And Corrugated Printing Applications Through Inline Viscosity Monitoring And Control

Optimizing flexographic, gravure and corrugated printing applications through inline viscosity monitoring and control

Printing presses have numerous applications – newspapers, magazines, catalogues, packaging and labels. The global printing industry is forecast to reach $980 billion by 2018 according to market research firm Smithers Pira.  The rapid growth is expected to be driven mainly by the growth in packaging and labels – analog printing for packaging is expected to grow by about 28% and…

read more
Rheonics products portfolio for printing companies

All Rheonics products are designed to withstand harshest process environments, high temperature, high level of shock, vibrations, abrasives & chemicals.

Conclusion

As printing speeds increase, and profit margins get tighter, “getting it right the first time” becomes much more important. An error in initial viscosity setting can result in producing several thousand meters of waste in no time at all. Tight control with an accurate sensor, combined with a responsive control system, has enabled us to streamline our printing process while improving color quality and reducing waste.

What is unique about Rheonics viscosity control?

  • Traditional viscosity measuring methods (like efflux cups) are inaccurate, tedious to use, and prone to errors. Continuous viscosity control with such methods is extremely inefficient and unproductive.
  • Many common viscosity measuring devices do not provide fine enough viscosity control and require high maintenance and frequent calibration.
  • Rheonics RPS InkSight Predictive Tracking Controller and SRV viscometers enable tight viscosity control throughout the print job, due to the the system’s ability to autonomously maintain viscosity within extremely narrow limits.
  • Printers can achieve unmatched color accuracy and quality with the RPS InkSight system and ColorLock software – which is designed in collaboration with printers, for printers.
