FTP-XXT-XXT

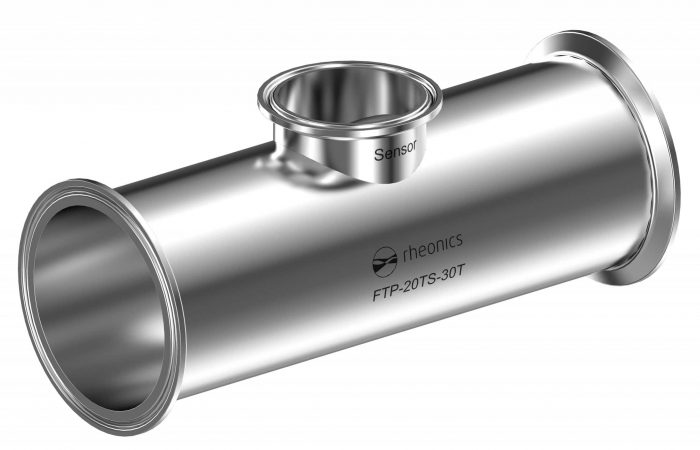

Rheonics FTP accessory is a tee spool piece with a shortened port for either a 1.5” or 2” Tri-Clamp Type-SR sensor. The FTP accessory has clamped inlet and outlet ports and its available in 2”, 3” and 4” sizes. The sensor port size varies with inlet and outlet size.

This piece design allows the sensor to be installed easily in line while being sufficiently submerged with a perpendicular orientation to the flow.

• For installation in big lines.

• Hygienic installation of Type-SR probes

• Tri-Clamped spool allows disassembly and easy cleaning

• Shortened port protrudes the SR-Sensor sensing element sufficiently into the flow, reducing dead zones and potential deposits.

• Use correct material, size and placement of seal gasket for sensor connection.
• Be careful not to over-tighten the clamp.

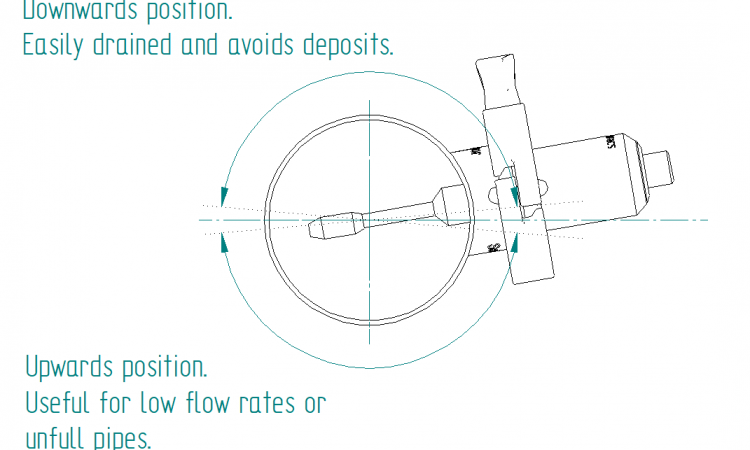

• For the SRD consider the fluid end orientation.
• Downwards position is most common solution and ensures drainability.
• Position the sensor at an angle that ensures presence of fluid. If fluid level is low and with no sedimentation, placing the sensor at lowest position in pipe is recommended.
