Enhance your Drilling Mud Processes
Achieve total control over your drilling mud processes with Rheonics solutions that work together to give you the visibility you need.
Learn more
The Critical Role of Drilling Mud Monitoring
Drilling mud is essential for lubricating, cooling, and stabilizing oil and gas wells. Continuously monitoring mud density and viscosity during the long drilling process is critical to ensure operational safety, efficiency, and optimal performance.
Common challenges
Drilling Mud
Management
Drilling mud management is a complex operation, demanding a delicate balance of fluid dynamics, chemistry, and operational logistics. This creates a high-stakes environment where operators face persistent variables to consider.
Both mud density and viscosity must be precisely controlled to meet operational design requirements.

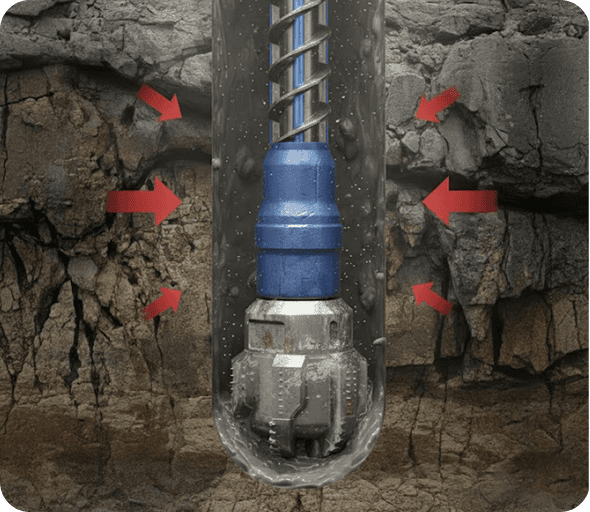

Density must be constantly maintained to apply the correct “mud weight” and pressure on the well walls.
Viscosity needs to be dynamic fluid like while drilling, but solid-like when stopped to hold cuttings in suspension.

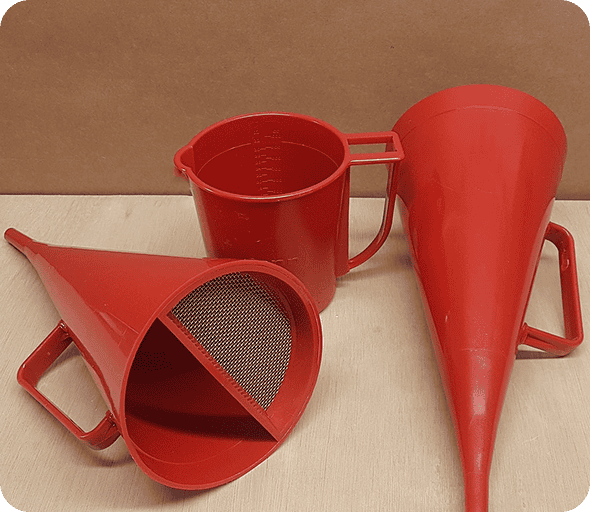

Traditional measurement methods are slow, labor-intensive, and often prone to inaccuracies.

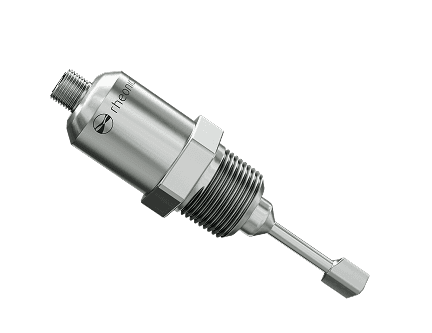

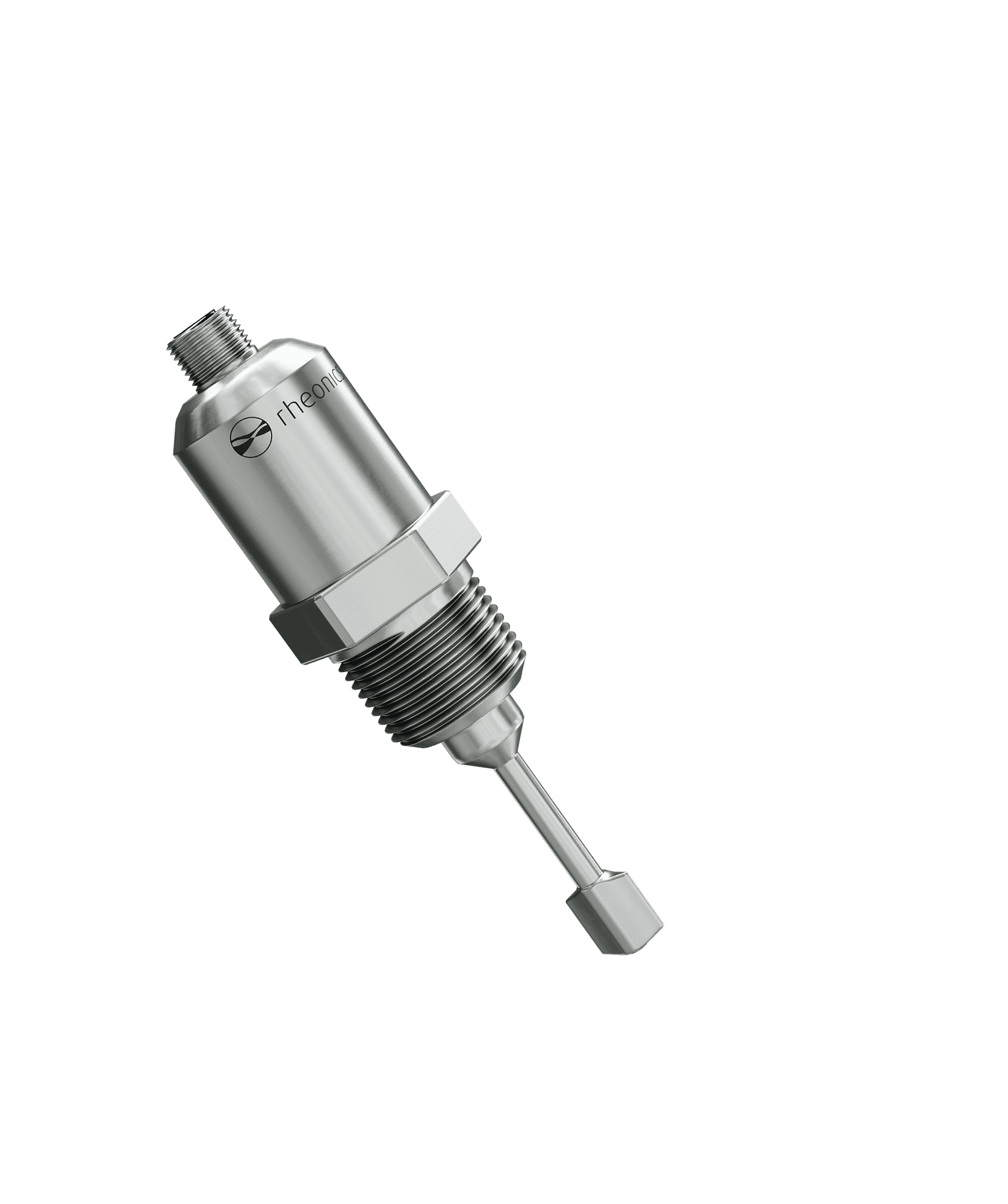

Rheonics SRD
An in-line & real-time density & viscosity meter that provides superior control over drilling fluid properties by delivering continuous, accurate density measurements. This ensures precise Bottom Hole Pressure (BHP) control, preventing mud from entering the production zone and optimizing underbalanced operations.
Configure and order SRD
Recommended Sensor Configuration
for Drilling Mud
Density Range
0.0–4.0 g/cc
0.0–33.4 lb/gal
Density Accuracy
0.001 g/cc
0.008 lb/gal
Reproducibility
Better than 0.1% of reading
Material (Wetted parts)
Stainless steel 316L
Hastelloy C22
Temperature
Pt1000 (DIN EN 60751 class b)
Or you can make your own configuration
Configure and order SRDType of Installations
Rheonics sensors are recommended to be installed either in:

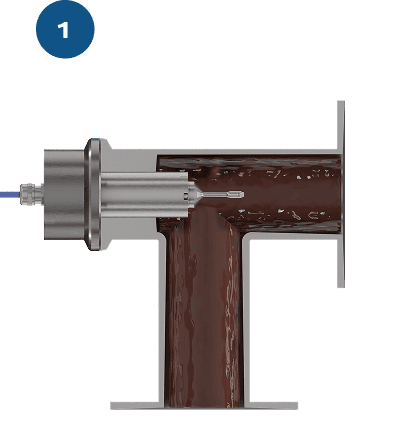

Suction Line
Recommended installation is to place the sensor in an elbow with the sensing element against the flow direction.

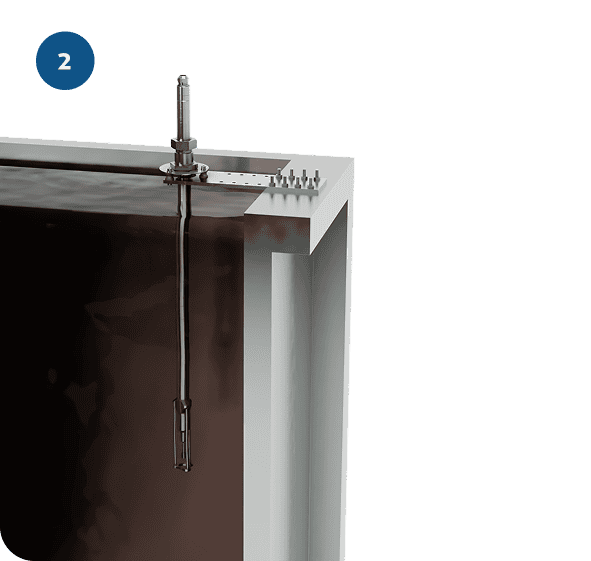

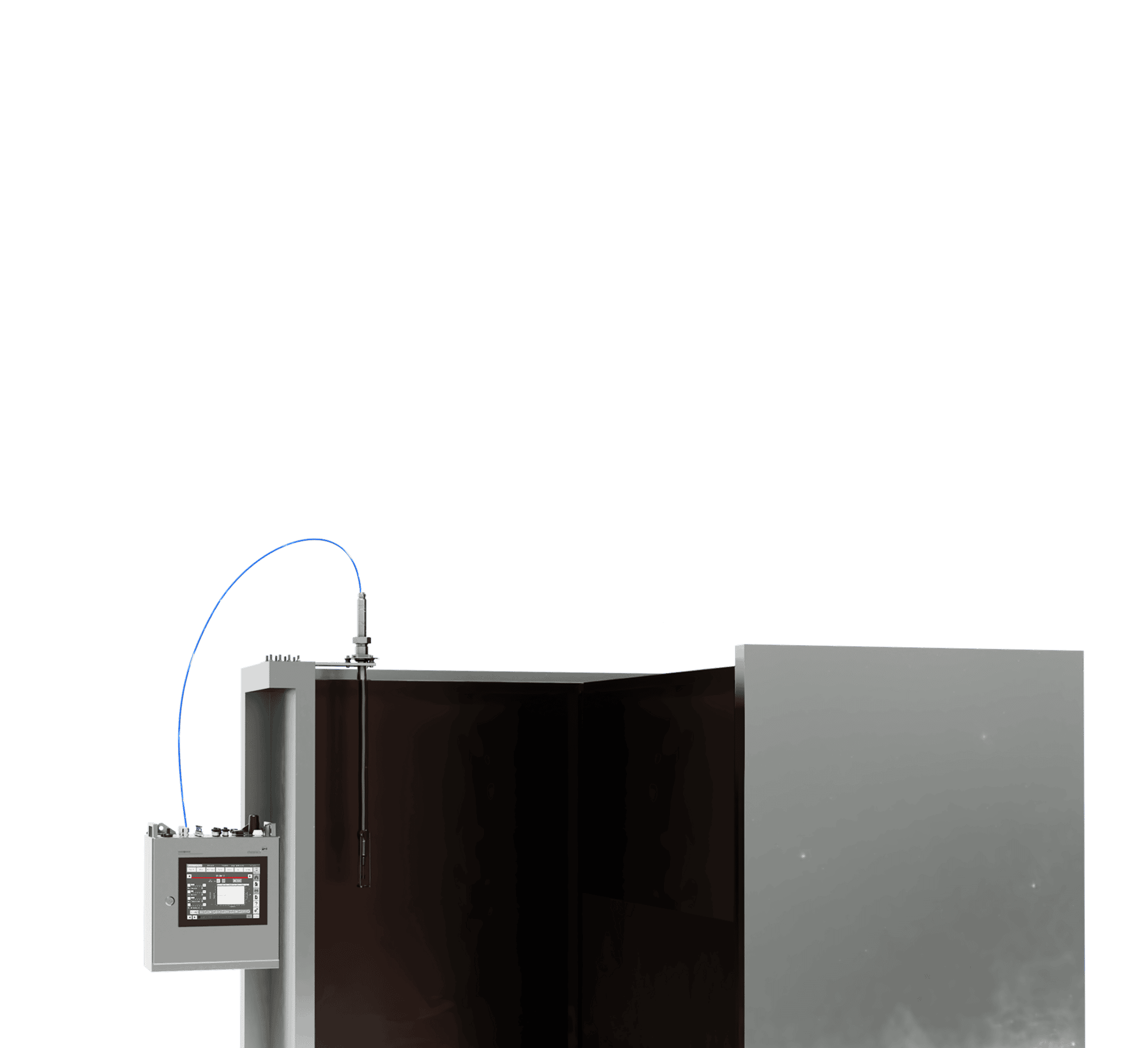

Drilling Mud Tank/Vessel

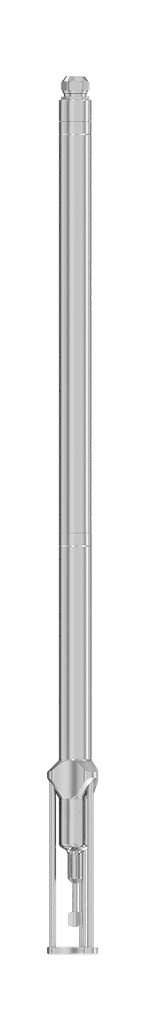

For this kind of installation we reccomend to use the MudSense setup for SRD probes, it simplify immersion and retraction of the probe by the operator for probe cleaning, check or reinstallation in different vessels.

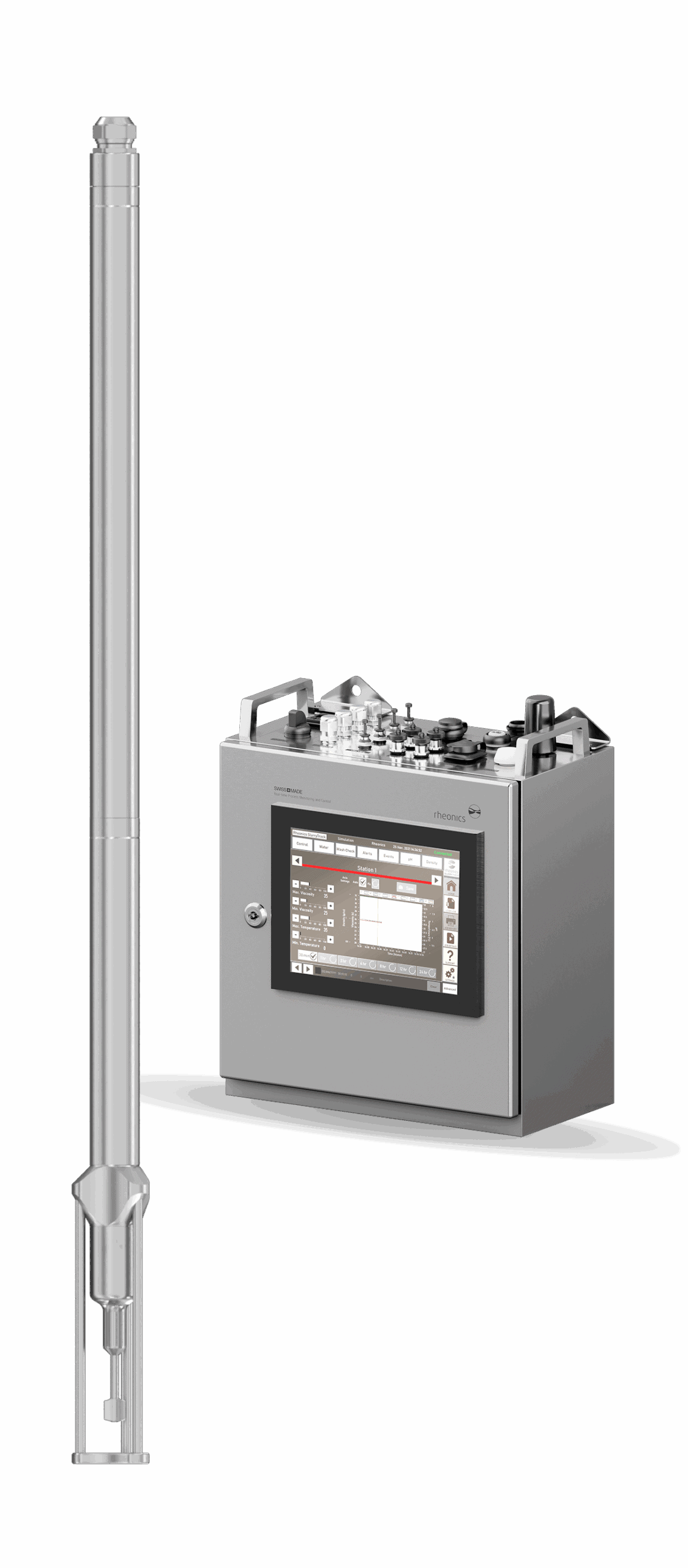

Core Technologies Behind
Drilling Mud Management
Discover more about the technology that
makes Mud Control possible.
Reliable Continuous Data
Provides uninterrupted measurements by resisting abrasion and corrosion with a robust, all-metal design.
Enhanced Safety & Control
Real-time density data enables proactive mud control, reducing risk of kicks or lost circulation.
Operational Cost Reduction
Compact, inline design integrates seamlessly into existing rigs for simple, low-cost installation.
Enhances surface logging
Provides real-time density, viscosity, and temperature data to improve surface logging accuracy

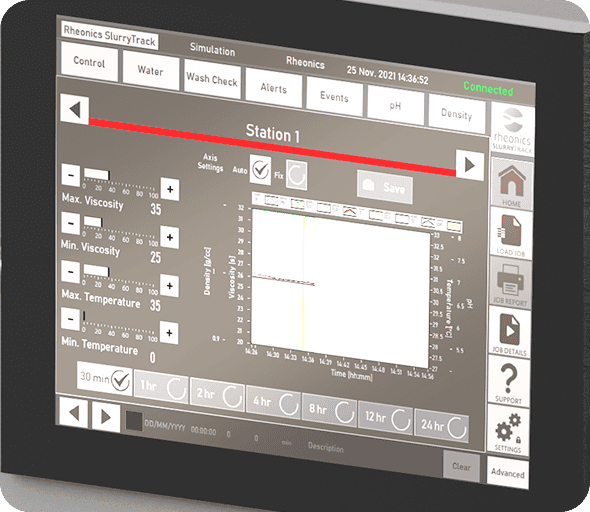

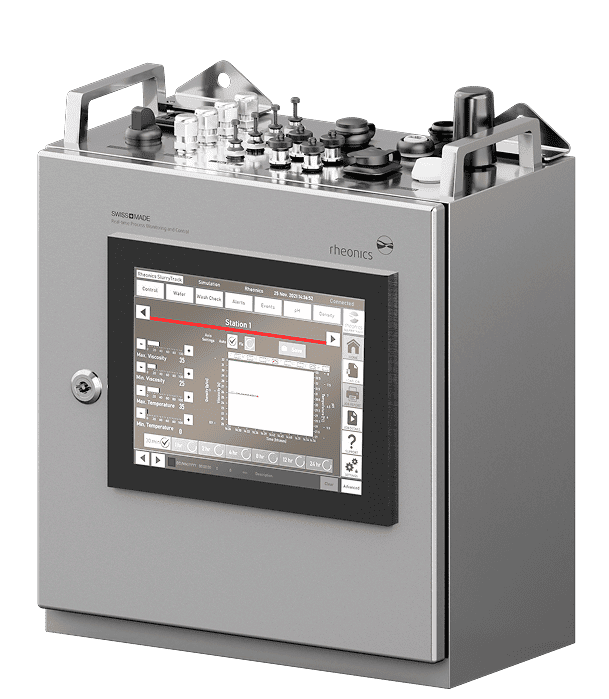

Rheonics MudTrack
Real-Time & In-line mud viscosity
and density tracking and control
Software
Efficient operations
Reduces man-hours by 40% by automating routine measurements, freeing crews for critical operations.
Completely Automate
Automatically adjusts mud properties, eliminating human error from manual checks.
Continous Tracking
Improves well stability and reduces the risk of costly drilling issues or non-productive time (NPT).
Data-driven Decisions
Tracks and traces mud property history, enabling advanced analytics for smarter decisions.

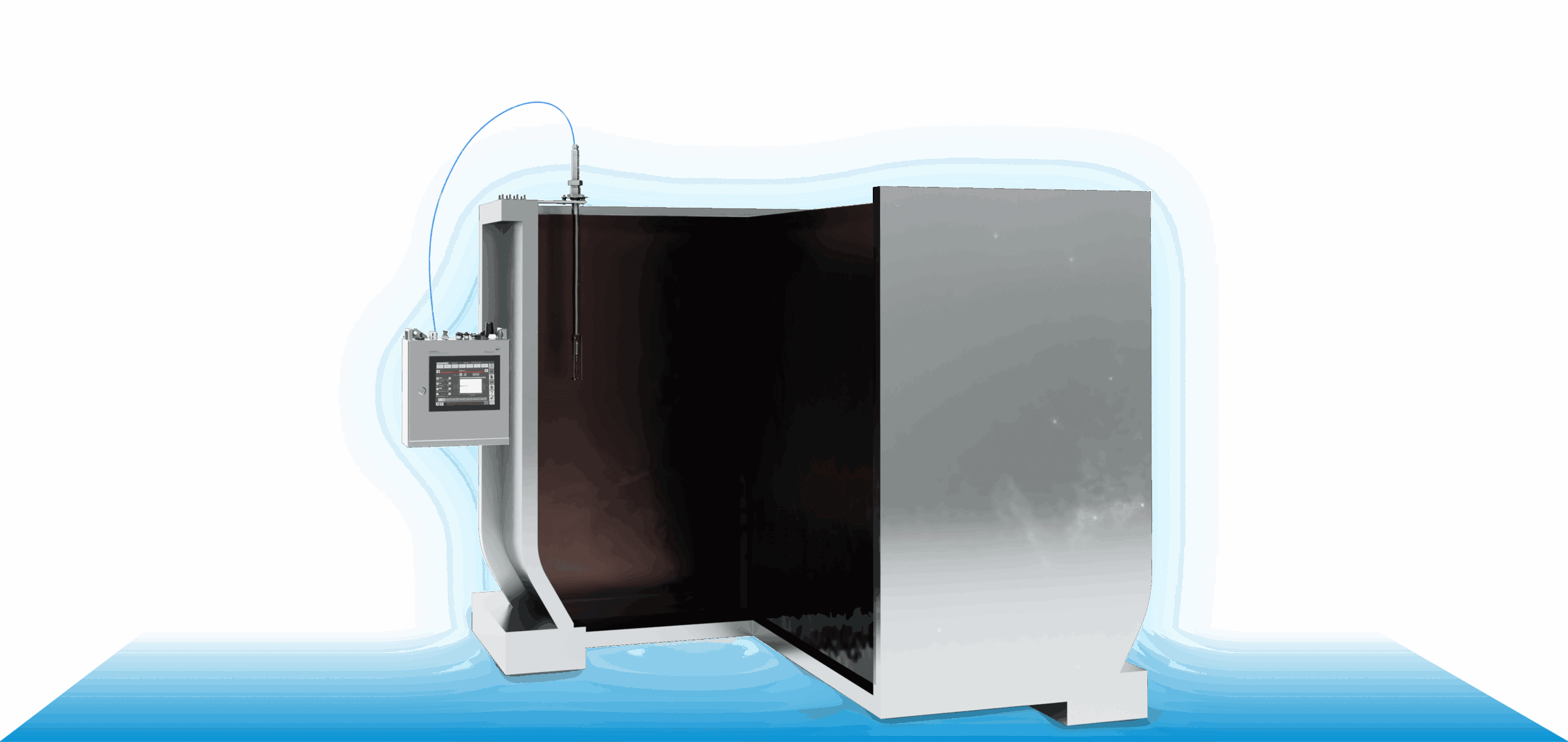

What MudSense & MudTrack
Brings to Your Process
By combining the precise, real-time monitoring of MudSense with the intelligent, automated control of MudTrack, Rheonics delivers a new level of drilling mud stability and operational efficiency. Explore the key benefits your operation can achieve
Consistently stable Mud conditions
Prevent operational issues keeping it running smoothly.
Lower operating costs through optimized monitoring and treatment
Consistently stable Mud conditions
Take the first step toward
Drilling Mud process efficiency!
MudSense (Real-Time Data)
MudTrack (Automated Adjustments)
Optimized Drilling
Performance Control
