Batter mixing and coating: Using lab rotational viscosity measurement for real-time process control with an inline viscometer

Application

Customer application of the Rheonics SRV sensor to measure batter viscosity in a batter mixing and coating system is an established and widely used method to ensure batter consistency.

Customers have traditionally relied on rotational viscometers to measure viscosity of batter in their labs. This has created a significant volume of data that customers desire to use to establish batter viscosity in their process lines using the SRV.

SRV-Battermixing_viscosity management

Purpose of the case study

To investigate if a correlation is possible between Rotational viscometer measurements and SRV inline measurements.

Rotational Viscometer Measurements

Brookfield LV is a commonly used laboratory rotational viscometer in food applications. Brookfield supplies following information about spindles and ranges, the appropriate spindle needs to be deployed for the measurements depending on the viscosity range.

Brookfield LV – spindle and viscosity ranges

Fig.1. Brookfield information about spindles and applicable viscosity

SRV compared with rotational viscometer – more suited for process environment

Fig.2. Applicability of the Rheonics SRV viscometer in process conditions

Batter mixing & viscosity measurements

A mixture of flour and a commercial batter mix (Knorr Panier-Mischung) was added to water with continuous stirring with an impeller mixer until a homogeneous and moderately viscous mixture was obtained. All measurements were conducted at room temperature (ca. 25 °C).

Measurements with original/undiluted batter mixture

The following viscosity as a function of viscometer spindle speed was obtained:

Table.1. Brookfield viscosity measurements with the prepared flour-batter-water mix

RPM Viscosity (cP)
100 2200
60 2600
50 2800
30 3400
20 3700
12 4400



SRV readings in stirring vessel: Static 80 cP.; while stirring, 150 CP.

Measurements after first dilution of batter

A small amount of water was added and the measurements repeated:

Table.2. Brookfield viscosity measurements with the prepared flour-batter-water mix after the first dilution step

RPM Viscosity (cP)
100 1100
60 1300
50 1400
30 1900
20 2200
12 2900



SRV reading in stirring vessel while mixing was 66 cP, with same value for static measurement.

Measurements after second dilution of batter

A second dilution with water was made and the following viscosity readings were obtained:

Table.3. Brookfield viscosity measurements with the prepared flour-batter-water mix after the second dilution step

RPM Viscosity (cP)
100 620
60 700
50 730
30 880
20 960
12 900



During mixing, the SRV reading was 40 cP; static reading was 33 cP.

Batter viscosity measurement data analysis

All data sets of indicated viscosity as a function of LV-4 spindle speed were plotted:




Fig.3. Brookfield viscosity measurements with the prepared flour-batter-water mix, with sequence of dilution steps



In addition, Rheonics SRV viscosity was plotted as a function of Brookfield viscosity for both the static and dynamic (in mixer). Measurements with the SRV were compared with Brookfield measurements at 100 RPM.






Fig.4. Rheonics SRV viscosity was plotted as a function of Brookfield viscosity, for static use



Static SRV measurements do not correlate well with LV-4 readings:

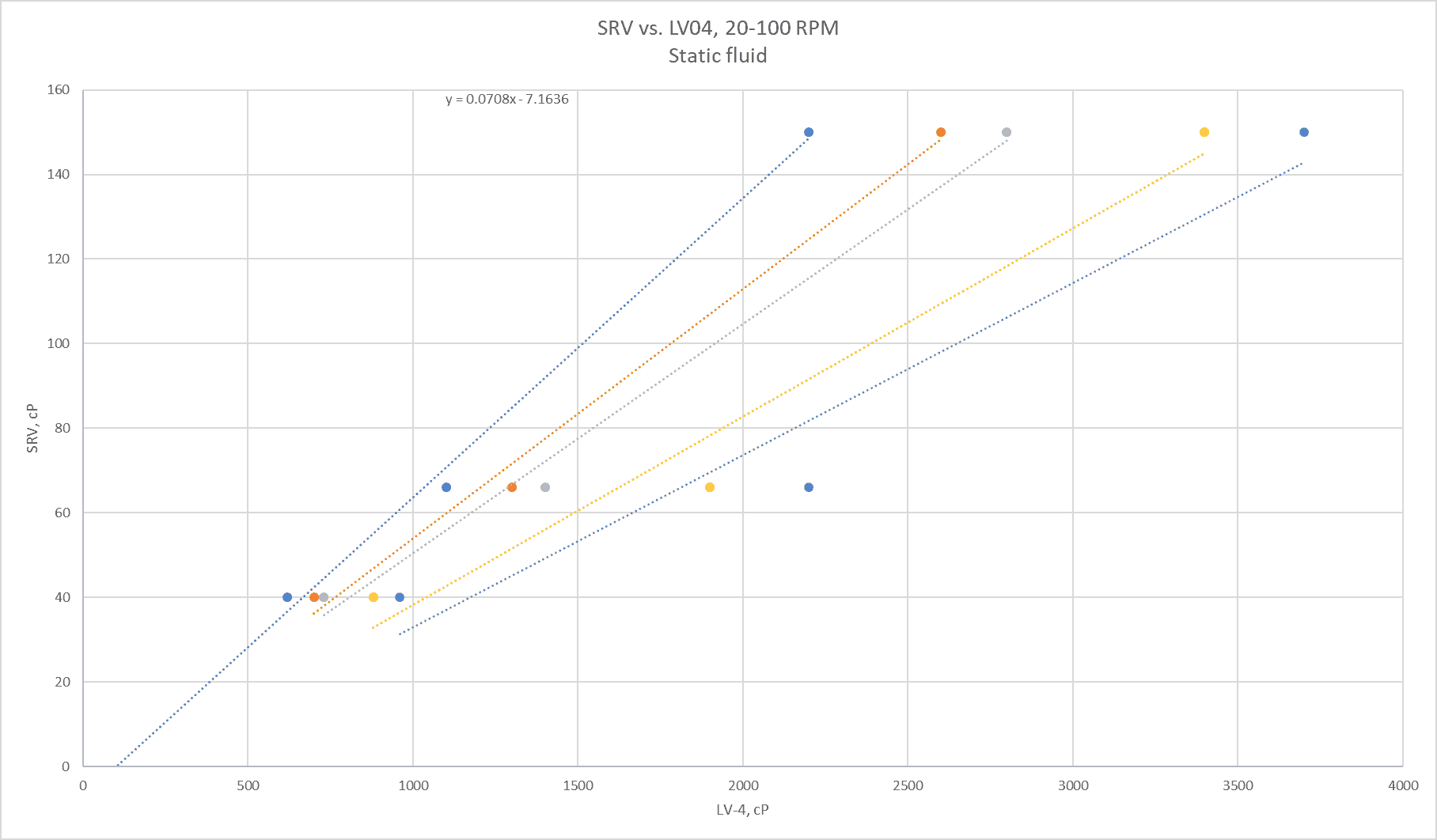

Fig.5. SRV static readings are plotted against LV-4 readings for all spindle speeds



For the dynamic case, a linear regression line described the relationship between Brookfield and SRV readings with reasonable accuracy.


Fig.6. Rheonics SRV viscosity was plotted as a function of LV-4 viscosity, for dynamic case



If SRV dynamic readings are plotted against LV-4 readings for all spindle speeds, it is seen that the best linear fit is obtained for the highest speeds on the LV-4:


Fig.7. SRV dynamic readings are plotted against LV-4 readings for all spindle speeds

Analysis & Conclusion

Rotational viscometer measurements on a batter mix consisting of white flour mixed with a commercial batter mix shows repeatable spindle speed dependence. These data, particularly those taken at the highest spindle speeds, and therefore the highest shear rates correlate well with the readings from the Rheonics SRV while it is immersed in batter flowing past the sensor.



A correlation between lab viscometer (Brookfield LV) and SRV can be achieved by selecting any specific RPM on the rotational viscometer but it was better to select a higher RPM on the rotational viscometer to get a linear relation between the lab and process values.

Recommendation

  • Use Lab Rotational Viscometer to create a flow curve for your batter mix
  • Use the Scaling function on Rheonics SRV sensor to scale the output to similar value as you get from the rotational viscometer at 100 RPM
  • Rheonics inline viscometer SRV can then control the batter mixing and coating to similar reading as you get from your lab viscometer

Additional characteristics of SRV, inline process viscometer that ensures your lab rheological measurements can be used to control the manufacturing processes during production are:

  • sanitary, hygienic connections
  • CIP (clean-in-place)
  • extremely high repeatability to give accurate
  • inter-sensor reproducibility allows reuse of the same correlation across multiple plants
  • sub-micron vibration amplitudes that do not affect fluid structure giving you accurate measurement of the fluid itself
  • easy installation directly in process line, no need of by-pass, no disruption to flow
  • robust sensor made of 316L stainless steel with sealed connections (IP69K) to support high temperature, high pressure, acidic and alkaline cleaning
  • zero maintenance
  • high ROI (return-on-investment)
Go to Rheonics Batter Mixing & Coating Application note
