Shell deploys Rheonics DVM for EOR studies – “Measurement of Transport Properties and Densities of Dimethyl Ether DME and Water/Brine Mixtures”

Overview

A paper was published for presentation at the SPE (Society of Petroleum Engineers) Improved Oil Recovery Conference originally scheduled to be held in Tulsa, OK, USA, 18 – 22 April 2020. Due to COVID-19 the physical event was postponed until 31 August – 4 September 2020 and was changed to a virtual event. The paper is titled “Measurement of Transport Properties and Densities of Dimethyl Ether DME and Water/Brine Mixtures” and authored by Jingyu Cui and Yunying Qi, Shell Global Solutions US Inc; Birol Dindoruk, Shell International Exploration and Production Inc.

In this paper, the authors present new data on the systematic density and viscosity measurements for DME and Water for the first time. There is no systematic viscosity data found for DME-brine systems, especially for the condition of interest (reservoir conditions), so they have deployed the Rheonics DVM to get the density and viscosity data under harsh, aggressive conditions and use the data to establish & validate density and viscosity equations for Brine -DME mixtures. Such essential transport data is necessary to be able to evaluate the DME/DEW injection potential for various applications, from EOR/IOR to near wellbore stimulation.

SPE Improved Oil Recovery Conference

Measurement of Transport Properties and Densities of Dimethyl Ether DME and Water/Brine Mixtures

Jingyu Cui and Yunying Qi, Shell Global Solutions US Inc; Birol Dindoruk, Shell International Exploration and Production Inc

Publisher: Society of Petroleum Engineers (SPE)
Paper presented at the SPE Improved Oil Recovery Conference, August 31–September 4, 2020
Paper Number: SPE-200314-MS
DOI: https://doi.org/10.2118/200314-MS

Link to the Publication

Abstract

Dimethyl ether (DME) is considered to be a potential Enhanced Oil Recovery EOR agent for enhanced waterflooding. Due to its first contact miscibility in hydrocarbons and partial high solubility in water/brine, it partitions preferentially into the hydrocarbon phase upon contact when DME-brine solution is injected into the reservoir. As a result, the residual oil swells and its viscosity is reduced which in turn leads to significantly higher ultimate oil recovery. The amount of swelling and viscosity-reduction depends on the extent of DME partitioning and its availability along with the systems pressure and temperature. In the DME-oil mixing zone, and DME-water zone, the estimation of the DME-Hydrocarbon and DME-water viscosities is crucial to evaluate and understand the performance of DME-enhanced waterflooding (DEW) at reservoir or lab/pilot-scale. Among those, there is no systematic viscosity data found for DME-brine systems, especially for the condition of interest (reservoir conditions). Viscosity of DME-Hydrocarbon follows the traditional mixing rules and expectations quite well; while viscosity of DME-water shown to exhibits very different behavior than expected. In this paper, we present new data on the systematic density and viscosity measurements for DME and Water for the first time. Such essential transport data is necessary to be able to evaluate the DME/DEW injection potential for various applications, from EOR/IOR to near wellbore stimulation.

Some of the important features of this study are:

  1. New data for the literature to be used for DME and DME enhanced waterflooding
  2. Correlation development for the measured

Paper Highlights

Measurement of Transport Properties and Densities of Dimethyl Ether DME and Water/Brine Mixtures

Introduction

Transport properties especially that of viscosity are crucial in oil production both in terms of operation and economics. Given that DME is a polar component, it was not readily obvious the transport properties of DME-water/brine system will follow the expected trends and mixing rules (i.e., behavior of alkane gases with aqueous solutions).

Based on the symptomatic analysis performed, it was believed that DME-brine solution must have higher viscosity than pure brine solution unless there are other factors. Preliminary viscosity measurements confirmed this hypothesis (Figure 3). Therefore, a deeper look into this unexpected viscosity elevation with respect to water is needed. However, there is no known numerical tool which was able to predict and represent this behavior correctly.

Figure 3—Preliminary Viscosity Measurements for quick-look at the viscosity of DME-brine system at 20 C (Raw data: no pressure and temperature corrections performed, as seen in water-pressure trend).

To be able to explain our observations in the lab and fill this gap in the context of essential data to explain and design laboratory experiments, and enable more reliable forecasts in various scales, we have designed a comprehensive experimental program to address this, and to develop a trend capturing formula or mixing-rule which can be used in populating fluid description requirements for reservoir simulators or other tools to predict DME-brine viscosity and also density. In order to achieve this, we have followed the steps below.

  1. Measure viscosity and density for DME-DI water solution, covering from pure water to DME solubility limit at various temperatures and pressures;
  2. Develop a viscosity mixing rule to predict the mixture properties using pure DME and water (brine) properties;

Equipment and Calibration

Density and viscosity of DME-DI water (Brine) mixture were measured using Rheonics DVM [5]. This equipment shows clear advantage in measuring the viscosity for aqueous system comparing to Electro- Magnetic Viscometer (EMV), as it can yield simultaneous measurement of density and viscosity. In addition, Rheonics DVM can perform inline measurements of both density and viscosity at process pressures up to 30,000 psi (2000 bar) and temperature ranges from −20°C to 200°C with a response time of about 1 second per reading.

DVM is an inline module to measure the viscosity, density and temperature of the fluid flowing through the module. The flow through module is based on the DVM’s density and viscosity sensor. The module has a flow-through channel with an internal diameter of 12 mm. The Sensor is mounted parallel to the flow path of the fluid and removes any dead zones in the fluid flow. The standard module has Swagelok connections which can be replaced with other suitable threaded connections. A Teflon seal reduces any chance of fluid influx in the connector thread. The sensor DVM is mounted with a threaded bolt to allow easy removal for cleaning and replacement. It has a simple, compact, and robust construction (See Figure 4).

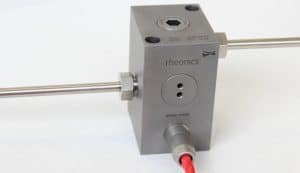

Figure 4—Rheonics in-line DVM Model

The Rheonics DVM measures viscosity and density by means of a torsional resonator, one end of which is immersed in the fluid under test. The more viscous the fluid, the higher the mechanical damping of the resonator. By measuring the damping, the product of viscosity and density may be calculated by Rheonics’ proprietary algorithms. Our initial work showed that the algorithm vendor provided did not taking in to account the effect of pressure and temperature on the equipment. Vendor applied this input to improve their algorithms, and lead to more consistent correction factor. The denser the fluid, the lower the resonant frequency. A denser fluid increases the mass loading of the resonator. The resonator is both excited and sensed by means of an electromagnetic transducer mounted in the sensor’s body.

Damping is measured by sensing and evaluation electronics and stable, high accuracy and repeatable readings are obtained based on proprietary [6] gated phase-locked loop technology.

In order to convert the raw measurements to physically more accurate measurements, device correction parameters were needed for the particular model utilized. Those correction factors were provided by the manufacturer both for viscosity and density.

Data collected with the DVM for this study

Viscosity and Density of DI water at 35°C

 Calibration runs were performed before the full measurements performed on DME-Water solutions. It is important to calibrate the system with a known fluid to judge the accuracy of the measurement. As a result, DI water is chosen for this purpose due to two reasons:

  1. Viscosity of DI water are available at a wide range of pressures and temperatures which contains our P-T domain of interest;
  2. The interest of this study is largely on aqueous solutions which makes the water an ideal candidate  to calibrate the

Calibration experiments were conducted at 35C; results were compared with NIST data at the same temperature. Figure 5 and Figure 6 show good agreement between measured viscosity and density data and that of NIST data.

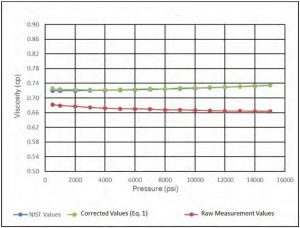

Figure 5—Viscosity of DI Water at 35 C.



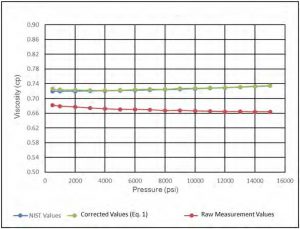

Figure 6—Density of DI water at 35 C.

Density of DME/DI water Mixtures

Based on the experimental matrix in Table 2, density for a series of DME-DI water mixtures have been measured. Tables 3 to 5 present the experimental data at three different temperatures in a tabular form.

Table 3—Density of DI Water/DME Solutions at 35°C.

Pressure Concentration
psia 0% DME 2% DME 5% DME 10% DME 14% DME
400 0.9967 0.9835 0.9656 0.9442 0.9188
725 0.9976 0.9844 0.9665 0.9452 0.9198
1450 0.9997 0.9863 0.9684 0.9472 0.9220
2175 1.0017 0.9882 0.9702 0.9492 0.9243
3000 1.0038 0.9903 0.9723 0.9514 0.9268
4000 1.0065 0.9930 0.9749 0.9540 0.9297
5000 1.0092 0.9955 0.9781 0.9567 0.9326
6000 1.0119 0.9981 0.9800 0.9592 0.9354
7000 1.0145 1.0007 0.9825 0.9618 0.9382
8000 1.0171 1.0032 0.9850 0.9644 0.9410
9000 1.0197 1.0058 0.9874 0.9669 0.9437
10000 1.0224 1.0083 0.9900 0.9695 0.9464
11000 1.0249 1.0108 0.9924 0.9720 0.9491



 Table 4—Density of DI Water/DME Solutions at 50°C.

Pressure Concentration
psia 0% DME 2% DME 5% DME 10% DME 14% DME
400 0.9905 0.9769 0.9575 0.9348 0.9099
725 0.9914 0.9777 0.9581 0.9358 0.9108
1450 0.9933 0.9796 0.9603 0.9380 0.9134
2175 0.9953 0.9815 0.9622 0.9401 0.9159
3000 0.9975 0.9837 0.9644 0.9425 0.9186
4000 1.0001 0.9862 0.9669 0.9454 0.9218
5000 1.0027 0.9888 0.9695 0.9482 0.9249
6000 1.0054 0.9914 0.9721 0.9509 0.9281
7000 1.0079 0.9940 0.9747 0.9536 0.9310
8000 1.0105 0.9965 0.9772 0.9564 0.9339
9000 1.0131 0.9990 0.9797 0.9591 0.9368
10000 1.0157 1.0016 0.9823 0.9617 0.9397
11000 1.0182 1.0040 0.9848 0.9644 0.9425



Table 5—Density of DI Water/DME Solutions at 70°C.

Pressure Concentration
psia 0% DME 2% DME 5% DME 10% DME 14% DME
400 0.9800 0.9656 0.9443 0.9217 0.8936
725 0.9809 0.9665 0.9452 0.9228 0.8965
1450 0.9828 0.9686 0.9474 0.9251 0.9003
2175 0.9848 0.9705 0.9494 0.9274 0.9031
3000 0.9870 0.9724 0.9517 0.9300 0.9060
4000 0.9896 0.9751 0.9545 0.9330 0.9094
5000 0.9923 0.9777 0.9572 0.9360 0.9125
6000 0.9950 0.9804 0.9599 0.9390 0.9156
7000 0.9975 0.9830 0.9626 0.9419 0.9187
8000 1.0001 0.9856 0.9652 0.9448 0.9217
9000 1.0027 0.9881 0.9679 0.9476 0.9247
10000 1.0053 0.9907 0.9705 0.9503 0.9276
11000 1.0078 0.9932 0.9731 0.9531 0.9305

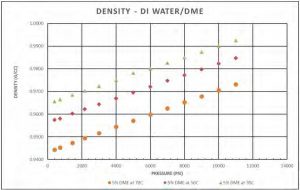

Figure 8 shows a selected isotherm for the density of DI water/DME solution. As expected, density increases as pressure increases and decreases as DME concentration increases. Figure 9 shows the density behavior of a DI water/DME solution (5 mol% DME) at different temperatures, density decreases as temperature increases.

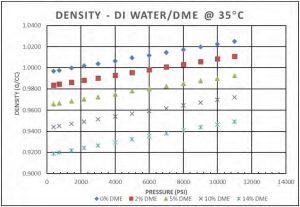

Figure 8—Density of DI water/DME solutions at 35°C.



Figure 9—Density of DI water/5 mol % DME solution at different temperatures.

Viscosity of DME/DI water Mixture

Similarly, viscosities of DME/DI water were also measured at corresponding concentrations and conditions. Tables 6 and 8 present the measured data in tabular form.



Table 6—Viscosities of DI Water/DME Solutions at 35°C.

Pressure Concentration
psia 0% DME 2% DME 5% DME 10% DME 14% DME
400 0.7350 0.8342 0.9346 1.0062 1.0010
725 0.7377 0.8344 0.9405 1.0132 1.0066
1450 0.7388 0.8361 0.9432 1.0231 1.0123
2175 0.7380 0.8387 0.9439 1.0301 1.0189
3000 0.7372 0.8412 0.9577 1.0384 1.0247
4000 0.7358 0.8439 0.9575 1.0488 1.0390
5000 0.7346 0.8457 0.9613 1.0570 1.0508
6000 0.7339 0.8498 0.9538 1.0612 1.0637
7000 0.7336 0.8520 0.9557 1.0658 1.0739
8000 0.7308 0.8535 0.9637 1.0663 1.0811
9000 0.7297 0.8551 0.9652 1.0772 1.0927
10000 0.7284 0.8527 0.9669 1.0857 1.1002
11000 0.7310 0.8519 0.9670 1.0943 1.1124





Table 7—Viscosities of DI Water/DME Solutions at 50°C.

Pressure Concentration
psia 0% DME 2% DME 5% DME 10% DME 14% DME
400 0.5433 0.6181 0.6943 0.7121 0.7157
725 0.5441 0.6199 0.6948 0.7160 0.7073
1450 0.5471 0.6208 0.6973 0.7234 0.7111
2175 0.5481 0.6236 0.6969 0.7305 0.7237
3000 0.5499 0.6259 0.7005 0.7384 0.7329
4000 0.5520 0.6280 0.7071 0.7456 0.7444
5000 0.5552 0.6235 0.7045 0.7569 0.7531
6000 0.5557 0.6276 0.7074 0.7660 0.7602
7000 0.5579 0.6298 0.7092 0.7749 0.7715
8000 0.5607 0.6317 0.7128 0.7859 0.7756
9000 0.5612 0.6362 0.7175 0.7923 0.7852
10000 0.5630 0.6383 0.7198 0.7918
11000 0.5635 0.6376 0.7216 0.8038 0.8035





Table 8—Viscosities of DI Water/DME Solutions at 70°C.

Pressure Concentration
psia 0% DME 2% DME 5% DME 10% DME 14% DME
400 0.4003 0.4422 0.4791 0.4783 0.5041
725 0.4016 0.4402 0.4812 0.4789 0.4962
1450 0.4029 0.4420 0.4828 0.4985
2175 0.4054 0.4437 0.4832 0.4859 0.5011
3000 0.4076 0.4451 0.4844 0.4898 0.5090
4000 0.4097 0.4468 0.4873 0.4952 0.5191
5000 0.4122 0.4494 0.4953 0.5003 0.5270
6000 0.4132 0.4522 0.4976 0.5068 0.5366
7000 0.4136 0.4517 0.5011 0.5137 0.5420
8000 0.4160 0.4540 0.5058 0.5206 0.5495
9000 0.4181 0.4551 0.5088 0.5259 0.5520
10000 0.4193 0.4561 0.5105 0.5330 0.5601
11000 0.4193 0.4564 0.5123 0.5351 0.5666



Figure 10 shows that viscosity of DI water/DME solutions slightly increases as pressure increases, and it also increases with increasing DME concentration which is contrary to expectations. Figure 11 shows the viscosity of DI water/DME solution with 5 mol% DME at different temperatures; as expected, the viscosity of such solution decreases as temperature increases.

Figure 10—Viscosity of DI water/5 mol % DME solutions at 35°C.

Figure 11—Viscosity of DI water/DME solution at different Temperatures.

In order to be able to predict density and viscosity of a wide range of DI water/DME mixtures, correlations in the form of mixing rules have been developed using the generated set of experimental data and pure component properties.

In the following section, using the experiments performed, we will demonstrate the range of validity and accuracy of the simple correlative tools that we have developed for Brine-DME systems.

Validation of Density Equations for Brine-DME Mixtures



Table 14—Density of 3 wt % brine/DME Solution at 35 C.

Experimental Density (g/cc) Calculated Density (g/cc) Relative Error (%)
psia 2% DME 5% DME 8% DME 2% DME 5% DME 8% DME 2% DME 5% DME 8% DME
400 1.0000 0.9832 0.9696 1.0006 0.9796 0.9612 −0.06 0.37 0.87
725 1.0008 0.9840 0.9703 1.0016 0.9811 0.9630 −0.08 0.30 0.75
1450 1.0026 0.9859 0.9721 1.0037 0.9840 0.9664 −0.11 0.19 0.59
2175 1.0045 0.9877 0.9741 1.0057 0.9865 0.9693 −0.13 0.13 0.49
3000 1.0066 0.9898 0.9762 1.0078 0.9889 0.9720 −0.12 0.09 0.43
4000 1.0091 0.9924 0.9788 1.0101 0.9916 0.9749 −0.11 0.08 0.40
5000 1.0116 0.9948 0.9813 1.0124 0.9939 0.9772 −0.08 0.09 0.42
6000 1.0141 0.9973 0.9839 1.0145 0.9960 0.9793 −0.04 0.13 0.47

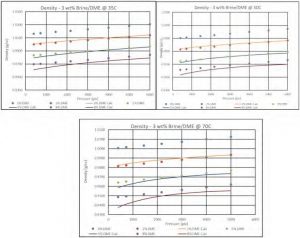

Figure 13—Density of 3wt% Brine/DME at different Temperatures.

Overall the proposed mixing rule for density predicts the mixture density well at medium to low DME concentrations, and slightly underpredicts at higher DME concentrations (i.e., 8 mol %) while the deviations are still within the expected margins.

Validation of Density Equations for Brine-DME Mixtures



Table 15—Viscosity of 3 wt % NaCl brine/DME solution at 35 C.

Pressure Experimental Viscosity (cp) Calculated Viscosity (cp) Relative Error
psia 0% DME 2% DME 5% DME 8% DME 2% DME 5% DME 8% DME 2% DME 5% DME 8% DME
400 0.7537 0.8462 0.9535 1.0220 0.9209 0.9824 1.0392 −8.82 −3.03 −1.68
725 0.7650 0.8485 0.9563 1.0159 0.9217 0.9838 1.0413 −8.63 −2.87 −2.51
1450 0.7616 0.8332 0.9532 1.0201 0.9238 0.9869 1.0462 −10.87 −3.53 −2.55
2175 0.7641 0.8334 0.9516 1.0313 0.9257 0.9899 1.0507 −11.08 −4.02 −1.88
3000 0.7594 0.8388 0.9527 1.0235 0.9279 0.9931 1.0557 −10.62 −4.25 −3.15
4000 0.7553 0.8400 0.9410 1.0221 0.9304 0.9968 1.0613 −10.76 −5.93 −3.83
5000 0.7528 0.8439 0.9520 1.0330 0.9329 1.0006 1.0670 −10.54 −5.10 −3.29



Figure 14—Viscosity of 3 wt % NaCl Brine/DME at different temperatures.

Figure 14 indicates that the mixing rules for the viscosity over estimates the viscosities at 35 C, at 50 C and 70 C, while still showing an overall good agreement with the experimental data.

Conclusion/Results from the study

A systematic methodology with a newer viscometer (Rheonics DVM) was developed for DME dissolved aqueous systems.  After initial calibrations and verification tests with known substances, such as water,

  1. Density and viscosity of DI water/DME, Brine/DME systems have been measured extensively at 35 C, 50 C, and 70 C and various pressures and DME
  2. To our knowledge, the subject sets of viscosity and density measurements are the first in the literature. They can be used for evaluation and/or de-risking DME enhanced water floods (DEW) and other uses of DME beyond water We provide such data for the literature.
  3. Mixing rule type of to calculate density and viscosity for these mixtures have been developed and validated; the calculated values agree well with experimental data and constitute a simple set of tools to generate needed density and viscosity values of Brine/DME mixtures within the conditions evaluated for various applications such as simulators.

PVT/EOR study is difficult with traditional instrumentation: It needs innovative, cutting-edge solutions

Oil and Gas processing platform,producing gas condensate and water and sent to onshore refinery.

In PVT/EOR analysis, operators use either an offline or an inline instrument to measure density and another instrument to measure viscosity (mostly offline). There are major issues in using two separate instruments for measuring density and viscosity:

  • Most traditional instruments used for density and viscosity measurement need separate fluid samples for analysis which are extracted from downhole fluid sample cylinders, using up large quantities of an extremely valuable fluid sample that cannot be reused in PVT

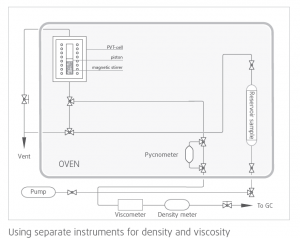

  • Same temperature and pressure conditions are harder to achieve in two separate instruments leading to measurement errors
  • Difficult to co-locate large, bulky density meters and viscometer inside PVT ovens due to space and mounting constraints
  • Manual operation and needs long time for measurement
  • Needs significant integration work in hardware and software to synchronize measurement data and ensure compliance

How is Rheonics DVM helping solve these challenges?

New reservoirs are increasingly ultra-deep with very high pressure conditions (>25000 psi) and high temperature (>400 °F). It is very expensive to acquire sample fluids from ultra-deep wells so it is important that density and viscosity measurements be carried out with minimal volume of the reservoir fluid. Overall for PVT studies, density and viscosity measurements should be done:

  • At HTHP (High Temperature High Pressure) conditions to reduce reservoir uncertainty
  • With minimal volume of reservoir fluid

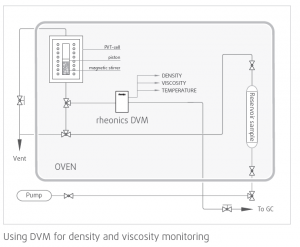

Rheonics’ DVM is a single instrument combining HTHP density meter and viscometer that delivers simultaneous density, viscosity and temperature measurement in the harshest of conditions.

Please read the application note on PVT study with the DVM in HPHT conditions using Rheonics instruments.

Density Viscosity for PVT studies

Density Viscosity for PVT studies

PVT analysis is performed to relate surface production to underground  withdrawal for an oil reservoir and to simulate what takes place in the reservoir during production. PVT data have far-reaching applications in reservoir engineering, from estimating reserves to planning surface…

read more

Rheonics DVM helps reservoir engineers with accurate, reliable PVT & EOR studies

Rheonics_DVM

DVM is a unique 3-in-1 process instrument. Density meter, Viscometer and Temperature gauge all-in-one: it is a small form-factor robust device.

Single instrument, dual function

Rheonics’ DVM is a unique product that replaces two alternatives and offers better performance while operating at true reservoir conditions. It eliminates the difficulty of co-locating two different instruments in any application needing density-viscosity monitoring of the process fluid.

Minimal sample size requirement

Minimal reservoir fluid is used for testing in the DVM since there is no requirement of a separate line or sampling system. Safe and cost-effective to operate, DVM requires only 0.7ml of sample to measure viscosity and density across the complete P,T range saving time and money.



Laboratory instruments have only limited application for measuring fluid properties under reservoir conditions. Very high pressures and temperatures, shock and vibration, limited availability of power, and severe space constraints.

Despite the importance of density and viscosity, they are notoriously difficult to measure under the extreme conditions found in the oil and gas industry. Resonant fluid property sensors are pushing back the limits of measurements thought to be possible only with laboratory-grade instruments.

Unique advantages with the Rheonics DVM for reservoir analysis

3-in-1 process instrument

Density meter, Viscometer and Temperature gauge all-in-one. Small form-factor robust device.

Single instrument for both density and viscosity

Extremely high accuracy in providing the measurements

High accuracy even in harshest of conditions

Measure reservoir fluid density and viscosity at 30,000 psi (2000 bar) and 400°F (200°C)

Lowest fluid use for providing measurements

Less than 0.7 cc fluid sample required for measurement of both density and viscosity under reservoir conditions

Excellent Design

All Titanium Grade 5 wetted parts. Built to operate in oven or bath. Standalone DTCM for smallest form factor density and viscosity.

Extremely convenient operations

No hardware or software changes to measure density and viscosity across complete range. No re-calibration required to remove effect of viscosity or change of pistons to measure viscosity in different range.

Accurate temperature measurement

Class AA Pt1000 for accurate temperature reading of the sample fluid

Rheonics solution for HPHT density and viscosity
dvm in-line, online, real-time high-pressure high accuracy high-temperature hpht viscosity & density tracking

DVM

HPHT ultra high accuracy all-in-one density meter and viscometer

in-line, online, real-time high-pressure high-temperature viscosity & density tracking

  • Simultaneous density, viscosity and temperature measurement
  • Measure at reservoir conditions: 30,000 psi and 400°F (2000 bar and 200° C)
  • Built for on the bench or in the field use
  • Extremely accurate measurement in the harshest of conditions
  • 5 minutes from box to operation in your flow loop – built to integrate with all PVT systems
  • Full Titanium Grade 5 construction
Search
