SRV - Request for Quote Form

Configure SRV

Select the required options for the inline process viscometer SRV. Refer to the SRV-Datasheet for more information.(* indicates required)

Material

Sensor probe wetted part

SS: Stainless steel 316L (1.4435)

C22: Hastelloy C22 (2.4602)

Product Approvals (if required)

EX-certified sensor required:

Not required

IECEx

ATEX

Installation Location (for ATEX certified sensor)

Country

Language (for ATEX requirements) Please state language in which you would like to receive the DoC (Declaration of Compliance) and Safety Information.

Do you need a Hygienic Certification?

-HS Probe Variant

None

3A: 3-A

EG: EHEDG

Sensor Options

Viscosity Range (select one) *

V1 : 3 - 3000 cP : Standard viscosity range

V2 : 3 - 50,000 cP : Extended viscosity range

V3 : 0.5 - 3000 cP : Extended lower viscosity range

V4 : custom : Customer specified viscosity range

If you selected V4 above, specify the viscosity range for your process fluid :

Calibration (select one) *

STD : Standard calibration accuracy

CUS : Customer specified calibration accuracy - specify viscosity setpoints in input box below

If selected CUS above, please specify the viscosity setpoints and accuracy required

Electronics (select one) *

Please refer to the Electronics and Communications Page for more information.

E1 : SME-TRD : Transmitter housing with display

E2 : SME-TR : Transmitter housing with solid cover

E3 : SME-DRM : DIN-rail mount housing

E4 : SME-BOX : Desktop version of electronics with 10.4" touchscreen

FT Option - Fixed Transmitter Sensor

SS Electronics - Stainless Steel Transmitter, available for E1 and E2

Communication

Rheonics electronics are pre-configured with the following communication options.

C1 : 4-20 mA : 3 channels of 4-20 mA analog signal

C2 : Modbus RTU (RS-485) : Modbus RTU over RS-485

C3 : USB : USB 2.0 compliant service and data acquisition port

C4 : Ethernet : Ethernet active on RJ45 connector

Additional FieldBus Communication Options

C5 : Bluetooth LE 4.0 : Bluetooth module for short range communication (only for E1)

C6 : Modbus TCP (Article)

C7 : Ethernet/IP (Article)

C8 : HART (Article)

C9 : Profinet (Article)

Temperature (select one) *

Note: With EX-SRV, T5 is not available and temperature limit is 250°C

T1 : 125 °C : Sensor rated for operation in process fluids up to 125 °C (250 °F)

T2 : 150 °C : Sensor rated for operation in process fluids up to 150 °C (300 °F)

T3 : 175 °C : Sensor rated for operation in process fluids up to 175 °C (350 °F)

T4 : 250 °C : Sensor rated for operation in process fluids up to 250 °C (480 °F)

T5 : 285 °C : Sensor rated for operation in process fluids up to 285 °C (545 °F)

If needed, specify the maximum working temperature:

Pressure (select one) *

P1 : 15 bar (200 psi) : Sensor rated for process fluids pressure up to 15 bar (200 psi)

P2 : 70 bar (1000 psi) : Sensor rated for process fluids pressure up to 70 bar (1000 psi)

P3 : 200 bar (3000 psi) : Sensor rated for process fluids pressure up to 200 bar (3000 psi)

P4 : 350 bar (5000 psi) : Sensor rated for process fluids pressure up to 350 bar (5000 psi)

P5 : 500 bar (7500 psi) : Sensor rated for process fluids pressure up to 500 bar (7500 psi)

P6 : 750 bar (10000 psi) : Sensor rated for process fluids pressure up to 750 bar (10000 psi), needs SR-HP

P7 : 1000 bar (15000 psi) : Sensor rated for process fluids pressure up to 1000 bar (15000 psi), needs SR-HP

P8 : 1500 bar (20000 psi) : Sensor rated for process fluids pressure up to 1500 bar (20000 psi), needs SR-HP

Process Connection (Select one) *

X1 : 3/4" NPT threaded probe (Article)

X1 : G 1/2" BSPP threaded probe (Article)

X1 : Custom thread - limited variants, specify below

X2 : Probe with Flange, specify flange DN/PN in box below (Article)

X3 : Probe with Tri-Clamp, specify TC norm & size in box below (Article)

X4 : Flush probe, specify flange type, norm & size in box below (Article)

X5 : Long insertion probe (FPC), select A & B in sections below (Article)

X6 : Slimline probe (SLP), select A & B in sections below (Drawing)

X7 : Reactor probe (RP), select L & B in sections below (Drawing)

X8 : Teletube probe (TT), select A & B in sections below (Article)

If required, for X1, X2, X3, X4: Specify type, norm and size of process connection :

For X5, X6, X7 and X8: Use the following fields to specify further configuration

A: Insertion Length - For X5, X6 and X8, input insertion length of probe, A (in mm) in box below. Specify unit if other than mm.

L: Total Probe Length - For X7

B: Process connection type, norm and size - For X5, X6, X7 and X8

Configuration drawings of the X5 long insertion sensor probe with various process connections :

Long insertion probe configuration drawings

Flange (Drawing)
DIN11851 (Drawing)
Triclamp (Drawing)
Threaded (Drawing)
Varinline (Drawing)

Sensor Cable (Select length) *

See all available cables in the Sensor cable comparison table.

For custom cable length - specify length in meter or feet :

M12 Connection Type

See reference pictures for straight connection and 90° angled connection

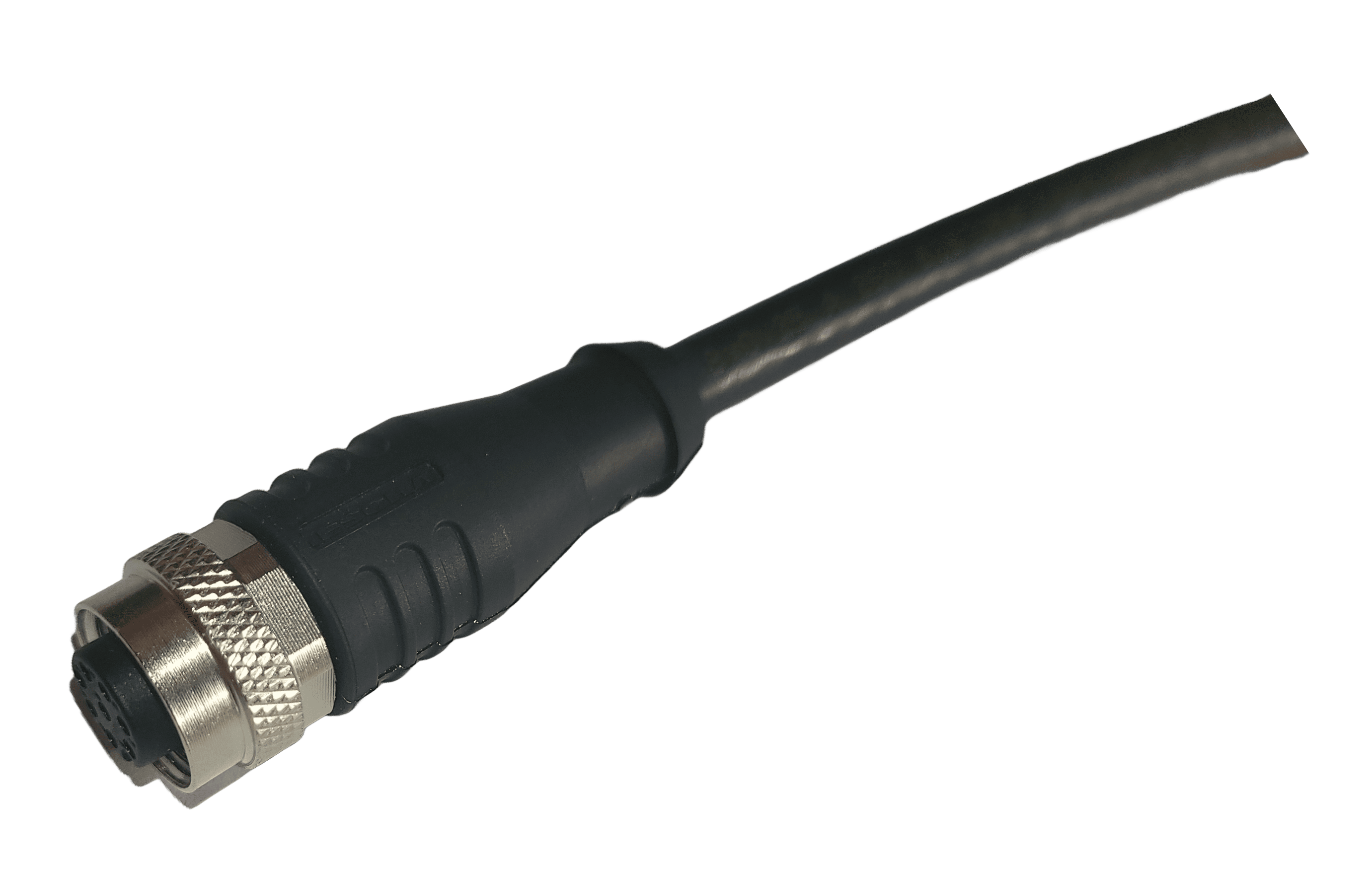

Straight

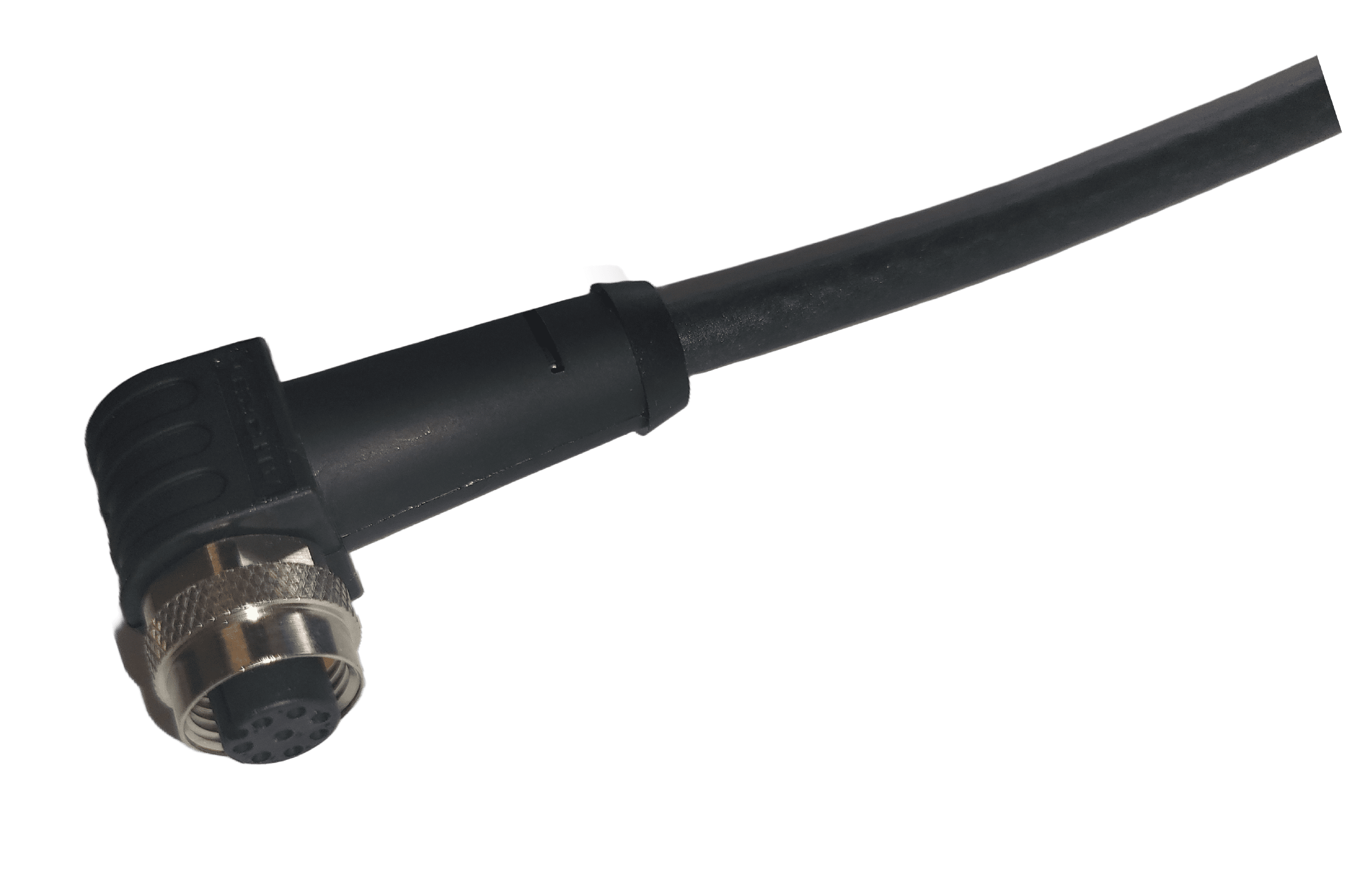

90° Angled

Straight High Temperature (only 5m length)

Straight IP69K (only 5m length)

Select all accessories that are required

Please refer to Accessories Page for list of accessories and their details.
Note: EZB-03X : For EX-SRV, Zener barriers are automatically added to order.

IFC-34N-SRV: Inline adapter for 3/4" NPT sensor probe

IFC-15T-34N-SRV: Inline adapter for 1.5" TriClamp sensor probe

TMA-34N: Tank mount adapter for 3/4" NPT sensor probe

HPT-12G: Hygienic inline flow cell for G1/2" sensor probe

HPT-SRV: SRV HPHT Flow cell for 3/4" NPT sensor probe

TMB-TRX: Transmitter Mounting Bracket

THX-SS: Stainless steel transmitter housing - additional surcharge

WOL-34NS: 3/4" NPT sensor weldolet for 2" pipes

WOL-34NL: 3/4" NPT sensor weldolet for pipes bigger than 2" or tanks

HAW-12G-MTK: G1/2" weldolet with metal seal

HAW-12G-OTK2: G1/2" Hygienic weldolet with O-ring seal

SCC-SRX: Calibration cylinder

SCS-00A: Calibration stand

SPS-SRX: Protective sleeve for SRV/SRD

IMS-SR: Impact shield for sensor probe

STCM-STD: SRV thermal control module

FET-XXT-XXT: 1.5" and 2" Tri-Clamp flow elbow tee

FTP-XXT: Tri-Clamp spool piece

Applications & Industries

Select the applicable industry/industries, where you are looking to use the sensor. *

Printing and Coating

Industrial Mixing And Grinding

Food And Beverages

Energy And Hydrocarbons

Petrochemicals

Chemical

Automotive

Paper And Packaging

Life Sciences And Medical

Pumping And Pipeline

Marine

Mining, Minerals And Metals

Others

What is your application? Provide a brief introduction to your process. *

Explore how these sensors are used by other customers for your application in our knowledge base

Ordering Information

Quantity required *

Additional Comments/Message

Brief description about the application, any other requirements specific to the quote

Requested Date of Delivery

Contact Information

Name of contact person *

Name of company *

Type of company/organization *

Please select the option which best describes your company/organization

E-mail *

Address *

Country

Phone *

Please provide your contact number.

Extension

Company Website

Privacy Notice

By clicking submit, you acknowledge that you have read the Privacy Notice.

Sales Terms and Conditions

By clicking submit, you agree to our Sales T&C.

Captcha *

reCAPTCHA is required.
