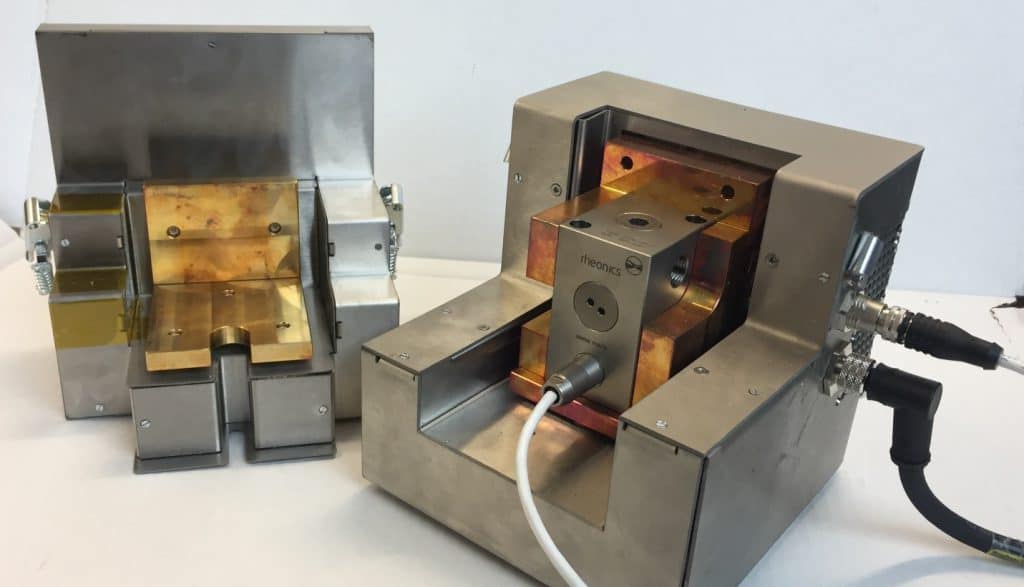

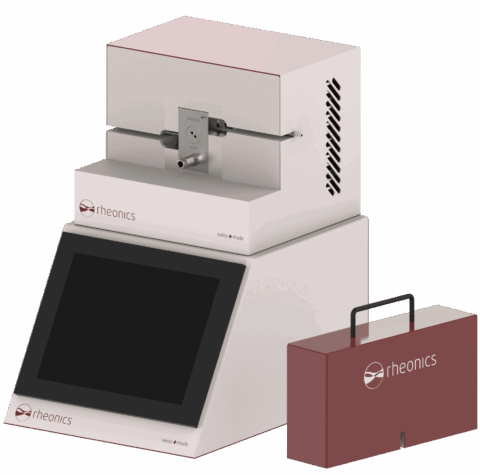

DVM Thermal Control Module

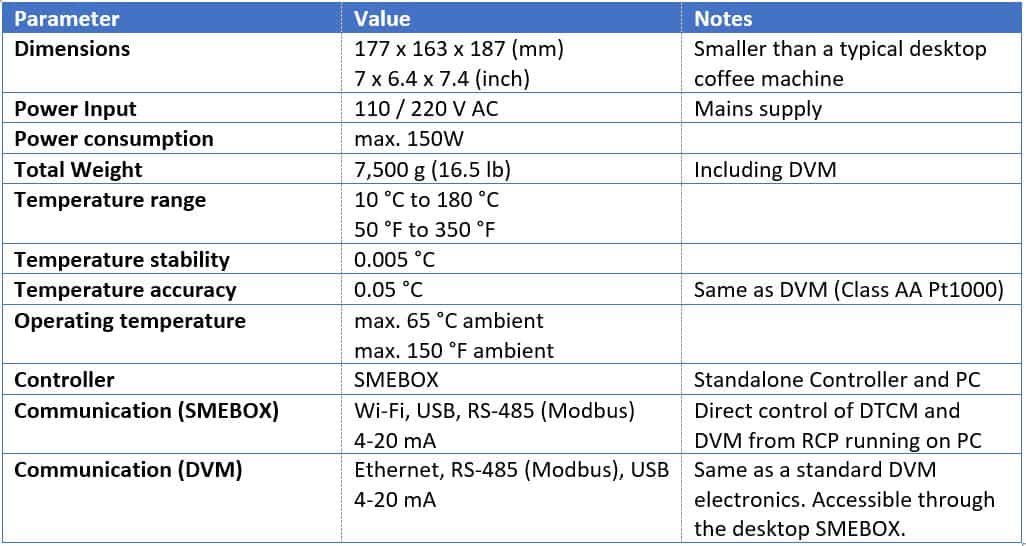

- DVM thermal chamber
- 10 °C to 180 °C
- 0.005 °C temperature stability
- 0.05 °C temperature accuracy
- Integrated temperature controller
- PC built-in for standalone operation
- Ethernet, Wi-fi, RS485 ports for direct integration
- 7.5kg (16.5 lb) with DVM
DTCM is custom designed to ensure uniform temperature distribution across DVM even when installed in a flow loop. Heating and cooling is achieved through solid-state thermal devices with an advanced model-based controller. DTCM was designed after extensive simulation and testing to ensure high level of thermal stability, accuracy and repeatability.
DTCM eliminates the need for bulky and expensive thermal test chambers (climate chambers) for temperature control. It reduces the foot print to the same size as a typical small coffee machine (Nespresso) while achieving 10x better stability and uniformity compared to a typical 100L commercial thermal chamber. It enables HPHT fluid analysis with DVM in field and mobile units without compromising data integrity.

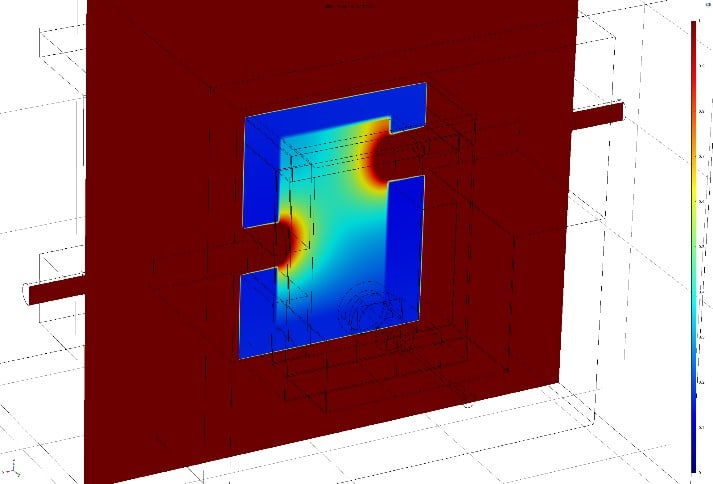

Fig.1 – Thermal uniformity across the DVM during operation
